Hi,

in 1932,French announced a competition for five seat night bomber,
BN.5,eight proposals from five companies;
LeO-30,LeO-301,Bloch-200,Farman-221,Couzinet-70BN.5,Couzinet-90,
Couzinet-91 and Potez-41M.

Although in this period (1932-1934),many BN.5 aircraft and projects
were appeared,such as; Amiot-180,Bordelaise AB-20,AB-21,Breguet-580
and Latecoere Late-530,and I don't know if they involved in this
competition or not,
who knows ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,540
Reaction score
6,266
Hi,

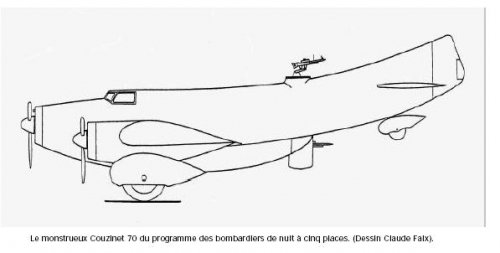

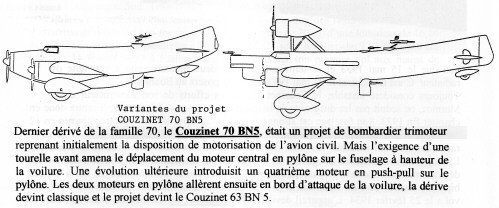

for the Couzinet-70 BN.5 project version,and from Hydroretronet site.

And the info about the eight proposals fron five companies was
from A-Z magazine.


Attachments

  • Couzinet-70 BN.5.JPG
    Couzinet-70 BN.5.JPG
    17.5 KB · Views: 441

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,540
Reaction score
6,266
Hi,

the contenders in this competition were eleven proposals
and not eight as in Hydroretro site.

They were;

Potez 41M
LeO-203
LeO-204
LeO-300
LeO-301,
Farman F-211
Farman F-220
Farman F-221
Couzinet 90
SAB (Bordelaise) AB.20
Bloch MB.200


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,892
Reaction score
1,565
An attempt at translation of the Hydroretro piece on the Potez 41M which described the Potez 41M's earlier, unbuilt flyingboat predecessor. Anyone have an image of that earlier design?

A caption mentions a land-based transport ("appareil terrestre de transport") but its unclear whether that refers to a separate project or is just saying that the Potez 41 BN5 was really a bomber-transport design.

http://www.hydroretro.net/etudegh/potez.pdf

Potez 41 M

In 1931, the transport company Air-Union asked French manufacturers to design a twelve passenger transport aircraft able to cross The Mediterranean (1,000 kilometers). The Potez design office at Méaulte drew up a large flying-boat monoplane with high wing with four engines in tandem pairs above the wings designated Potez 41. This ambitious machine would accomodate eighteen passengers and two pilots. The aircraft cost 670,000 francs, an enormous sum for the time.

The very large wing was of unbraced cantilever type. The wing contained 3,500 liters of gasoline in the central box. A new material was chosen to cover the wing: 'Plymax', a sandwich of plywood and aluminium. However, realizing this wing proved impossible and the Potez 41 design was modified in 1932. Then the projected seaplane was abandoned when the Lioré and Olivier H-24 was chosen by Air-Union.


In 1932, the Army de l'Air issued a request for a five-place night bomber and Potez 41 design was modified a second time. In January 1933, a quarter-scale model, baptized Potez 41E, was built in order to validate the bomber's aerodynamic approach (based on the Polish PZL-3). The construction of the full-scale prototype, designated Potez 41M, was completed in 1934, but the state abandoned its night bomber BN5 program.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
253
Re: French competition of 1932 BN.5 - Société Aérienne Bordelaise AB.20 BN5.....

hesham said:
Hi,

the contenders in this competition were eleven proposals
and not eight as in Hydroretro site.

They were;

Potez 41M
LeO-203
LeO-204
LeO-300
LeO-301,
Farman F-211
Farman F-220
Farman F-221
Couzinet 90
SAB (Bordelaise) AB.20
Bloch MB.200

Dear Hesham, here is a small article I've found in French on the Société Aérienne Bordelaise AB.80 (not AB.20; corrected) BN5; but it isn't "secret" and it isn't a "project"......

The article comes from the 15th April 1969 issue of Aviation Magazine International......

Terry (Caravellarella)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
856
Terry... do you imply that AB.20 and SAB.80 were one and the same aircraft? Or did you post the wrong scan?


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
614
Reaction score
163

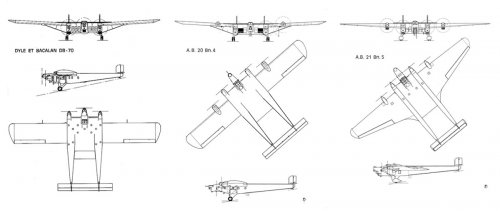

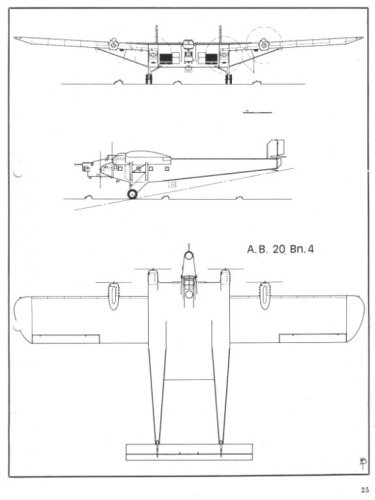

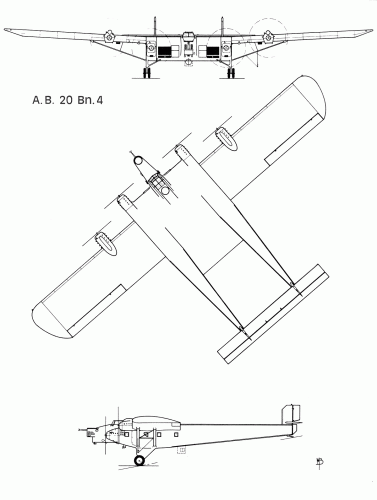

I find this drawing of the AB-20 in the Fana de l'Aviation (issue ?), but it is a Bn-4 (The Bn-5 is the AB-21).


Attachments

  • AB-20 Bn-4.jpg
    AB-20 Bn-4.jpg
    42.4 KB · Views: 1,609

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
253
Stargazer2006 said:
Terry... do you imply that AB.20 and SAB.80 were one and the same aircraft? Or did you post the wrong scan?

I am truly terrible for putting the wrong aircraft into this thread Stéphane; very bad Caravellarella!

I'll start a new topic......

Terry (Caravellarella)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,540
Reaction score
6,266
Thank you my dears Caravellarella and Retrofit.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
614
Reaction score
163

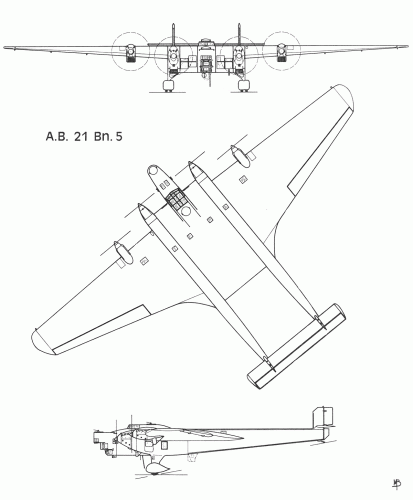

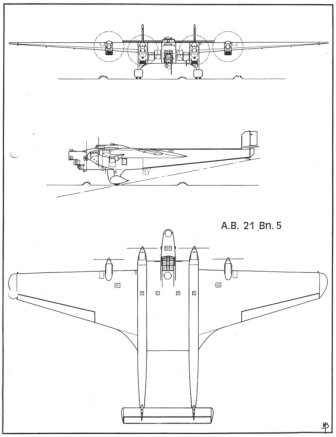

Drawing of the AB-21 Bn5: An aerodynamic nightmare........
Source: Fana de l'Aviation (Issue ?)


Attachments

  • AB-21 Bn5.jpg
    AB-21 Bn5.jpg
    42.1 KB · Views: 1,574

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
53
Website
cmeunier.chez-alice.fr
I could check something in my Trait d'Union magazines big collection (if the manufactuer first letter is from A to L, up to now), tell me which plane is very interesting and/or unknown to you. (The entry is manufacturer not competition code, sorry).


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
153

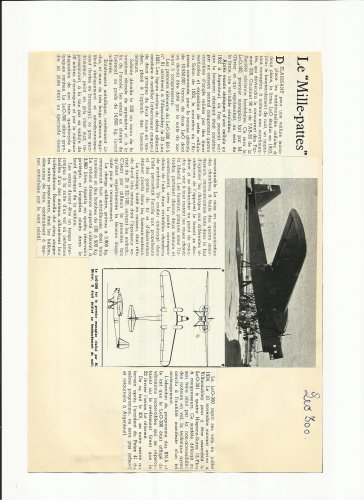

one of the list above


Attachments

  • Scan.jpg
    608.7 KB · Views: 397

lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
246
Reaction score
42
Website
www.res-aeronautica.com
I don't know a lot of this aircraft, but I think that we should consider also the Bloch 211. In my source the aircraft was the second prototype of the Bloch 210 with two Hispano Suiza 12Y vee engines, instead of the Gnome-Rhonme 14 radial engines. Do you have any draw of the aeroplane?


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
53
Website
cmeunier.chez-alice.fr
hesham said:
for the Couzinet-70 BN.5 project version,and from Hydroretronet site.

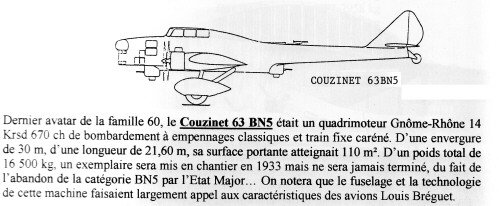

In the Trait d'Union #184 (Mar-Apr 1999) is more about the Couzinet 70 BN5, with 2 very different designs sharing the same code:


Attachments

  • r_tu184b.JPG
    40.7 KB · Views: 109

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
53
Website
cmeunier.chez-alice.fr
Tophe said:
In the Trait d'Union #184 (Mar-Apr 1999) is more about the Couzinet 70 BN5, with 2 very different designs sharing the same code:

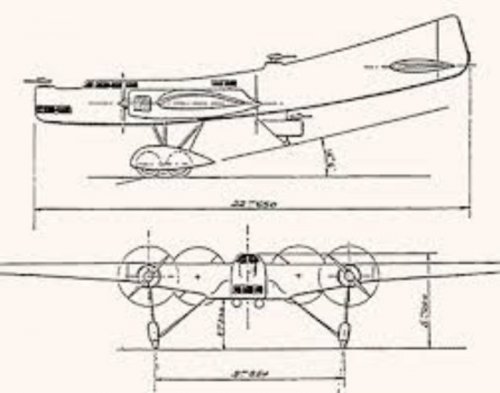

Still in the same issue is another Couzinet BN.5, 1932 requirement, the Couzinet 90, cancelled before the prototype was cancelled, then nick-named "sleeping beauty"...


Attachments

  • r_tu184c.JPG
    78.1 KB · Views: 365

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
53
Website
cmeunier.chez-alice.fr

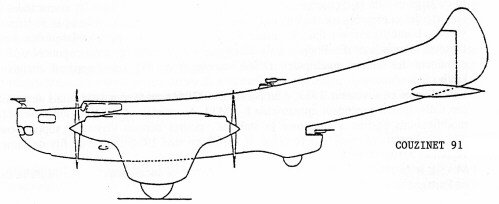

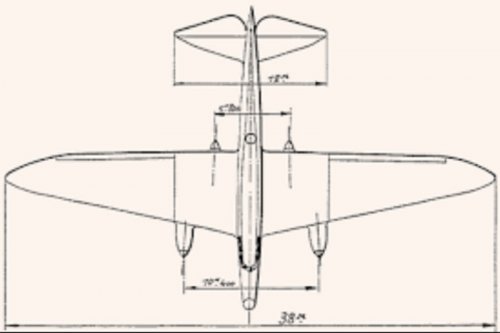

A derivative of the Couzinet 90 was the Couzinet 91 project. It is not mentionned if it was a BN.5 precisely, but with its machine guns in many posts turned rearwards, this is not an airliner nor a fighter...


Attachments

  • r_Tu184c2.JPG
    17 KB · Views: 352

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,540
Reaction score
6,266
Excellent my dear Tophe,


thank you very very much.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

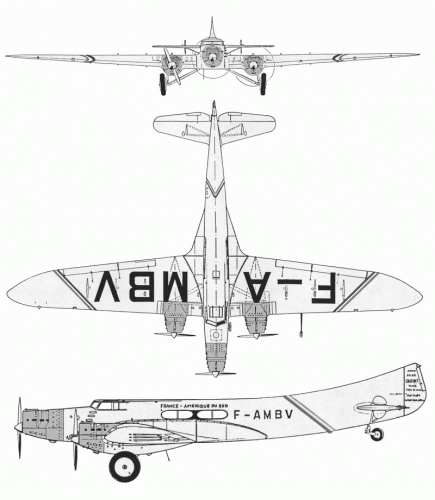

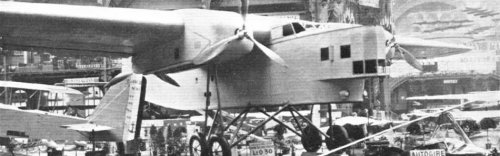

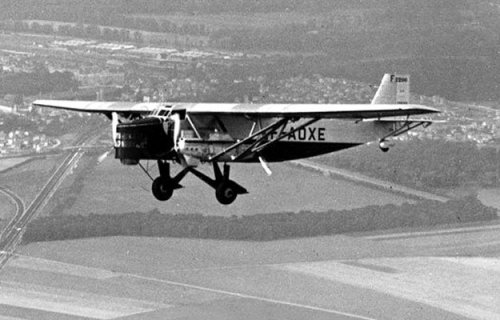

Hi Couzinet-70, base of Couzinet-70 BN.5 and Couzinet 90 and 91 BN.5 drawing.
https://www.youtube.com/watch?v=s6kdU2ywD14

http://www.airwar.ru/image/idop/cw1/couzinet10/

https://www.google.co.jp/search?biw=1366&bih=625&tbm=isch&sa=1&ei=AE8AWpu6EMeo0ATigqiYAQ&q=Couzinet+91+BN.5&oq=Couzinet+91+BN.5&gs_l=psy-ab.12...412438.412966.0.415222.2.2.0.0.0.0.89.165.2.2.0....0...1.1.64.psy-ab..0.0.0....0.OCmO-TA3EzQ#imgrc=_&spf=1509970079199

90.
https://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=15812.0;attach=185612


Attachments

  • couzinet10-1.gif
    192.2 KB · Views: 167
  • Couzinet_91_BN5_plan_view.jpg
    37.2 KB · Views: 158
  • Couzinet 90 BN5.jpg
    Couzinet 90 BN5.jpg
    63.1 KB · Views: 40

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

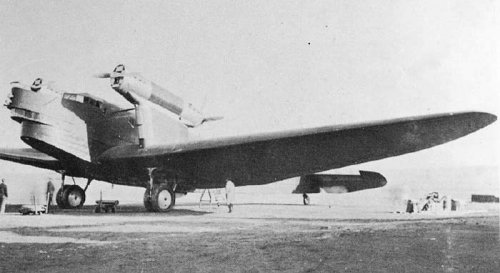

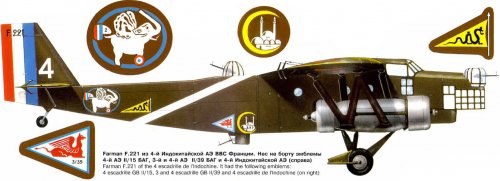

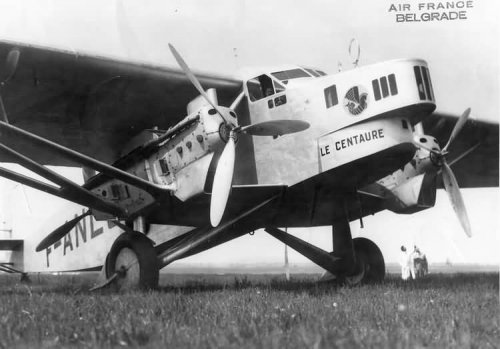

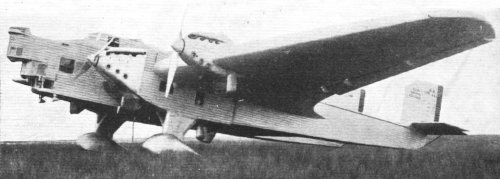

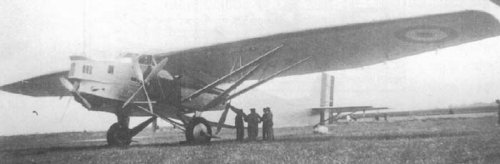

Hi! Farman F.221.

https://en.wikipedia.org/wiki/Farman_F.220

http://wp.scn.ru/en/ww15/b/859/21/0

https://www.youtube.com/watch?v=zJK0DslRVHs


Attachments

  • f221-3f.jpg
    20.9 KB · Views: 45
  • 21_8.jpg
    201.5 KB · Views: 43
  • 21_6.jpg
    41.1 KB · Views: 38

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

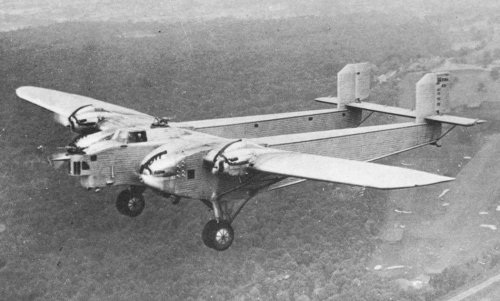

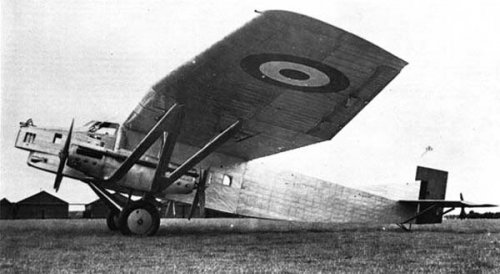

Hi! F.220 BN5.
http://www.airwar.ru/enc/bww1/f220.html


Attachments

  • F220 BN5 PIC1.jpg
    F220 BN5 PIC1.jpg
    38.3 KB · Views: 31
  • F220 BN5.jpg
    F220 BN5.jpg
    52.4 KB · Views: 31

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

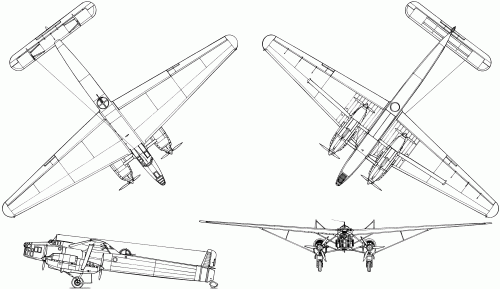

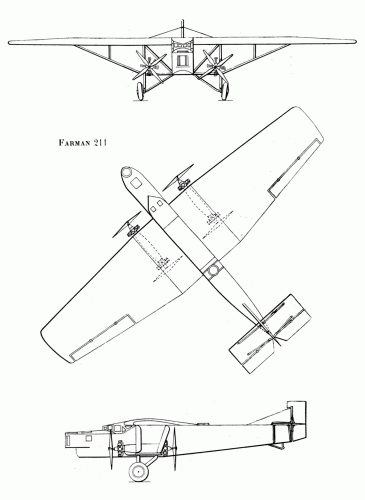

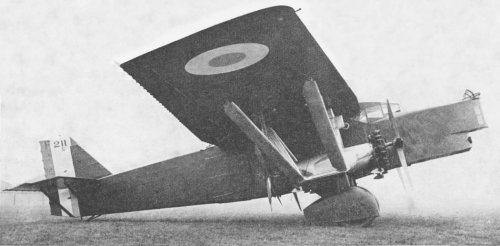

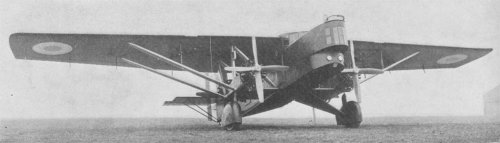

Hi! F.211.
http://www.airwar.ru/enc/bww1/f211.html


Attachments

  • f211-3.jpg
    65.7 KB · Views: 32
  • f211-1.jpg
    40.9 KB · Views: 47
  • f211-1.gif
    225.3 KB · Views: 56

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

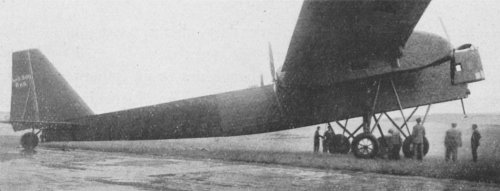

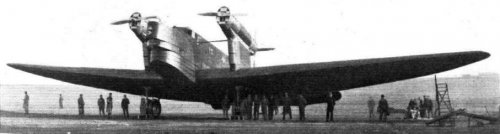

Hi! Potez 41.
http://aviadejavu.ru/Site/Crafts/Craft32042.htm

http://www.airwar.ru/enc/bww1/potez41.html
"In 1932, Societe des Avions Henri Potez developed a project for a long-distance passenger flying boat capable of carrying up to 18 passengers. However, the following year it was decided to change the project and build a night bomber. The new aircraft was designated Potez 41 BN5. The original arrangement of engines on the wings was explained by the availability of the possibility for the crew to inspect and repair the engines during the flight. Since this arrangement of the engines was a novelty, two smaller aircraft copies were first constructed, which received the designation Potez 41E.

The first prototype aircraft Potez 410 Bn 5 took off on July 25, 1934. During the tests the plane proved to be the best. However, on October 1, 1934, the plane crashed, the pilot died (the parachute did not open), but the mechanic who remained on board the aircraft miraculously survived. After this incident, all further work was stopped. "


Attachments

  • potez41-4.jpg
    59.3 KB · Views: 60
  • 489-2.jpg
    48 KB · Views: 52
  • 73-3.jpg
    44.9 KB · Views: 49

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hi! Lioré et Olivier 300 (abbreviated to LeO 300).
https://en.wikipedia.org/wiki/Lior%C3%A9_et_Olivier_300
"The Lioré et Olivier 300 (abbreviated to LeO 300) was a 1930s French prototype night bomber. Only one was built when the programme was abandoned.
The LeO 300 was designed to meet a French requirement for a BN.5 category night bomber. It was a high-wing cantilever monoplane with a crew of five. The prototype first flew in September 1933, powered by four 500 hp (373 kW) Renault 12Jb engines mounted in tandem pairs on the wings. The LeO 300 was superseded by the LeO 301 with more powerful engines but with the withdrawal of the requirement it was abandoned in final assembly and work on the programme was stopped."

http://www.airwar.ru/enc/bww1/leo300.html


Attachments

  • leo300-6.jpg
    59.7 KB · Views: 36
  • leo300-5.jpg
    50.6 KB · Views: 35
  • leo300-4.jpg
    42.7 KB · Views: 42

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

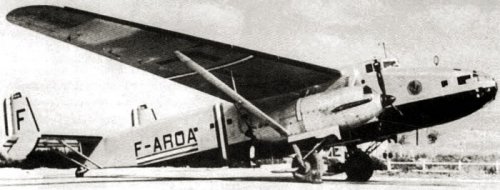

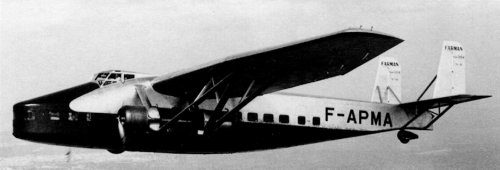

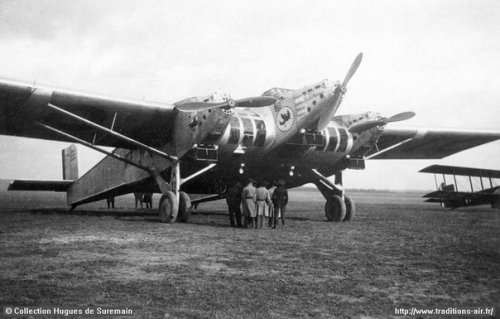

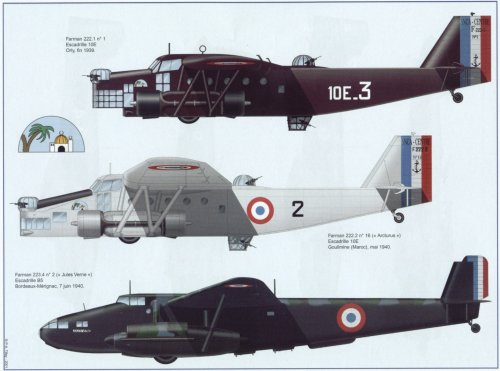

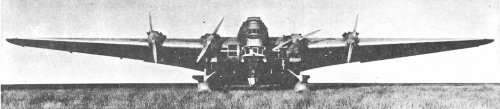

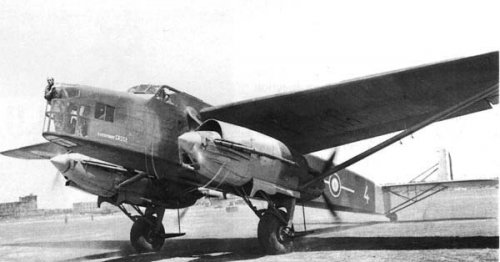

Farman F.220 series. Very sorry for including off topic.
https://en.wikipedia.org/wiki/Farman_F.220
Farman F.220
Farman F.220.01 - prototype with Hispano-Suiza 12Lbr engines (1 built)
Farman F.220B - mailplane (converted from F.220)
Farman F.220-0 - production version of the F.220B (4 built)

Farman F.221 revised version with enclosed gunners' positions, powered by 4x Gnome-Rhône 14Kdrs engines, (10 built, plus one F.221.01 prototype).

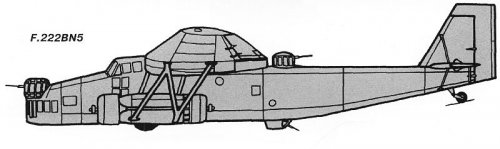

Farman F.222 definitive production version
Farman F.222.1 - revised version with retractable undercarriage and turrets, powered by 4x Gnome-Rhône 14Kirs engines (11 built)
Farman F.222.01 prototype converted from the F.221.01)
Farman F.222.2 - F.222.1 with redesigned nose, powered by 4x Gnome-Rhône 14N-11 engines, (24 built).
Farman F.2220 - airliner prototype for Air France as Ville de Dakar, powered by 4x Hispano-Suiza 12Xgrs engines, (1 built).

Farman F.223 version with twin tail and revised aerodynamics, 1,100 hp (820 kW) Hispano-Suiza 14AA-08 / Hispano-Suiza 14AA-09 engines S.N.C.A.C. NC.223.1 - prototype, built as mailplane Laurent Guerrero (1 built)
S.N.C.A.C. NC.223.01 - bomber prototype with Hispano-Suiza 12Xirs engines (1 built)
S.N.C.A.C. NC.223.2 - bomber version with Gnome et Rhône 14N engines (not built)
S.N.C.A.C. NC.223.3 - bomber version with 910 hp (679 kW) Hispano-Suiza 12Y-29 engines (8 built)

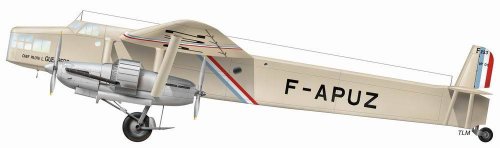

S.N.C.A.C. NC.223.4 - mailplane version (3 built: Camille Flammarion, Jules Verne, and Le Verrier)
S.N.C.A.C. NC-2230 - A single postal transport powered by 4x Hispano-Suiza 12Xirs engines.
S.N.C.A.C. NC-2233 - A Bomber version of the F.233 powered by 4x Hispano-Suiza 12Y-29 engines, (15 built).
S.N.C.A.C. NC-2234 - Three airliners built for Air France, powered by 4x Hispano-Suiza 12Y-37 engines

Farman F.224 40-seat airliner with Gnome-Rhône 14N-01[5] engines for Air France but rejected (6 built)
Farman F.224TT - F.224s converted to troop transports for the Air Force.

223.4 picture source
http://www.airwar.ru/enc/bww2/nc2233.html
https://weaponsandwarfare.com/category/naval/page/4/
http://www.dieselpunks.org/profiles/blogs/s-a-m-21-bomber-liner-mailplane


Attachments

  • vchbjjkhu.jpg
    637.1 KB · Views: 52
  • 224.jpg
    40.9 KB · Views: 42
  • 223.4.jpg
    55 KB · Views: 33
  • nc223-3.jpg
    39.9 KB · Views: 39
  • SNCAC 223.4.gif
    SNCAC 223.4.gif
    138.7 KB · Views: 54
  • 223.4.jpg
    246.5 KB · Views: 52
  • farman-nc-223.3.gif
    177.9 KB · Views: 51
  • Frman NC.223.3.jpg
    Frman NC.223.3.jpg
    30.9 KB · Views: 40
  • Fran_Farman_F222_p.jpg
    190 KB · Views: 45

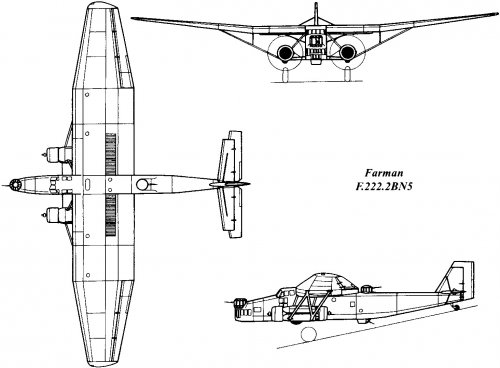

  • Farman F.222BN5.jpg
    Farman F.222BN5.jpg
    33.4 KB · Views: 35

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
F.224.
https://www.youtube.com/watch?v=6grevNQCpno


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

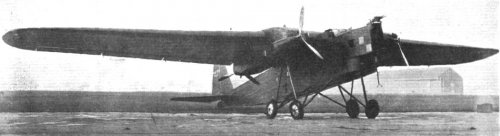

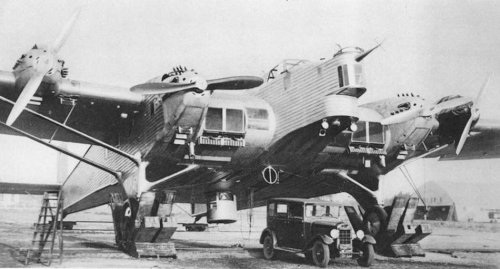

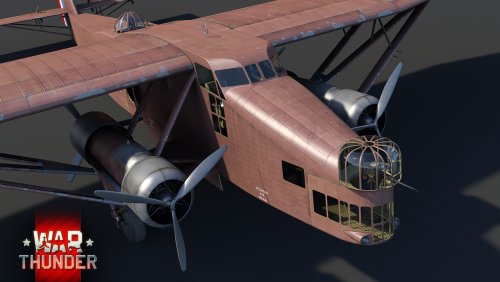

Prototype F.220.01,flat wing F.221 and F.222.2 nose pictures.

http://www.dieselpunks.org/profiles/blogs/s-a-m-21-bomber-liner-mailplane

warthunder. Excellent short animation is here.
https://warthunder.com/en/news/5041-development-farman-f-222-2-big-heavy-yours-en


Attachments

  • F.222.2.jpg
    507.5 KB · Views: 36
  • F.221.jpg
    57.8 KB · Views: 36
  • prototype F.220.01.jpg
    prototype F.220.01.jpg
    56.9 KB · Views: 33

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
SAB AB-20.
https://en.wikipedia.org/wiki/SAB_AB-20

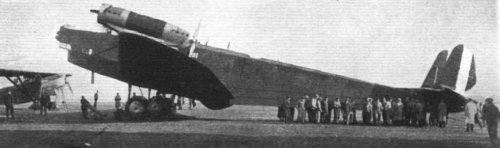

"The SAB AB-20 was a large four engine twin boom French bomber built in the early 1930s as a development of the Dyle et Bacalan DB-70 airliner. It featured a lifting body of thick airfoil section between the inner engines. It was later modified for the attack role; a second aircraft, the AB-21, had different engines and cleaner aerodynamics but no more were built."

"SAB AB-20 A four-engined bomber derived from the three-engined Dyle et Bacalan DB-70, powered by four 493 hp (368 kW) Lorraine 12Fb Courlis engines.
SAB AB-21 Similar to the AB-20 and DB-70 but with cantilevered wings and powered by four 493 hp (368 kW) Lorraine 12Ha Pétrel engines.
SAB AB-22 The sole prototype AB-20, with a crew of five, modified with a 75 mm gun firing sideways. Test firing took place at Cazaux in September 1934, but was terminated after five rounds had been fired due to structural damage to the lower wing skin."

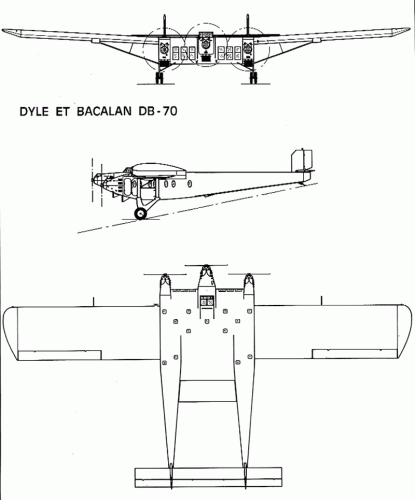

Bacalan_DB-70
https://en.wikipedia.org/wiki/Dyle_et_Bacalan_DB-70
http://www.airwar.ru/enc/cw1/db70.html
SAB AB20.
http://www.airwar.ru/enc/bww1/ab20.html
SAB AB21.
http://www.airwar.ru/enc/bww1/ab21.html


Attachments

  • ab21-4.jpg
    52.5 KB · Views: 36
  • ab21-1.jpg
    57.9 KB · Views: 40
  • ab21-1.gif
    123.7 KB · Views: 47
  • ab20-2.jpg
    75.1 KB · Views: 48
  • ab20-1.jpg
    113 KB · Views: 49
  • ab20-1.gif
    99.1 KB · Views: 52
  • DB70.jpg
    56.3 KB · Views: 49
  • Dyle et Bacalan DB-70.gif
    Dyle et Bacalan DB-70.gif
    74 KB · Views: 42

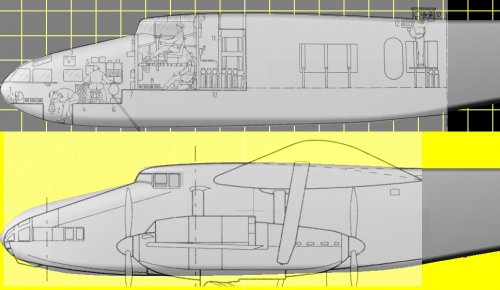

  • Almost_same_scale.jpg
    66.8 KB · Views: 46

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
SAB A.B.21.
https://www.youtube.com/watch?v=hwwN2i94iUc


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
246
Reaction score
42
Website
www.res-aeronautica.com
Dear friends,
I apologize for my stupid question, but the Bn/5 and Bn/4 specifications were developed at the same time?
Can anyone make me a clear list of the projects used for the Bn/4 and a list of the projects used for the Bn/5?
I'm a bit confused...


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
246
Reaction score
42
Website
www.res-aeronautica.com
Top
