How about the early Ferranti radar AI23?I've no info about it except it was used on Lightning fighter.Does AI23 radar has look-down/shoot-down capability?Is it a monopulse radar?What type antenna does it used?How does it compare with other air-born radars in the same period?


zen

ACCESS: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
2,644
Reaction score
1,347
I'd love to hear about AI.23.

Where can we find that information?


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
637
Reaction score
390
PaulMM (Overscan) said:
Sure, I can post some info later.

That was said over six years ago but in the meantime nothing has been posted. Why so?

Piotr


GUNDAM123dx

我好想做嘉然小姐的狗啊
Joined
Oct 31, 2017
Messages
49
Reaction score
113

Attachments

  • QQ截图20200120005344.png
    277.2 KB · Views: 75
Last edited:

GUNDAM123dx

我好想做嘉然小姐的狗啊
Joined
Oct 31, 2017
Messages
49
Reaction score
113
Let me give a summary.
AI.23 series:
AI.23 (or AI.23A(?)) - not very well - detect range maybe just 20+ or 30+ kilometres.
AI.23B/S: detect range - 111km
scanner limit - +-50° in azimuth and +-30° in elevation
scanning rate - 160°/s
AI.23C/D: some modifications (http://www.scottbouch.com/English-Electric-Lightning-T5-cockpit.html)(here's something about AI.23D)
added capability: If AI.23C/D is equiped on EE Lightning: pilots can control the seeker head of the Red Top missile manually even if the radar is in search mode instead of track / fire control mode, so that the pilot can launch the Red Top missile without alarming enemy's RWR.

All information sources is listed below.


GUNDAM123dx

我好想做嘉然小姐的狗啊
Joined
Oct 31, 2017
Messages
49
Reaction score
113

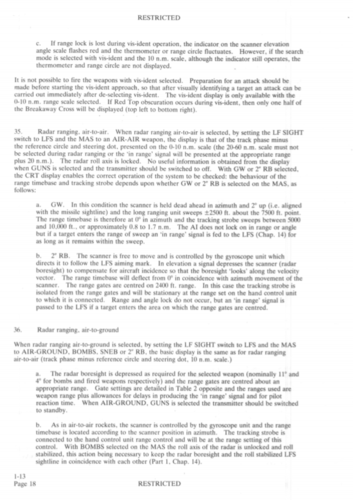

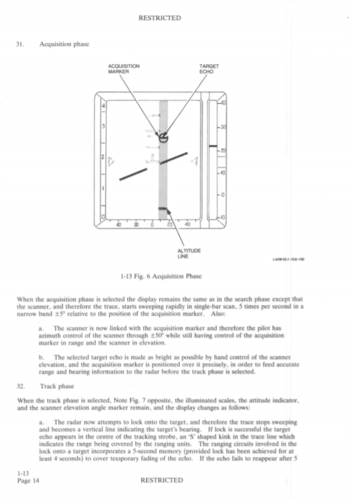

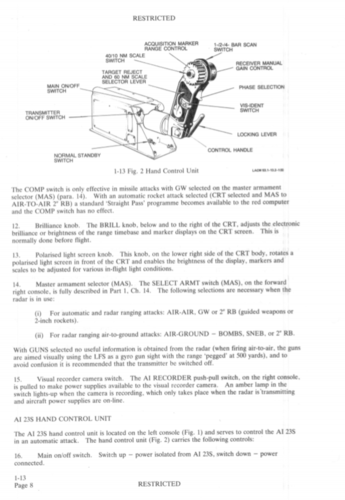

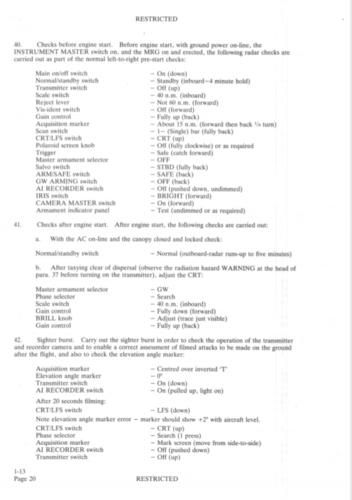

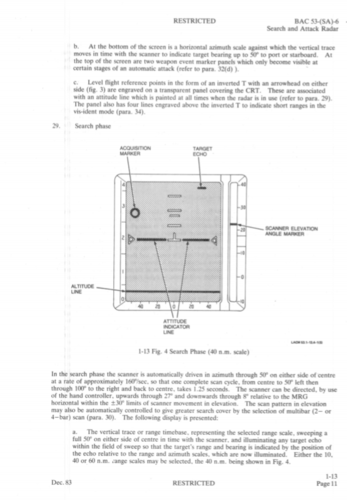

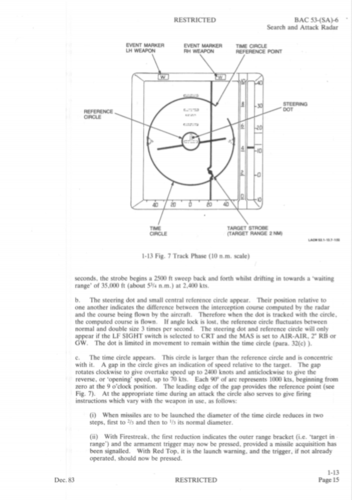

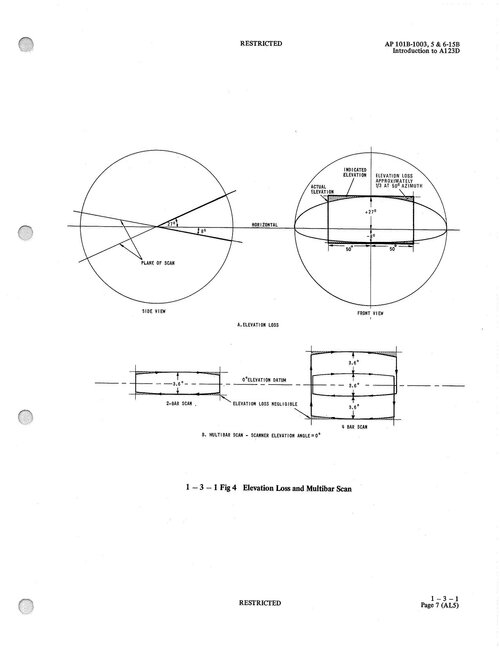

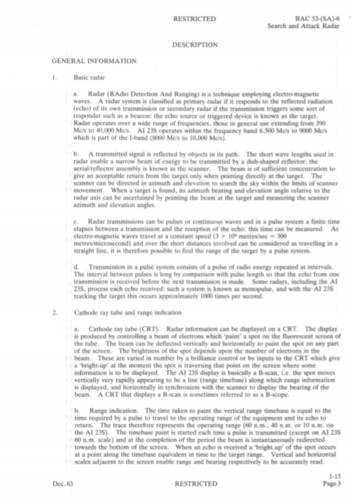

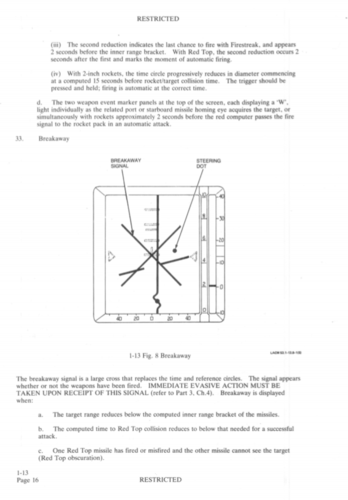

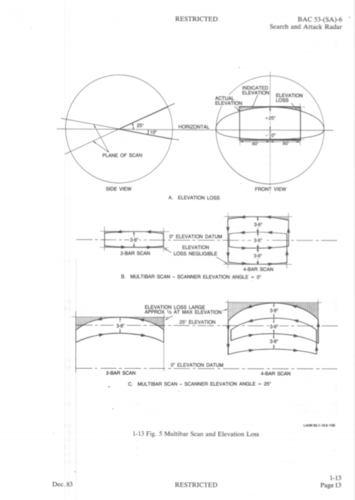

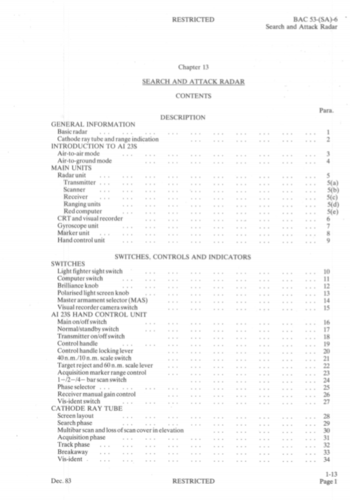

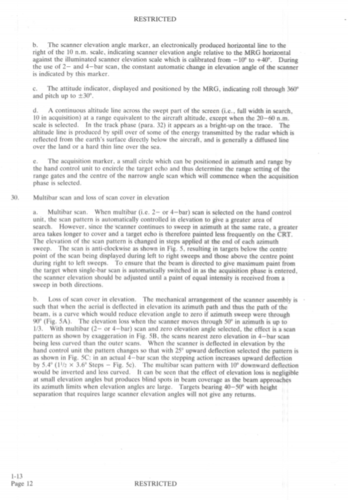

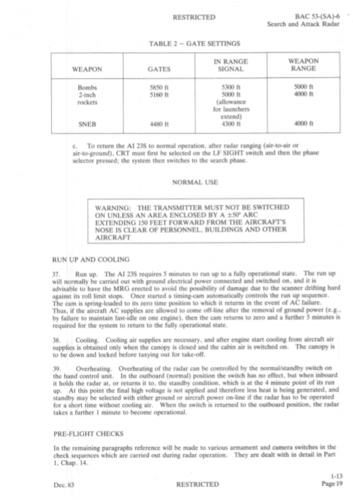

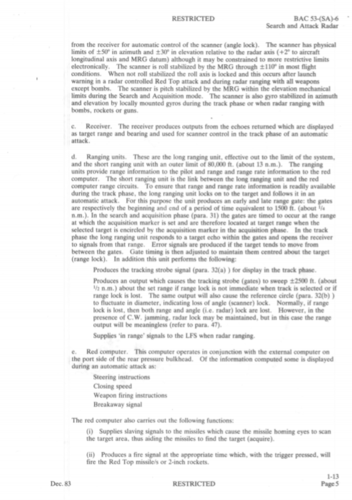

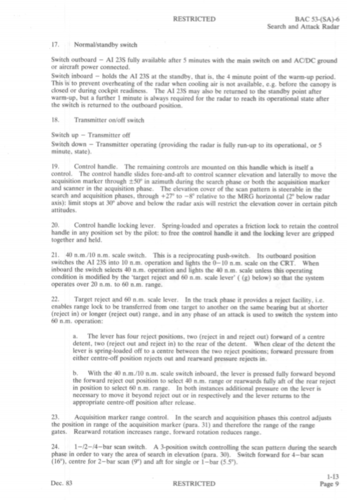

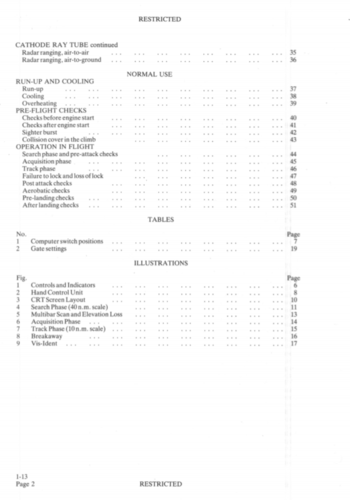

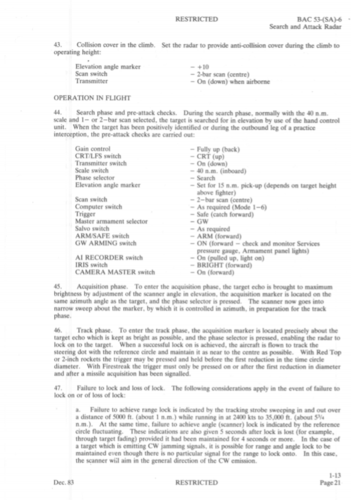

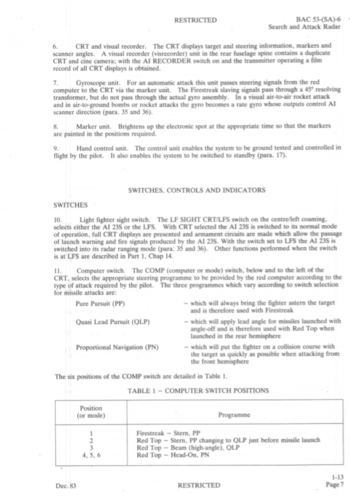

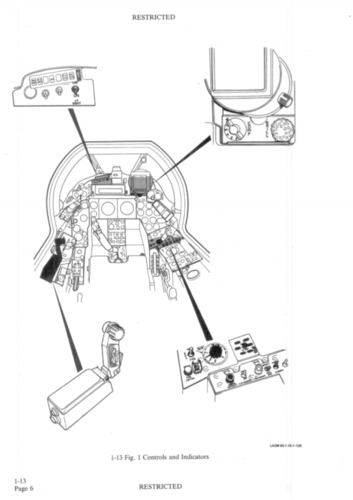

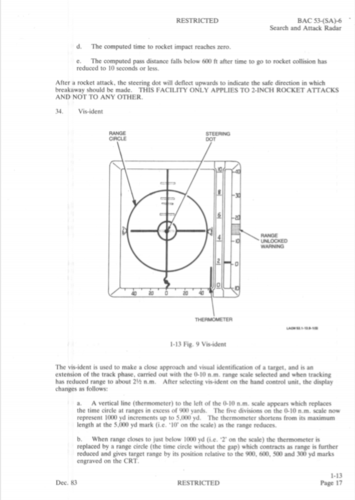

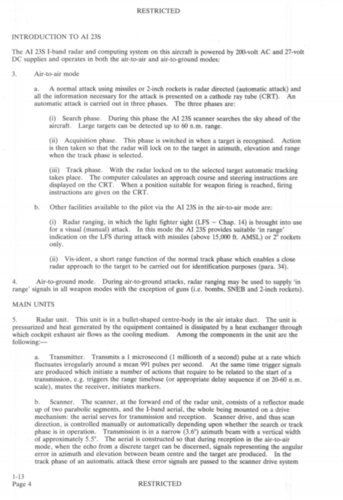

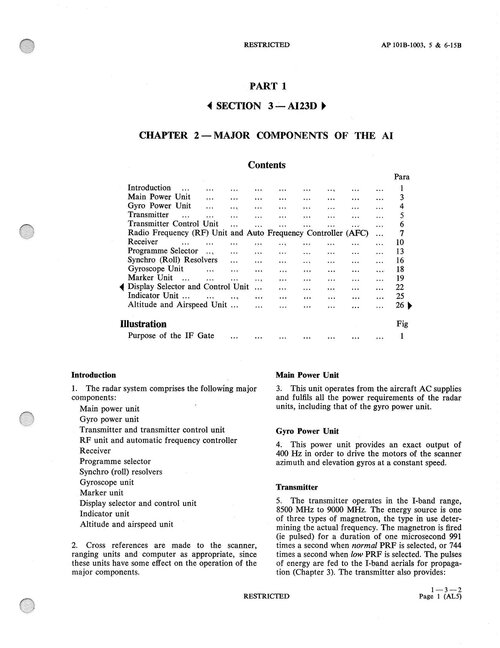

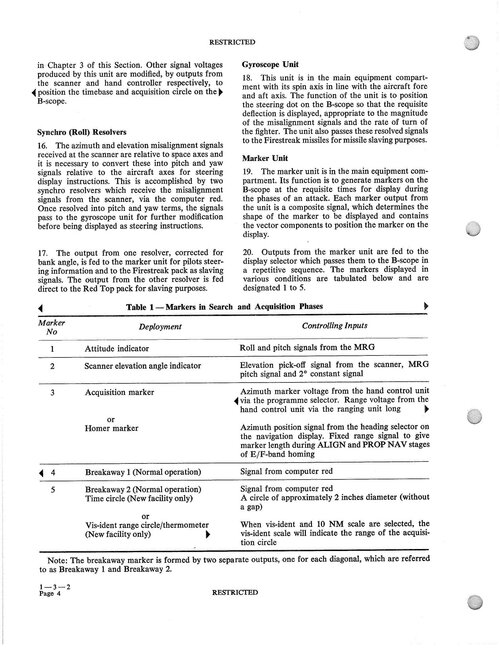

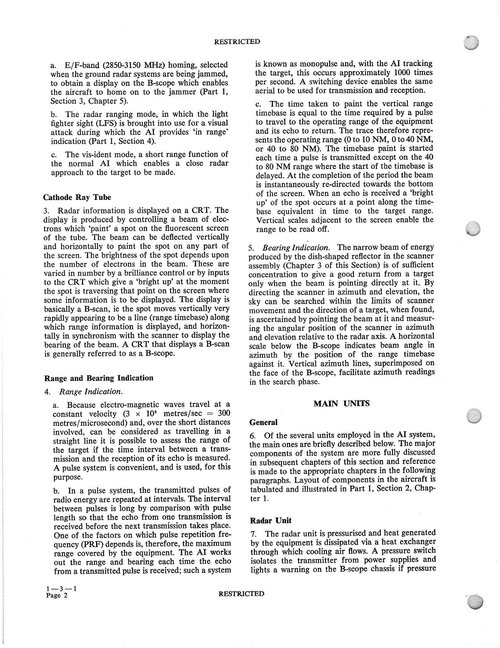

From Lightning F.53 pilots notes.
All is about AI.23S.
AI.23S is the export version of AI.23B, the most commonly equipped AI.23 type.


Attachments

  • QQ截图20200120010706.png
    856.5 KB · Views: 60
  • QQ截图20200120010424.png
    153.7 KB · Views: 46
  • QQ截图20200120010440.png
    120.2 KB · Views: 39
  • QQ截图20200120010448.png
    266.8 KB · Views: 43
  • QQ截图20200120010456.png
    247.8 KB · Views: 41
  • QQ截图20200120010503.png
    262.6 KB · Views: 49
  • QQ截图20200120010510.png
    162.5 KB · Views: 56
  • QQ截图20200120010516.png
    219.6 KB · Views: 48
  • QQ截图20200120010522.png
    222.6 KB · Views: 45
  • QQ截图20200120010528.png
    255.3 KB · Views: 47
Last edited:

GUNDAM123dx

我好想做嘉然小姐的狗啊
Joined
Oct 31, 2017
Messages
49
Reaction score
113

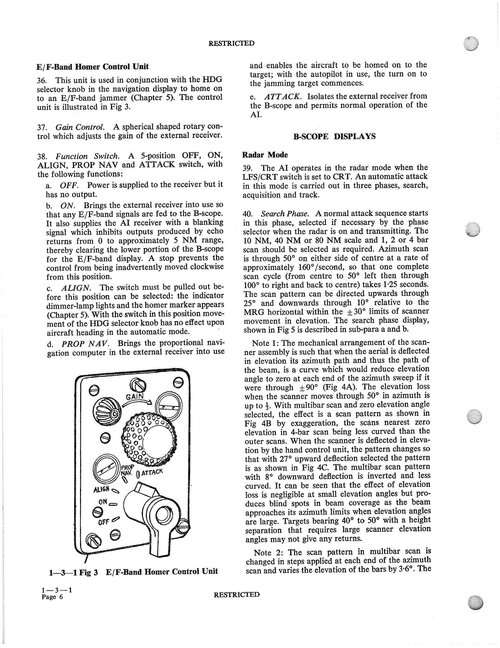

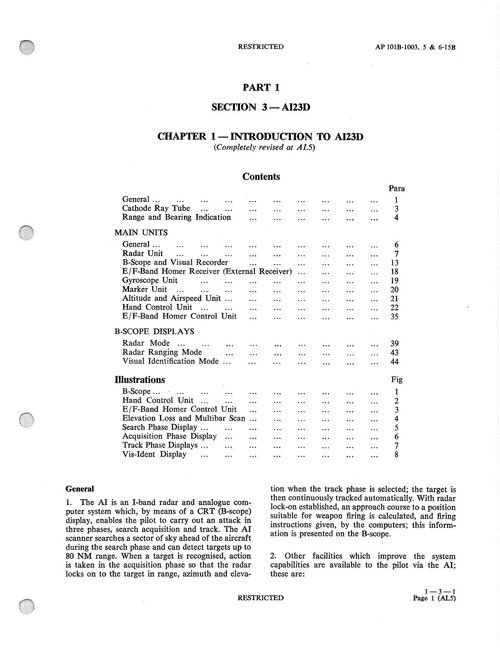

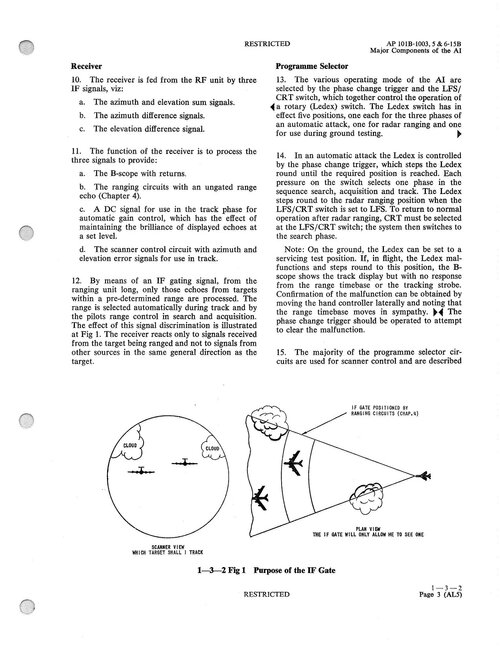

Continue


Attachments

  • QQ截图20200120010534.png
    160.9 KB · Views: 40
  • QQ截图20200120010541.png
    227.8 KB · Views: 38
  • QQ截图20200120010549.png
    248.3 KB · Views: 36
  • QQ截图20200120010556.png
    116.5 KB · Views: 34
  • QQ截图20200120010605.png
    161.2 KB · Views: 34
  • QQ截图20200120010611.png
    192.1 KB · Views: 34
  • QQ截图20200120010619.png
    153.4 KB · Views: 34
  • QQ截图20200120010625.png
    159.1 KB · Views: 33
  • QQ截图20200120010632.png
    282 KB · Views: 28
  • QQ截图20200120010639.png
    212.7 KB · Views: 31
Last edited:

GUNDAM123dx

我好想做嘉然小姐的狗啊
Joined
Oct 31, 2017
Messages
49
Reaction score
113

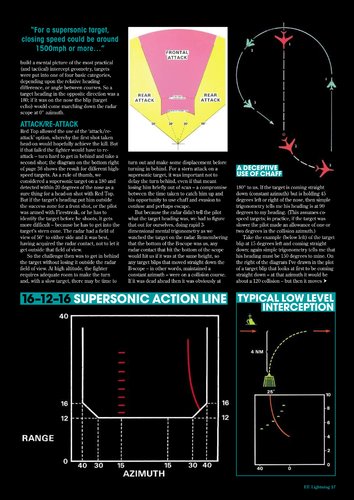

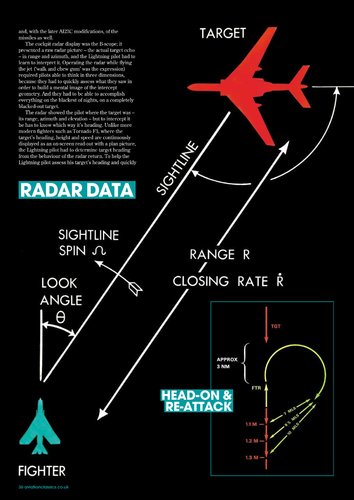

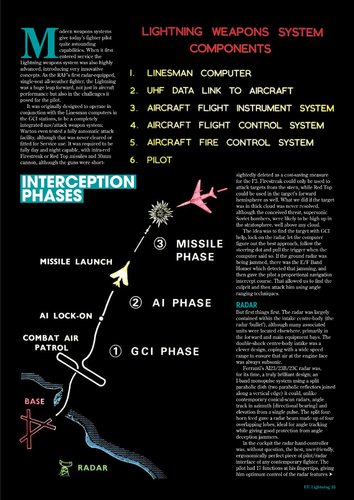

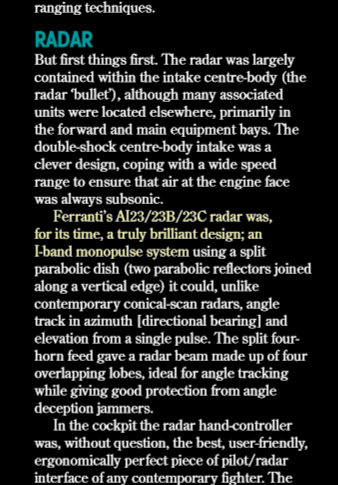

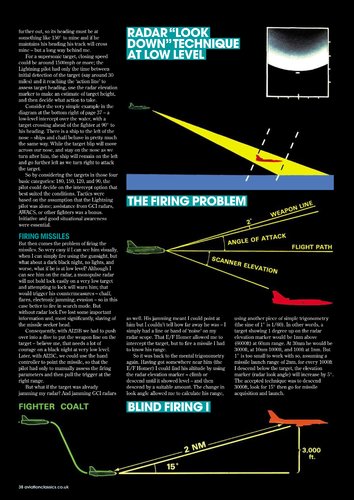

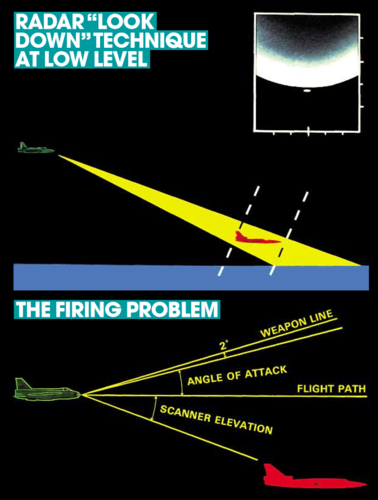

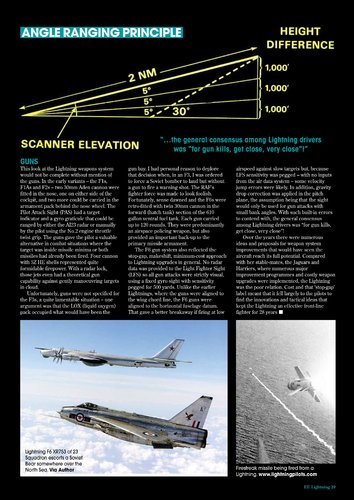

And another source: Aviation Classics 5 English Electric Lightning


Attachments

  • 012001161163_0LightningWeaponsSystem_1.Jpeg
    2.7 MB · Views: 48
  • 012001161163_0LightningWeaponsSystem_2.Jpeg
    2.3 MB · Views: 50
  • 012001161163_0LightningWeaponsSystem_3.Jpeg
    1.4 MB · Views: 42
  • 012001161163_0LightningWeaponsSystem_4.Jpeg
    2.3 MB · Views: 45
  • 012001161163_0LightningWeaponsSystem_5.Jpeg
    2.5 MB · Views: 44
  • 012001161163_0LightningWeaponsSystem_6.Jpeg
    2.9 MB · Views: 66
Last edited:

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,457
Reaction score
7,151

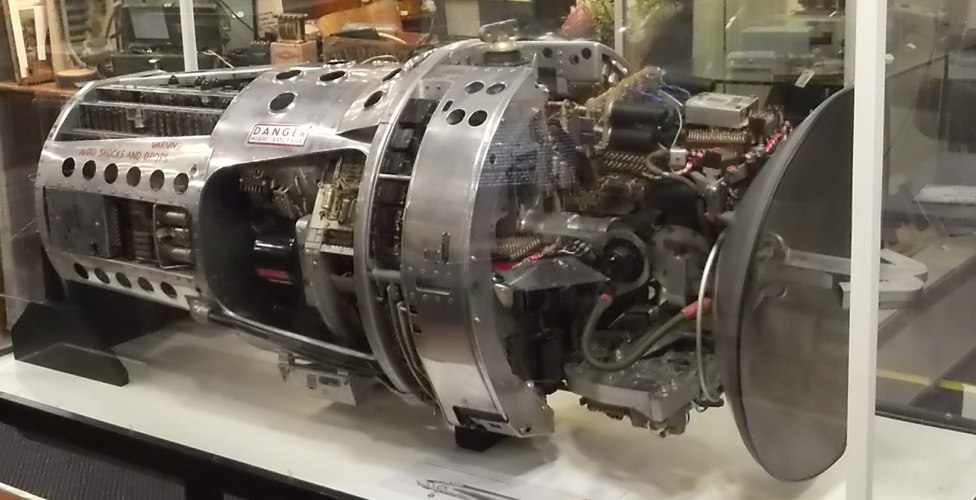

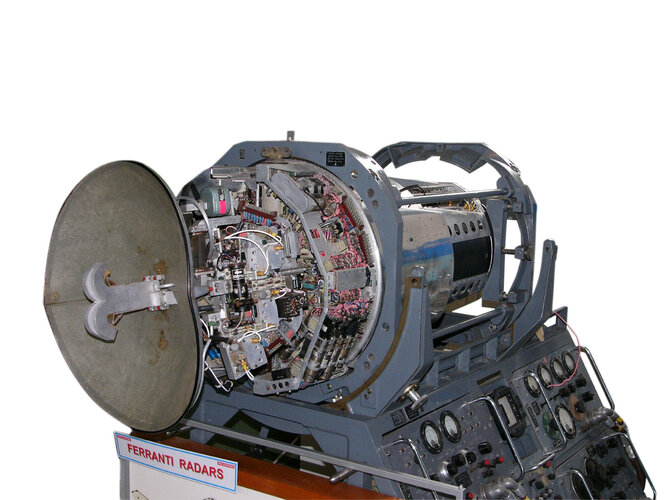

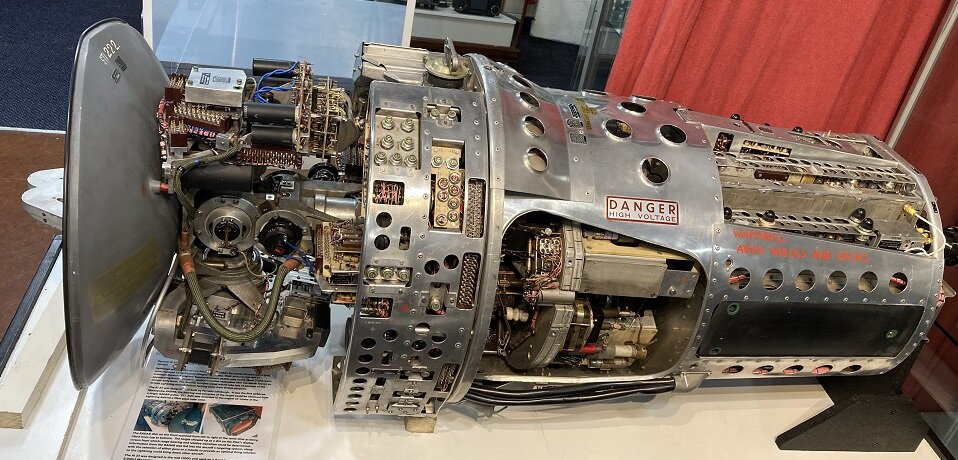

Some interesting snippets from a Ferranti in-house journal. Photo of an AI23 is from Chris Gibson.

The evolution of AI23, or ARI 5897 as it was officially designated, was in fact the genesis of modern, purpose designed Airborne Interception Radars. The fact that it was only a fraction of the weight and size of its predecessor, A118, was only part of the miracle so to speak; the unique feature of the set lay in the Radio Frequency Block. By a system of tape control milling machines. the control design of which was in-house Ferranti, the fourway feed from aerial was matched to this RF Block to provide a three channel output system:

1) A Sum Channel that added all four feeds in vector sumation

2) An Elevation Difference Channel that produced a vector summation of the sum of the two horizontal upper feeds minus the sum of the two lower horizontal feeds.

3) An Azimuth Difference Channel that produced a vector summation of the sum of the two starboard vertical feeds minus the sum of the two port vertical feeds.

The whole of this was achieved within the milled RF Block. All the waveguide couplings and splits. phase shifters, the input for the local oscillator. the connections and housing for the balanced mixers, the provision for an Automatic Frequency Control (AFC) Detector and phase adjusters for the Difference Channels were all there in the one assembly.

This was something that had never been achieved anywhere before and represented a tremendous leap in capability and reduction in the physical size that probably ranked with the transistor to the valve. The added bonus was that the result was not only space saving but produced a vastly improved front end performance. The decision was also taken not to follow the road to transistorisation at that time, but to stay with valve technology. This, in fact, proved to be a significant factor in the relatively low figure of obsolescence experienced during the service life of all the variants from the AI23 through to the A123D; the valves used at the Alpha were still available at the Omega.

The transmitter was built around the English Electric Valve Co. magnetron basic Type 4J50; the service types used were the CV2424, 2425 and 2426. The choice of magnetron allowed a measure of frequency selection. The radar was a Fixed Frequency Monopulse Tracker, operating in the X-band region around 8.5 to 8.7 Gcls at a transmitter power of 200KW peak. This high peak power endowed the radar with remarkable Air/Air detection range, figures in fact that modern Airborne Radars strive to match. The down side was that the world and his wife knew that you were there as soon as you flicked the switch to TX! The other remarkable thing was that the transmitter was part of the roll stabilised assembly; therefore this reduced the number of RF rotating joints required.

So, we had a radar set with a reduced weight, fully roll stabilised, high power, monopulse, with the ability to search. acquire and track targets, allied to an analogue computer that controlled the firing brackets and ballistic equations for the weapons. This was the first radar with this level of capability to go into squadron service anywhere in the world. The first aircraft, with the AI23 variant radar. carried the Firestreak missile. This was a pure pursuit device, therefore all the calculations were concerned with attacks from the rear sector. Later alc, fitted with the A123B. had additional kinematic computing capacity to include collision course attacks for the Red Top missile. since this had the capability to cover all angles of attack from head on to tail pursuit.

Later versions, from AI23B onwards, were fitted with S-band dipoles on the aerial and these were coupled to an external receiver which allowed the pilot to passively scan for S-band returns reflected from target aircraft being illuminated by ground CW radar. The video levels from these returns were displayed along the bottom of the radar display as noise. As soon as a 'peak' started to build at a particular angle of the nose the pilot would turn the aircraft until the peak was in the centre of the scan. By virtue of experience, the pilot assessed the level of the return to an estimate of range. As soon as he felt that he was close enough to prosecute an attack, he would switch the radar transmitter on and 'lock' to the target. This could be done at ranges up to 30nm, although the closer he could get on passive the better.

The radar continued in development phases through AI23C to 23D. It was this last update that put the system back on the 'Secret' list, with the package being referred to as the New Facility. The concept contained in this Facility provided an element of track-while-scan; this allows you to provide information to your on-board missiles of the target position etc., without the need to stop your radar scanning and make it lock to the target a/c. Details of this are not available for, although the AI23 is long gone, the concept is still employed in some form or other in systems still in service.

The export versions for Saudi and Kuwait were designated AI23S and Al23K respectively. They did not have the S-band facility and, initially, the Red Top capability. The Red Top missile was still on the Secret list during the 1967/68 delivery period, although it was, however, retro-fitted al a later date. The original radars supplied under the 'Magic Carpet' advance equipment contract for flight training etc. were suitably de-modified. The Kuwaiti assets were transferred to Saudi Arabia soon after the first delivery. The back up training and spares contract was appropriately referred to as 'Magic Underlay' -at least, it seemed quite appropriate at the time!

There was another export customer in the shape of Brazil. Some 11 systems had been built when, for some reason to which we were not privy, the order was cancelled and the sets were transferred to the RAF.


Attachments

  • AI23 Chris Gibson.jpg
    AI23 Chris Gibson.jpg
    833.3 KB · Views: 22
Last edited:

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,457
Reaction score
7,151

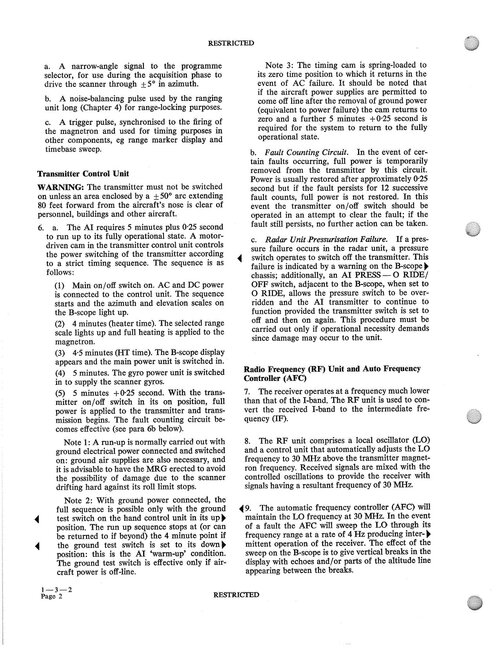

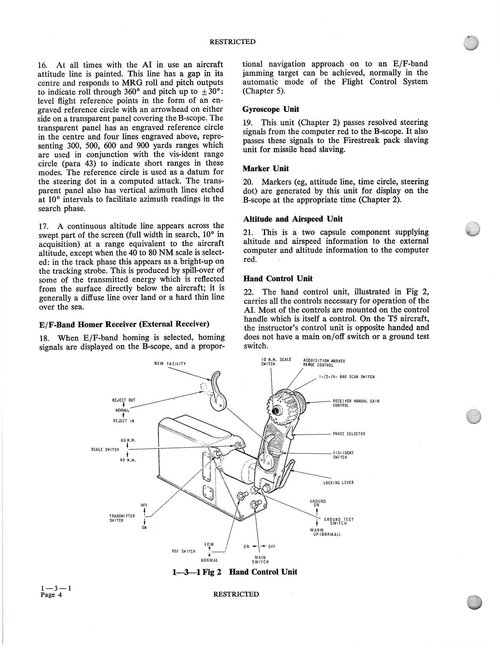

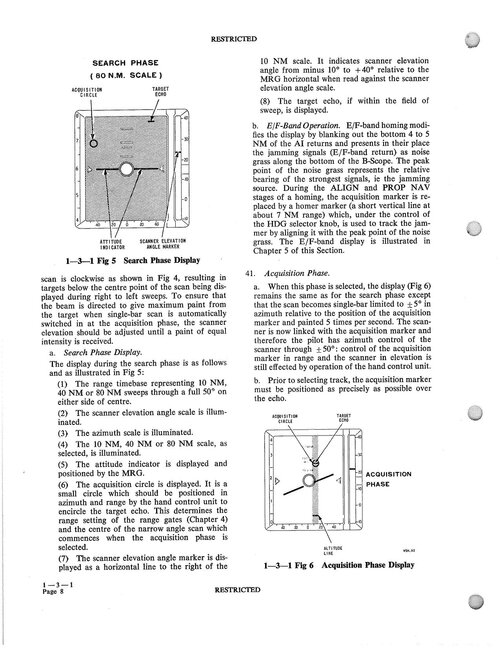

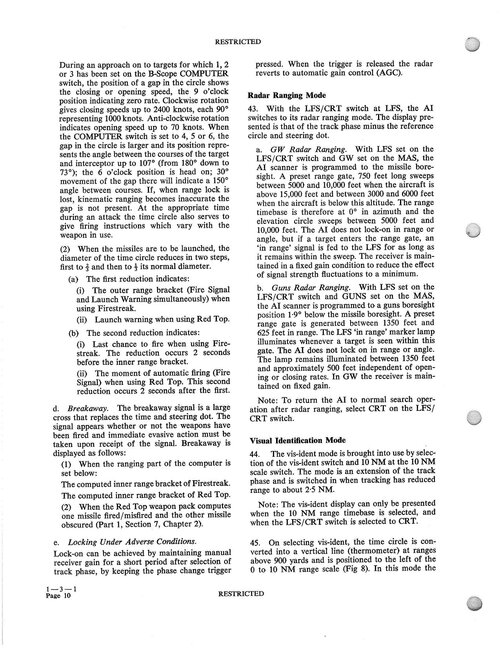

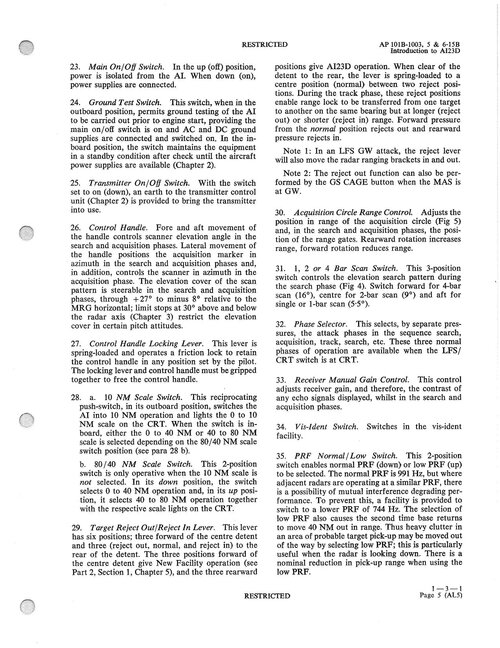

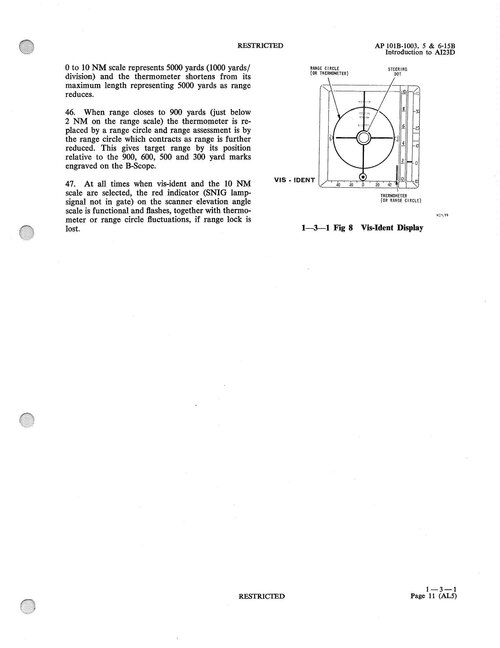

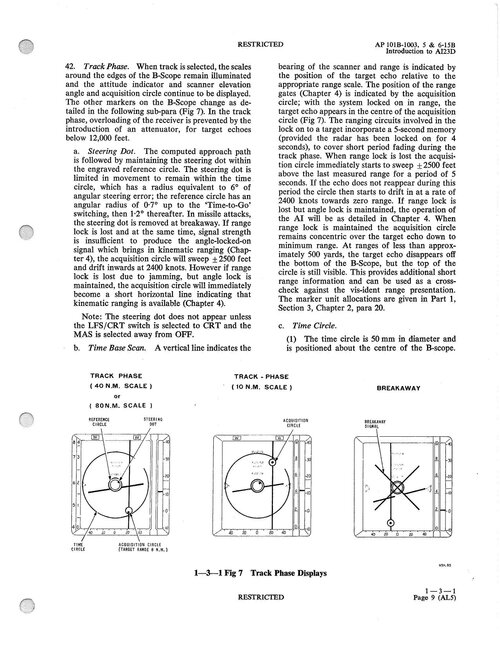

This is pretty interesting.


Attachments

  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps01.jpg
    262.3 KB · Views: 20
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps02.jpg
    576.3 KB · Views: 17
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps03.jpg
    502.2 KB · Views: 13
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps04.jpg
    395 KB · Views: 14
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps05.jpg
    574.9 KB · Views: 12
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps06.jpg
    529.8 KB · Views: 10
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps07.jpg
    127.5 KB · Views: 12
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps08.jpg
    454 KB · Views: 12
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps09.jpg
    465.8 KB · Views: 11
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps10.jpg
    560.9 KB · Views: 13

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,457
Reaction score
7,151
More


Attachments

  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps11.jpg
    161.4 KB · Views: 14
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps12.jpg
    274.8 KB · Views: 15
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps13.jpg
    558.5 KB · Views: 15
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps14.jpg
    375.5 KB · Views: 15
  • english_electric_lightning_f3_t5_f6_aircrew_manual_-_weps15.jpg
    445.1 KB · Views: 13
