Fairchild M-231

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
931

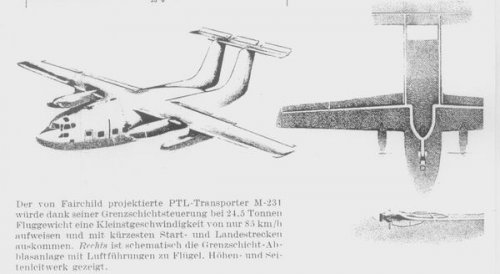

mentioned in the designation section, the M-231 STOL transport
with boundary layer control :
(from InterAvia 7/1958)


Attachments

  • Fairchild_M-231_01.JPG
    26.1 KB · Views: 354

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,468

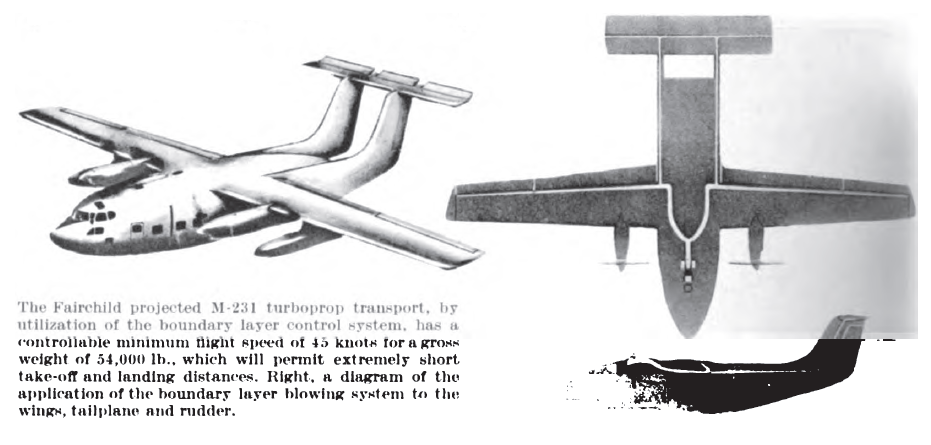

And from PDF which mention by my dear Scott;


http://ftp.rta.nato.int/public//PubFullText/AGARD/R/AGARD-R-86///AGARD-R-86.pdf


Attachments

  • M-231.png
    431 KB · Views: 207

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
618
Reaction score
275
I have a copy of the book American Secret Projects: US Airlifters 1941-1961 and it lists the following features of the M-231:

- four Allison T56 turboprops
- fuselage stretched by 5 feet
- bigger cockpit to add room for a flight engineer and optional navigator
- larger wing, rudder, and horizontal stabilizer, each with 50 percent more area
- J44 booster engines aft of the engine nacelles
