Douglas DC-4 Bomber developments

Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,152
Reaction score
1,813
Interesting. Given the large number of archives in the country, and the variable ease of access to these, it will be a task of epic proportion. I wish whoever is leading this the very best of luck and they have my full support, for what it is worth. I am a volunteer at the Royal Aero Club Trust archive which contains a significant amount of material relating to aircraft and projects unrelated to the Club and I am slowly drawing this together in a catalogue, of sorts.
My assumption is that it will be for the smaller and independent collections and perhaps where some the larger 'national' archives can deposit things. Air Britain for example is involved, they have a ton of stuff it seems but no real archive as such that is regularly accessible. I can't see BAE Systems for example consolidating all their material yet, though I suspect in the long-term it might prove difficult to keep several sites going. If Leonardo ever closes Yeovil then the Westland/Fairey material would need a place to go, so some future proofing would be sensible. Whether it can happen on an achievable timescale and effort who knows? Getting more collections onto the TNA's Discovery catelogue (as some of Aerospace Bristol's are) would be a welcome start.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,492
Reaction score
598
I guess one of the biggest stumbling blocks is that many use access to their archive material as a useful source of income, and hence will be loath to give that up


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,620

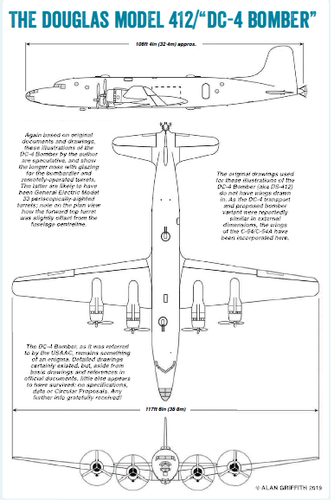

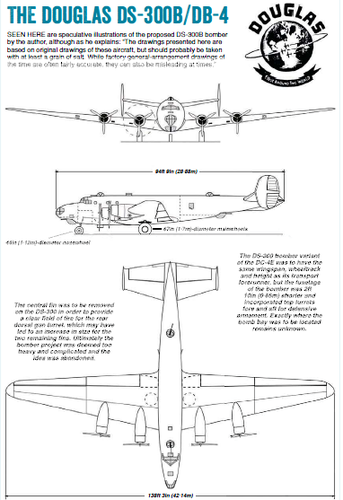

From; The Aviation Historian No.28.


Attachments

  • 1.png
    88.3 KB · Views: 207
  • 2.png
    83.1 KB · Views: 195

ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
261
Reaction score
160
Above illustrations created by and copyrighted to me, Alan Griffith. Probably not a bad idea to mention that when posting one's own or someone else's work.

That said, I'd love to see someone build a model of either of those projects. I've created 1/72-size drawings of the Model 412 if there is anyone out there who wants to give it a shot.

AlanG


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,620
OK my dear Antonio,

but from this magazine,someone sent a drawings from it during the last years,and no one object,alright
if you want to delete it no problem.


ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
261
Reaction score
160
Antonio, thank you for the offer, but the size of the reproductions are such that not much can be obtained from them. Just leave them up.

Hesham, can you post a link to the drawings to which you refer? Were they drawings from my articles? I suppose it is even possible that I posted some earlier drawings, but the article was submitted long enough ago that I don't recall doing so. And Hesham, if someone else DID post drawings/photos/etc. from a publication earlier does NOT give blanket permission for anyone else to. I would be especially cautious posting items from a publication that is relatively recent (say the past 24 months or so) and is available in back issues from the publisher as you are possibly violating the publication's copyright, the artist's copyright and could be costing the publication sales that help pay guys like me who dig this stuff up.

AlanG


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,620
At first,sorry my dear Alan,

I didn't know they were from you,and for the link,it was from The Aviation Historian No.28 itself.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
94
Wile reading the excellent article by Allan G in TAH No 28 I saw that the sideview of the
Douglas DS-300B was strongly looking like that of the so called Douglas 100ton bomber project.
Was there any relation between these designs ?


ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
261
Reaction score
160
Lark, there may be. While I've gathered up as many images of the so-called 100ton bomber project from online that I could, to date I've found absolutely no official (military or corporate) documentation referring to such a project. I suspect it was an idea run wild in the press of the time, built upon an imaginative envisioning of the DC-4E and the actual bomber version proposal.

Glad you like my article!

AlanG


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
94
Allan , Your article in TAH 28 was indeed one of the better...

I found the drawing and info in the Dutch prè WW II magazine 'Vliegwereld '-free translated as Flying World.
(magazine collection of the military library Brussels)
This magazine was often well informed for the time and it took over information from foreign publications.

With the 3 view was this bit of info.

Machine sould have 6 Wright double row Cyclone engines total Hp 12.000
Span :75 m.
lenght :55 m.
speed at sea level : 320km/h
speed at 7500m. : 485km/h
bombload : 20.000kg
range :9.600km

from the Dutch text : schetces show the influence of the DC-4 .

Later DC-4E. There was also a sideview showing the interior of the proposed 100 ton bomber.

Perhaps this info is usefull for you....


ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
261
Reaction score
160
Lark, thank you for both your kind words and the information you shared.

Would it be possible for you to email me the drawings and information to which you refer? I'd love to see it. It will also give some more ammunition with which to approach the Douglas Archivists. Having said that and gathered what I think are all the appropriate bomber contest specifications, etc. for heavy bombers in the late 1930's and early 1940's, I'm still having a very hard time seeing this as anything more than a wonderful and imaginative creation with little basis in real facts. It occurs to me that it could be a "project" created for discussion to throw off both domestic and foreign competitors.

I look forward to being wrong!

Alan


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
638
Reaction score
142
ACResearcher and Lark, thanks for sharing interestion information!
Looks, like Douglas company always trying to implement bombing capabilities to their "DC" series of airliners.
Altough, most of them remains as projects or prototypes.

Famous Disney's movie "Victory through Air Power" contains small fragment, demonstrating Douglas XB-19 (in comparison with Wright "Flyer").
Narrator mentioned, that in 1943 this "experimental bomber" has been a 7-years-ago-built "forerunner" of much modern heavy bombers.
I think, that movie correctly demonstrate public' impressions on the Douglas bomber.

- on time 22:44. Sorry, YouTube prevents posting the link correctly



lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
94
No problem ACR ,
Send me a P.M with your E-mail address.

L.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
94
bit more...

Douglas aimed far higher ../.. the desgn team at Santa Monica - led by Sky (real name Schuyler) Kleinhans
later important on post-war DC-7 and 8 -planned the biggest aeroplane in the world ,with designation XBLR-2.
It was to have ' six engines of no less than 2000hp each ' and it was expected that these should be available
ready for first flight not later than 1939...

found in : Giants of the Sky ,Bill Gunston, PSL 1991 UK ( page 159)

Last edited by a moderator:

ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
261
Reaction score
160
Both of airman's references above are either written by me or reviews of articles written by me. If you're interested in the whole story, might just be easier to order a copy Aviation Historian Issue 28 from Kalmbach/FInescale.

Alang


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,243
Reaction score
102
Website
zeef.com
Both of airman's references above are either written by me or reviews of articles written by me. If you're interested in the whole story, might just be easier to order a copy Aviation Historian Issue 28 from Kalmbach/FInescale.

Alang
i am interested to a digital copy instead printed (copy). :)
