Current US hypersonic weapons projects. (General)

TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
1,620
Reaction score
422
I don't think that during open hostilities with peer or near peer adversaries, the unavoidable nature of multi-nations conflict will see many allies shying away from hosting ground launch vehicles.

Obviously the argument exposed by the author stands true when tensions are limited to brief exchange of fire and/or for deterrence.


Josh_TN

CLEARANCE: Secret
Joined
Sep 4, 2019
Messages
231
Reaction score
99
I personally stopped reading when it focused on boost glide and in particular, 'lack of targets'.

The purpose of hypersonics in the US inventory is two fold: achieving a long desired goal of prompt strikes against non peers, and deterrence again peers. IE, you can sink my carrier but also I sink yours, and also where you build them. It makes perfect sense to me; your mileage might differ.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,128
Reaction score
148
USAF Kicks Off Early Study For Hypersonic Cruise Missile

The Contract Opportunity posting :

The Department of Defense, United States Air Force (USAF), Air Force Materiel Command (AFMC), Air Force Life Cycle Management Center (AFLCMC), Armament Directorate, is currently conducting market research seeking capabilities statements from potential sources, including small businesses (SB), 8(a), HUBZone, Economically Disadvantaged Woman-Owned (EDWOSB), Woman-Owned (WOSB), Service Disabled Veteran Owned (SDVOSB) small businesses for an effort involving systems integration of a Weapon Open System Architecture (WOSA)-based, solid-rocket boosted, air-breathing, hypersonic conventional cruise missile, air-launched from existing fighter/bomber aircraft into a preliminary design.

The effort involves the use of Digital Engineering (DE) and Model-Based Engineering (MBE) practices for requirements, design, trade studies, and analyses; as well as the use of DE/MBE to accomplish technical planning for qualification, component/subsystem testing, manufacturing, and sustainment of the air-breathing hypersonic cruise missile under representative operational conditions.

In order for a vendor to be deemed qualified, its capability statement must demonstrate its capability in the following: sustained air-breathing hypersonic propulsion (ramjet, scramjet, or dual-mode), stable hypersonic aerodynamics, aero-thermal protection systems, solid rocket motors, warhead/missile integration, advanced hypersonic guidance, navigation, and control including advanced subsystem technologies and communications, and fighter/bomber weapon integration. This weapon system must be designed and analyzed to achieve a Preliminary Design Review (PDR) in 4QFY21.


orion2001

CLEARANCE: Restricted
Joined
Jun 9, 2019
Messages
1
Reaction score
0
Do you have any information about HSW-ab studied by Darpa with the help of LM?


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,128
Reaction score
148
USAF expands hypersonic efforts with plans for another prototype

The USAF has announced plans to commence a hypersonic cruise missile prototype programme on behalf of the DoD, in an effort to foster a scramjet industrial base and diversify the fledgling portfolio of ultra-fast manoeuvring weapons beyond the current hypersonic boost-glide programme.

On 28 April, the air force published a notice announcing plans for a ‘future hypersonic weapon’ programme, asking industry for proposals to support the goal of a new air-breathing weapon powered by a supersonic combustion ramjet — or scramjet — that could be ready for preliminary design review by Q4 in FY2021.

‘We’re excited about the potential to start that programme,’ Dr Will Roper, Assistant Secretary of the Air Force for Acquisition, Technology and Logistics, told reporters on 29 April. ‘Scramjet is much more mature and ready to go than I originally thought, so we’re preparing to begin a hypersonic cruise missile programme.’

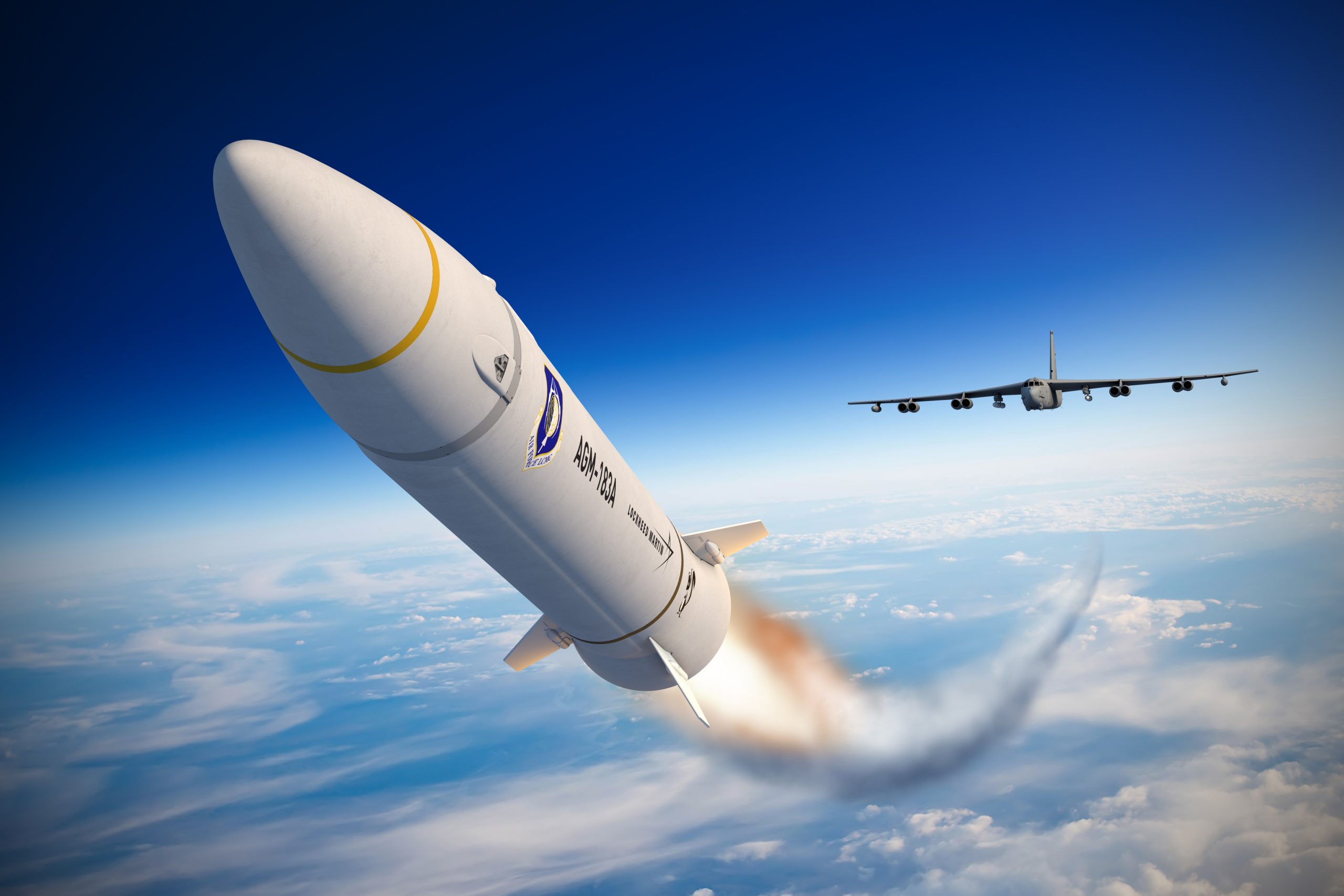

The latest development comes as the USAF narrowed its hypersonic boost-glide prototyping efforts from two to one in February, favouring the smaller of the two candidate weapons: the Air-Launched Rapid Response Weapon.

‘We will leverage work that is currently ongoing in DARPA as well as our own research laboratory,’ Roper explained, referring to the Hypersonic Air Breathing Weapon Concept (HAWC). ‘And the goal is to do what we did with boost-glide technology: get technology out of our laboratories and to help industry start to get ready for production.’

He added that recent advances in scramjet design and fabrication inform his confidence about launching a new programme.

‘I expect that we’ll be able to go pretty quickly on this,’ Roper said. “I don’t expect to be wrong on that.’


Josh_TN

CLEARANCE: Secret
Joined
Sep 4, 2019
Messages
231
Reaction score
99
I've not heard of an airborne test, but supposedly there have been ground tests using supersonic wind tunnels that were very successful. Both competitors apparently use 3D printed combustion chambers for their designs, which would allow for quick development iterations and simplification of manufacturing. This apparently also saves a lot of weight and space. So with all of those items taken together, the USAF seems to feel that air breathing hypersonics are much more accessible than previously thought.


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,128
Reaction score
148
Both HAWC prototypes will be tested soon. Raytheon’s contract for Phase II of the program extends till September while Lockheed’s extends a few months beyond that. A Q4 FY21 PDR( what the AF wants) for the scramjet weapon would be consistent with a rapid prototyping program that were leveraging what the two teams had demonstrated in FY20 flight demonstration. Assuming they begin their contracting activity in FY21, we can expect something to come out by FY25 ish.

Last edited:

GARGEAN

CLEARANCE: Secret
Joined
May 7, 2018
Messages
370
Reaction score
104
BTW, do we have comparable topic for non-US hypersonics? Realised that there is no apparent place to post about recent test of HV missile from Tu-22M3M


fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,983
Reaction score
489
Via NSF.

Topic of link:
The novel NASA Glenn design replaces a conventional jet engine with a linear array of flapping blades and diffusing vanes for compression, a combustor, and a linear array of expansion ducts. These expansion ducts convert thermal energy to magnetic energy using reverse magnetic hyperthermia where the turbine ducts are lined with superparamagnetic composites that respond to thermal loads by generating alternating magnetic fields. The magnetic energy can be used to drive the electromagnetic actuators required for flapping. Kinetic energy is delivered to the air using rapid oscillations rather than by rotation. This is converted to internal energy by the vanes.


I'm not sure if this thing is intended for hypersonic speeds.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
1,620
Reaction score
422
They state from subsonic to supersonic flow what will be comparable with a ramjet/scramjet. The diffuser/compressor inlet will ensure that high Mach inflow is slowed down properly.

The matrix of exhaust nozzles could also generate electrical power for the aircraft systems.


jstar

CLEARANCE: Confidential
Joined
Oct 12, 2007
Messages
169
Reaction score
61
Any more info on the 'super duper'?


"We have no choice, we have to do it with the adversaries we have out there. We have, I call it the super duper missile and I heard the other night [it’s] 17 times faster than what they have right now,” the president said, sitting at the Resolute Desk.

“That’s right,” said the defense secretary, Mark Esper, standing to Trump’s right.

“You take the fastest missile we have right now,” Trump said. “You heard Russia has five times and China’s working on five or six times, we have one 17 times and it’s just got the go-ahead.”


In_A_Dream

CLEARANCE: Confidential
Joined
Jun 3, 2019
Messages
136
Reaction score
36
Any more info on the 'super duper'?

"We have no choice, we have to do it with the adversaries we have out there. We have, I call it the super duper missile and I heard the other night [it’s] 17 times faster than what they have right now,” the president said, sitting at the Resolute Desk.

“That’s right,” said the defense secretary, Mark Esper, standing to Trump’s right.

“You take the fastest missile we have right now,” Trump said. “You heard Russia has five times and China’s working on five or six times, we have one 17 times and it’s just got the go-ahead.”
Probably Prompt Global Strike


Desertfox

CLEARANCE: Secret
Joined
Feb 26, 2007
Messages
220
Reaction score
74
I bet 5,6, and 17 are Mach numbers, which lines up with air-breathing hypersonics (Mach 5-6) and ICBM-range glide vehicles (Mach 17). Of course Russia already has an ICBM-range glide vehicle (Avangard) and all three countries have ICBMs which reenter at around Mach 20. And no we are not getting a Mach 340 "super duper" missile.


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
9,828
Reaction score
900
Griffin: DARPA hypersonic projects 'going well' despite delayed flight tests
The Defense Advanced Research Projects Agency's two high-profile hypersonic weapon technology efforts -- one a boost-glide vehicle the other an air-breathing missile -- are both "going well" despite an apparent delay in planned first flight tests, according to the Pentagon's top technology official
