Corradino D'Ascanio's helicopters

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
132
Hi guys,

I came across this reference to a project being developed by helicopter pioneer Corradino D`ascanio:

http://en.wikipedia.org/wiki/Caproni_Campini_Ca.183bis

It relates to a desire to employ a BMW 003 turbojet into an helicopter before WW2 ended. Does anyone could come up with more on this?


Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
12
Hi, the only information I've ever come across, was a reference to Piaggio PD1, PD2, PD3 and PD4 helicopters designed by D'Ascanio in that time period. I think that only the PD4 actually flew. Hope this might point you in the right direction.

Regards Bailey.


walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
114
Hi Wurger,

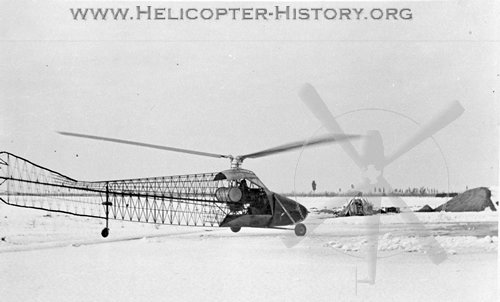

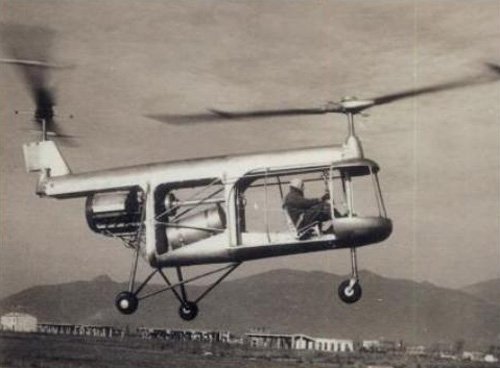

The PD-2, PD-3 and PD-4 helicopters were built by (for) Piaggio. The PD-2 was tested during the closing stages of WW2. The PD-3 was an improved PD-2 of 1949/1950 (still try to figure our what the improvements were) and the PD-4 tandem rotor heli flew in 1952.
The single rotor type is, according to the caption, the PD-3 although I have my doubts. The other one is the PD-4 for sure
Rgards, Walter


Attachments

  • Piaggio 4.jpg
    Piaggio 4.jpg
    44.8 KB · Views: 668
  • Piaggio PD-2 or 3.jpg
    Piaggio PD-2 or 3.jpg
    76.4 KB · Views: 611

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
132
Hi guys,

many thanks for your help. But I`m afraid the mistery remains about this turbojet ( turboshaft?) project. Probably Skybolt knows something about it? Cheers.


fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
37
Hi guys, only my third post here at your wonderful Forum.

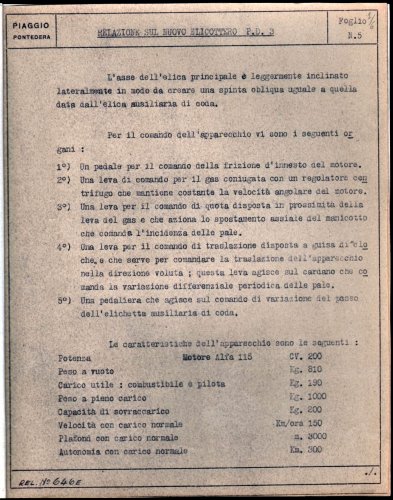

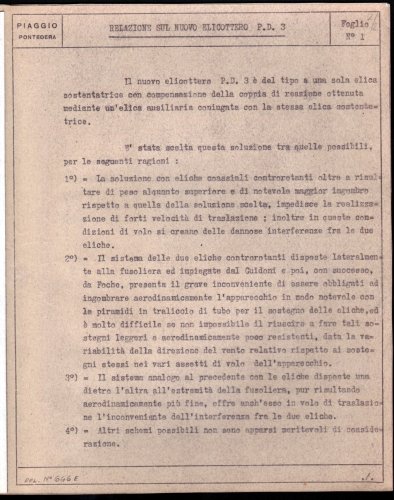

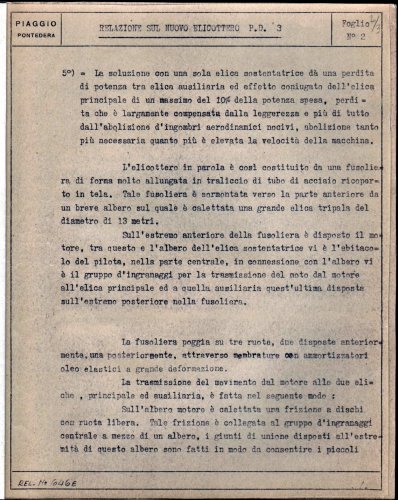

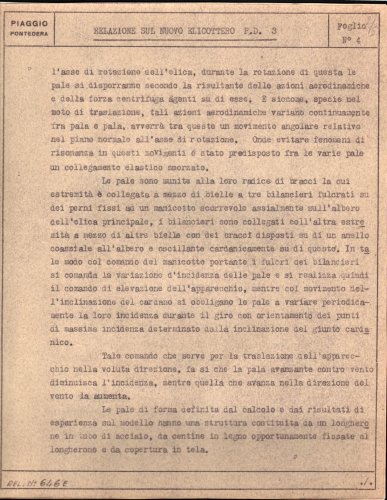

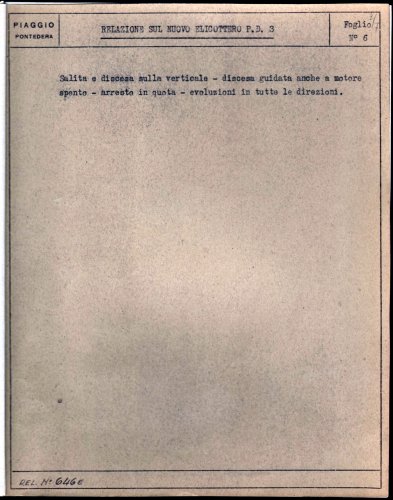

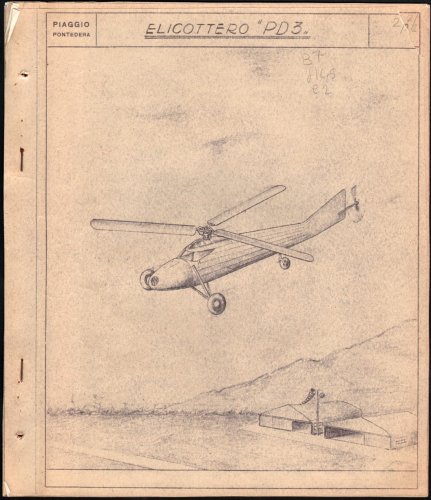

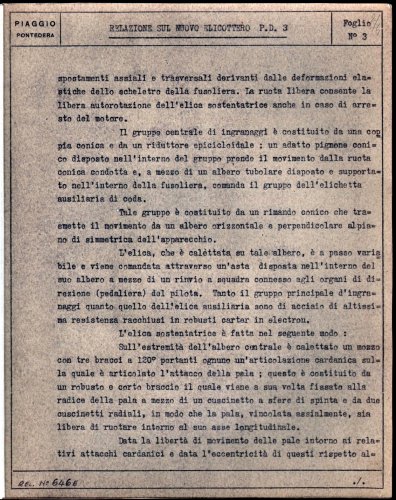

User boxkite, whom I know from the German Flugzeugforum has convinced me, to show you a document about the Piaggio PD.3 that I found recently.
Though it is in Italian, I thought it would be interesting to this board.

I have edited the pictures a bit for a better reading.

Enjoy.

Source of the document is this site


Attachments

  • Piaggio PD.3-1b.jpg
    Piaggio PD.3-1b.jpg
    1 MB · Views: 426
  • Piaggio PD.3-2b.jpg
    Piaggio PD.3-2b.jpg
    1.1 MB · Views: 356
  • Piaggio PD.3-3b.jpg
    Piaggio PD.3-3b.jpg
    1.1 MB · Views: 299

fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
37
Part 2


Attachments

  • Piaggio PD.3-4b.jpg
    Piaggio PD.3-4b.jpg
    1.2 MB · Views: 35
  • Piaggio PD.3-5b.jpg
    Piaggio PD.3-5b.jpg
    1.3 MB · Views: 36
  • Piaggio PD.3-6b.jpg
    Piaggio PD.3-6b.jpg
    1 MB · Views: 50

fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
37
Last part.


Attachments

  • Piaggio PD.3-8b.jpg
    Piaggio PD.3-8b.jpg
    455.1 KB · Views: 100
  • Piaggio PD.3-7b.jpg
    Piaggio PD.3-7b.jpg
    1.1 MB · Views: 61

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Wow,nice find Fabulousfour,many thanks.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Hi,

http://www.avia-it.com/act/la_tecnica/la_tecnica_di_ieri/Tecnica_ieri_2016/Seg_art_febb_16/Ling_D_Ascanio_dall_elicottero_alla_Vespa.pdf


Attachments

  • 1.png
    282.6 KB · Views: 79
  • 2.png
    467.5 KB · Views: 98

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Hi,

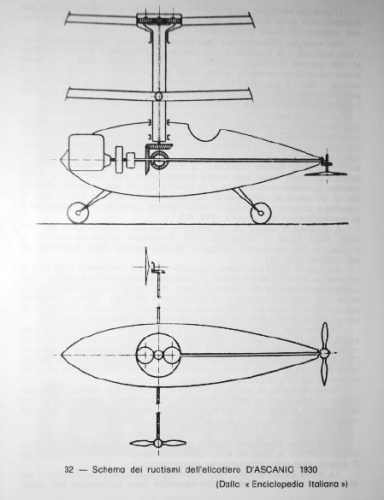

here is a patent for D'Ascanio in 1930.

L'invenzione-dell'elicottero


Attachments

  • 1.png
    200 KB · Views: 53

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Hi,

here is some of D'Ascanio helicopters and patents,some of them were a Projects only.

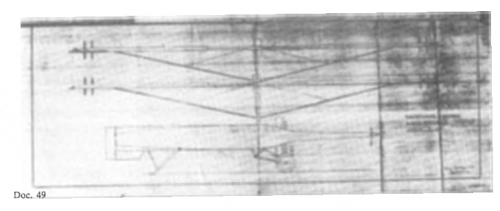

49- great powered helicopter of 1925

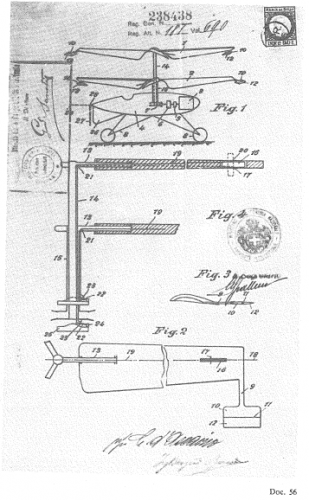

56- patent for a helicopter with two coaxial rotors of 1925

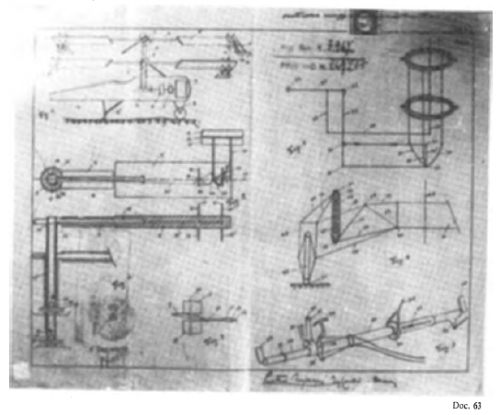

63- patent for a helicopter of 1926

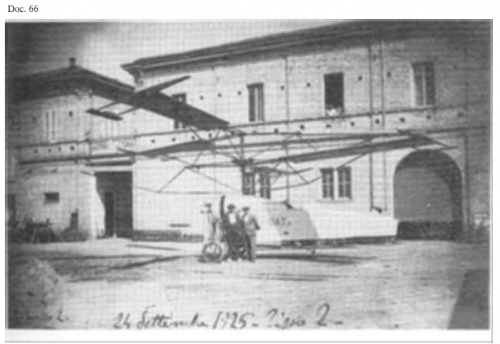

66- D'Ascanio A.T.2 helicopter of 1926

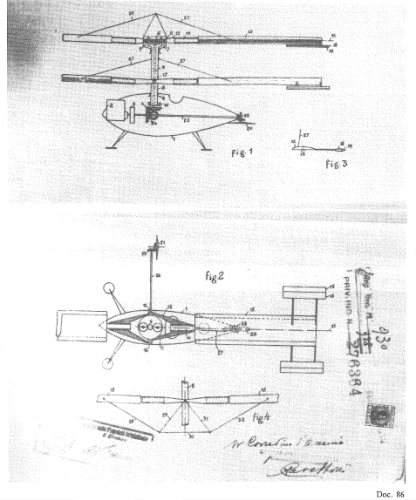

86- patent for a helicopter of 1929

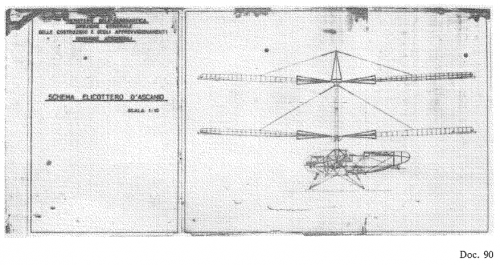

90- D'Ascanio A.T.3 helicopter of 1928

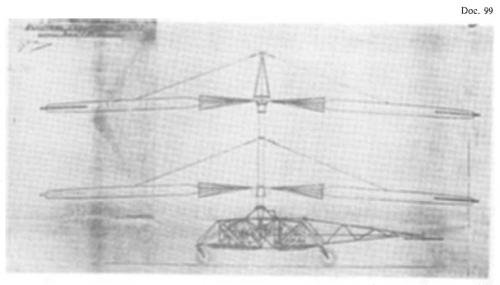

99- D'Ascanio development of A.T.3 helicopter of 1930

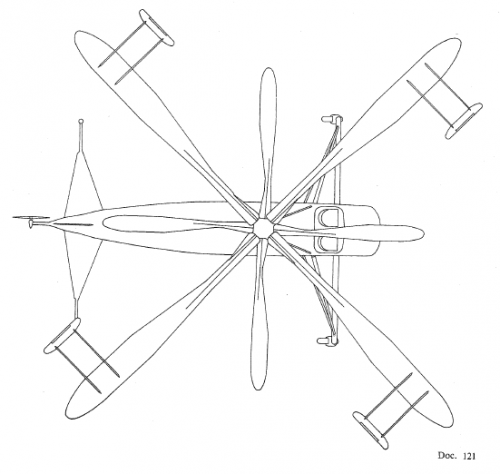

121- D'Ascanio helicopter Type of 1931

http://www.archivi.beniculturali.it/dga/uploads/documents/PIA/5225af74721dc.pdf


Attachments

  • 121  Type-1931.png
    121 Type-1931.png
    33 KB · Views: 39
  • 99 A.T.3 development.png
    99 A.T.3 development.png
    290.3 KB · Views: 33
  • 90 A.T.3  1928.png
    90 A.T.3 1928.png
    130.6 KB · Views: 35
  • 86  patent.png
    86 patent.png
    113.1 KB · Views: 36
  • 66  A.T.2  1925.png
    66 A.T.2 1925.png
    288.9 KB · Views: 37
  • 63 patent.png
    63 patent.png
    216.1 KB · Views: 33
  • 56 patent.png
    56 patent.png
    103.2 KB · Views: 31
  • 49.png
    153.7 KB · Views: 32

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Hi,

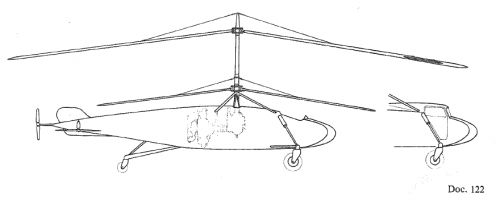

122- D'Ascanio Type-1931 in side view with addition enclosed cabin version

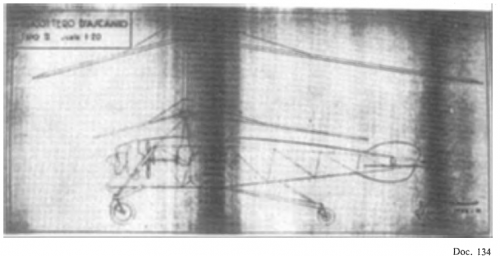

134- D'Ascanio Type-II of 1932 helicopter

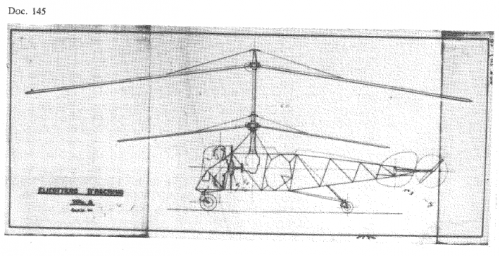

145 D'Ascanio Type-III of 1934 helicopter

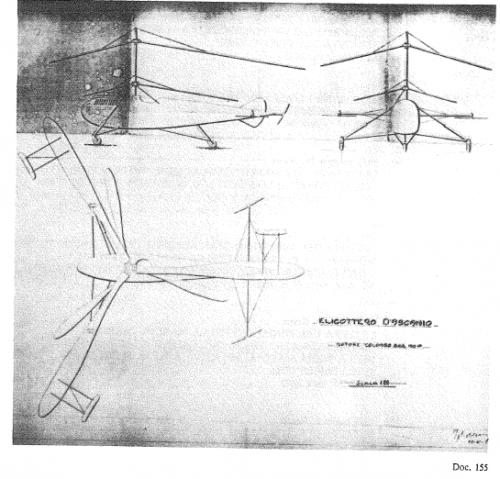

155- D'Ascanio 1934 helicopter,powered by one 130 hp Colombo engine

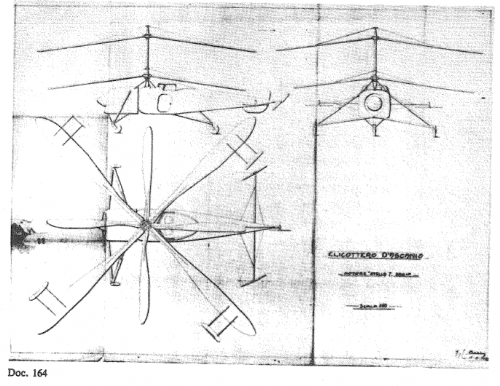

164- D'Ascanio 1934 helicopter (anther one),powered by one 390 hp Stella engine

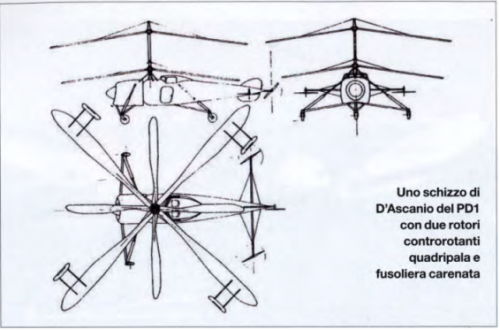

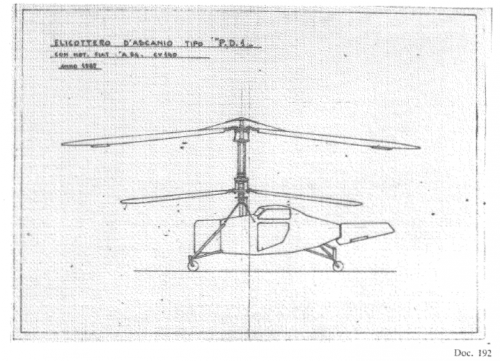

192- PD.1

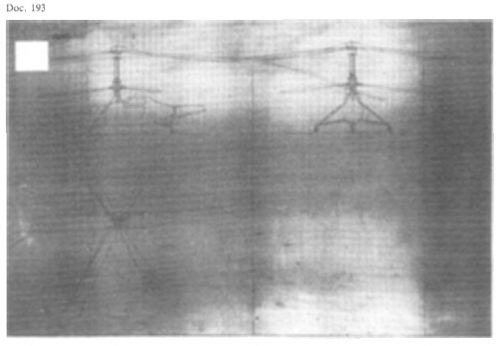

193- PD.2

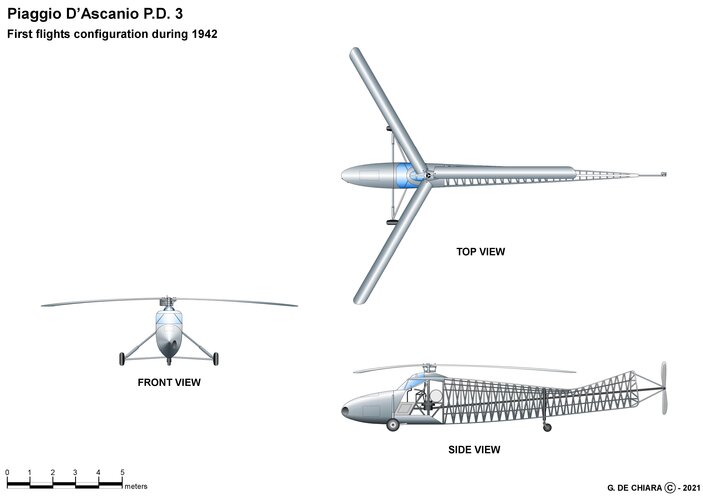

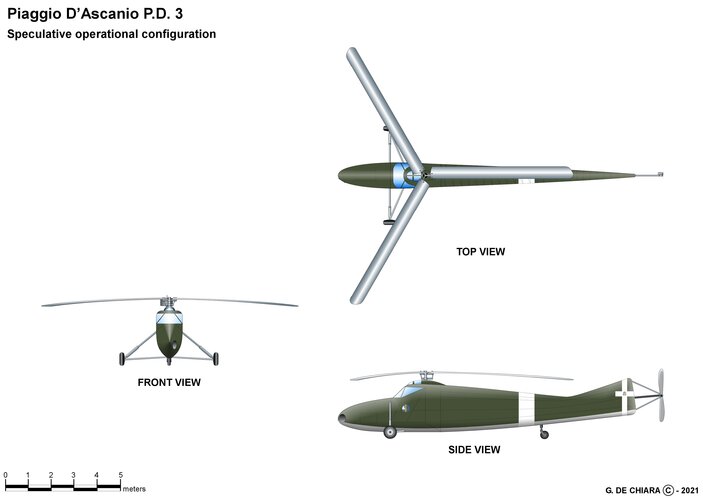

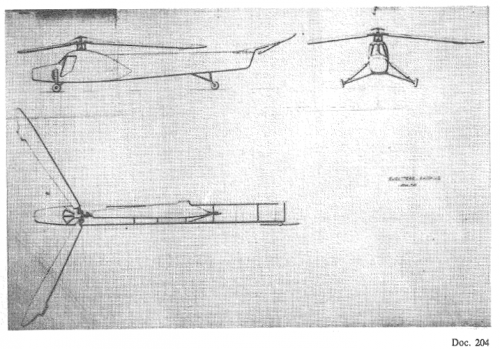

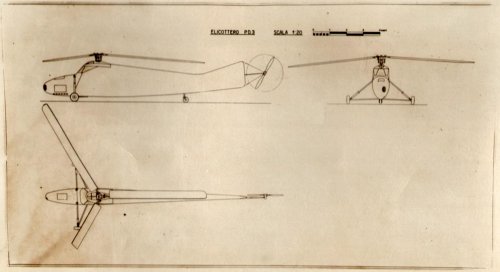

204- PD.3


Attachments

  • 204  PD.3.png
    204 PD.3.png
    337.5 KB · Views: 40
  • 193  PD.2.png
    193 PD.2.png
    219.3 KB · Views: 43
  • 192  PD.1.png
    192 PD.1.png
    275.6 KB · Views: 39
  • 164  STELLA 7  390 HP - 1934.png
    164 STELLA 7 390 HP - 1934.png
    112.5 KB · Views: 33
  • 155 COLOMBO S 63  130 hp - 1934.png
    155 COLOMBO S 63 130 hp - 1934.png
    118.6 KB · Views: 41
  • 145  Type-III  1934.png
    145 Type-III 1934.png
    90 KB · Views: 41
  • 134  Type-II  1932.png
    134 Type-II 1932.png
    300.9 KB · Views: 41
  • 122  Type-1931 with enclosed cabin.png
    122 Type-1931 with enclosed cabin.png
    24 KB · Views: 49

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Finally;

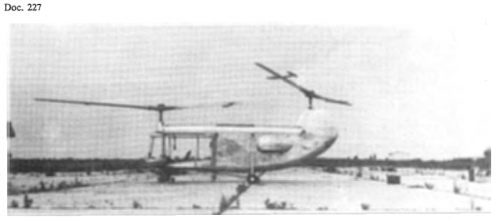

227- PD.4


Attachments

  • 227  PD.4.png
    227 PD.4.png
    209.8 KB · Views: 72

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Hi,

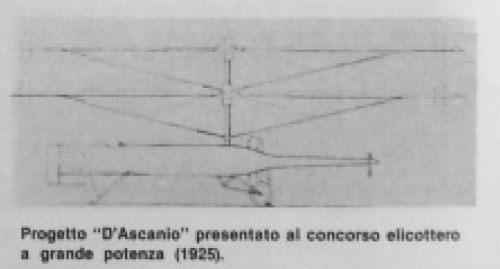

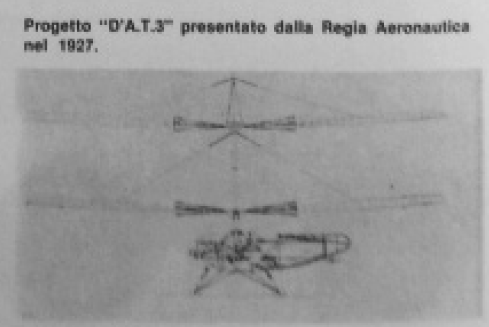

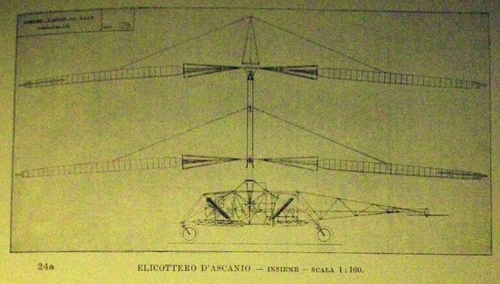

here is again a drawings to 1925 Project,and D'A.T.3,and that make us asking if there
was D'A.T.1 ?.

http://www.avia-it.com/act/biblioteca/libri/PDF_Libri_By_AVIA/Marinai-in-volo.pdf


Attachments

  • b.png
    93.9 KB · Views: 47
  • d.png
    87.3 KB · Views: 48

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
From ,Quando volare Era Difficile - Ereno A.


Attachments

  • 1.png
    711.4 KB · Views: 59

!Mark

ACCESS: Restricted
Joined
Aug 4, 2019
Messages
25
Reaction score
19
Great info!
I have one question, I read pretty much everywhere that he also designed some helicopter drones to use in irrigation, does anybody have any info or images?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Great info!
I have one question, I read pretty much everywhere that he also designed some helicopter drones to use in irrigation, does anybody have any info or images?
Strange Info Mark,but I will search.


!Mark

ACCESS: Restricted
Joined
Aug 4, 2019
Messages
25
Reaction score
19
"D'Ascanio remained in Piaggio until 1961 year of his retirement, he remained as consultant for the company for what concerned the Vespa. Officially he would never make helicopters for Piaggio anymore but in the garage of his home (often using the Piaggio workshops) he carried on the construction of a tiny helicopter for agricultural use, for field irrigation, cheap and available to everybody: the Vespa of the air. This helicopter was ready July 20th 1970, it had innovative features like fiberglass propellers but even this small jewel of the abruzzese inventor didn't find clients and only flew in the garden of D'Ascanio's house."
-from italian wikipedia

"...let's remember that between 1960 and 1970 he projected and built some ancestors of the drones, authentical Vespas of the air, in his garage: they were mini-helicopters, drones, conceived for irrigation of the fields, cheap and available to everybody. Unfortunately not even this object found interest and so it remained in the garage of the engineer"
-from secoloditalia.it

"... Genius were also the "mini-helicopters" of D'Ascanio for field irrigation, progenitors of today's drones, in which nobody believed at first."
-from italiani.it


Aerohydro

Early aviation enthusiast
Joined
Mar 6, 2015
Messages
34
Reaction score
68
Hello All,

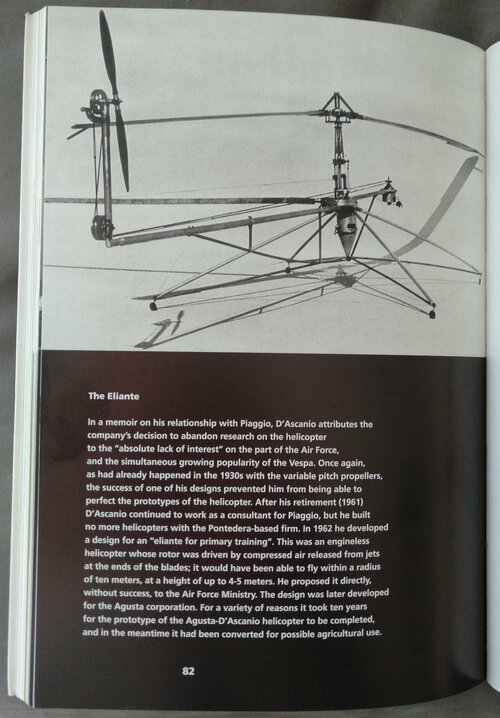

The attached image might help to cast some light onto the matter. It's from the book "Flying Machines of Corradino D'Ascanio" by Alberto Bassi (ISBN 978-8843573042).

As per the text, this particular helicopter design was a post-retirement project for Corradino D'Ascanio. It's referred to as an "eliante for primary training", though I'm not sure what "eliante" actually means. (Google Translate failed me.) The design - at least at the point at which the photograph was taken - has that it's a small, tethered, helicopter, powered by compressed air which presumably would have been fed to it via the tether. D'Ascanio retired in 1961, and the last sentence of the text mentions that it "took ten years for the prototype ... to be completed" and during that time "it had been converted for possible agricultural use."

It's quite possible that the eliante, as seen in the photo, was a predecessor to the machine that flew in D'Ascanio's garden in 1970.

Cheers,
Paul


Attachments

  • Eliante page scan.jpg
    Eliante page scan.jpg
    530 KB · Views: 34
Last edited:

!Mark

ACCESS: Restricted
Joined
Aug 4, 2019
Messages
25
Reaction score
19
They either misspelled a word or its a fantasy name.
But yes that should be it! Thank you very much


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Amazing,thank you Aerohydro,

and if in the book any helicopter or Project was never mentioned here ?.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,829
Reaction score
691
Hallo. "Eliante" is for sure a mispelled "Aliante", italian word for "glider"...

LG
I don't think that this is a misspelled word rather than an actual joint between "Elicottero" (Helicopter in Italian) and "Aliante" (Glider in Italian), so "Elicottero+Aliante" = "Eliante".
