Convair 660 - Short-Haul Twin-Jet

Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
151

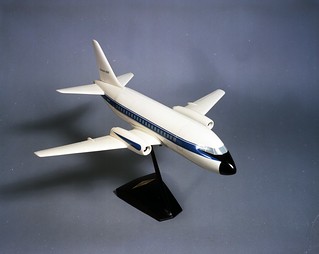

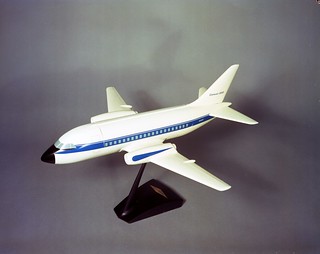

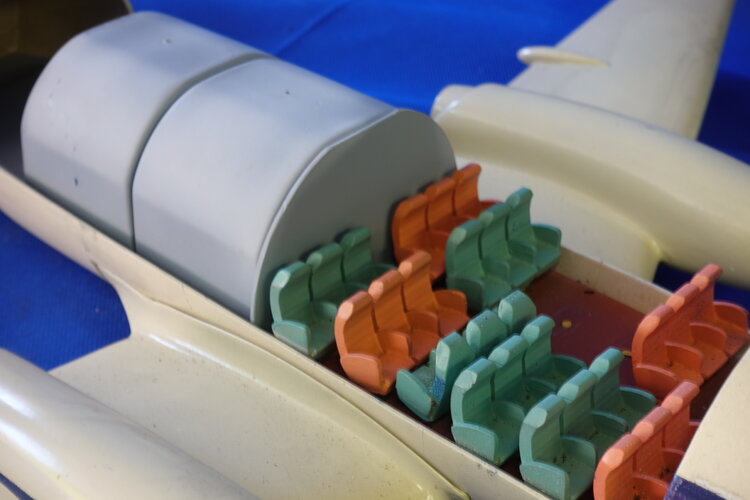

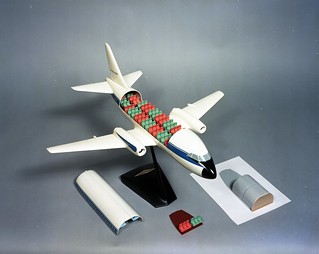

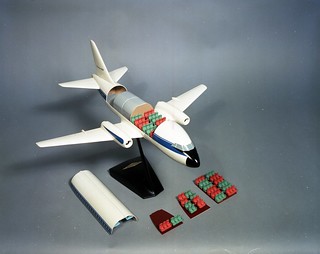

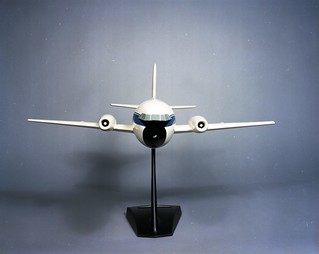

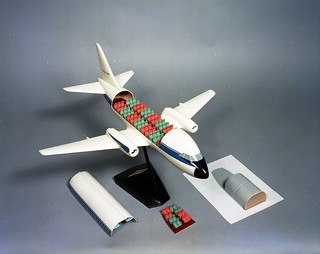

This is a new one to me. I've searched the forum and could not find much if anything on it, so I am posting a new topic dedicated to the Convair 660, a short-haul twin-jet. (Please remove or combine with another appropriate topic, if it already exists). The model photos (and artistic rendering) of the Convair 660 below were posted today by the on the Flickr Commons by the San Diego Air & Space Museum (SDASM) Archives. It appears as described as a DC-9/737/F-28 competitor, with even a "combi" arrangement illustrated.

As per the 7 December 1967 Flight International (Pg. 932) http://www.flightglobal.com/pdfarchive/view/1967/1967%20-%202342.html :
AFTER a lapse of several years, General Dynamics are making another effort to get into the commercial aircraft manufacturing business with an entirely new type. Airlines are being canvassed for their opinions of the projected Convair 660 for up to 88 passengers and powered by two Rolls-Royce RB.203-1 Trents and designed for short-haul markets at present being tackled by the Fokker Fellowship/ Fairchild Hiller F-228. According to details published in the Interavia Airletter and reproduced here, the 660 promises to have a greater payload-range than the similarly powered Fairchild Hiller F-228 and, despite higher permitted operating weights, an equally good airfield performance is claimed. An unusual over-wing engine location is chosen that should have the advantages of reducing wing bending moment yet be fairly high off the ground without requiring a long undercarriage and imposing a high-level floor. The forward cantilevering of the engines gives rise to a fairly lengthy tail arm and so the large door for freighter versions would be aft of the wing.
CONVAIR 660 DATA
Powerplant: two 9,7301b-thrust Rolls-Royce RB.203-1 Trents.
Dimensions: span, 85ft 7.7in; length, 82ft; height, 31ft 4in; wing area, 815 sq ft; wing sweep (i chord), 19.5°.
Weights: gross, 62,500lb; max landing, 61,500lb; max zero fuel, 53,000lb; equipped empty, 35,750lb.
Accommodation: max seating, 88 at 34in pitch six abreast; total under floor volume, 580 cu ft.
Performance: FAR take-off balanced field length (ISA, s.l., g.w.), 4,400ft; FAR landing field length (ISA, s.l., max land wt), 4,200ft; payload-range, see diagram.

** Here are the photos - Larger versions are available at the links provided below **
http://www.flickr.com/photos/sdasmarchives/22683145958/in/

http://www.flickr.com/photos/sdasmarchives/22480238243/

http://www.flickr.com/photos/sdasmarchives/23087743502/

http://www.flickr.com/photos/sdasmarchives/23075301826/

http://www.flickr.com/photos/sdasmarchives/22480146533/

http://www.flickr.com/photos/sdasmarchives/23101358675/

http://www.flickr.com/photos/sdasmarchives/22478556724/

http://www.flickr.com/photos/sdasmarchives/22682906688/


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,909
Reaction score
1,211
What for a cute Aircraft !
really sad it went not production.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593
Sweet serendipity!!

Thanks a lot Boxman for bringing this to our attention.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
91
There's a 3 page article about it in :

Aviation Week & Space Technology- January 22 1968..


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,591
Reaction score
1,727
Interesting design. I wonder if this had the stretch potential to compete with the 737-200.


MaxLegroom

Why not?
Joined
Dec 28, 2013
Messages
152
Reaction score
23
This is interesting, I would have thought that they wouldn't have been looking into building airliners that far down the road. A real shame this one wan't built. It would have been a fitting replacement for the Convairliners.


VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
356
Reaction score
636

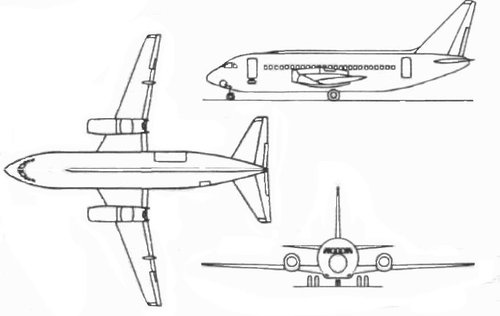

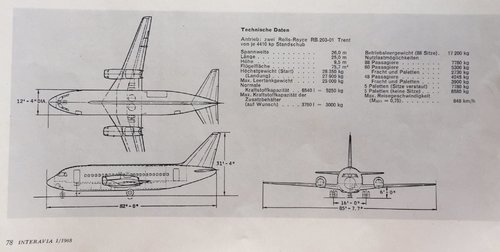

Here's the GA of the Convair 660, taken from an issue of Air International, unfortunately I haven't kept the reference!
As an aside, I was thinking that this could have stemmed from the Model 60 design from the late 1950s/early 60s


Attachments

  • Convair 660 GA.jpg
    Convair 660 GA.jpg
    29.8 KB · Views: 109

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,455
Reaction score
925

Attachments

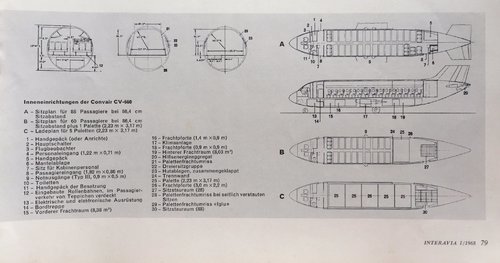

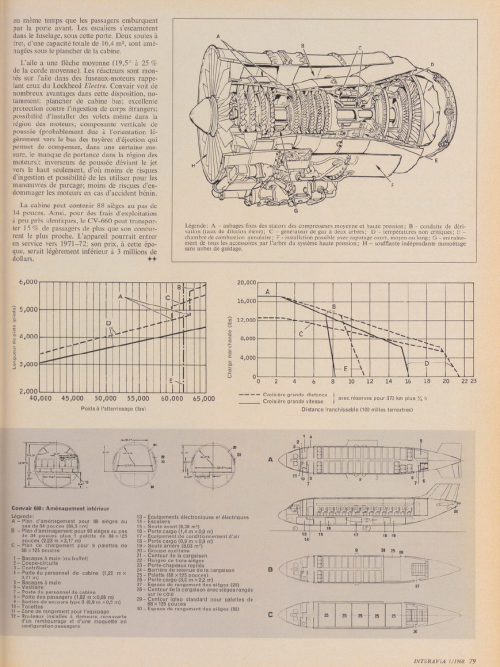

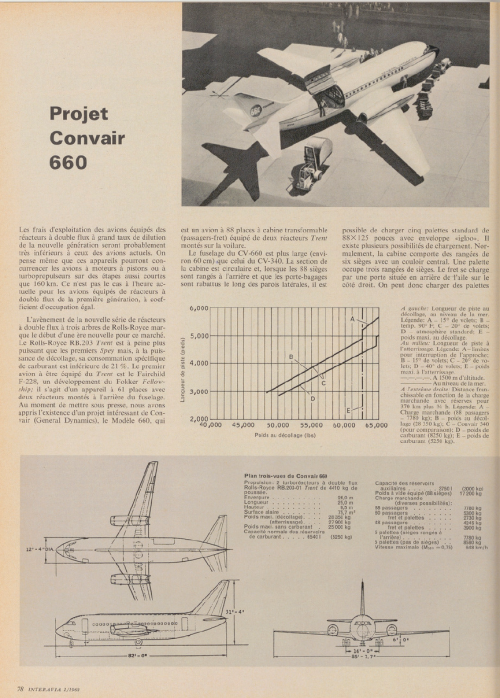

  • 20200628_GD_Convair_CV-660_Interavia_1_1968_p78f_1.jpg
    295.4 KB · Views: 33
  • 20200628_GD_Convair_CV-660_Interavia_1_1968_p78f_2.jpg
    216.8 KB · Views: 32
  • 20200628_GD_Convair_CV-660_Interavia_1_1968_p78f_3.jpg
    285.9 KB · Views: 25
Last edited:

taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
323
Reaction score
202
I'm guessing that the engine layout was driven by the perceived need to keep the fuselage close to the ground, which seems to have been a big consideration in most of the contemporary airplanes in this class (B737, DC-9, BAC111, Caravelle). I wonder if it turned out to be that important to the operators - how many airlines served airports where they couldn't afford to provide an airstair and cargo belt?
Contemporary Soviet short/medium range airliners (Tu-104,TU-124), designed to serve famously austere Soviet airports, sat much higher off the ground (of course this owed something to features inherited from bombers, with different loading/unloading modes).
Boeing has been paying for catering to this requirement for years with increasingly heroic measures required to allow growth of the 737. Operators of the Convair 660 probably would have had to accept the additional cost of providing earplugs for passengers.
