Two General Dynamics designs are now known for this competition. I don't have any details about the requirement. Clearly STOL/ VSTOL, air-to-ground mission.


Larger copies at Codeone website as usual.

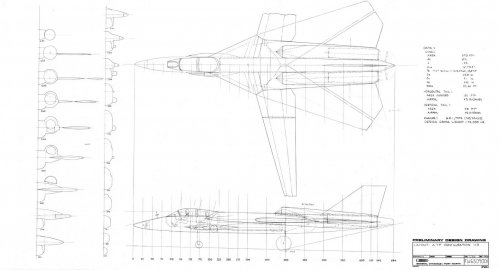

Configuration 102 for an advanced tactical fighter. These early ATF studies emphasized short-field operations. Drawing dated 18 August 1964.

http://www.codeonemagazine.com/article.html?item_id=114

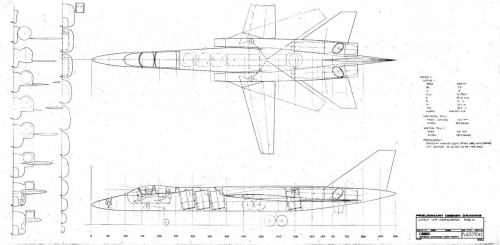

a General Dynamics design concept for an advanced tactical fighter that featured a multiple-engine vertical lift system and variable-sweep wings. The design had two main lift-cruise engines that provided thrust for lift and for up-and-away flight. It had four auxiliary engines mounted near vertically that provided lift for takeoffs and landings. The aircraft had both short and vertical takeoff capability, depending on the size of the engines. Configuration 508A, shown here, was drawn in April 1965.

http://www.codeonemagazine.com/gallery_slideshow.html?item_id=2256


Attachments

  • AA_19640814_ATF_Config_102_1267828237_8909-sm.jpg
    129.6 KB · Views: 1,367
  • 2012_spotlight_jiminycricket_1267828237_6134.jpg
    79.1 KB · Views: 1,311

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,161
Reaction score
5,695
Incredible projects my dear Paul,thank you;

and may be the same competition for which Vought V-476 and Lockheed CL-846 were
submitted.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,161
Reaction score
5,695
Also my dear Paul,

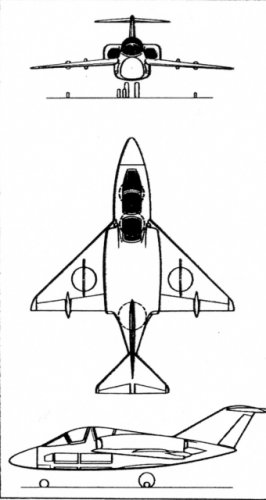

may be the Ryan Model-182.


Attachments

  • r 182.jpg
    r 182.jpg
    87 KB · Views: 1,143

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,807
Reaction score
2,207
This must have been a very broad competition (perhaps more of a set of technology studies). Configuration 102 and the "Jiminy Cricket" (Configuration 508A) are so different that it seems impossible that they were designed against the same requirement. Config 102, for instance, doesn't even seem to have much (if anything) in the way of radar, while Config 508A clearly has quite a large dish.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,054
Reaction score
554
Very nice find!!
Thank you!

Can anyone confirm if these 'Advanced Tactical Fighter' designs were specific to a USAF requirement or was this 'Advanced Tactical Fighter' an unsolicited design study by General Dynamics off their own back?

Regards
Pioneer


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,230
Reaction score
6,484
Two more configs posted at http://www.codeonemagazine.com/article.html?item_id=114:

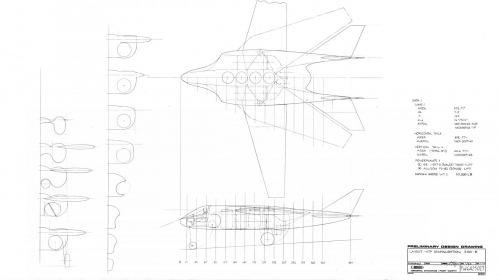

Configuration 300-B for an advanced tactical fighter had variable wings and six engines. These early ATF studies emphasized short-field operations. Drawing dated 10 December 1964.

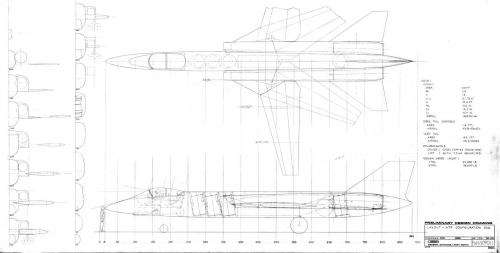

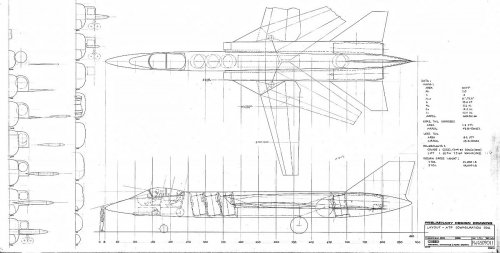

Configuration 506 for an advanced tactical fighter had variable wings and six engines (two for thrust and four for vertical lift). These early ATF studies emphasized short-field operations. Drawing dated 20 January 1965.


Attachments

  • 19641210_ATF_Config_300_B_1267828237_2565-sm.jpg
    102.4 KB · Views: 881
  • 19650120_ATF_Config_506_1267828237_6611-sm.jpg
    131.8 KB · Views: 850

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,161
Reaction score
5,695
Wow,amazing projects my dear Paul,


you made my day.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,230
Reaction score
6,484
F-15 was known as "Advanced Tactical Fighter (F-X)" so it may be related to the earliest studies for this, which initially emphasised VG and air-ground.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,161
Reaction score
5,695
PaulMM (Overscan) said:
F-15 was known as "Advanced Tactical Fighter (F-X)" so it may be related to the earliest studies for this, which initially emphasised VG and air-ground.


Yes my dear Paul,


specially the FX competition started at 1965.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,054
Reaction score
554
fightingirish said:
Is this the right topic???


CodeOneMagazine said:

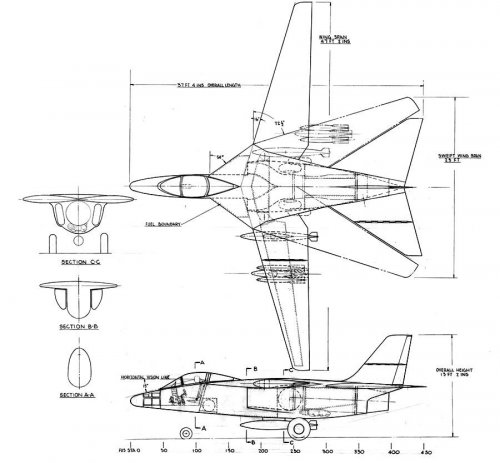

General Dynamics design study for an advanced tactical fighter from August 1964.


Source: CodeOneMagazine - Facebook - Photos

Hey nice find Fightingirish!!
This would have to one of the smallest VG-winged designs I've seen!
It will be interesting to find out more about this design and it's designation!!

Regards
Pioneer


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,986
Reaction score
3,984

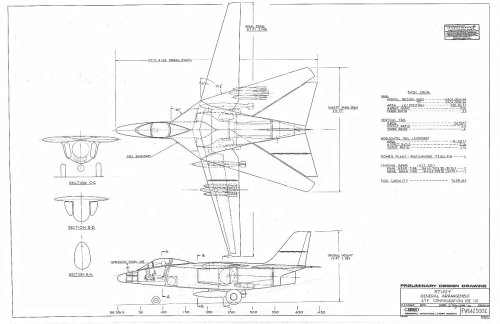

Attachments

  • GD ATF 110.jpg
    GD ATF 110.jpg
    112 KB · Views: 326

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,986
Reaction score
3,984
Hi! GD ATF 506.

"506 configuration for "advanced tactical fighter" had a moveable wing and six engines (two for flight and four for vertical lifting). Early studies ATF, stand battlefield operations. January 20, 1965 picture of the year."


Attachments

  • GD ATF 506.png
    GD ATF 506.png
    556.3 KB · Views: 302

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,986
Reaction score
3,984
Hi! GD ATF 508A.
"Which is Cricket, General Dynamics, advanced design concept takticheskiogo fighter, few engines vertical lift system, variable sweep wing. The design had two hoisting-engine mid-flight. Four auxiliary motor installed vertically for takeoffs and landings. The plane had the ability to short takeoff and vertical, depending on the size of the envisaged engines. 508A configuration shown here depicts in April 1965 year."


Attachments

  • GD ATF 508A.png
    GD ATF 508A.png
    368.9 KB · Views: 289

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,986
Reaction score
3,984

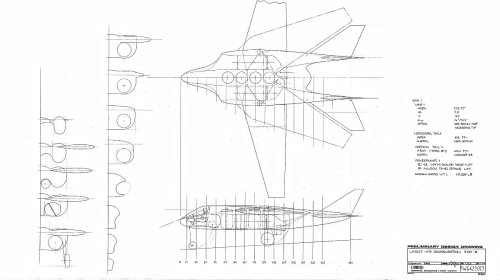

GD ATF 300-B.

"Configuration 300-B "Advanced Tactical Fighter (ATF) possessed movable wings and six engines (two for flight and four for vertical lifting). Early studies ATF, stand battlefield operations. The picture is dated December 10, 1964"
