Re: China COMAC 919 heavy transport aircraft

A Chinese version of An-124 "Ruslan"???


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
Re: China COMAC 919 heavy transport aircraft

That picture is completely BS ... the C919 will be - if ever - a family of airliners in the class of the B737 or A.320-series ...


Attachments

  • c919fei.jpg
    26.8 KB · Views: 953

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,965
Reaction score
376
Re: China COMAC 919 heavy transport aircraft

archipeppe said:
A Chinese version of An-124 "Ruslan"???

Although give the PRC/PLAAF time!
And they will producing such capable strategic transport's in numbers that will put the Ruslan to shame!! :eek:

Regards
Pioneer


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
Re: China COMAC 919 heavy transport aircraft

Fianlly they seem progressing:

http://www.flightglobal.com/articles/2009/09/07/331917/aa09-comac-unveils-model-of-the-c919-airliner.html

... and reportedly last week CAC began manufacturing the front section.

http://china-pla.blogspot.com/2009/09/recent-chinese-civilian-aviation-news.html

Deino


Anderman

ACCESS: Confidential
Joined
Sep 30, 2006
Messages
178
Reaction score
28
Re: China COMAC 919 heavy transport aircraft

No the front looks more like the Dreamliner :)


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
Re: China COMAC 919 heavy transport aircraft

Some more pictures:

http://slide.mil.news.sina.com.cn/slide_8_458_1157.html


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
665
Re: China COMAC 919 heavy transport aircraft

Definitely reminds me of an Airbus A320. :(
I much prefered the Ruslan-like transport at the top of the page... especially since the word "comac" is sometimes found in French slang for "enormous"!!! ;D


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
159
Re: China COMAC 919 heavy transport aircraft

This is why Boeing refused to transfer technology to China. Airbus did, and now they'll have a near-clone at half the price. Congrats.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
175
Website
www.hitechweb.genezis.eu
Re: China COMAC 919 heavy transport aircraft

*visual* near-clone. If the quality will be the same as the chinese copies of the EU and US cars, than the every plane will crash after a few hours in service and kill everybody on-board. I am not going to be a passanger.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
Re: China COMAC 919 and Shaanxi Y-XX large transport aircraft projects

I just changed the topic's title as I tried to put an overview together about China's ambitions to develop a “large aircraft”:

It currently seems that there are two programmes run in parallel: The first is the now unveiled COMAC C919 – an airliner in the class of the A.320 or B-737 – and a new military transport sometimes called Y-20. Both projects are under development within pretty much the same time frame and most likely both share a certain amount of R&D, which are openly founded to the C919 but most likely could find their way onto this large transport. Some analysts compare this share of technology and founds to the Japanese efforts with the C-X and P-X programme.


For the Y-20 it seems now (even if unconfirmed !) that Shaanxi and Xian were competing for the designs of an advanced 4-engined “future large transport” aircraft that was slightly larger (wider) and more capable (capacity wise) then the IL-76MF. Its max payload is expected to be around 50t.
It seems now that after both competing concepts were examined – and in mind of its close cooperation with Antonov – Shaanxi’s design was chosen, which is said to be based upon some IL-76MD technology. Despite an agreement signed between AVIC and Antonov during fall 2008, Xian – esp. its design Institute 603 – and SAC will cooperate in the later production phase.
It is then reported that a full-scale metal mock-up of the head section was constructed by 2008 and the latest news suggested that SAC just started to build the rear fuselage of the first prototype on August 20, 2009. A first flight is still projected in 2012.

Regarding the new transports powerplant there are different information available, even if the later serial models are to be powered by modified WS-10 turbofans. The prototypes and the initial batch may be powered by Russian D-30KP-2/WS-18 turbofans, but also a Western commercial engine seems under consideration.

Also in an early stage of development is the next generation of medium transport aircraft – this time rumored to be under development at XAC/603 Institute and also to be powered by two WS-10 turbofans. Some rumors suggest an An-70 based design.

Hope that helps a bit until more information is available
Deino


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
819
Website
deeptowild.blogspot.com
Re: China COMAC 919 and Shaanxi Y-XX large transport aircraft projects

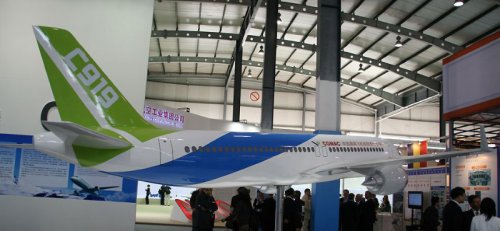

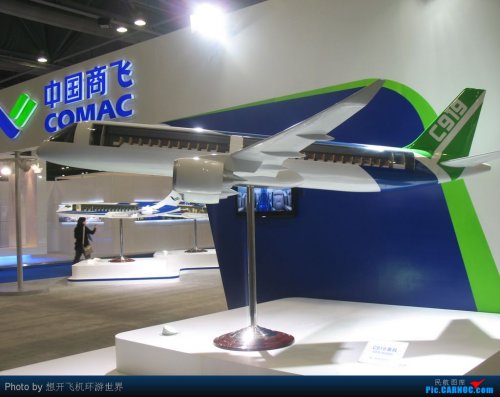

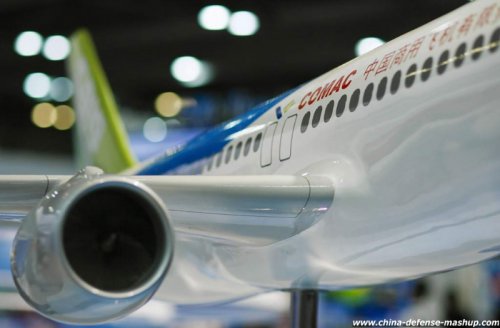

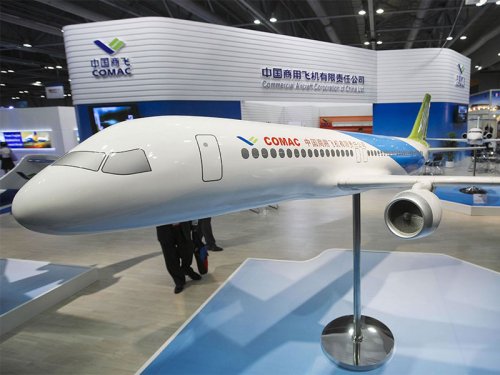

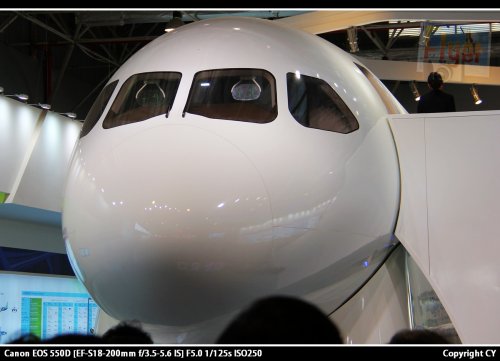

Model of Commercial Aircraft Corporation of China (COMAC) C919 on display at Asian Aerospace '09. Alcoa and COMAC are jointly exploring technology solutions for the design and development of the new 190-seat aircraft.

The aircraft will be assembled in Shanghai, but will source parts and components globally.

There is strong market interest for this aircraft based on China’s expected long term growth in global passenger traffic demand. The C919 is expected to take its first flight in 2014 and enter service in 2016.

Source:
http://www.technobahn.com/article/200910291400

http://www.network54.com/Forum/211833/thread/1260236445/last-1260422738/US+and+China+to+cooperate+on+ARJ21+commuter+jet

http://www.china-defense-mashup.com/?p=4058


Attachments

  • COMAC-C919.jpg
    193 KB · Views: 856
  • 200910291400.jpg
    87.8 KB · Views: 799
  • C919.jpg
    171.8 KB · Views: 755
  • c919-2.jpg
    153.3 KB · Views: 26

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
Re: China COMAC 919 and Shaanxi Y-XX large transport aircraft projects

Sorry guys ... no surprise until today ! :-[ ... at least some news:

Posted by Xinhui at the CDF:

中国大型运输机Y20拟定2012十八大前下线
2011-12-01

--------------------------------------------------------------------------------

近日,有关媒体披露中航负责干部任命的副总经理高建设讲话部分内容,他指出指出,西飞目前正承担着国家重大专项任务,他对西飞提出了具体的希望和要求。希望西飞全体干部职工,把党建工作和企业中心任务有机地结合起来,在做好党建设工作的同时,完成好科研生产经营任务,确保在明年十八大召开前夕,成功将大飞机送上蓝天。
行业观察家认为,这个大飞机可能就是正在快加鞭研制的Y20大型运输机。
º½¿Õ×ÊѶ-¹ú¼Êº½¿ÕÔÚÏß

and

1月8日9::00,颜良将举行Y20-001架结构装配交付仪式
转个消息,龙腾网漏斗子专栏中“雍州山人”发言
1月8日9::00,颜良将举行Y20-001架结构装配交付仪式,标志着中国真正意义上拥有了国产“大”运!


As such if I'm not completely wrong (maybe someone can help!) the structure assembly of the Y-20 prototype 001 has been completed and has been "handed over (?) ... Now I'm not sure "Roll out" (or First flight" is expected to be before the 18th National People's Congress by the end of this year.

But now - come on - give us just a glimpse of that bird .... NOW !!! :p

Deino


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
819
Website
deeptowild.blogspot.com
Re: China COMAC 919 and Shaanxi Y-XX large transport aircraft projects

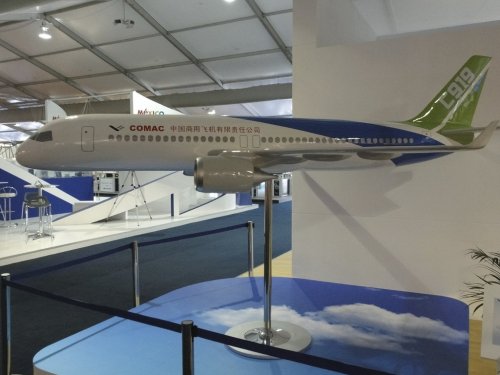

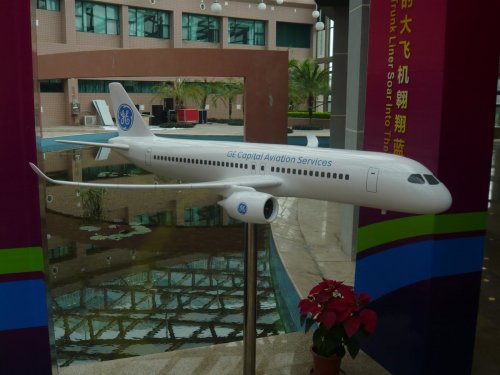

Model of COMAC C919 in GE Capital Aviation Services livery on display at China Airshow 2010.

Artist's impression of COMAC C919.

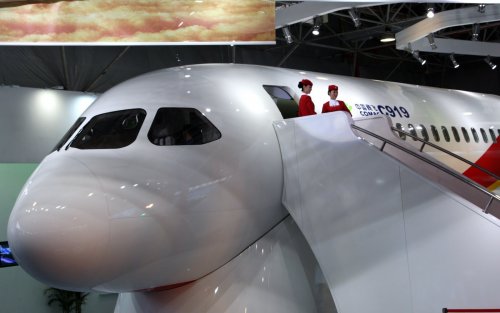

COMAC C919 cabin mock-up.

Source:
http://www.defence.pk/forums/chinese-defence/80189-airshow-china-2010-a-10.html
http://blog.hiddenharmonies.org/2010/05/comac-c919-challenging-the-boeing-and-airbus-duopoly/
http://airobserver.wordpress.com/2011/06/22/is-ryanair-really-going-to-leave-boeing-for-comac-five-reasons-it-may-not-after-all/
http://pic.feeyo.com/posts/526/5264285.html


Attachments

  • P1020947.JPG
    182.3 KB · Views: 698
  • c919.jpg
    108.6 KB · Views: 660
  • 201103110136148898.jpg
    281.2 KB · Views: 621
  • 2145965222443853404.jpg
    531.3 KB · Views: 556
  • 2964212979740847517.jpg
    603.2 KB · Views: 489
  • 0011432100f50d17bc2907.jpg
    59.4 KB · Views: 42

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
819
Website
deeptowild.blogspot.com
Re: China COMAC 919 and Shaanxi Y-XX large transport aircraft projects

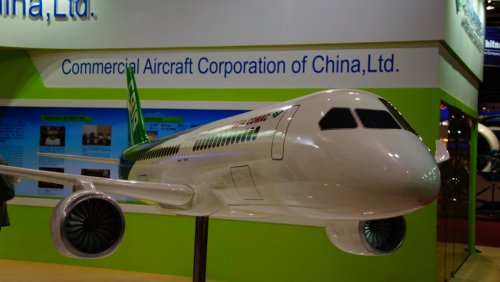

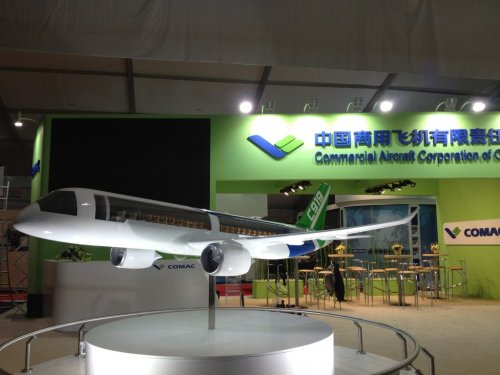

Model of COMAC C919 on display at Singapore Airshow 2012.

Source:
http://dommlevin.wordpress.com/2012/02/18/long-saturday-part-1/


Attachments

  • 005Comac.jpg
    128.3 KB · Views: 34

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
819
Website
deeptowild.blogspot.com
Re: China COMAC 919 and Shaanxi Y-XX large transport aircraft projects

Artist's impression of COMAC C919.

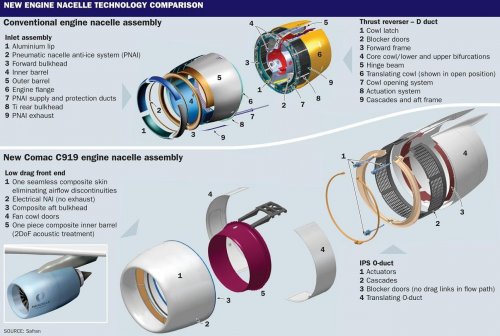

Nacelle design of COMAC C919.

Cutaway model of COMAC C919.

Source:
http://www.eaton.com/Eaton/OurCompany/NewsEvents/NewsReleases/PCT_375581
http://time-az.com/main/detail/33571


Attachments

  • pct_375582.jpg
    131.5 KB · Views: 77
  • 20120307newenginenacelletechnol.jpg
    152.6 KB · Views: 48
  • AxRq63yCQAA_9EO.jpg large.jpg
    AxRq63yCQAA_9EO.jpg large.jpg
    137.6 KB · Views: 44

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
819
Website
deeptowild.blogspot.com
Re: China COMAC 919 and Shaanxi Y-XX large transport aircraft projects

Can a moderator please separate the COMAC C919 from the Shaanxi Y-XX and create a topic for each of these aircraft projects?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,580
Reaction score
4,306
http://www.flightglobal.com/news/articles/pw-keen-to-work-with-comac-on-future-aircraft-381900/


2IDSGT

Ah tale yew wut!
Joined
Nov 27, 2012
Messages
371
Reaction score
2
Grey Havoc said:
http://www.flightglobal.com/news/articles/pw-keen-to-work-with-comac-on-future-aircraft-381900/
Christ, there goes P&W in China again. I'm not gonna feel one bit sorry for them when the inevitable intellectual theft happens.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
商飞C919“铁鸟”试验台投入使用

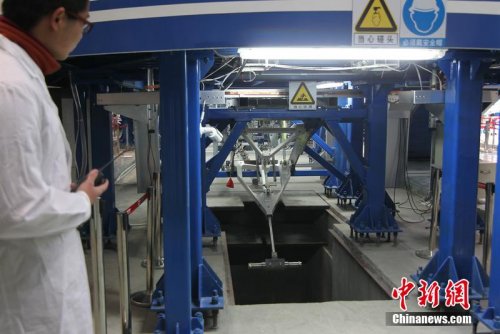

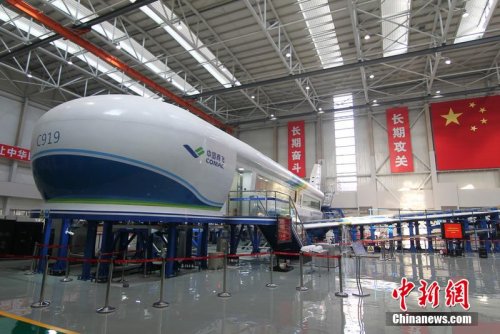

这是位于中国商飞上海飞机设计研究院内的C919“铁鸟”试验台(12月30日摄)。 12月30日,国产大型客机C919“铁鸟”试验台在中国商飞上海飞机设计研究院投入使用,这标志着C91 9系统验证工作正式启动。 “铁鸟”试验台全称为“飞控液压系统综合试验台架”,是飞机系统综合、优化设计、适航取证和交付运营、持续 适航的关键试验设施。裴鑫 摄 图片来源:新华网

via BING !

COMAC C919 "iron bird" Tester put into use

This is located within COMAC Shanghai aircraft design and Research Institute of the C919 "iron bird" Tester (photo by, December 30). On December 30, the Chinese C919 large aircraft the "iron bird" Tester put into use in China's COMAC Shanghai aircraft design and Research Institute, which marks the C919 system validation work was officially launched. The "iron bird" Tester called "flight control hydraulic system test-bed", is an integrated, optimized design, aircraft systems deliver operations, airworthiness and continued airworthiness of the key experimental facilities. Pei Xin photo source: Xinhua


Attachments

  • C919 Iron Bird 5.jpg
    C919 Iron Bird 5.jpg
    61.8 KB · Views: 34
  • C919 Iron Bird 4.jpg
    C919 Iron Bird 4.jpg
    83.2 KB · Views: 34
  • C919 Iron Bird 3.jpg
    C919 Iron Bird 3.jpg
    72.2 KB · Views: 44
  • C919 Iron Bird 2.jpg
    C919 Iron Bird 2.jpg
    82.9 KB · Views: 39
  • C919 Iron Bird 1.jpg
    C919 Iron Bird 1.jpg
    82 KB · Views: 32

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826

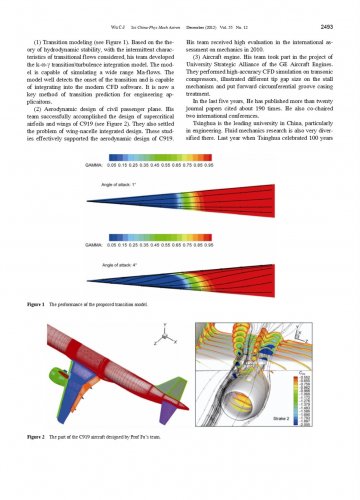

:eek:


Attachments

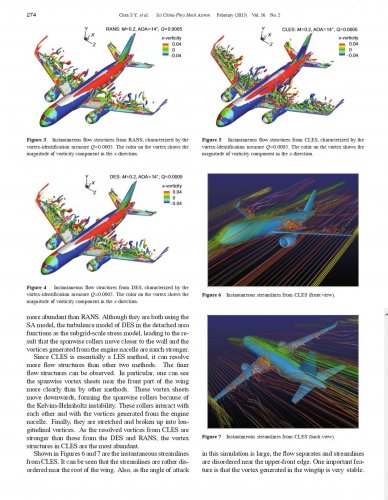

  • C919 - doc1.jpg
    C919 - doc1.jpg
    277.6 KB · Views: 45
  • C919 - doc2.jpg
    C919 - doc2.jpg
    518.3 KB · Views: 75

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
665

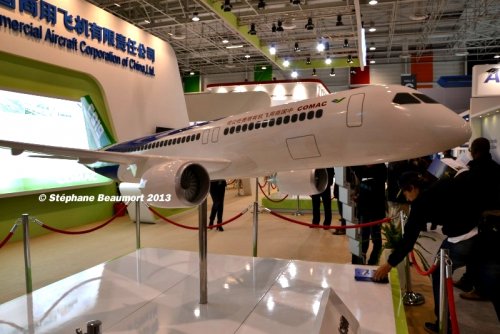

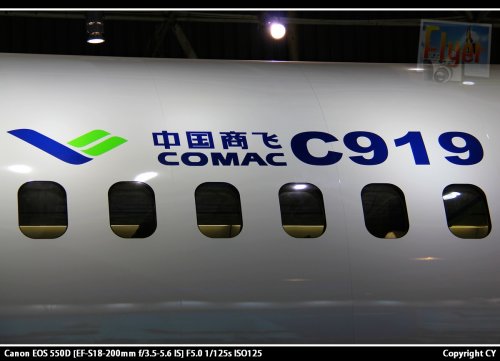

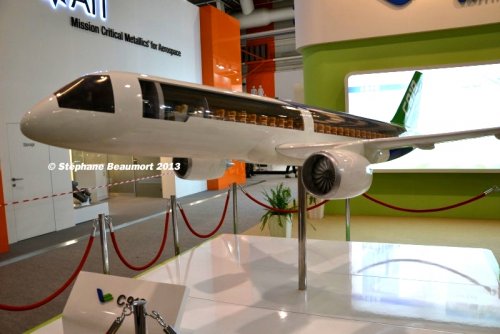

Don't think I posted these two before, from the 2013 Paris-Le Bourget Airshow:


Attachments

  • Dsc_0243.jpg
    221.5 KB · Views: 31
  • Dsc_0242.jpg
    183.3 KB · Views: 31

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
Excellent my dears Deino and Stargazer.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826

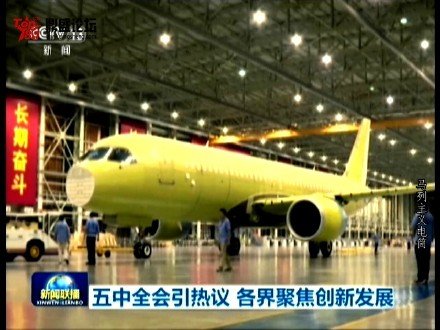

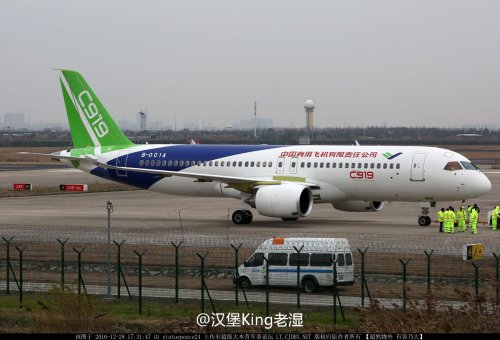

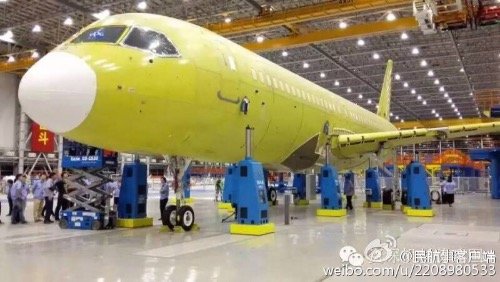

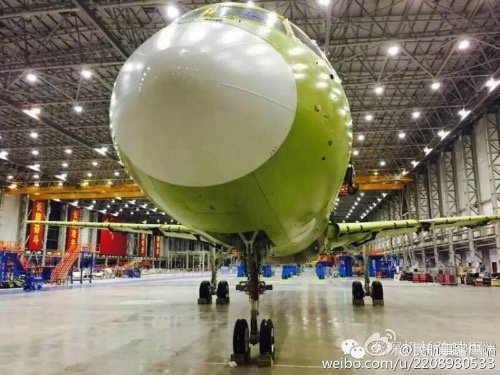

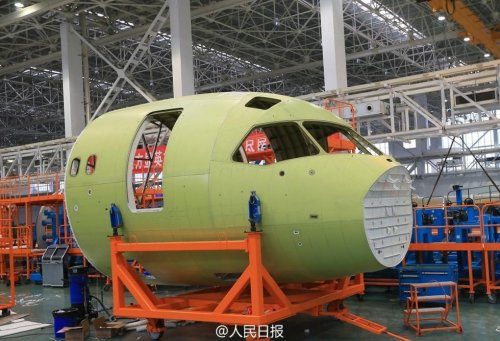

Prototype 01 ;)


Attachments

  • image.jpg
    225.5 KB · Views: 22
  • image.jpg
    222.7 KB · Views: 27
  • image.jpg
    221.8 KB · Views: 27

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826

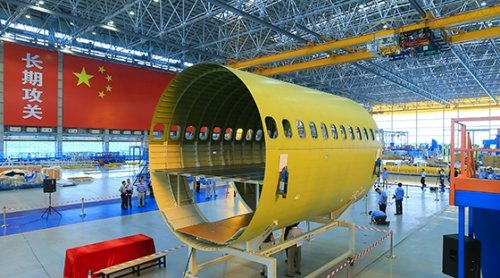

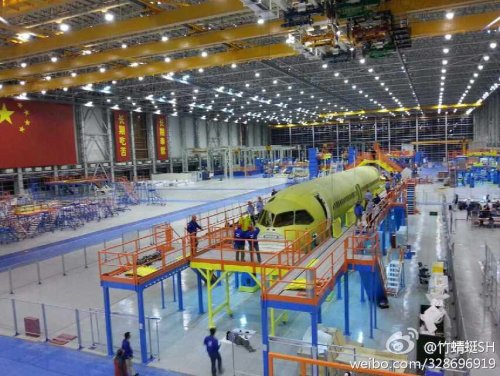

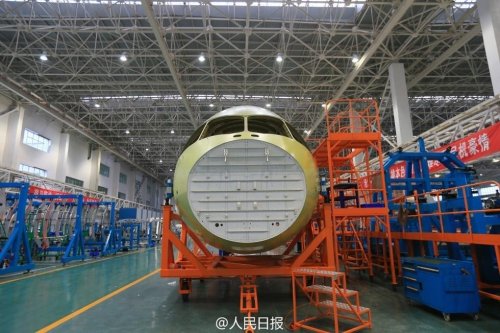

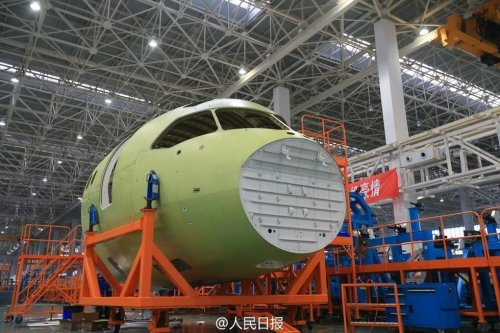

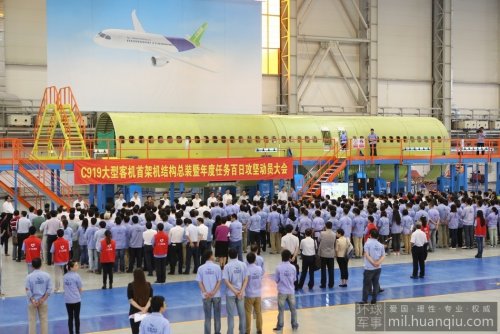

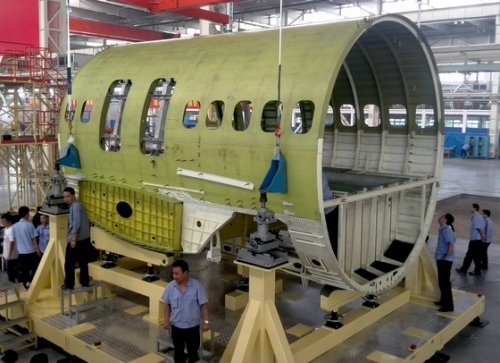

Following delivery of several mayor parts during May to August, final assembly of the first prototype has started on 19. September !


Attachments

  • COMAC C919 prototype center fuselage by Xian - 22.8.14 - 1.JPG
    COMAC C919 prototype center fuselage by Xian - 22.8.14 - 1.JPG
    205.9 KB · Views: 14
  • COMAC C919 fuselage parts - 24.8.14 - 2.jpg
    COMAC C919 fuselage parts - 24.8.14 - 2.jpg
    187.5 KB · Views: 14
  • COMAC C919 fuselage mating Shanghai - 19.9.14 - 1.JPG
    COMAC C919 fuselage mating Shanghai - 19.9.14 - 1.JPG
    184.5 KB · Views: 16

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826

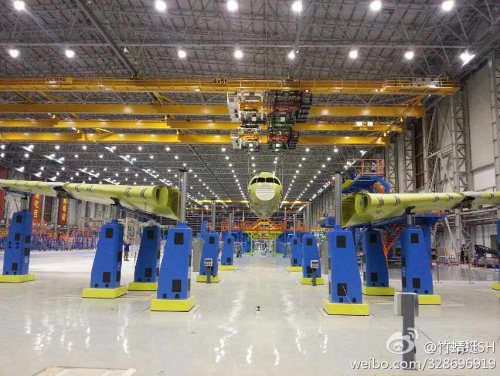

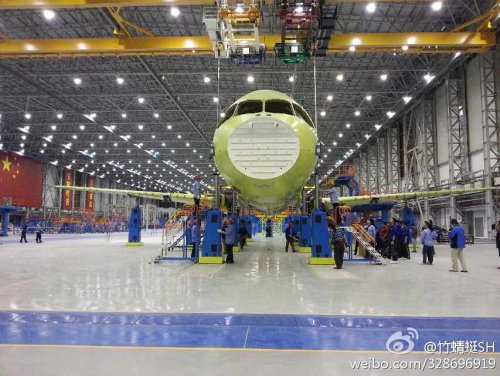

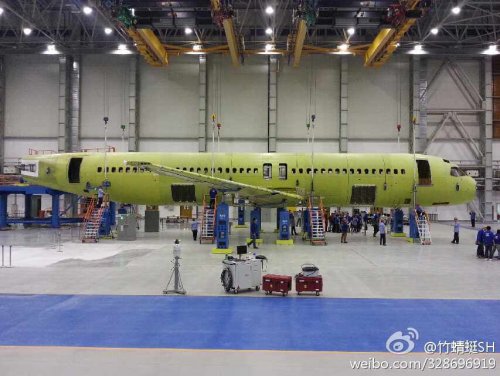

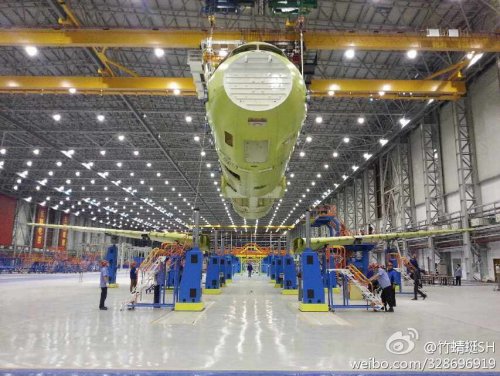

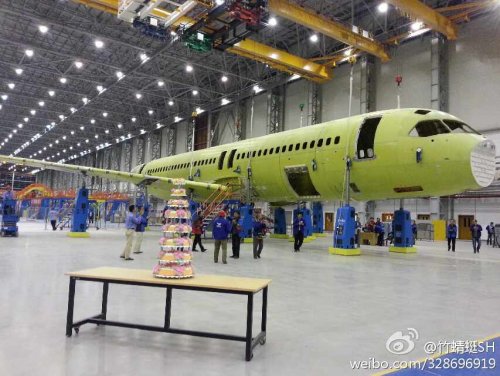

;D Fuselage-wing-mating took place on 30. November !


Attachments

  • COMAC C919 fuselange wing mating - 30.11.14 - 7.jpg
    COMAC C919 fuselange wing mating - 30.11.14 - 7.jpg
    62 KB · Views: 27
  • COMAC C919 fuselange wing mating - 30.11.14 - 6.jpg
    COMAC C919 fuselange wing mating - 30.11.14 - 6.jpg
    54.9 KB · Views: 20
  • COMAC C919 fuselange wing mating - 30.11.14 - 4.jpg
    COMAC C919 fuselange wing mating - 30.11.14 - 4.jpg
    387.7 KB · Views: 108
  • COMAC C919 fuselange wing mating - 30.11.14 - 4.jpg
    COMAC C919 fuselange wing mating - 30.11.14 - 4.jpg
    387.7 KB · Views: 123
  • COMAC C919 fuselange wing mating - 30.11.14 - 3.jpg
    COMAC C919 fuselange wing mating - 30.11.14 - 3.jpg
    382.1 KB · Views: 150
  • COMAC C919 fuselange wing mating - 30.11.14 - 2.jpg
    COMAC C919 fuselange wing mating - 30.11.14 - 2.jpg
    403.1 KB · Views: 169
  • COMAC C919 fuselange wing mating - 30.11.14 - 1.jpg
    COMAC C919 fuselange wing mating - 30.11.14 - 1.jpg
    447.7 KB · Views: 200

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
latest image ... ;)


Attachments

  • COMAC C919 prototype - 22.12.14.jpg
    COMAC C919 prototype - 22.12.14.jpg
    664.3 KB · Views: 757

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
Finally on its own feet ...


Attachments

  • COMAC C919 - first prototype 8.9.15 - 1.jpg
    COMAC C919 - first prototype 8.9.15 - 1.jpg
    70.1 KB · Views: 634
  • COMAC C919 - first prototype 8.9.15 - 2.jpg
    COMAC C919 - first prototype 8.9.15 - 2.jpg
    52.4 KB · Views: 618

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,580
Reaction score
4,306
Grey Havoc said:
With regards as to the ARJ-21: http://www.reuters.com/article/2015/10/21/us-china-aircraft-arj21-exclusive-idUSKCN0SF2XN20151021

The C919 is also mentioned in the above linked article.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
Roll out officially set for tomorrow !


Attachments

  • COMAC C919 - 1.11.15.jpg
    COMAC C919 - 1.11.15.jpg
    30.9 KB · Views: 463

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
;)


Attachments

  • COMAC C919 - unknown.jpg
    COMAC C919 - unknown.jpg
    47.4 KB · Views: 407

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
:-*


Attachments

  • COMAC C919 roll-out - 2.11.15 - 13.jpg
    COMAC C919 roll-out - 2.11.15 - 13.jpg
    127.9 KB · Views: 45
  • COMAC C919 roll-out - 2.11.15 - 11.jpg
    COMAC C919 roll-out - 2.11.15 - 11.jpg
    197.1 KB · Views: 50
  • COMAC C919 roll-out - 2.11.15 - 17.jpg
    COMAC C919 roll-out - 2.11.15 - 17.jpg
    379.6 KB · Views: 53
  • COMAC C919 roll-out - 2.11.15 - 8.jpg
    COMAC C919 roll-out - 2.11.15 - 8.jpg
    156.6 KB · Views: 50
  • COMAC C919 roll-out - 2.11.15 - 15.jpg
    COMAC C919 roll-out - 2.11.15 - 15.jpg
    248.4 KB · Views: 33
  • COMAC C919 roll-out - 2.11.15 - 14.jpg
    COMAC C919 roll-out - 2.11.15 - 14.jpg
    176.8 KB · Views: 25

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
First taxi-test this morning

https://twitter.com/OedoSoldier/status/814047268873437185/video/1


Attachments

  • COMAC C919 - first low-speed taxi test 28.12.16 - 1.jpg
    COMAC C919 - first low-speed taxi test 28.12.16 - 1.jpg
    175.4 KB · Views: 44

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
Deino said:
First taxi-test this morning

https://twitter.com/OedoSoldier/status/814047268873437185/video/1

Good news my dear Deino.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
819
Website
deeptowild.blogspot.com
"C919 Prototype Configuration Frozen For April First Flight"
by Bradley Perrett
Mar 22, 2017

Source:
http://aviationweek.com/commercial-aviation/c919-prototype-configuration-frozen-april-first-flight

BEIJING—The configuration of the first prototype of the Comac C919 program has been frozen in preparation for a first flight next month, say industry sources.

The timing of the flight almost rules out the possibility of the Chinese state manufacturer meeting its internal target of making the first delivery of the 158-seat airliner in 2019.

Philippe Petitcolin, CEO of major C919 supplier Safran, told Bloomberg on March 17 that the first-flight target was now April.

Taxi tests began in December. By the middle of March the aircraft had used the thrust reversers of its CFM Leap 1C engines but had not begun high-speed taxi tests, says one source. Suppliers are under pressure to complete minor work, such as making adjustments to systems, in order to make the aircraft ready, but they will not receive new demands for changes before the flight, say the sources.

Aviation Daily last year reported that Comac would probably miss its declared target of flying the C919 in 2016, and later that the most likely time was April.

The first C919 was rolled out in November 2015, officially said to be complete but not actually so. When the program was launched in 2008 the first delivery was due in 2016. Early in development, the target for first flight was June 2014.

Accordingly, development to date is running 34 months late, but the first delivery will be delayed by a greater period because Comac has also lengthened the planned duration of the flight testing campaign from the original two years.

A year ago, Comac had an unstated target to make the first delivery in 2019, but not early in that year. That assumed a 2016 first flight.

Handing over the first aircraft before 2020 now seems most improbable, because the first aircraft has still not flown, the second has not been assembled and the program history suggests that the inexperienced state company could easily hit more delays.

Shortly after Mitsubishi Aircraft's MRJ regional jet first flew in November 2015, that similarly inexperienced commercial aircraft company expected to need 32 months for flight testing and pre-delivery preparations. The period has now been stretched to about 50 months, maybe more, but for an unusual reason that Comac will reasonably expect not to encounter: nine years after program launch, Mitsubishi Aircraft has found it needs to make significant changes to its design.

Although the first C919 prototype’s configuration has been frozen, it is quite different structurally to the final C919 design. Comac discovered during static testing that it could lighten the aircraft, mostly because the wing was unnecessarily strong. The resulting design change came too late for the first two prototypes but the other four will follow the lighter design.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,894
Reaction score
826
Congrats to a successful maiden flight today ! :)


Attachments

  • COMAC C919 - 20170505 maiden flight - 5.jpg
    COMAC C919 - 20170505 maiden flight - 5.jpg
    92.5 KB · Views: 34
  • COMAC C919 - 20170505 maiden flight - 6.jpg
    COMAC C919 - 20170505 maiden flight - 6.jpg
    53 KB · Views: 35
  • COMAC C919 - 20170505 maiden flight - 7.jpg
    COMAC C919 - 20170505 maiden flight - 7.jpg
    76.2 KB · Views: 35
  • COMAC C919 - 20170505 maiden flight - 8.jpg
    COMAC C919 - 20170505 maiden flight - 8.jpg
    72.4 KB · Views: 29
  • COMAC C919 - 20170505 maiden flight - 9 landing.jpg
    COMAC C919 - 20170505 maiden flight - 9 landing.jpg
    141.4 KB · Views: 36

Similar threads

Top
