Breguet Atlantic contenders

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

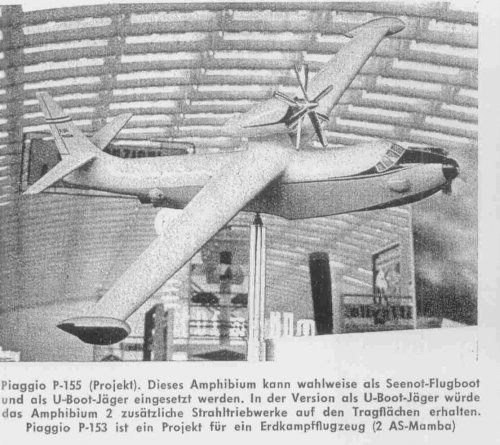

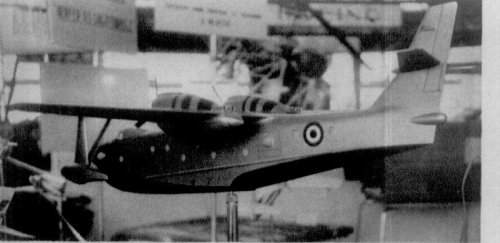

Found this photo of a model of the Piaggio P.155 ASW amphibious aircraft
in FLIEGER 1955. I think, it was one of the 25 contenders to the NATO ASW
aircraft, which eventually saw the Breguet Atlantic as the winner.


Attachments

  • Piaggio_P-155_01.JPG
    62.4 KB · Views: 1,044

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
My dear Jemiba,

Good found,but can you translate anther info. about Piaggio
P.153 project,please.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
"can you translate anther info. about Piaggio "

Of course:

"The Piaggio P-153 is a project for a ground attack a/c (with two AS-Mamba engines)"


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Thank you my dear Jemiba,

And now we know a little proposals for this competition,such as
Bristol-206 & 207,Avro-745,Breguet-1150,Piaggio P.155,Dornier
P.340 and Nord (may be N-2510).


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

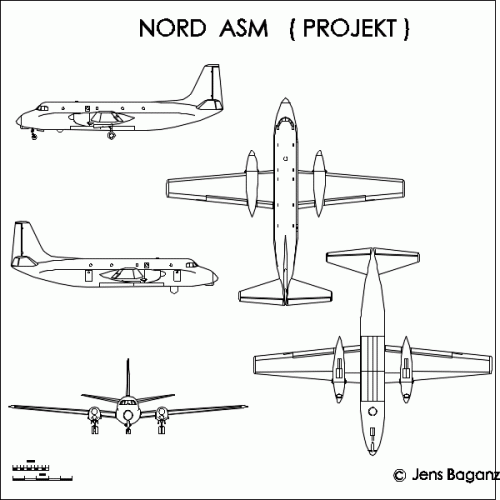

AFAIK, the Nord contender, mentioned by Cuny only as ASM, was
a Breguet Atlantic lookalike. The Noratlas derivatives were just
intended as ASW trainers and were already outdated at the time
of this program.


Attachments

  • Nord_ASM.GIF
    26.2 KB · Views: 859

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,994
Reaction score
370
Hi all,

special question for the italian-fan Skybolt! Do you have more informations about the Piaggio P.153?


Servus Maveric


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
My dear Jemiba,

I forgot to ask you what was Nord design (N.?)?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

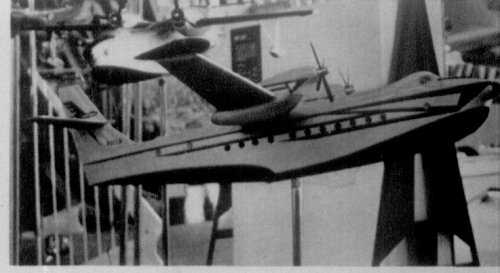

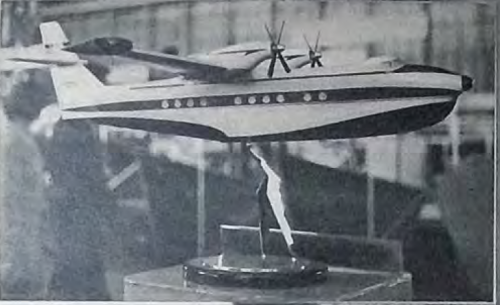

Anther version of Piaggio P.155,with two engines.


Attachments

  • Piaggio P.155.JPG
    Piaggio P.155.JPG
    15 KB · Views: 808

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
hesham said:
Thank you my dear Jemiba,

And now we know a little proposals for this competition,such as
Bristol-206 & 207,Avro-745,Breguet-1150,Piaggio P.155,Dornier
P.340 and Nord (may be N-2510).

The Lockheed CL-495 was submitted to this competition ,it was
developed from P-2,what was the Canadair project to this
competition ?.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,731
Reaction score
1,186
hesham said:
... what was the Canadair project to this competition ?.

Canadair CL-67 in two different versions. One with four AS Mamba 10s, and another with four RR Tyne 1s (4310 shp).

Dimensions for the Tyne-powered version were: span 37.18m, area 125.4 m2, height 9.75m.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

does anyone know the Belgium and Netherland contenders to this
competition ?.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

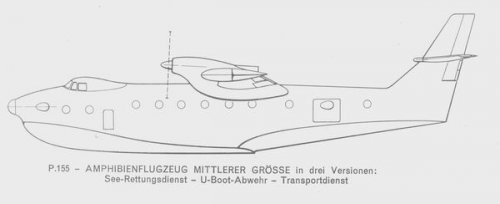

From an Piaggio advertisement in Intervia 1958, a profile
of the P.155 :


Attachments

  • Piaggio_P-155_02.JPG
    13.1 KB · Views: 648

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,861
Reaction score
4,766
Re: Breguet Atlantic contenders (Piaggio P.155)

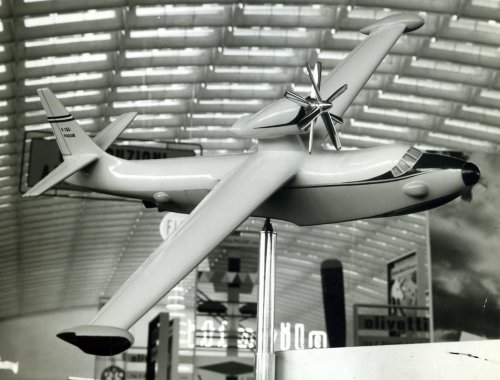

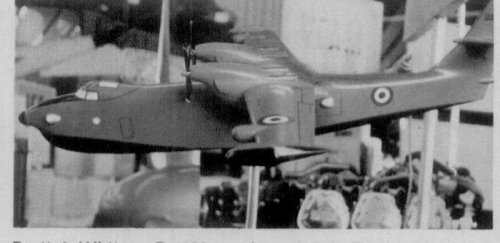

"Hi Everyone.
Found the attached photo at the Heathrow Air Fair last Sunday. It shows a model of the Piaggio P.155 flying boat project on display at an industry show somewhere. My knowledge of Italian flying boats is zero, so I wondered if anyone had any information please. I don't even know if this design was ever built or flown because I cannot find any references to it anywhere. I am assuming 1950s but the photo has no information on the back.

Thanks to all of you for your support again this year. Very Best Wishes for Christmas and the New Year.
Tony Buttler"

Looks like Tony forgot to search Secret Projects forum ;D ;D ;D


Attachments

  • Piaggio P.155.jpg
    Piaggio P.155.jpg
    97.4 KB · Views: 567

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,861
Reaction score
4,766
http://books.google.com/books?q=piaggio+p.155&btnG=Search+Books

Heaps of references from periodicals of the time. Seems that Piaggio approached Saunders-Roe to test P.155 in their tanks.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
hesham said:
Hi,

Anther version of Piaggio P.155,with two engines.

The source;

http://www.flightglobal.com/pdfarchive/view/1958/1958%20-%200842.html


Attachments

  • P.155.jpg
    141.6 KB · Views: 799

Nico

ACCESS: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
33
In fact, there were some different iteration of the Piaggio P.155 project, answering different requirements. The basic project was inspired by last Martin seaplanes and differed mainly for the power plant. There was a twin radial version offered to Aeronautica Militare as a replacement for Piaggio P.136 and CRDA Cant.Z.506S for sea Search And Rescue rôle; this version was built in wooden mock-up form. One of the turboprop configurations was a contestant in the Atlantic program and If I remember right, there was also a version for amphibious special missions.

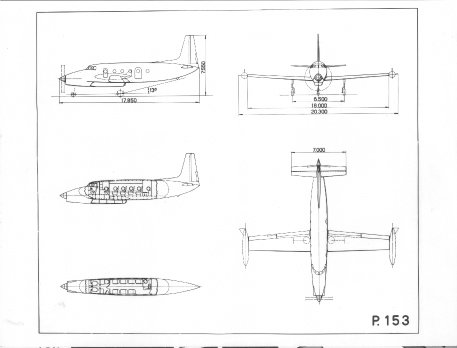

About the P.153 (project only) I was able to find only a three-view drawing with two sections. The aircraft appear to be be a modern single-turboprop executive (perhaps with an Armstrong-Siddeley Double Mamba), similar to the today Pilatis PC-XII.

Nico


Attachments

  • P153_TRI.jpg
    71.4 KB · Views: 879
  • P155Simulacro2.jpg
    513.5 KB · Views: 800

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

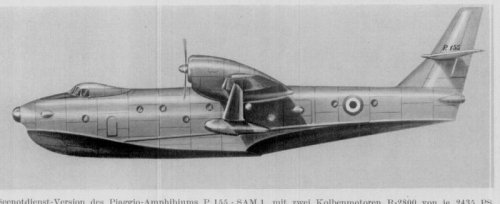

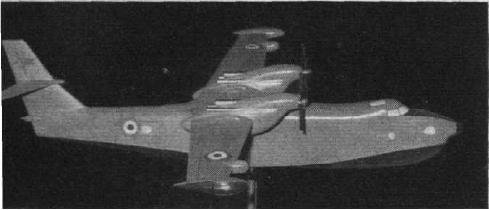

From InterAvia, July 1957 the Piaggio P.155 SAM-1 SAR variant, ASW variant AS with PTL-engines
and the P.155X for 20 to 30 passengers and PTL engines, too. The side view of the P.155 SAM.1
comes from InterAvia, May 1957


Attachments

  • Piaggio_P-155_SAM1_01.jpg
    30.8 KB · Views: 138
  • Piaggio_P-155X_01.jpg
    50.2 KB · Views: 101
  • Piaggio_P-155_AS_01.jpg
    46.2 KB · Views: 358
  • Piaggio_P-155_SAM1_02.jpg
    52.9 KB · Views: 643

nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
336
Reaction score
10
Hi All!

Great Britains Atlantics contenders:

Bristol 206
Fairey
Avro 745


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

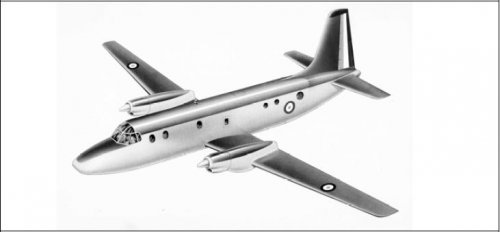

the Avro-745 from Avro Heritage site,by the way it was refused by NATO
because it is too big in its size.


Attachments

  • 745.JPG
    19.6 KB · Views: 148

Nico

ACCESS: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
33
Jemiba said:
From InterAvia, July 1957 the Piaggio P.155 SAM-1 SAR variant, ASW variant AS with PTL-engines
and the P.155X for 20 to 30 passengers and PTL engines, too. The side view of the P.155 SAM.1
comes from InterAvia, May 1957

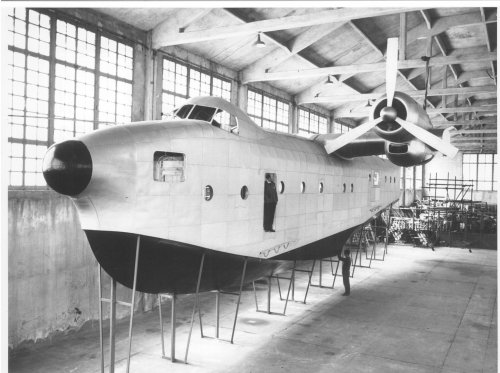

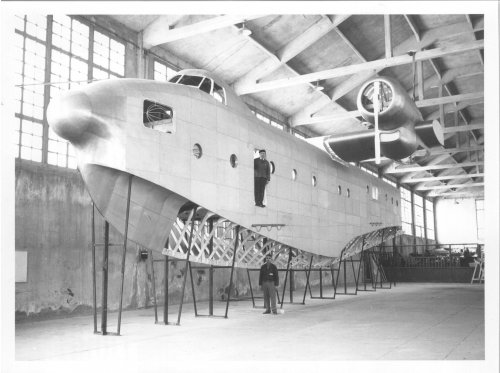

I found another picture, slightly different, of the wooden mock-up of the piston-engined Piaggio P.155
Nico


Attachments

  • P155Simulacro1.jpg
    485.9 KB · Views: 114

valken56

ACCESS: Restricted
Joined
Dec 26, 2010
Messages
2
Reaction score
0
The Atlantic was a result of a NATO competition NMBR3.
It was meant to be a project for the Belgian, Dutch, French, German, Italian and UK armed forces (the US was a financier partner). Production was to be split among those partners.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

now we can say,the contenders for NBMR.2 were;

- Bristol Type-206 & Type-207
- Avro-745
- Breguet Br.1150
- Piaggio P.155
- Dornier P.340
- Nord design
- Lockheed CL-495
- Canadair CL-67
- Blackburn ?
- English Electric ?
- Handley Page ?
- Saro P.208
- Shorts ?
- Vickers ?
- SABCA ?
- Avions Fairey ?
- Airco (De Havilland UK) ?
- Avro Canada ?
- DH Canada ?
- Dassault ?
- Sud Aviation ?
- Aviolanda ?
- Fokker ?

Who can add or solve the mysteries ?.


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,518
Reaction score
837
Is this from a source or mere conjecture?

Chris


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
CJGibson said:
Is this from a source or mere conjecture?


Hi Chris,

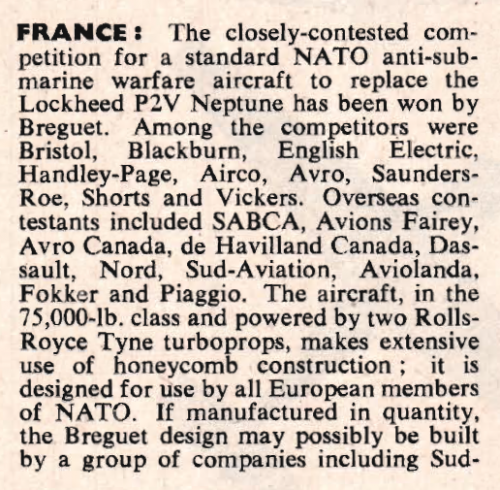

of course it was from two sources,Aeroplane Monthly,but I don't remember the issue
number,and from Flying Review 2/1959,but it's not the problem,the problem is how
to get all those mysteries or gaps,I suggest that;


Blackburn SP-?
Handley Page HP.121 (only my guess)
Shorts PD.?
Vickers Type-8xx
SABCA S-5x
Dassault MD-?
Sud Aviation X-2xx
DHC P.?
Fokker P.2xx


Attachments

  • 1.png
    513 KB · Views: 51

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
171
Fairey proposed the (Project) 83 for NBMR.2 - see CJGibson's excellent book Nimrod's Genesis (page 100).


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289
Atlantic co-op story from

R-2596-DR&E
Multinational Development of Large Aircraft
The European Experience
Mark A. Loren
July 1980
Prepared for the Office of the Under Secretary of Defense for Research and Engineering


Attachments

  • Pages from ADA098053.pdf
    1.4 MB · Views: 56

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
boxkite said:
Fairey proposed the (Project) 83 for NBMR.2 - see CJGibson's excellent book Nimrod's Genesis (page 100).

Who can explain if my dear Boxkite meant by that, Fairey Aviation Company Limited
or Avions Fairey ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
From Ali Nuove 6/1959,

here is a Piaggio P.155 tender.


Attachments

  • 2.png
    572 KB · Views: 180

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

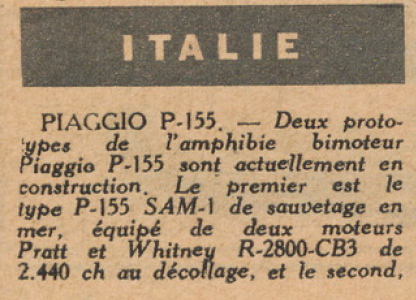

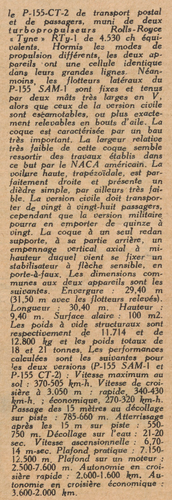

From aviation magazine 1957,

all Info about Piaggio P-155.


Attachments

  • 155-1.png
    269.9 KB · Views: 25
  • 155-2.png
    724.2 KB · Views: 45
