Hi Everybody!
Chuck Anderson here!!

Is anyone familiar with the following aircraft design, and if so, can anyone tell me where I can find further information?

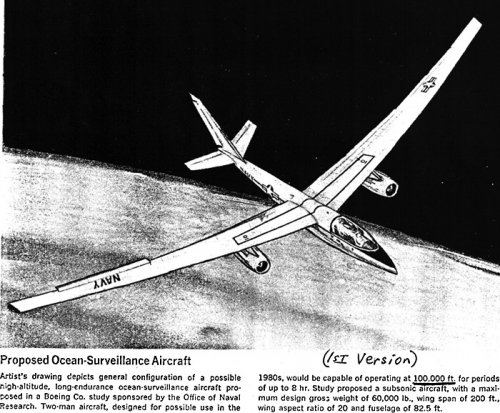

My original source was from an artist's conception appearing in an issue of Aviation Week & Space Technology in the 1980's. (I'm sorry that I can't be more specific.) Aside from the b&w illustration, the only other information I have, comes from the caption below the illustration.

Here's the information I have:

This was a Boeing project sponsored by the Office of Naval Research (ONR). (I don't know the specific Boeing Project Number.)

MISSION: High-altitude, long-endurance ocean-surveillance.

TYPE: Subsonic, twin-jet aircraft

GENERAL PHYSICAL APPEARANCE:
Long, shoulder-mounted swept wings of high aspect ratio
Two (2) large jet engines mounted under the wings (one engine per wing of course)
Long, slender fuselage, bubble canopy, swept-back rudder and ailerons.

DIMENSIONS:
Wingspan: 200 feet
Wing Aspect Ratio: 20
Fuselage Length: 82.5 Feet
Maximum Designed Gross Weight: 60,000 lbs.

CREW:
Two (2) in tandem (under large bubble canopy)

PERFORMANCE (Estimated):
Ceiling: 100,000 feet
Endurance: Eight hours

It was to have gone into service with the USN in the 1980's.

I'll scan the illustration I have and I'll try to get it to this forum sometime this week. Thanks!

Chuck Anderson
cbakiteskites@yahoo.com
University Place, WA


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,486
Reaction score
394
*chuckle* You know, it almost sounds like a resurrection of the X-16.


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
28
Hi elmayerle!

It does seem that way as far as the aircraft's general configuration seems to be, but its much more "streamlined" than the old X-16, but you may be right as this wouldn't be the first aircraft design resurrected from an old one.

I'll try to post the illustration I have as soon as I can!

Chuck


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,813
Reaction score
132
Ocean-surveillance Boeing.

page 274 : AirPictorial August 1971

and

page 17 : Aviation Week & Space Technlogy , 10 May 1971

Illustration in Navy Colours and brief description.
A beautifull aircraft,but I still love the X-16...

p.s. Anyone who haves a good artist impression of the X-16?


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
28
Hi Everyone!

This concerns the post that I made earlier, concerning a proposed Boeing Ocean Surveillance aircraft. Please consider this post that you are reading right now as an updated, IMPROVED post of the last one.

I wrote to the Boeing Historian asking about this, and after a couple of weeks I received some very interesting, much more detailed information on this aircraft. As part of this information, I received :

(1) A real good artists conception of what the aircraft would look like in flight, and
(2) A real good 3-view line drawing.

I'll send you the pictorial information online to this website as soon as I can!!!!
-------------------------------------------------------------------------------------------------
Here now, is the written information I received:

GPX Global Patrol Aircraft
Senior Pine

The GPX is designed for a maximum flight duration of 56 hr. At a cruise velocity of mach 0.6, this equates to 17,000 nmi. The aircraft can maintain a flight altitude between 65,00 to 75,000 ft with a payload of 4,000 to 12,000 lb. With a 4,000-lb payload, the aircraft can reach cruise altitude in about 35 minutes.

BASELINE CONFIGURATION
TOGW: 80,000 Lbs
Propulsion: (2) PW JTF 22A-5 Turbofans (F100)

Wing Geometry---
Area (Sq Ft): 2050
Aspect Ratio: 19.125
Taper Ratio: 0.4
Thickness Ratio: 0.15
Sweep C/4: 7 degrees

Wingspan: 198' 0"
Height (Ground to Tail Cone): 8 1/2'
Height (Ground to Top of Tail): 19' 2"
Length: 72' 4"
Span of Ailerons: 24' 10"

-------------------------------------------------------------------------------------------------
As I said, I'll get the illustrations to you as soon as possible.

Chuck Anderson
cbakiteskites@yahoo.com
University Place, Pierce County, State of Washington


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
14,266
Reaction score
10,122

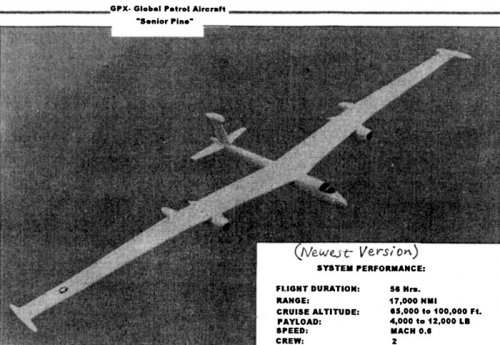

Two images from Boeing, courtesy of Chuck, and an illustration from AWST.


Attachments

  • Boeing-Global-Recon-1.jpg
    122.9 KB · Views: 1,787
  • Boeing-Global-Recon-2.jpg
    96.1 KB · Views: 1,755
  • Boeing-Global-Recon-3.jpg
    154.1 KB · Views: 826

datafuser

ACCESS: Confidential
Joined
Dec 2, 2006
Messages
132
Reaction score
43

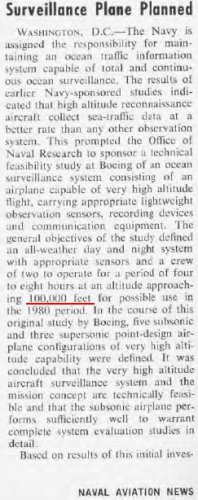

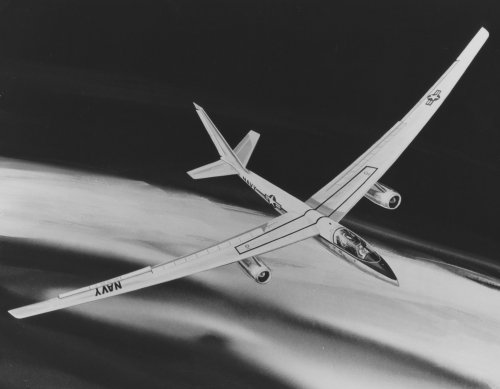

Boeing's high-flying ocean surveillance aircraft concept in 1971

Found in the October 1971 issue of the US Navy's Naval Aviation News.

It was conceived as a two-seat twin-jet aircraft flying at 100,000 feet for up to eight hours.

Sunho


Attachments

  • oct71.JPG
    45.1 KB · Views: 556
  • oct71-2.JPG
    38.5 KB · Views: 586

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,196
Website
deeptowild.blogspot.com

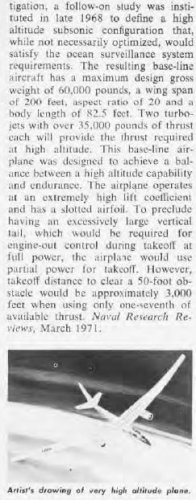

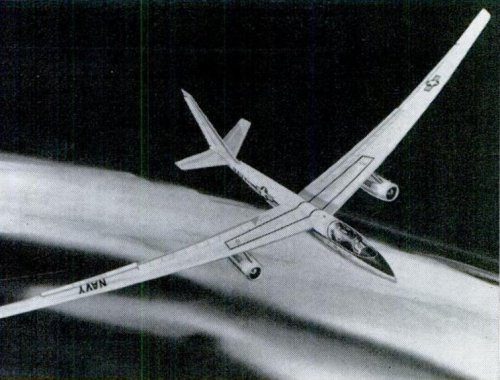

Artist's impression of Boeing GPX released by the US Navy. Described as a "very high-altitude, ocean-surveillance-system."

Source: "High flier" Popular Mechanics February 1972


Attachments

  • BoeingGPX.JPG
    80.8 KB · Views: 200

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,167
Reaction score
802
...son of Bell X-16 'Bald Eagle'...


cheers,
Robin.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971

RyanC

Crazy Researcher
Top Contributor
Senior Member
Joined
Dec 19, 2006
Messages
910
Reaction score
351
Website
www.alternatewars.com
Re: Boeing's high-flying ocean surveillance aircraft concept in 1971

Better picture. ;D


Attachments

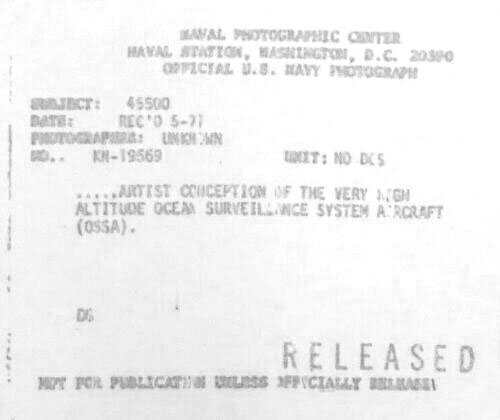

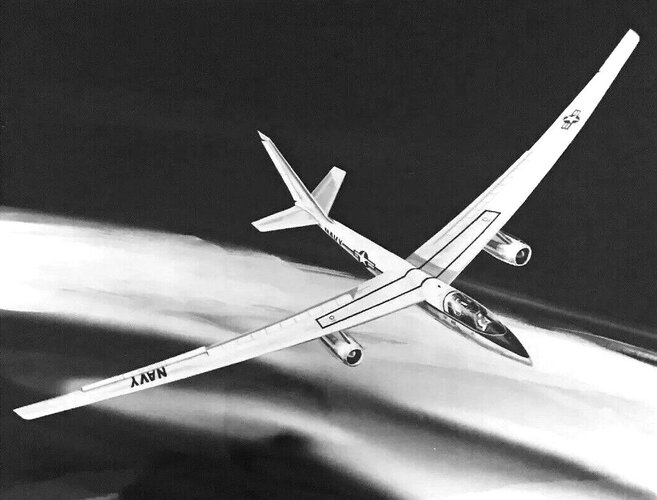

  • KN-19569 - Very High Altitude Ocean Surveillance System Aircraft (OSSA) - May 1971.jpg
    KN-19569 - Very High Altitude Ocean Surveillance System Aircraft (OSSA) - May 1971.jpg
    189.6 KB · Views: 271

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
277
Re: Boeing's high-flying ocean surveillance aircraft concept in 1971

Thank you Ryan for the high-res scan. Here's a Boeing OSSA factory model. (Sir George Cox collection)
Note how engines have been brought in closer to the fuselage.


Attachments

  • Boeing OSSA 01.jpg
    Boeing OSSA 01.jpg
    65.7 KB · Views: 281

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,167
Reaction score
802
Re: Boeing's high-flying ocean surveillance aircraft concept in 1971

...very similar looking to the Bell X-16...


cheers,
Robin.


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,911
Reaction score
460
Re: Boeing's high-flying ocean surveillance aircraft concept in 1971

Does that giant glass canopy look completely impractical on a high-flying aircraft or what?!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,877
Hi,

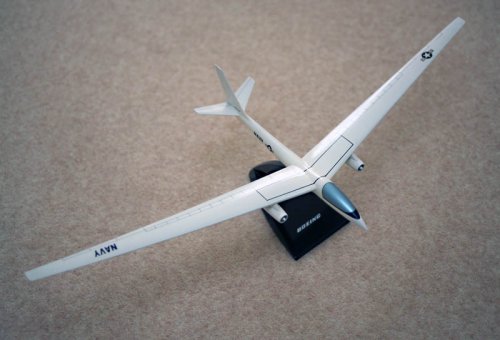

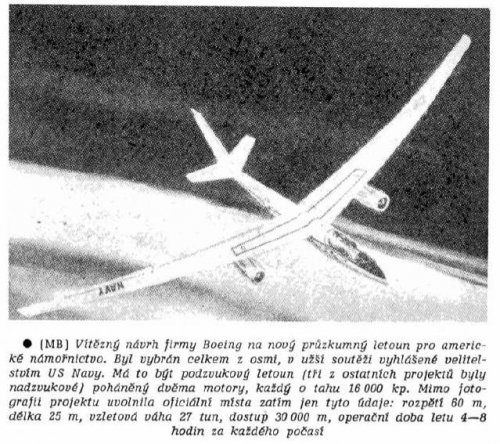

and from L+K magazine.


Attachments

  • Boeing.JPG
    108.5 KB · Views: 313

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,877

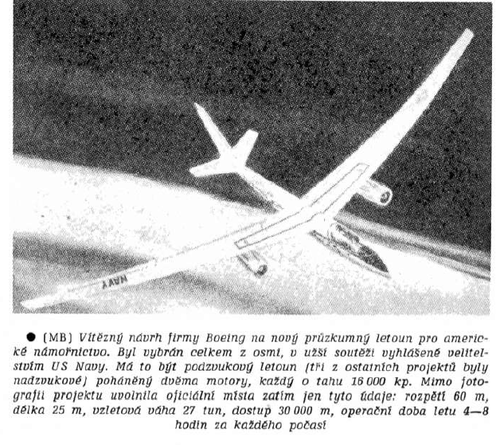

From L+K 16/1971,

I can't remember what was this Boeing Project ?.


Attachments

  • 1   16-1971.png
    1 16-1971.png
    360.6 KB · Views: 143

TomS

ACCESS: Above Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
5,639
Reaction score
3,785
Isn’t that the Bell, not Boeing, X-16?

No, it's not. Look at the linked thread,* which discusses the resemblance.


Edit: *which is now the same thread. Thanks for the merge. mods.

Last edited:

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
735
Reaction score
645
US Navy Ocean Surveillance System Aircraft.


Attachments

  • s-l1600.jpg
    171.6 KB · Views: 65
  • s-l500.jpg
    34 KB · Views: 75
