Lockheed-Georgia Omega "Sternwheeler" cargo aircraft

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
Model of Lockheed-Georgia Omega cargo aircraft concept circa 1985. The Omega is an example of an integrated wing/propulsion system concept. A long cylindrical fan is mounted near the trailing edge of the wing, crosswise to the direction of the plane's travel, a feature that has caused the airplane to be known as a "Sternwheeler." This transverse fan is powered by jet engines, whose intakes can be seen about halfway to the wing tips and atop the rear of the fuselage. The inlets for the fan itself are above and below the wing. Air taken in is exhausted on the trailing edge of the wing to provide vectored thrust--an airstream that can be directed where desired. Ducted engine air is also streamed across the canard along its length--"spanwise blowing"--in order to increase lift and avert canard stalling.

Length 103 feet with a wingspan of 119 feet. Takeoff and landing distance is 2000 feet. Maximum range is 3,600 nm, at a cruise speed of Mach .85 (585 mph) with a 125,000 lb payload. Not expected to be built before the year 2000 due to the complexity of the engine design.

Source: "Science Newsfront" by Arthur Fisher, Popular Science, February 1985.


Attachments

  • LockheedGeorgiaOmega.JPG
    59.6 KB · Views: 461

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,156
Reaction score
1,301
Triton, great thing you do cruising through all these old PopMech! Thanks!


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,479
Reaction score
996
Triton, do you scan your old copies of Popular Science, or do you use the search machine "Google Books"? ;)


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,321
Reaction score
256
hmmm...ducting air all the way to the canards must be a b#&@h....
OTOH, 2000 ft atkeoff distance for such a large aircraft is quite remarkable.


Nik

ACCESS: Secret
Joined
Jul 15, 2009
Messages
474
Reaction score
119
STOL canard cargo aircraft

FWIW, I've seen a study of 'Islander / Trislander' scale canard STOL.

IIRC, the private design was sized to carry spare wing-panels & engines etc, allowing basing and repair at 'rough fields'. A sub-scale prototype actually flew, and well.

Apparently the peculiar characteristics of a canard configuration assisted STOL by allowing a higher angle of attack...

I'm sure the tricycle's wide track and right-at-the-back main wheels contributed to the robust handling !!

I'm sorry, I cannot find the reference or remember the designer...

Aha ! I *think* it was mentioned in either Darrel Stinton's lucid 'Design of the Aeroplane' or 'Anatomy', but my copy's packed away...
;-((


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
12
Not the British Lockspeiser LDA-01? Only a subscale version was built but apparently it was ok. Was destroyed in a hangar fire.


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
13
Re: STOL canard cargo aircraft

Nik said:
FWIW, I've seen a study of 'Islander / Trislander' scale canard STOL.

What do you mean by that exactly, as in designed to be fitted to that aircraft?


Rafael

ACCESS: Confidential
Joined
Oct 23, 2006
Messages
128
Reaction score
5
FWIW

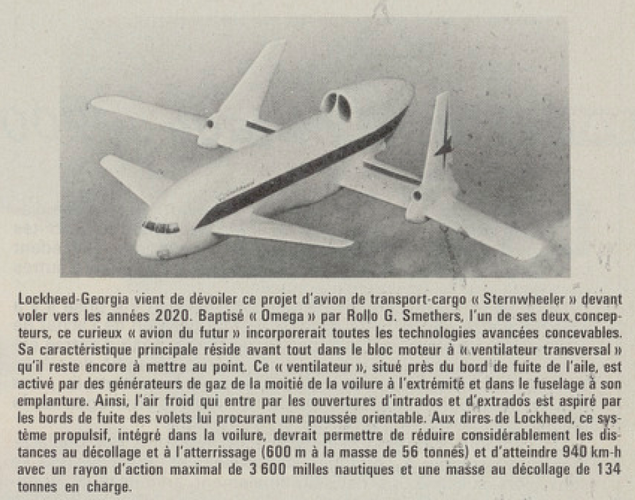

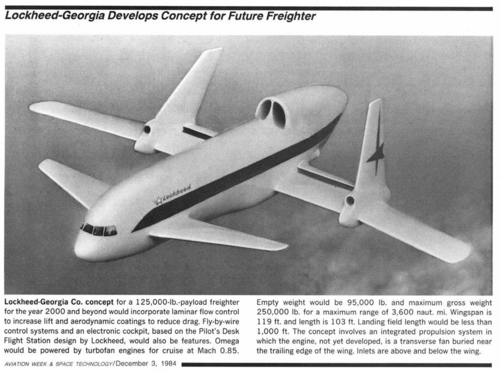

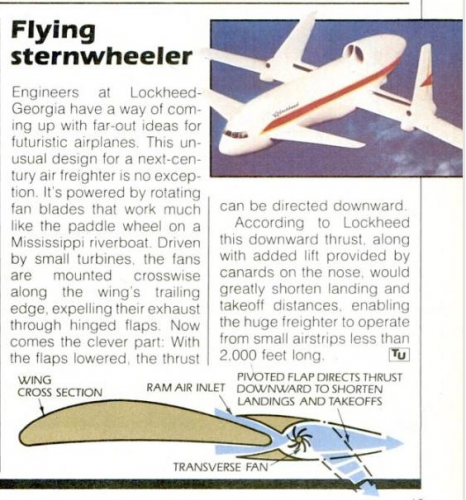

File erroneously title "VTOL_Concepts" by me


Attachments

  • VTOL_Concepts Lockheed Omega Fan-In-Wing Aircraft us0d0269669-002.jpg
    VTOL_Concepts Lockheed Omega Fan-In-Wing Aircraft us0d0269669-002.jpg
    43.2 KB · Views: 86

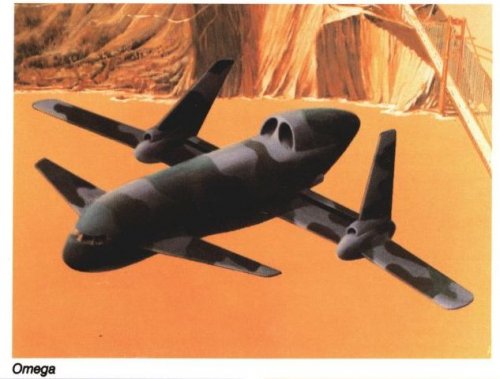

  • VTOL_Concepts Lockheed Omega Fan-In-Wing Aircraft omega.jpg
    VTOL_Concepts Lockheed Omega Fan-In-Wing Aircraft omega.jpg
    43.5 KB · Views: 93

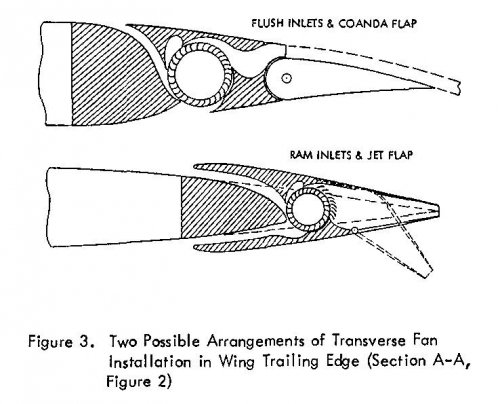

  • VTOL_Concepts Lockheed Omega Fan-In-Wing Aircraft AIAA83-1592.jpg
    VTOL_Concepts Lockheed Omega Fan-In-Wing Aircraft AIAA83-1592.jpg
    9.7 KB · Views: 295
  • VTOL_Concepts Lockheed Omega Fan-In-Wing Aircraft AIAA80-1243.jpg
    VTOL_Concepts Lockheed Omega Fan-In-Wing Aircraft AIAA80-1243.jpg
    83.5 KB · Views: 59

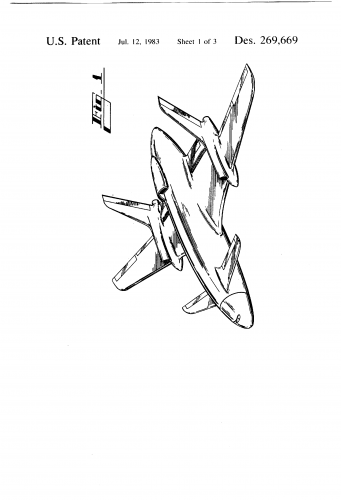

  • VTOL_Concepts Airplane US patent D269669 USD269669-3 Lockheed Omega Fan-In-Wing Aircraft.png
    VTOL_Concepts Airplane US patent D269669 USD269669-3 Lockheed Omega Fan-In-Wing Aircraft.png
    34.2 KB · Views: 219

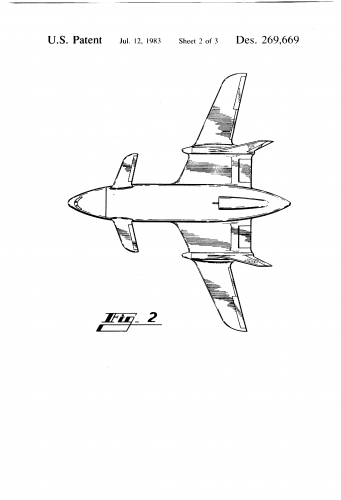

  • VTOL_Concepts Airplane US patent D269669 USD269669-2 Lockheed Omega Fan-In-Wing Aircraft.png
    VTOL_Concepts Airplane US patent D269669 USD269669-2 Lockheed Omega Fan-In-Wing Aircraft.png
    35.8 KB · Views: 221

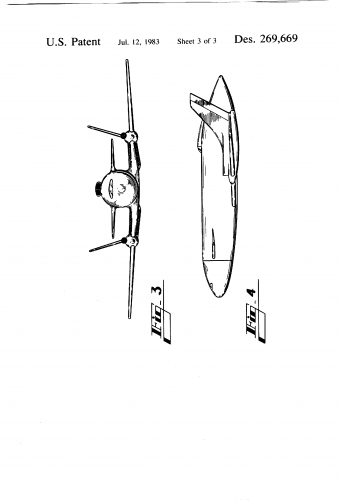

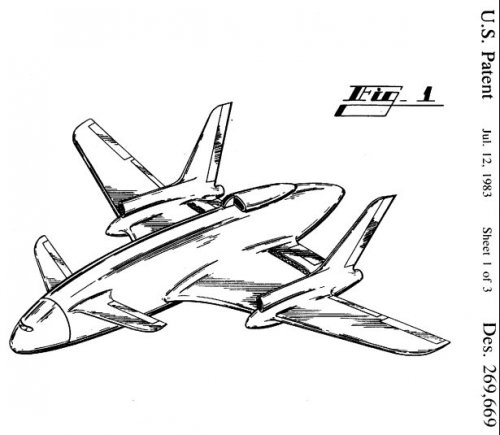

  • VTOL_Concepts Airplane US patent D269669 USD269669-1 Lockheed Omega Fan-In-Wing Aircraft.png
    VTOL_Concepts Airplane US patent D269669 USD269669-1 Lockheed Omega Fan-In-Wing Aircraft.png
    51.5 KB · Views: 249
  • VTOL_Concepts Airplane US patent D269669 USD269669 Lockheed Omega Fan-In-Wing Aircraft.pdf
    107.4 KB · Views: 15

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,805
Reaction score
4,972

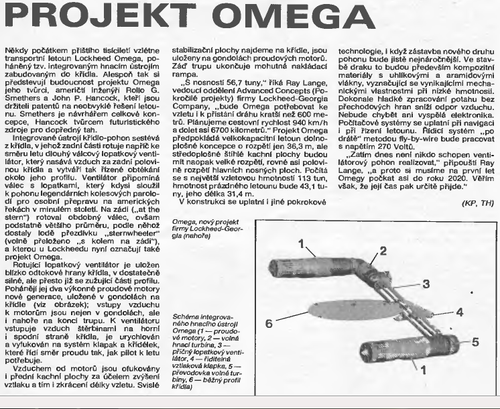

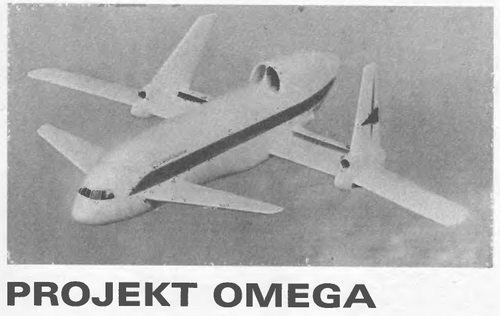

From L+K 13/1986,

with more Info.


Attachments

  • 1   13-1986.png
    1 13-1986.png
    263.9 KB · Views: 45
  • 2   13-1986.png
    2 13-1986.png
    219.5 KB · Views: 46
