Lockheed-Georgia 1985 Future Cargo Aircraft studies

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,181
Reaction score
1,407
AIAA 85-306
DESIGN CONCEPTS FOR FUTURE CARGO AIRCRAFT
R. H. LANGE
Lockheed-Georgia Company
Marietta , Georgia

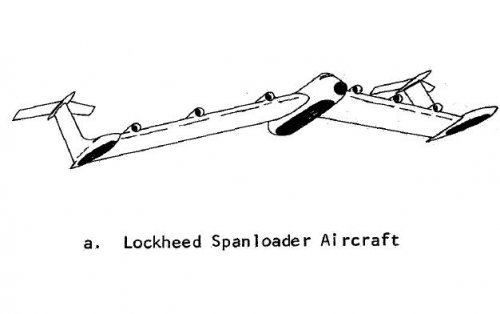

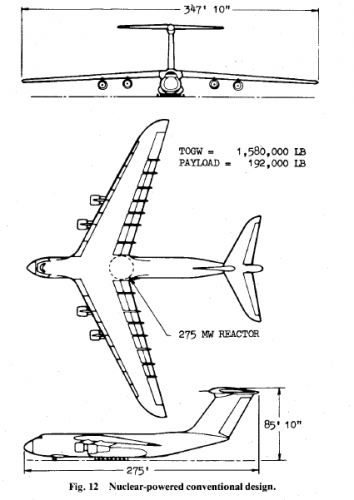

Conventional configuration nuke transport would have ramps in front anf aft of the fuselage - of course, because there were reactor in the middle, so Lockheed switched to nuclear spanloader design.


Attachments

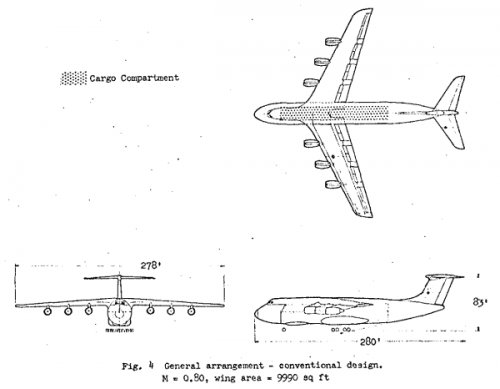

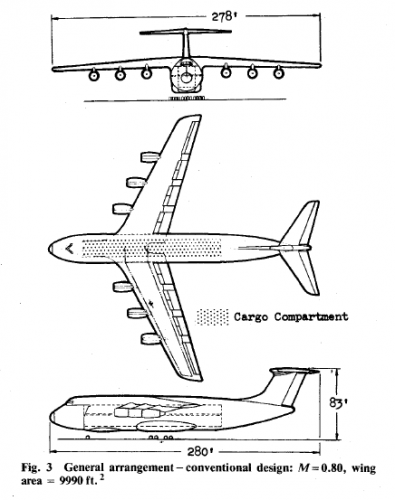

  • lock1985FCA-convs.jpg
    57.8 KB · Views: 964

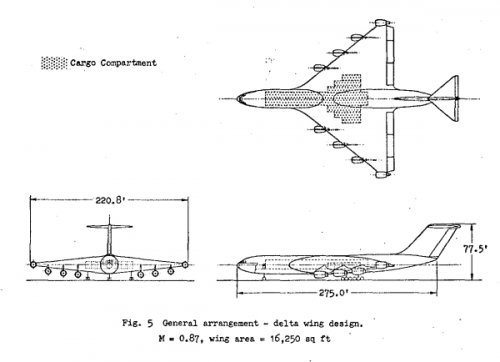

  • lock1985FCA-deltawings.jpg
    59.4 KB · Views: 938

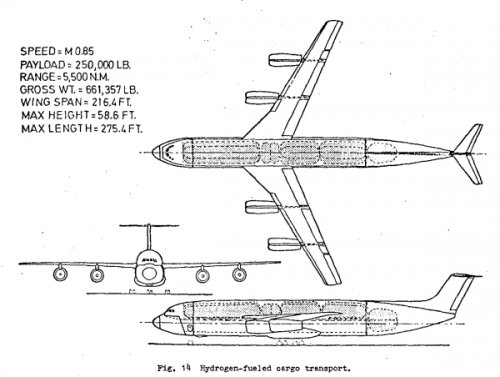

  • lock1985FCA-H2s.jpg
    86.9 KB · Views: 880

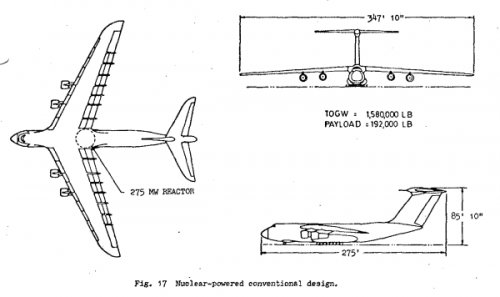

  • lock1985FCA-nuke1s.jpg
    54.7 KB · Views: 823

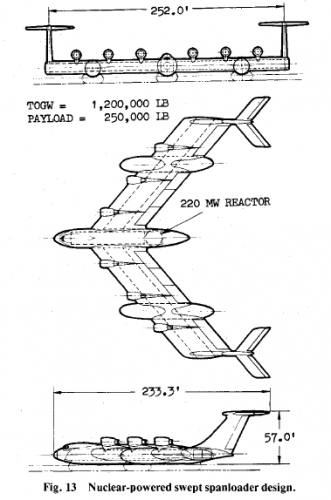

  • lock1985FCA-nuke2s.jpg
    55.1 KB · Views: 824

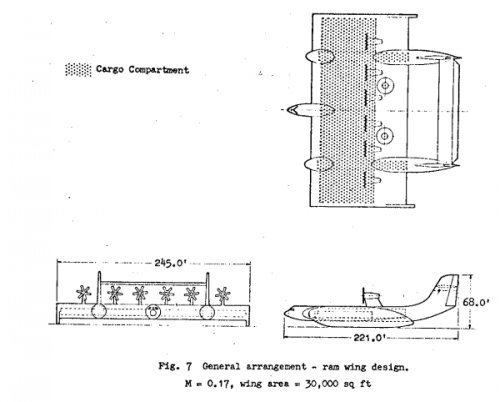

  • lock1985FCA-ramwings.jpg
    74.8 KB · Views: 240

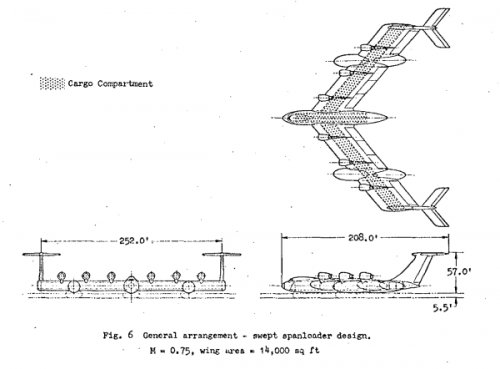

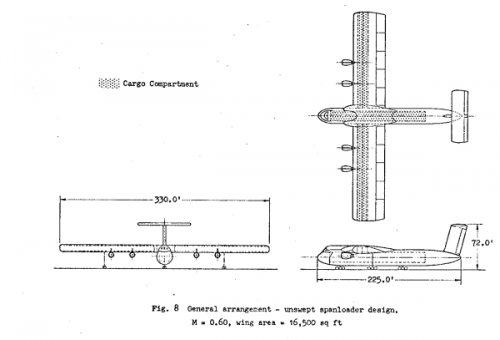

  • lock1985FCA-spanloader2s.jpg
    50.2 KB · Views: 209

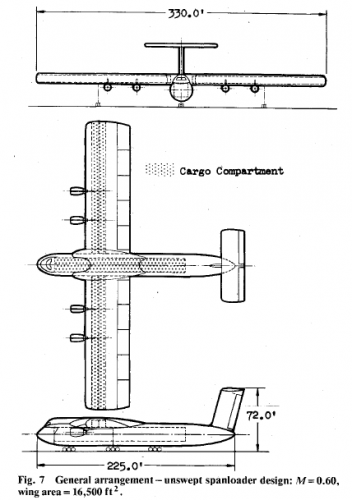

  • lock1985FCA-spanloaders.jpg
    61.6 KB · Views: 222

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,001
Reaction score
5,297
My dear Flateric,


I repeat sending the same aircraft from anther source,but in a clearer views.

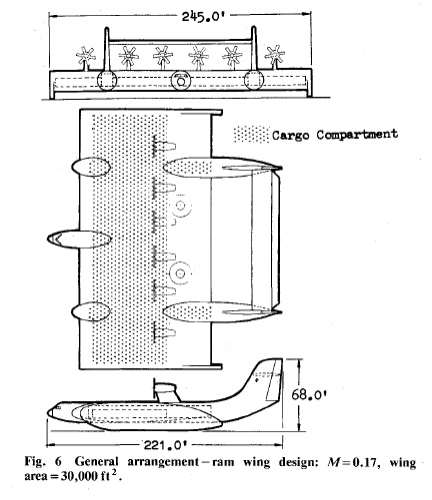

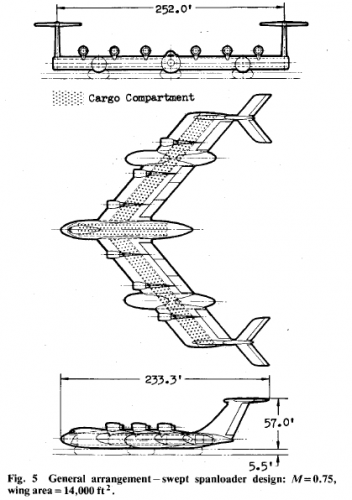

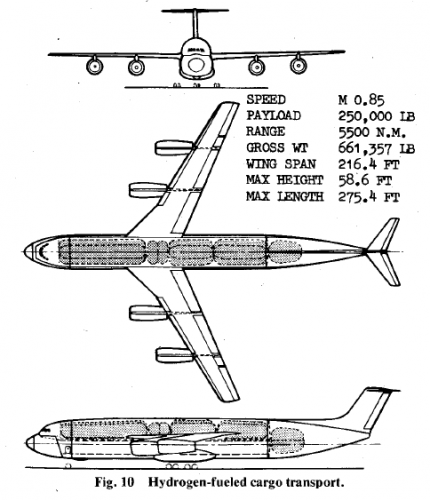

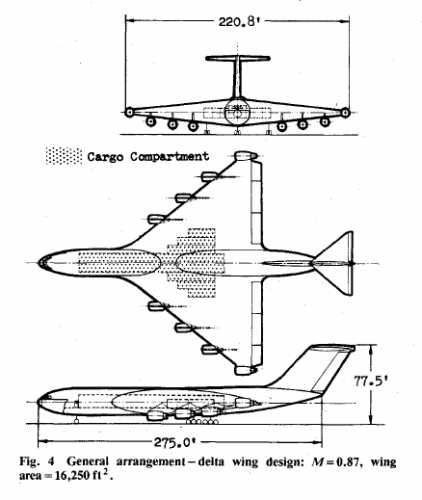

http://arc.aiaa.org/doi/abs/10.2514/3.58670
