Boeing airliner and transport projects

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
575
Reaction score
1
Website
www.tailsthroughtime.com
Matej said:
First of all - hi Gregory :)

And here are some realy unusual transport concepts:

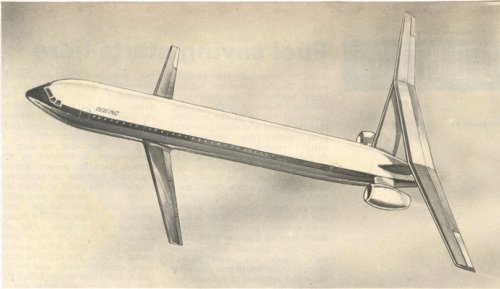

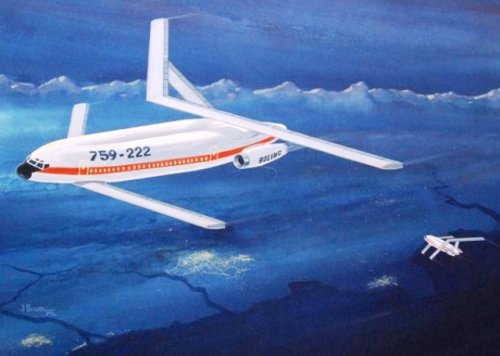

1. Boeing natural laminar flow study from 1977

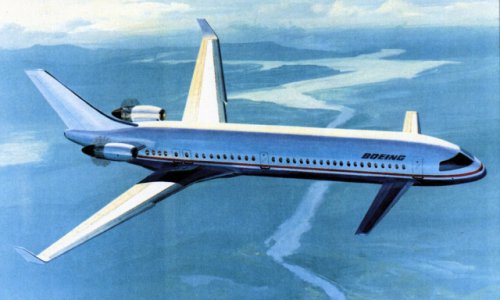

2. Boeing study for fast airliner just before Sonic Cruiser was born

Sources: (1) not known (2) Aerospace projects review V4N5,
That transonic airliner design sounds familiar- do you know the year it was worked on? I seem to recall that just prior to the Sonic Cruiser launch Boeing was working on an in-house study called "Yellowstone" that if I remember correctly was for a trans-Pacific transonic aircraft.

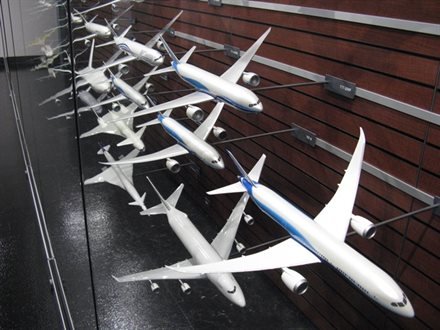

In the late 1990s if you went to Boeing's Everett facility, before the tour started they had you sit in a theater for a brief introductory movie and back then, visitors also filled out surveys that were basically asking if you'd pay more to fly somewhere faster.

J

joncarrfarrelly

Guest
Sentinel Chicken said:
Matej said:
First of all - hi Gregory :)

And here are some realy unusual transport concepts:

1. Boeing natural laminar flow study from 1977
2. Boeing study for fast airliner just before Sonic Cruiser was born

Sources: (1) not known (2) Aerospace projects review V4N5,
That transonic airliner design sounds familiar- do you know the year it was worked on? I seem to recall that just prior to the Sonic Cruiser launch Boeing was working on an in-house study called "Yellowstone" that if I remember correctly was for a trans-Pacific transonic aircraft.

In the late 1990s if you went to Boeing's Everett facility, before the tour started they had you sit in a theater for a brief introductory movie and back then, visitors also filled out surveys that were basically asking if you'd pay more to fly somewhere faster.

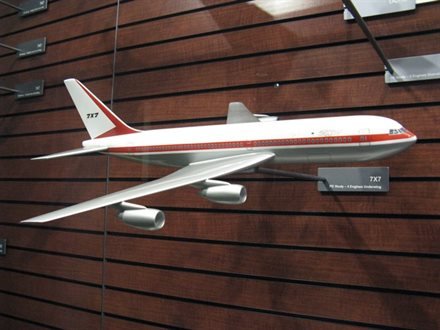

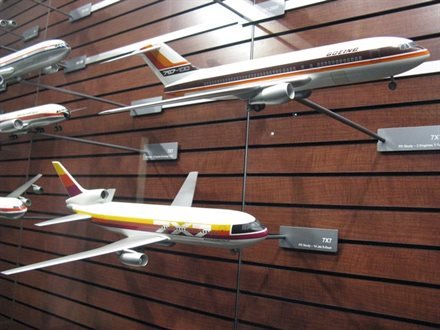

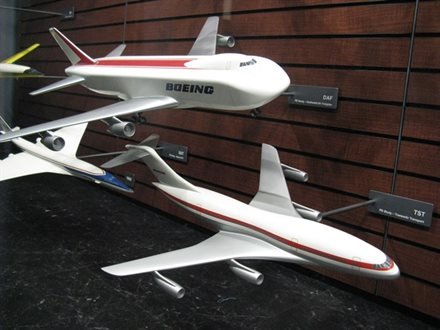

The pic of the 767 marked model of the transonic concept appeared in Air Enthusiast in 1971...it was a serious contender, the oil crisis of 1973 put paid to the high-speed concepts and the twin-jet design took the honours.

"Yellowstone" is the code name for a wide ranging family of studies, the 787 is one result as are the aerodynamic changes to the new wing for the 747-8. It was worked in parallel with the Sonic Cruiser and much data was shared back and forth.

I'm currently at Boeing working on 787 electrical design.

Cheers, Jon


TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
9

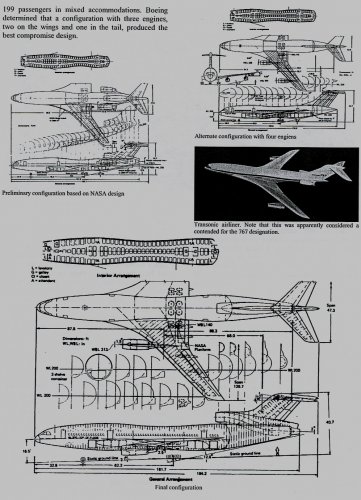

Matej said:
And here are some realy unusual transport concepts:


2. Boeing study for fast airliner just before Sonic Cruiser was born

(2) Aerospace projects review V4N5,
Does anyone have any details about the engines proposed for the Boeing transonic airliner studies?

I would assume that that a low bypass ratio (<2-3:1) type would have been used?

Indeed, isn't a conventional high bypass ratio (4-6:1) turbofan incompatible with transonic performance?


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
172

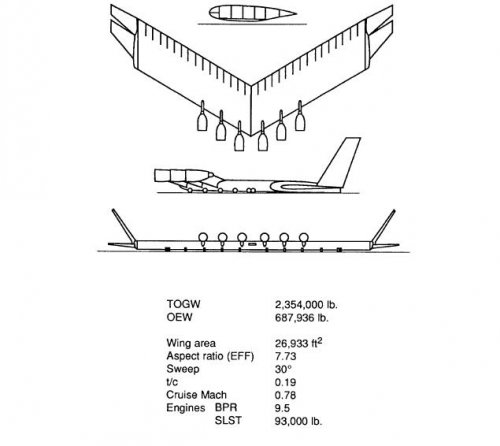

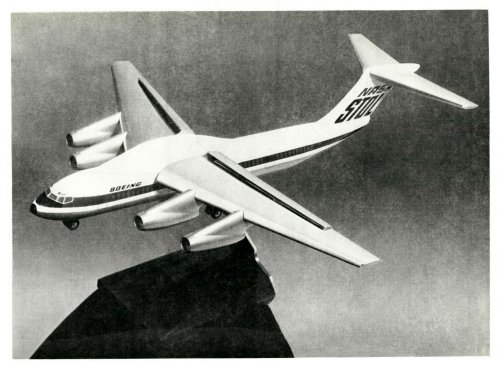

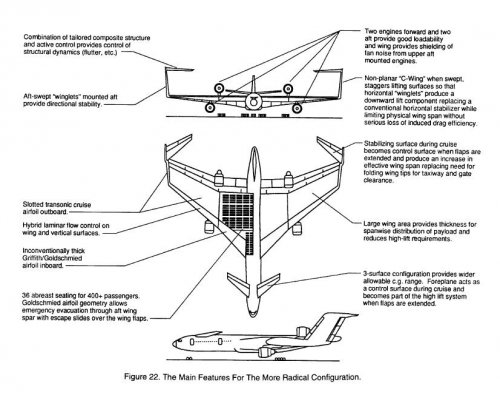

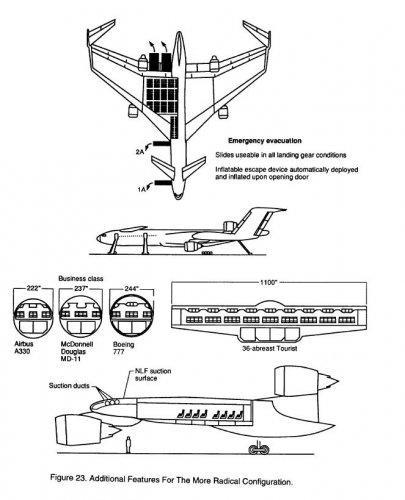

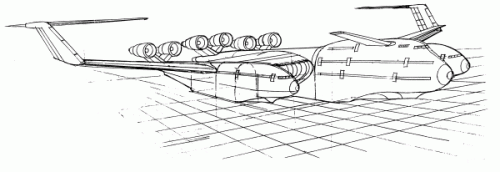

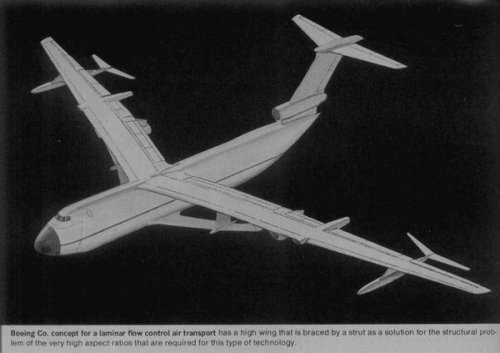

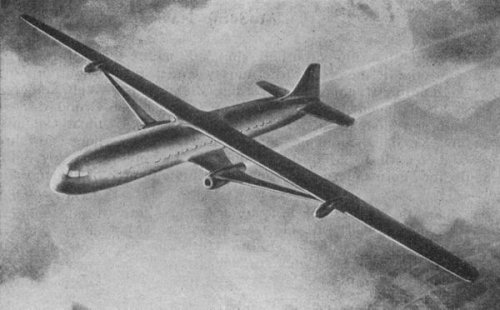

A Boeing project for a transport with a laminar flow wing. Seems to use
quite a lot of C-5 components ...


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Hi,

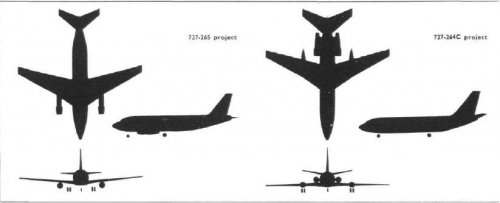

The Boeing-727-257 was a project and had an engine on each
side of the fuselage above and behind the wing,Boeing-727-264C
was a project of twin engine mounted on the aft fuselage and with
speed capsules for increased mach number and Boeing-727-265
was a project of twin engine mounted at the wing.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Yes Agricola,

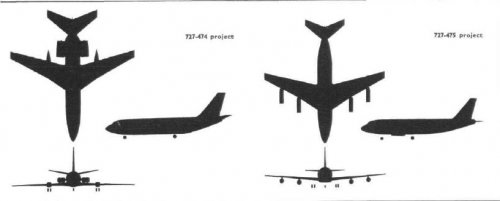

And there was anther two projects to Model-727,The Boeing-727-474
a four engined variant of Model-727-264C and the Boeing-727-475
a scaled-dawn of Model-720.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Hi,

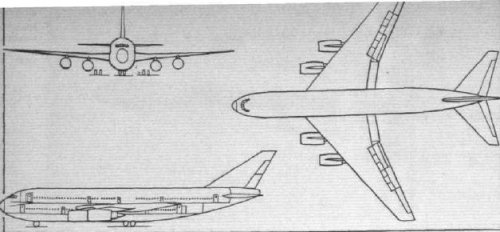

Early design to the Boeing-747-3.

http://www.flightglobal.com/FlightPDFArchive/1966/1966%20-%200012.pdf


Attachments

Golfus

Lo que diga Don Manué
Joined
Aug 19, 2006
Messages
44
Reaction score
1
Hi,

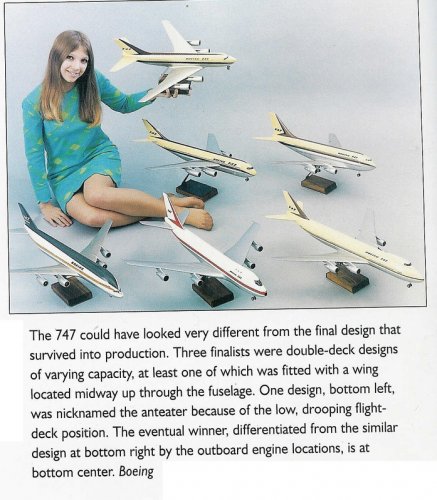

Here is a pic showing the final designs considered for the B747. Among them, I find very interesting the design dubbed "Ant Eater". Any aditional 3-view of these designs, apart from the midle mounted wing proposal submitted by Hesham? I think it would deserve a whole thread the design process carried out for the mighty Jumbo, including the conections with USAF´s heavy airlifter program (CX?) .


Attachments

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
575
Reaction score
1
Website
www.tailsthroughtime.com
Golfus said:
I think it would deserve a whole thread the design process carried out for the mighty Jumbo, including the conections with USAF´s heavy airlifter program (CX?) .
More 747 stuff here: http://www.secretprojects.co.uk/forum/index.php/topic,523.0.html


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Hi,

The Boeing studied a fan-lift VTOL system version of Model-737
which was fitted with lift jets mounted horizontally below floor
level and exhausting through swivelling nozzles.

http://www.flightglobal.com/FlightPDFArchive/1968/1968%20-%202738.pdf


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
27

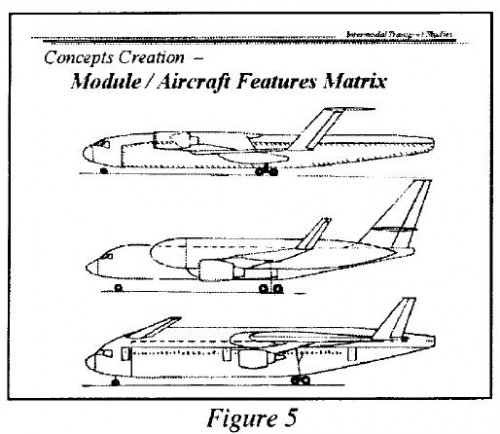

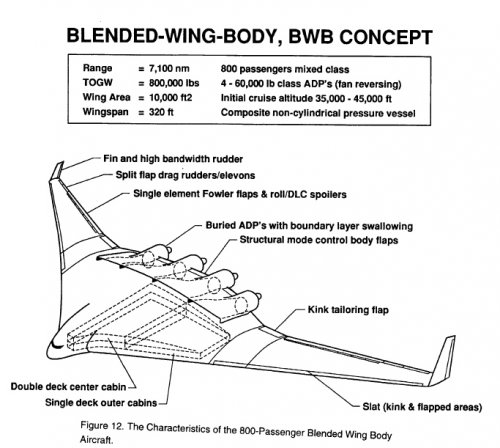

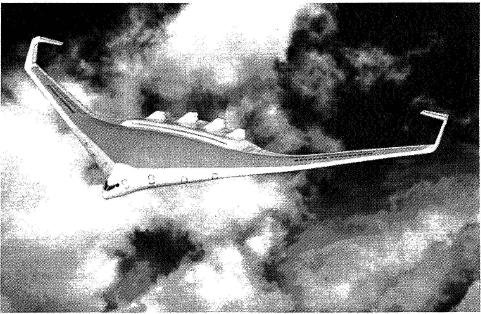

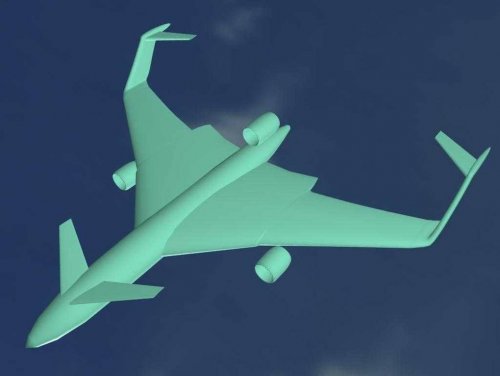

First and third (C-wing) were extensively studied by NASA and Boeing for a very large transport aircraft configuration, trying to avoid the problems of double-deck and very large wingspan in airport handling. A later C-wing configuration was a BWB.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
172

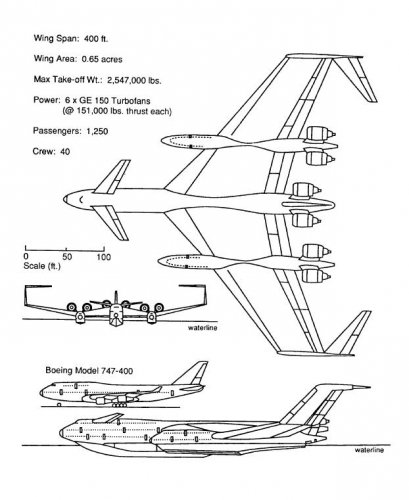

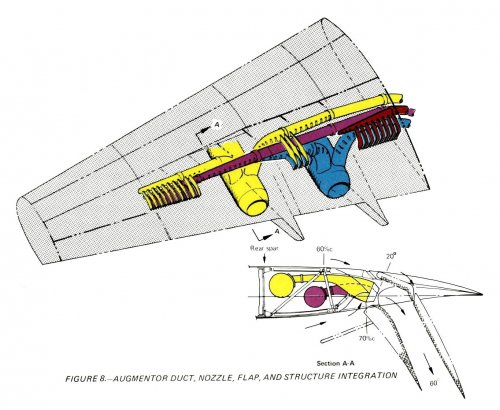

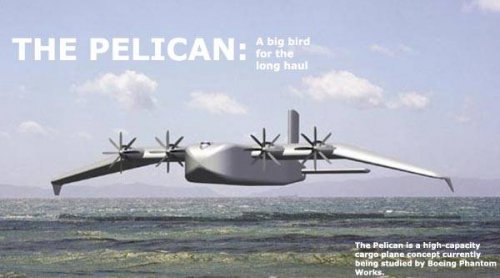

Attachments

b2707300sst

CLEARANCE: Restricted
Joined
Mar 28, 2008
Messages
21
Reaction score
0
The optimism of early supersonic passenger flight....Pan Am and the Boeing SST 2707-200 with its large canard, double-jointed nose, and swing wing. The space age theme is my vintage style pitch. Enjoy :)


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
robunos said:

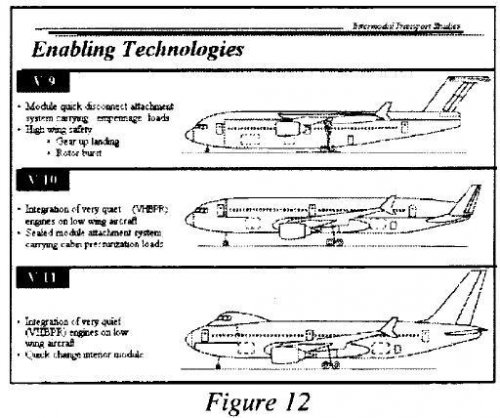

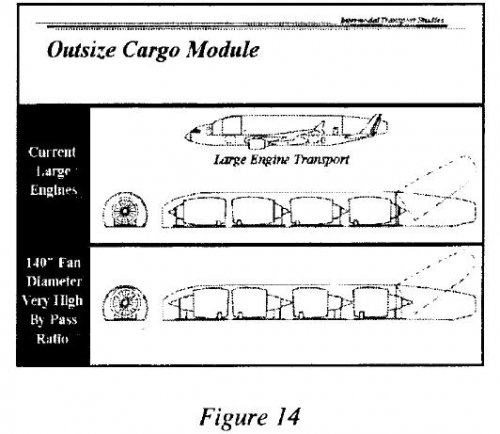

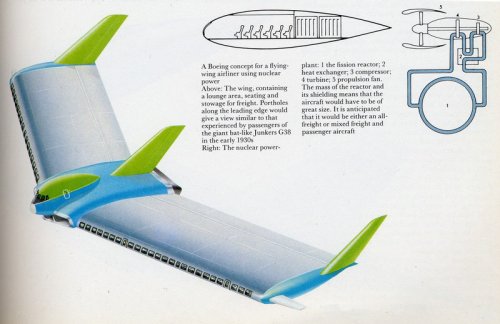

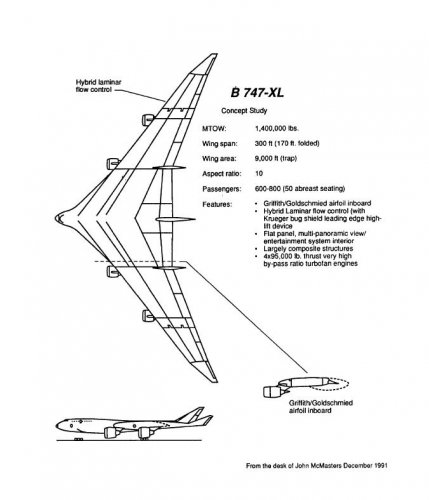

The Boeing unusual concepts.
got a source for this?

cheers,
Robin.
My dear Robunos;

here is the source;
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20010039146_2001057175.pdf


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,732
Reaction score
7
many thanks,

cheers,
Robin.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
186
Website
deeptowild.blogspot.com

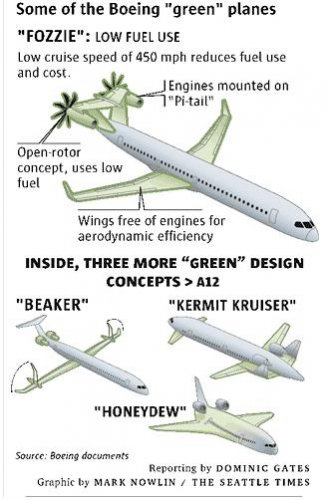

Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
186
Website
deeptowild.blogspot.com

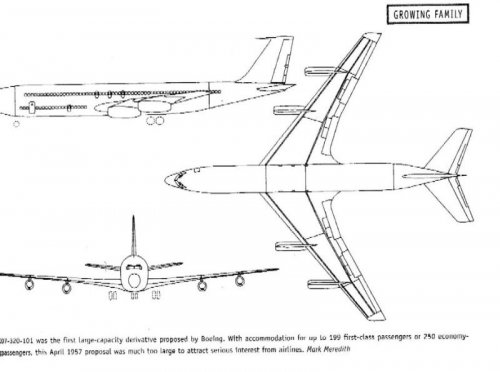

Double-deck Boeing 707

Double-deck airliners are not new. Aside from the Saunders-Roe Princess flying boat and the Breguet 763 (two craft that actually flew), Boeing proposed a double-deck version of its model 707 to accommodate extra seating. Source: Rene Francillon, Boeing 707 - Pioneer Jetliner (Osceola, WI: Motorbooks International), 1999.
http://rides.webshots.com/photo/1374000380048918155VtnaUH


Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
186
Website
deeptowild.blogspot.com

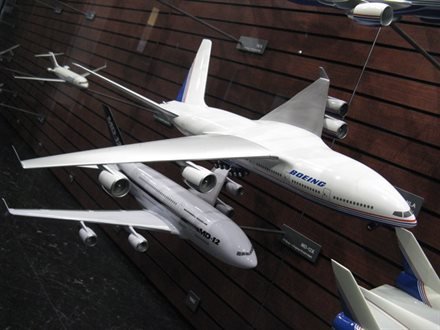

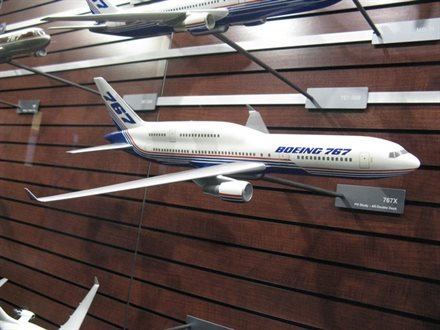

Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
172

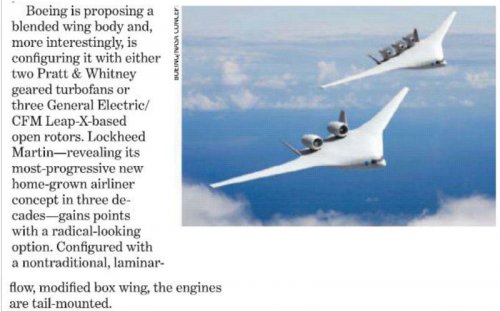

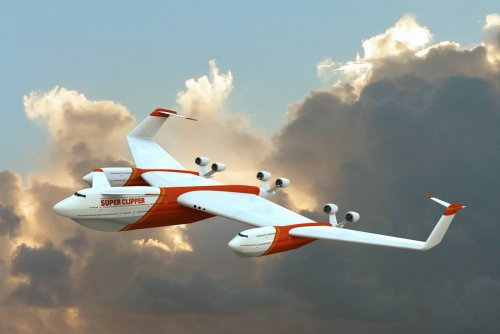

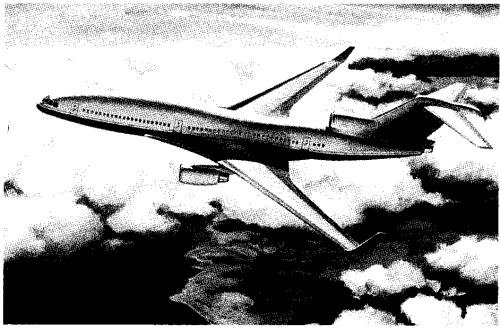

Posted in the "Civil aircraft are boring ?" thread by Alcides


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85
Two pictures initially posted by Dronte on April 04, 2006 in a topic that has since been split:

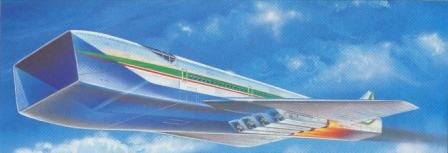

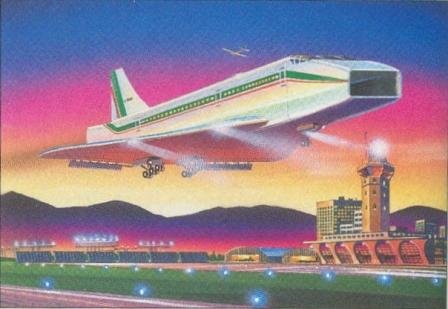

A design of a mach 3 SST that swallows their own shock wave (Design original
of Flight Safe Instrument Corp. patent acquired by Boeing) (source: Popular Mechanical edition Argentinean October of 1994)


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85

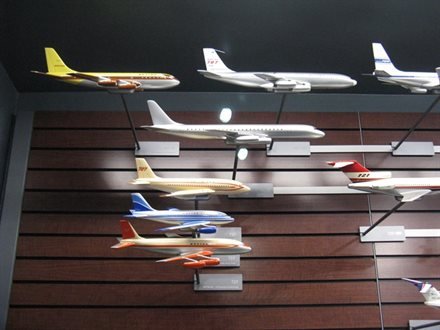

Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85

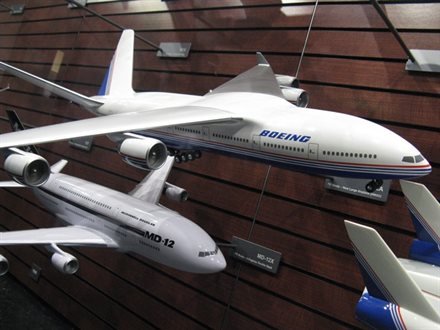

Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85

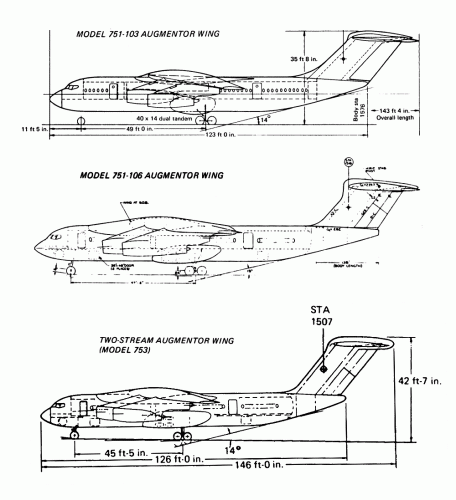

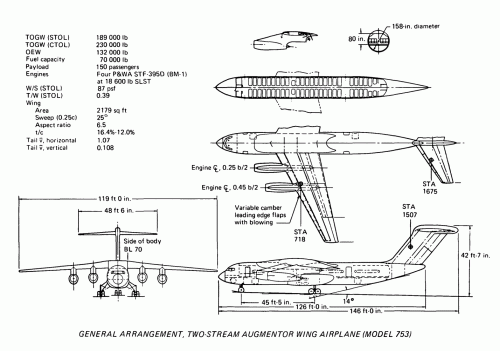

After giving it a closer look, it would seem that the Model 753 is a design evolution of Models 751-103 and -106 (see attachment).

I think it is therefore appropriate that they both should belong to the same topic.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Hi,

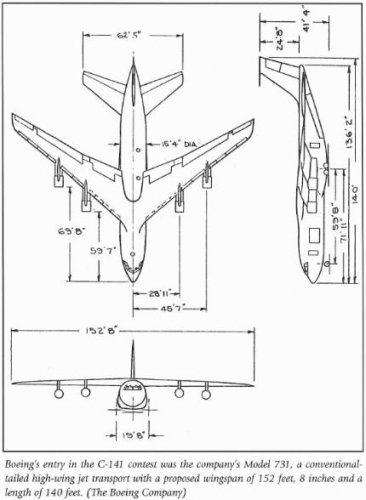

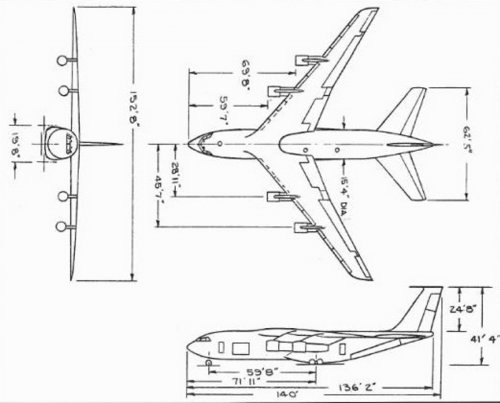

The Boeing Model 731 was a high-wing four jet military strategic
transport aircraft project,intended to compete Lockheed C-141,
in SOR-182 competition,and also the General Dynamics submitted
a proposal to this contest.


From the book; Warbid Tech, Lockheed C-141 Starlifter


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,791
Reaction score
279
Wow thanks! How about this angle?
Vertical stabilizer looks like 707.


Attachments

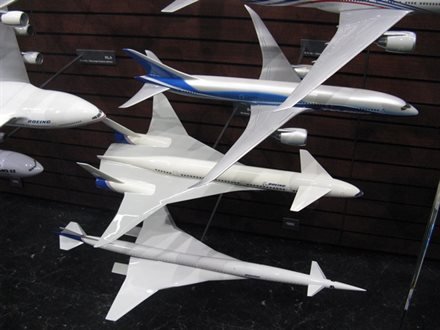

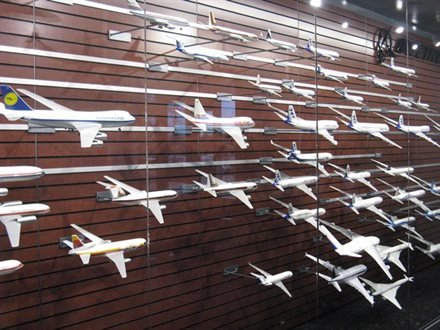

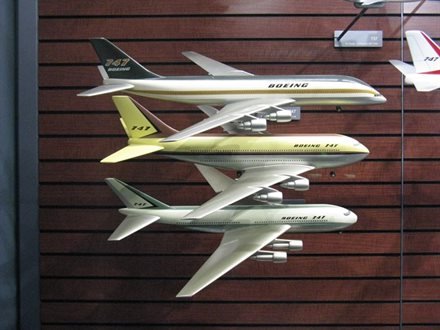

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922

Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85
hesham said:
did we display those Boeing Models before ?
Somebody did, yes, a couple of weeks ago. Where exactly escapes me at the moment, but they're definitely there.
