Blackburn B-49 Flying Boat Project

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,874
Hi,

the Blackburn designed the B-49,a 138-ton six engined flying
boat.
http://www.flightglobal.com/PDFArchive/View/1945/1945%20-%200719.html


Attachments

  • B-49.JPG
    44.6 KB · Views: 1,253

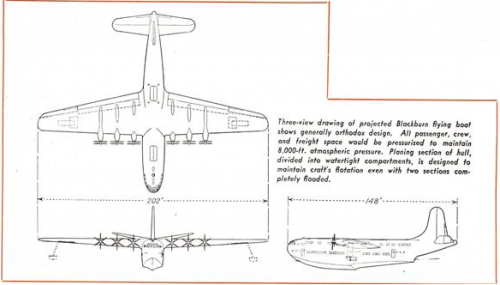

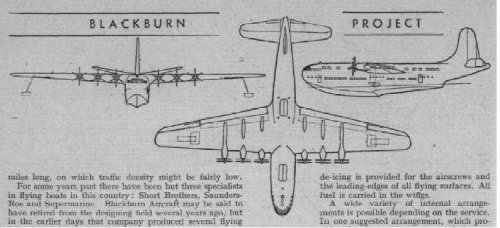

  • B-49 drawing.JPG
    B-49 drawing.JPG
    51.7 KB · Views: 1,168

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,810
Reaction score
96
Re: Blackburn B-49 flying boat

The Clydesman indeed.Nice find...


alertken

ACCESS: Top Secret
Joined
Jan 20, 2007
Messages
614
Reaction score
223
Re: Blackburn B-49 flying boat

10 engined, I think, same as Saro (P.162) SR.45 Princess. Coupled ?RR Tweed -who has the Putnam?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Re: Blackburn B-49 flying boat

6 x RR RB.39 Clyde engines according to AIR PICTORIAL March 1982.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,974
Reaction score
389
Re: Blackburn B-49 flying boat

the 'Flight' articles also says six engined...

cheers,
Robin.


SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
11
Re: Blackburn B-49 flying boat

Putnam also lists it at 6 engines.

202' span, 148' oa with hull and tail unit like the Sunderland. All up weight 138 tons, cruise 270 mph, with 160 passengers, range 2,500 miles.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,874
Re: Blackburn B-49 flying boat

Hi,

http://archive.aviationweek.com/image/spread/19450601/83/2


Attachments

  • 1.png
    593.2 KB · Views: 840
  • 2.png
    101.9 KB · Views: 750

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Re: Blackburn B-49 flying boat

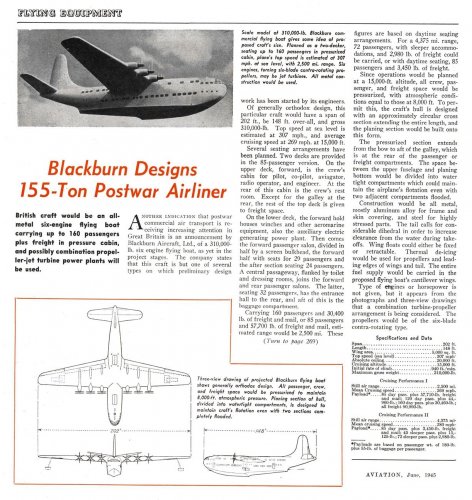

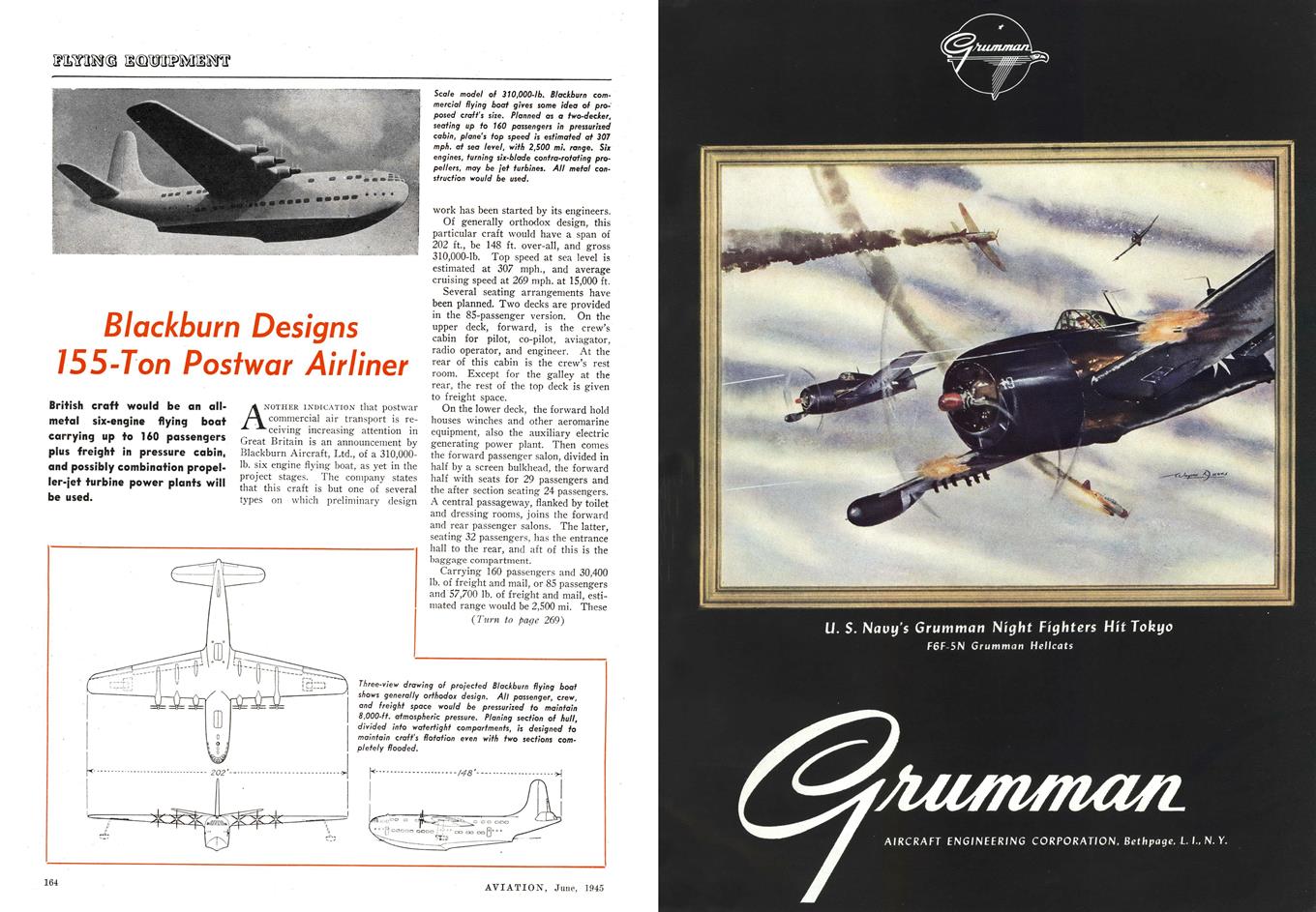

Neat! The full article now:


Attachments

  • AW 1944-06-01_p.164,269,271.jpg
    AW 1944-06-01_p.164,269,271.jpg
    930.4 KB · Views: 608

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,874
Re: Blackburn B-49 flying boat

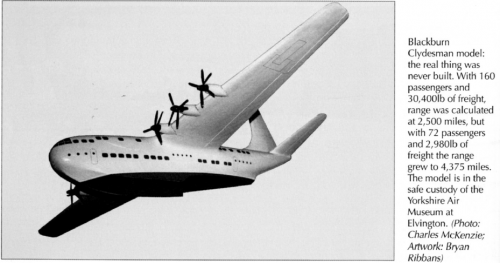

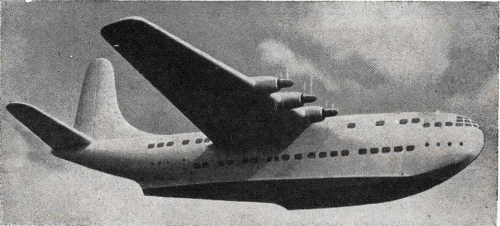

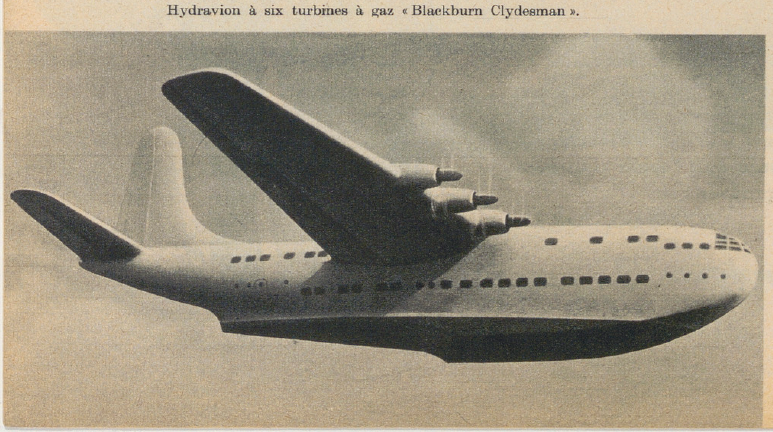

A model for B-49,from the book; British Flying Boats


Attachments

  • 1.png
    361.2 KB · Views: 77

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,511
Reaction score
656
Re: Blackburn B-49 flying boat

You can see the evolution of the Clydesman project from the front-page advertisements that Blackburn had on the cover of Flight through 1944 and 1945. Here are three of them


Attachments

  • 1945_5_18.jpg
    386.3 KB · Views: 87
  • 1944_12_21.jpg
    221.3 KB · Views: 92
  • 1944_5_25.jpg
    214.4 KB · Views: 83

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,874
Re: Blackburn B-49 flying boat

Thank you Schneiderman


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,874
From Ailes 3/1945.


Attachments

  • 1.png
    408.8 KB · Views: 45
  • 2.png
    747.1 KB · Views: 43

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,511
Reaction score
656
and the same in glorious blue ;)


Attachments

  • 1945_2_2.jpg
    179.6 KB · Views: 57
  • 1945_2_8.jpg
    419.4 KB · Views: 64

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,874

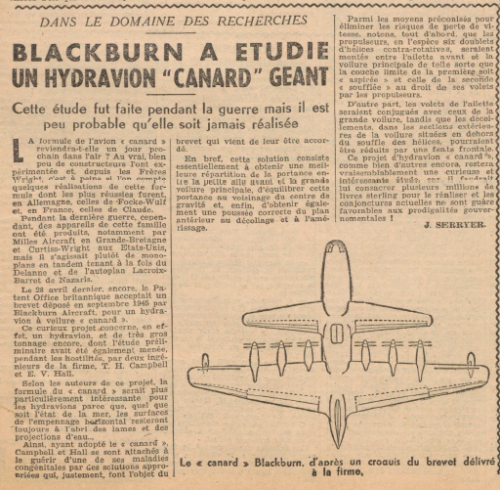

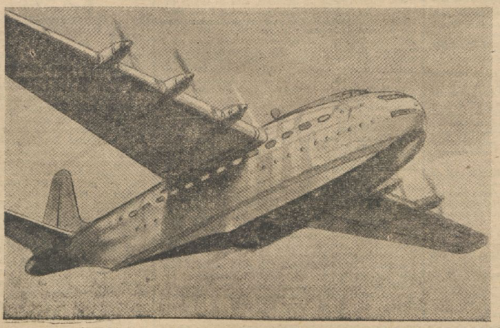

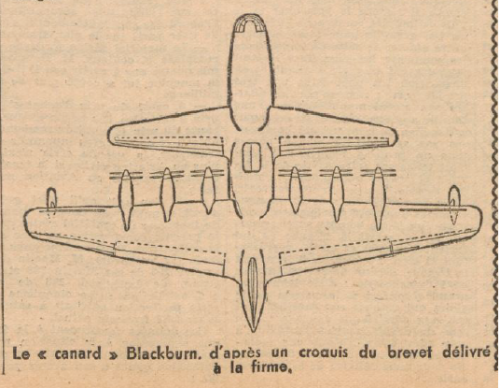

From Ailes 11/1948,

here is a Blackburn B-49B,by the way it displayed before by my dear Scott Lowther in
his site.


Attachments

  • 1.png
    403.3 KB · Views: 246
  • 2.png
    537.4 KB · Views: 231

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,511
Reaction score
656
Patent for the B-49B concept here
https://worldwide.espacenet.com/publicationDetails/originalDocument?CC=GB&NR=601118A&KC=A&FT=D&ND=3&date=19480428&DB=&locale=en_EP#


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,974
Reaction score
389
That seems remarkably short-coupled, more a tandem than a canard. I can't help thinking there would be acoustic problems, with the propellers so close to the foreplane trailing edge.

cheers,
Robin.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,511
Reaction score
656
Proximity of the propellers to the canard was the whole point, all explained in the patent


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,874
Schneiderman said:
Patent for the B-49B concept here
https://worldwide.espacenet.com/publicationDetails/originalDocument?CC=GB&NR=601118A&KC=A&FT=D&ND=3&date=19480428&DB=&locale=en_EP#

Thanks.
