Blackburn « Sydney » and « Nile » flying boats

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

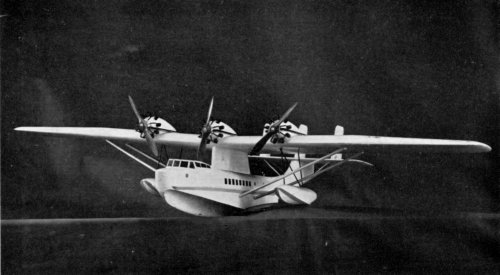

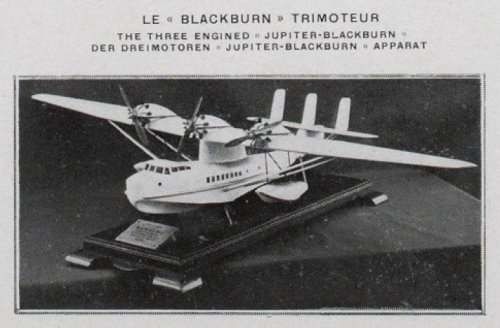

A desktop model of the Nile:


Attachments

  • Blackburn trimotor flying boat.jpg
    Blackburn trimotor flying boat.jpg
    203.3 KB · Views: 791

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
931

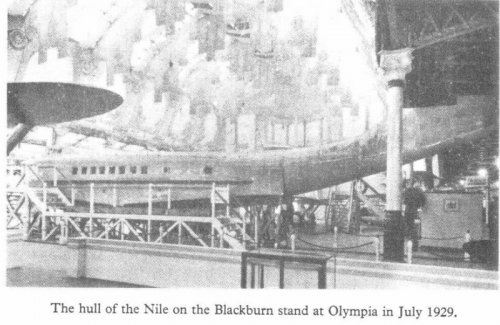

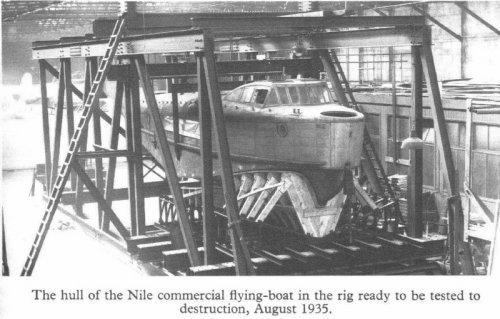

Two photos of the real thing from A.J.Jackson "Blackburn Aircraft since 1909":


Attachments

  • Blackburn_Nile_01.jpg
    143.8 KB · Views: 697
  • Blackburn_Nile_02.jpg
    141.1 KB · Views: 647

patvig

ACCESS: Confidential
Joined
Jan 28, 2012
Messages
114
Reaction score
2
Website
www.vignaud.org
Some specs as recorded in my database :
  • 3 x 525 hp
  • 2 seats
  • span : 30.49 m
  • length : 19.99 m
  • hight : 5.2 m
  • gross weight : 10591
  • max speed : 198 km/h
  • ceiling : 5030 m


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,440
Reaction score
477
I’m sorry gents but this is incorrect.

Blackburn built the R.B.2 Sydney to spec. R.5/27, not the Nile. The Sydney was flown and evaluated in June 1930, one of three prototype three-engined aircraft that were ordered at the same time (Saunders A7 and Supermarine Southampton X), but it did not receive a production contract.

The C.B.2 Nile was designed by Blackburn at the same time and was essentially a civil version of the Sydney powered by Bristol Jupiters. It was intended to use the aircraft on the Alexandria – Cape Town route by a new airline, Cobham-Blackburn Air Lines Ltd. The aircraft was nearly complete when the government vetoed the plans and insisted that all Empire routes would be flown by Imperial Airways. The Nile was never completed.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467

Attachments

  • Blackburn Commercial Airliner.JPG
    Blackburn Commercial Airliner.JPG
    64.1 KB · Views: 422

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
That is at least an interesting find...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Thank you my dear Lark,


but why they didn't discover this project before ?,I mean by "they",all Authors
who spoke about Blackburn aircraft,even Putnam !.

J

joncarrfarrelly

Guest
Probably because they couldn't sit in front of a computer trawling the 'net and
with the click of a mouse access archives of dusty old magazines that have
been scanned in and made available to the world at large.
;)

It used to be a whole hell of a lot harder to collect information.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,440
Reaction score
477

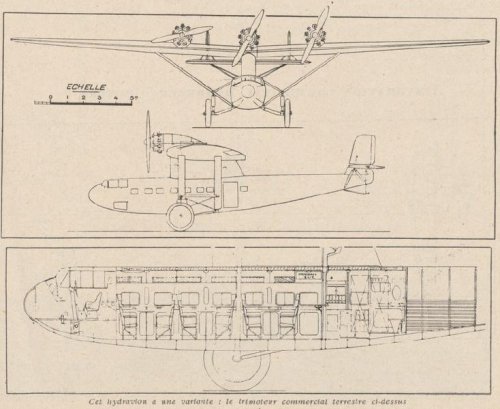

Ah, but it is in the Putnam book, it is project C.A.10 airliner submitted to Imperial Airways in 1928. This design was then modified as troopcarrier T.C.1 to specification C.16/28. However neither type is actually illustrated in the book, just described in brief.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,440
Reaction score
477

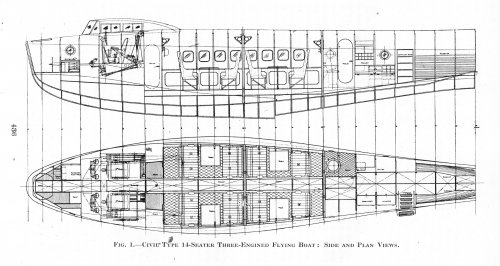

Another photo of the Nile model, a Blckburn advert, and cabin layout drawing


Attachments

  • Nile model 1.jpg
    Nile model 1.jpg
    178.6 KB · Views: 75
  • Nile cabin.jpg
    Nile cabin.jpg
    736.5 KB · Views: 83
  • Nile ad.jpg
    Nile ad.jpg
    318.9 KB · Views: 81

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Hi,

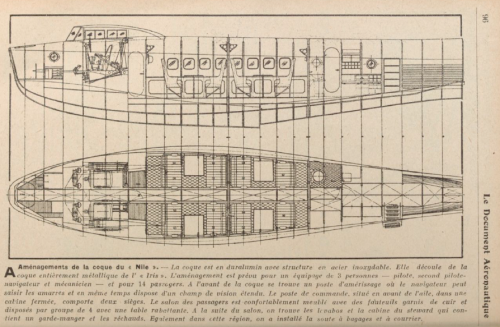

http://gallica.bnf.fr/ark:/12148/bpt6k9767475f/f584.image


Attachments

  • 1.png
    888.3 KB · Views: 40
  • 0.png
    952.3 KB · Views: 26

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,440
Reaction score
477

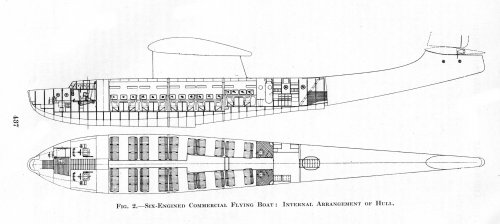

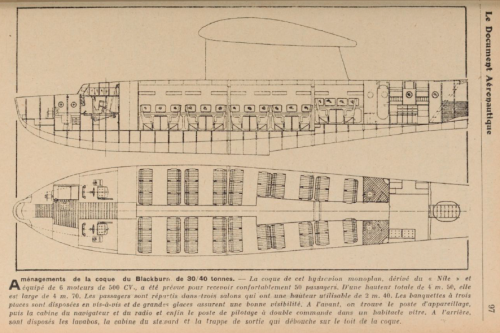

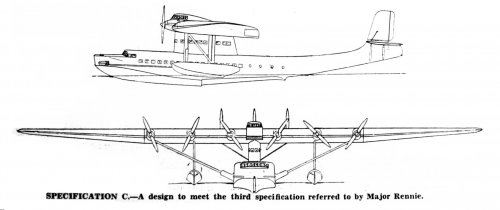

The second layout drawing is of a larger Blackburn project, a six-engine flying boat that was unofficially known as the Oceanic


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Schneiderman said:
The second layout drawing is of a larger Blackburn project, a six-engine flying boat that was unofficially known as the Oceanic

Amazing Info,thank you Schneiderman,and please do you have a full drawing to it ?,thanks.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,440
Reaction score
477
Yes, its on another thread topic somewhere too.


Attachments

  • Oceanic 1.jpg
    Oceanic 1.jpg
    112 KB · Views: 312
  • Oceanic cabin.jpg
    Oceanic cabin.jpg
    529.8 KB · Views: 299

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Thank you Schneiderman,

and here is the topic;

http://www.secretprojects.co.uk/forum/index.php/topic,22486.msg230947.html#msg230947


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,214
Reaction score
82
Website
zeef.com
well , i have seen Blackburn " Ocean" in project have six engines with power between 800 and 1000 Hp , normal landing at 60 nodes .


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541

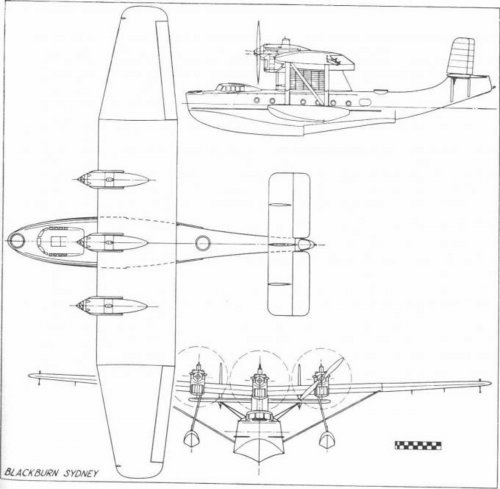

Hi Sydney.
https://www.youtube.com/watch?v=BJP3TZaudpA

Russian site.

http://alternathistory.com/opytnye-letayushchie-lodki-blackburn-rb2-sydney-i-cb2-nile-velikobritaniya

http://aviadejavu.ru/Site/Crafts/Craft30841.htm

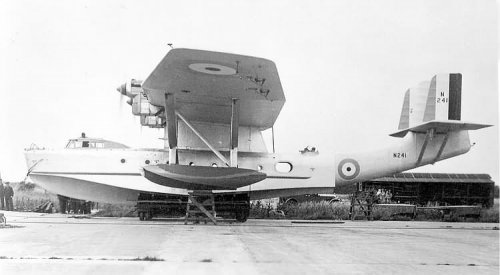

What is bottom aircraft? Also Nile?


Attachments

  • Blackburn_R_B_2_Sydney.jpg
    133.4 KB · Views: 166
  • 940-1.jpg
    55.5 KB · Views: 160

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541

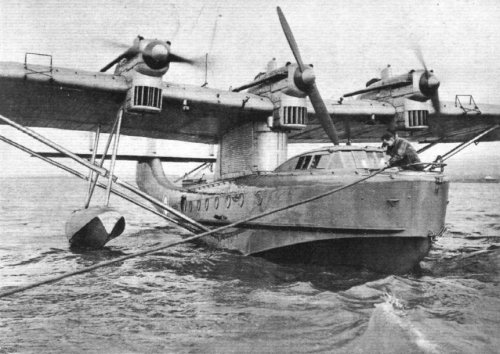

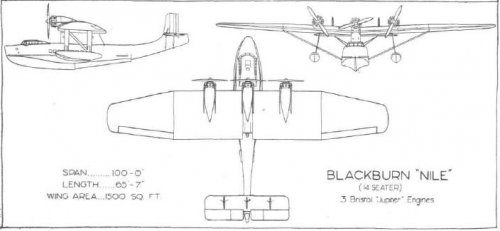

More Sydney and Nile pictures.


Attachments

  • 8175L.jpg
    38.5 KB · Views: 149
  • 1343-1.jpg
    122 KB · Views: 33
  • Aircraft%20Manufacturers-Blackburn-1930-12374.jpg
    75.7 KB · Views: 30
  • Aircraft%20Manufacturers-Blackburn-1930-12375.jpg
    84.3 KB · Views: 34

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,440
Reaction score
477
Schneiderman said:
Ah, but it is in the Putnam book, it is project C.A.10 airliner submitted to Imperial Airways in 1928. This design was then modified as troopcarrier T.C.1 to specification C.16/28. However neither type is actually illustrated in the book, just described in brief.

Looking briefly in the Blackburn archives I see that the project actually started under designation C.E.2E and was included in the same technical specification as the Nile. For some reason the outer engines were on the underside of the wing, which led to complaints from the commercial department as it would not be interchangeable with that for the Nile.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Schneiderman said:
Schneiderman said:
Ah, but it is in the Putnam book, it is project C.A.10 airliner submitted to Imperial Airways in 1928. This design was then modified as troopcarrier T.C.1 to specification C.16/28. However neither type is actually illustrated in the book, just described in brief.

Looking briefly in the Blackburn archives I see that the project actually started under designation C.E.2E and was included in the same technical specification as the Nile. For some reason the outer engines were on the underside of the wing, which led to complaints from the commercial department as it would not be interchangeable with that for the Nile.

Thank you for the Info my dear Schneiderman.
