Two strange flying boat projects

[hesham]

Hi,

in Flightglobal site,I found those two strange flying boat projects,I can't
recognize them.


http://www.flightglobal.com/PDFArchive/View/1952/1952 - 0654.html



[fightingirish]

The Saunders-Roe's chief designer,Mr. Henry Knowler maybe?!



[Jemiba]

The picture of the 4-engined design is identical to that, of the Supermarine
524 in Tony Buttlers BSP, but there engines are said to be Proteus . ???



[Barrington Bond]

The 4 engine flying boat is the Saunders-Roe P.162 designed to Specification R.2/48 powered by either compounded Griffons or Turbo Griffons. From "Aircraft for the Royal Air Force" by Michael J.F. Bowyer ISBN 0-571-11515-2.

Regards,
Barry



[hesham]

Hi,

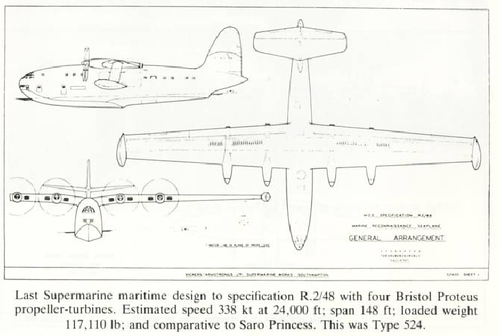

here is the 3-view about Supermarine Type-524.



[lark]

Where have you found this Supermarine info Hesham..?



[hesham]

My dear Lark,

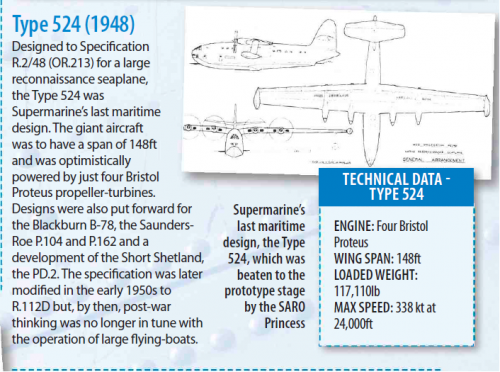

the Aeroplane Monthly,Supermarine the Company Profile.



[Stargazer]

the Aeroplane Monthly,Supermarine the Company Profile.

And before that, the Putnam book, from which they simply copied the artwork and information.



[hesham]

And From Putnam book.
