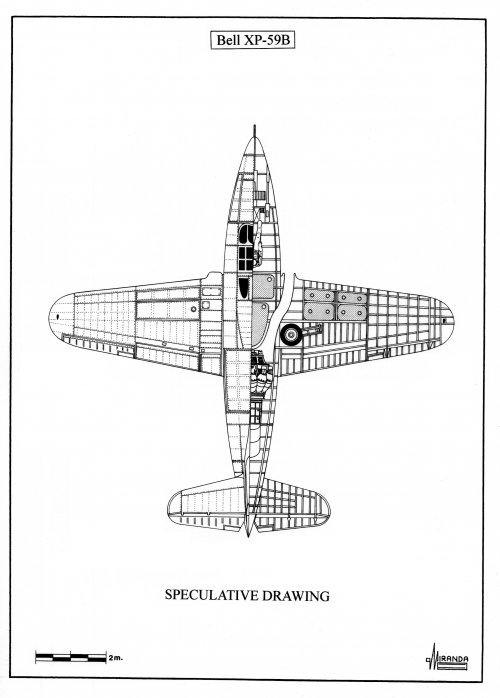

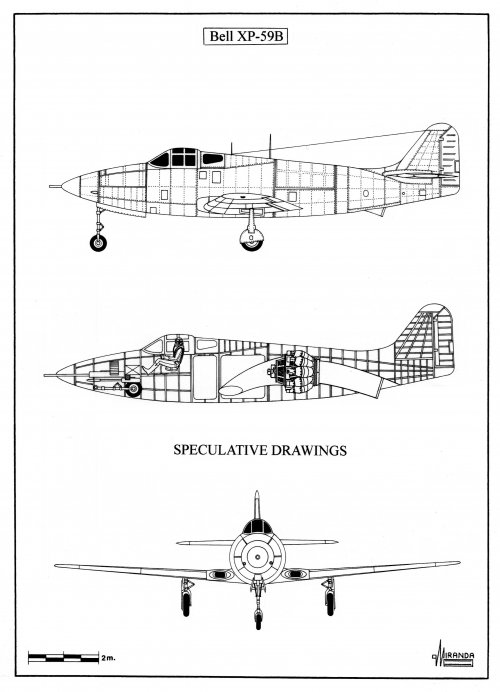

Bell XP-59B

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,742
Reaction score
1,204
The story is widely circulated that the contract for, and data on, the GE I-63-powered* XP-59B design was transferred to Lockheed. The Skunk Works then applied that data to a refined concept powered by the Halford H.1 (later DH Goblin). The end result was the Lockheed L 140/XP-80.

Can anyone validate this story or know its origin?

[* Baugher says a single GE I-16/J31 ]


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54

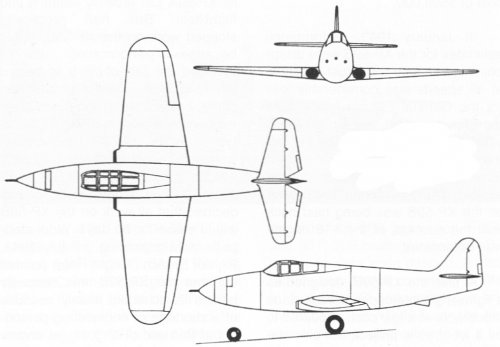

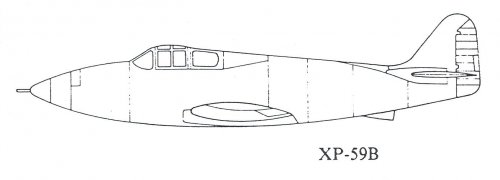

I found this online - anyone know who drew it? -SP


Attachments

  • 01P59-10.jpg
    335.9 KB · Views: 394

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Steve Pace said:
I found this online - anyone know who drew it? -SP

I could be wrong, but this looks like typical Green/Swanborough material to me.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,828
Reaction score
711

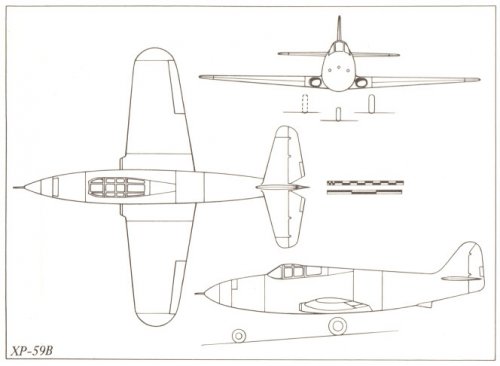

It looks very much like the XP-59B 3-view from 'Bell Aircraft since 1935' by Alain J Pelletier, Putnam, 1992.
Identical relative positions of front, upper and side view.

Solid black air intakes in front view, solid black tires, absence of wheel positions in front view and Putnam's size bar are the only differences.


Attachments

  • XP-59B small.jpg
    XP-59B small.jpg
    50.5 KB · Views: 333

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
689
Reaction score
354

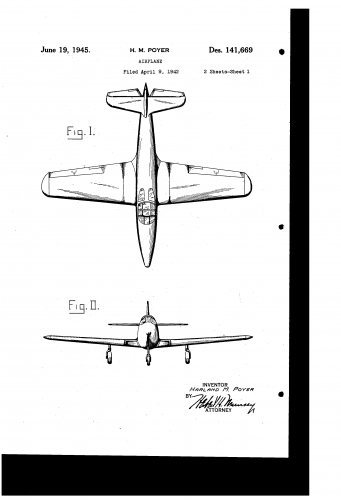

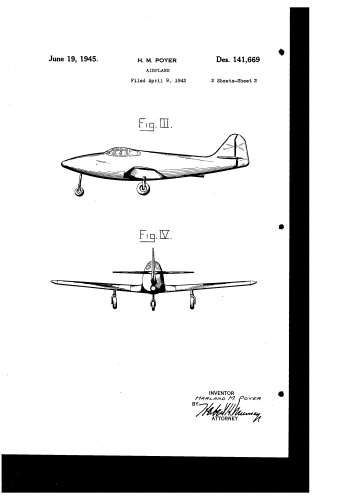

Related patent


Attachments

  • USD141669-1.png
    30.3 KB · Views: 264
  • USD141669-0.png
    37.5 KB · Views: 66

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
689
Reaction score
354
Steve Pace said:
sienar said:
Related patent
WOW! How cool is this!! Thanks so much!!! -SP

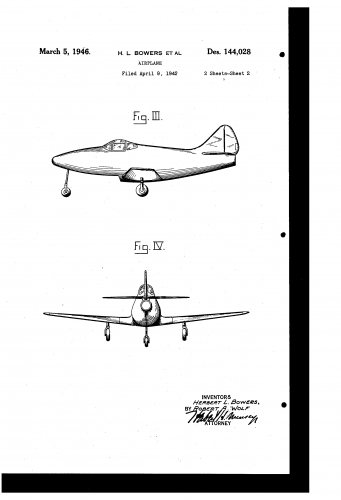

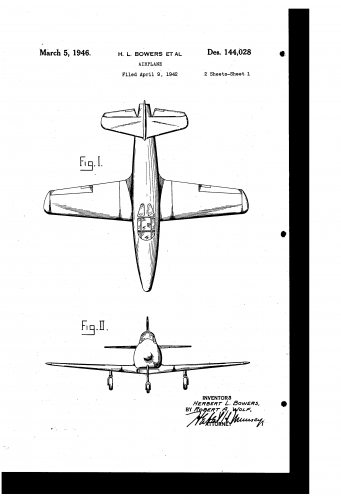

There is another from the same time and same people. Probably an alternate layout that was studied.


Attachments

  • USD144028-1.png
    36.3 KB · Views: 63
  • USD144028-0.png
    40.8 KB · Views: 67

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54
sienar said:
Steve Pace said:
sienar said:
Related patent
WOW! How cool is this!! Thanks so much!!! -SP


There is another from the same time and same people. Probably an alternate layout that was studied.
Very interesting, indeed. Thank you! I need your full name for proper crediting. -SP


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Steve Pace said:
Very interesting, indeed. Thank you! I need your full name for proper crediting. -SP

Not that I mean to diminish anyone's contribution here, but all this patent art can easily be found on Google Patents with the proper keywords. It's not like somebody actually researched library archives and dug it out for all to see...


Anachronus

I really should change my personal text
Joined
Jun 6, 2013
Messages
7
Reaction score
1
That intake under the wing would have been a very bad idea me thinks.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
104
The drawing Steve Page is askin' for more info (rep#4) is taken
from : Air Force Legends number 208 "Bell P-59 Airacomet"

Page 25 . A lot of contributors are mentioned but not
a particular one for the drawing.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
lark said:
The drawing Steve Page is askin' for more info (rep#4) is taken
from : Air Force Legends number 208 "Bell P-59 Airacomet"

??????

The book you're mentioning is on my bookshelf and it was written by... Steve Pace himself!!!

So why would he ask for more info about his own book?


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54
Mr. Ginter inserted it after the fact and I asked him who it was by and he said he can't remember...."SO DON'T CREDIT IT."


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,828
Reaction score
711
Apart from the 1992 Bell title, Alain J Pelletier also wrote Putnam's 'Beech Aircraft and their Predecessors' in 1994.
Peter W Brooks wrote Putnam's 'Zeppelin: Rigid Airships 1893-1940' in 1992.
John Wegg wrote Putnam's 'General Dynamics and their predecessors' in 1990.
Hans G Andersson wrote Putnam's 'Saab Aircraft since 1937' in 1989.

In the Beech, Zeppelin, General Dynamics and Saab prefaces, the authors thank Carl G Ahremark for producing most/all of the general arrangement drawings.

Who drew the image - I believe that would be Carl-Gustaf Ahremark.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Steve Pace said:
Mr. Ginter inserted it after the fact and I asked him who it was by and he said he can't remember...."SO DON'T CREDIT IT."

Oh, okay... Thanks for explaining, it didn't seem very logical from the outside but now it makes sense! ;)
