some photo or artist impression about CURTISS xP-60

blue max

ciao i' m "tracking" proj. from 1939 to 2019
Joined
Dec 27, 2009
Messages
11
Reaction score
0
Sorry but I ask again the help of this Forum about the Curtiss P-60 :D, in this moment I have this informations, and only two very bad photos in black & white,,, I looking on the searching banner and I found only a topic about Curtiss Fighter ( with many info from Stargazer) but no more about the Xp-60.

CURTISS XP-60
The P-60 series of aircraft were the last attempts by Curtiss to build a replacement for the P-40. Previous attempts included the XP-46 and XP-53. The Army Air Corps wanted a "Merlin"-powered aircraft, so the second XP-53 was modified for the new engine and re-designated XP-60. Because the V-1650 engine was in demand for production aircraft (e.g. P-51), the P-60 underwent many modifications to test different engines more readily available. First, the Allison V-1710-75 was substituted for the Packard in the XP-60A. Next, a Pratt & Whitney R-2800-53 radial engine was tried with a contra-rotating propeller on the XP-60C. An order for 500 P-60s (26 YP-60A and 474 P-60A) was canceled in June 1943, and Curtiss built 354 P-47Gs instead.
Type Number built/
converted Remarks
XP-60 1 Improved P-40
XP-60A 3 Improved XP-60 with eight .50-cal. mgs.
YP-60A 0 Service test A model; 26 canceled
P-60A 1 Production A model; 473 canceled
XP-60B 1 (cv) Modified XP-60A with turbosupercharger
XP-60C 1 (cv) Modified XP-60A; contra-prop
XP-60D 1 (cv) Modified XP-60; engine change; four-blade prop.
XP-60E 1 (cv) Modified XP-60B; engine change; four-blade prop.
YP-60E 1 (cv) Modified P-60A; engine change; four-blade


Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
12

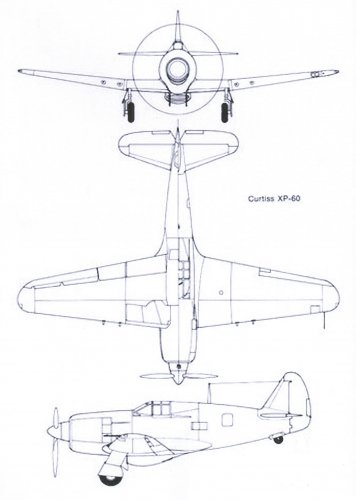

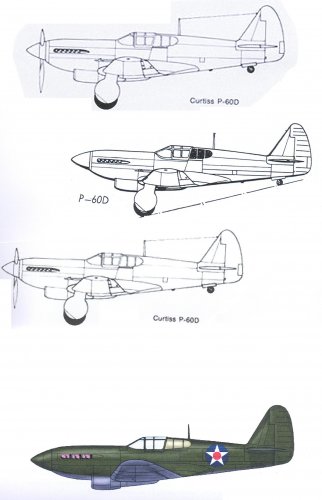

Hi, attached side views. (William Green, War planes of the second world war, fighters vol.4)

Regards Bailey.


Attachments

  • XP60.jpg
    202.3 KB · Views: 269

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664

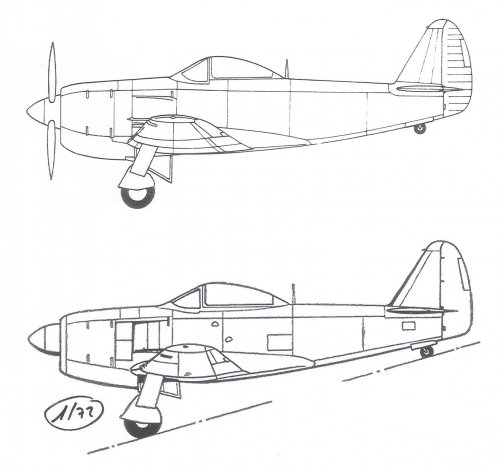

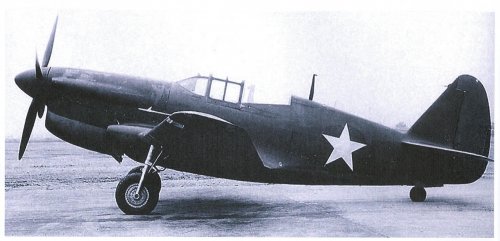

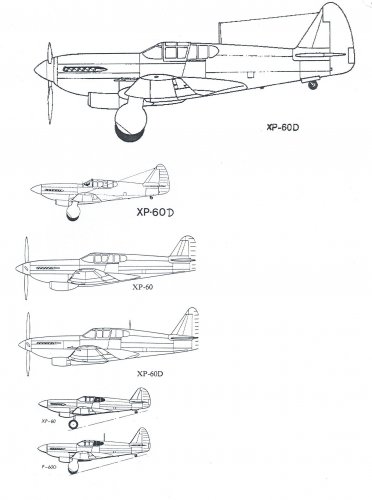

Please note that when dealing with the P-60 series, we're actually talking about two very different models. Only the XP-60 (Model 90/90A) and the XP-60D (Model 90B) resemble the P-40 series. The rest of the series are all Model 95 versions, which have quite a different appearance: XP-60A (Model 95A), XP-60B (Model 95B), XP-60C (Model 95C) and XP-60E (Model 95D).

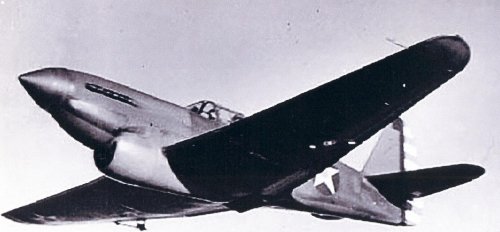

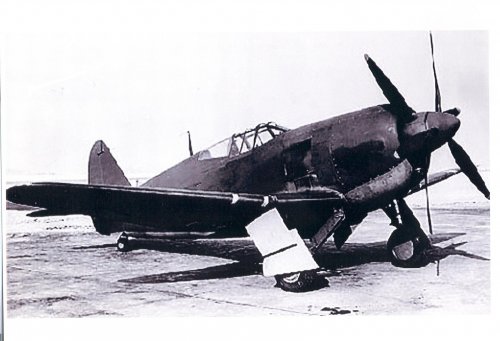

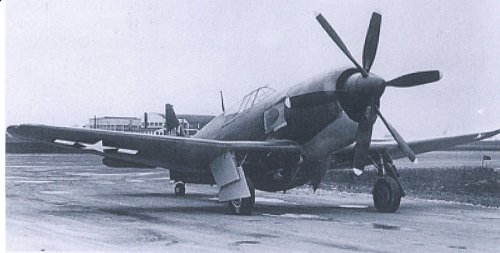

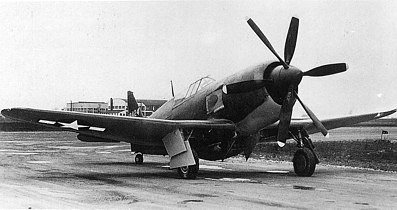

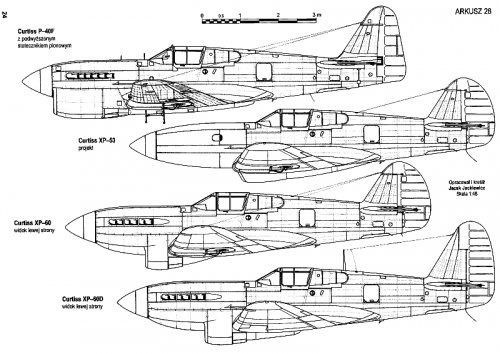

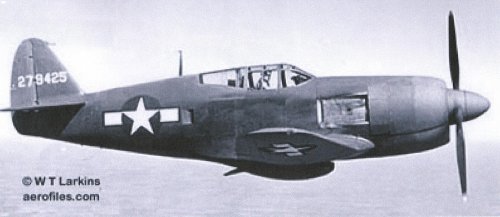

From an unidentified Polish source, the two Model 90 configurations. The photo represents XP-60C/E.


Attachments

  • 24.jpg
    223.3 KB · Views: 280
  • XP-60C-E.jpg
    31 KB · Views: 236

Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
151
Reaction score
14
I've been looking for material on this series, and what I've seen is confusing. So many variants, so much tinkering.

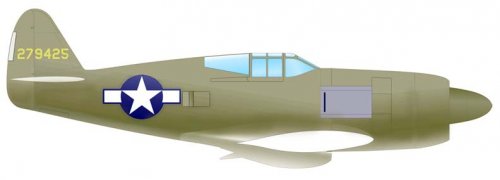

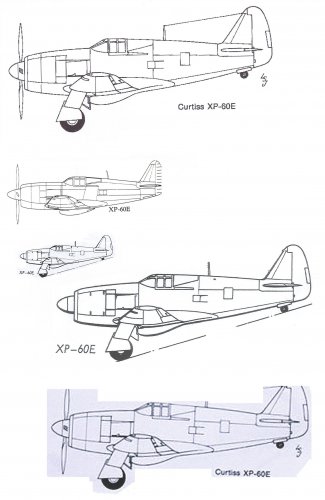

I'm attaching a rough beginning of a side view of the XP-60E. It's incomplete, but more accurate than any side view I've seen. It's totally based on photos of XP-60C, XP-60E and YP-60E, which shared many components. I had intended to do a more accurate plan as well, but I haven't found enough to work from.
One thing that's puzzling is the way Curtiss switched out vertical tails on these three models. There's a larger tail, apparently similar to the XP-60, and, as on this drawing, a more compact tail, but it's either not a linear replacement of one with the other or the dates given on published photos are wrong. Or both.

--Ian


Attachments

  • P-60E.jpg
    28.1 KB · Views: 181

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,763
Reaction score
3,422
Website
www.amazon.com

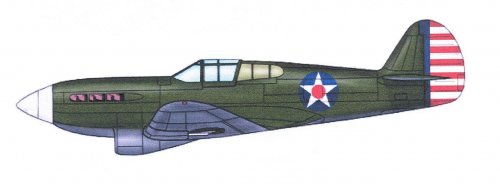

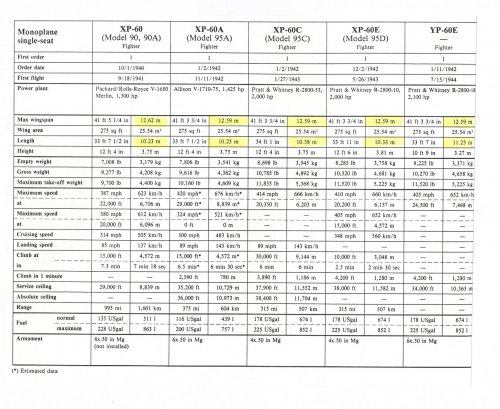

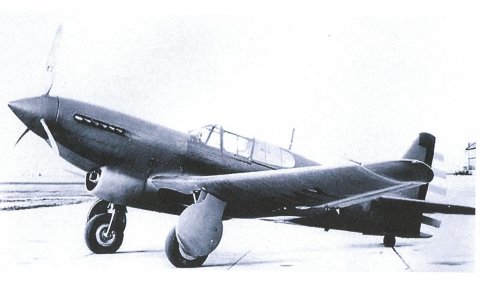

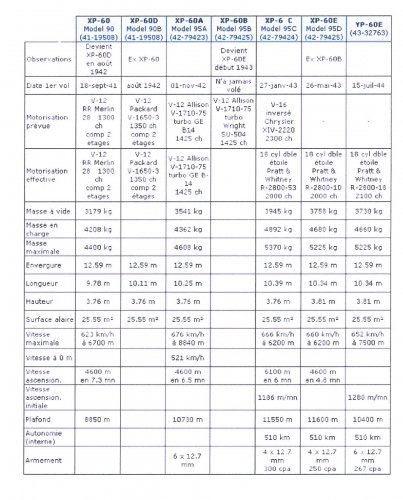

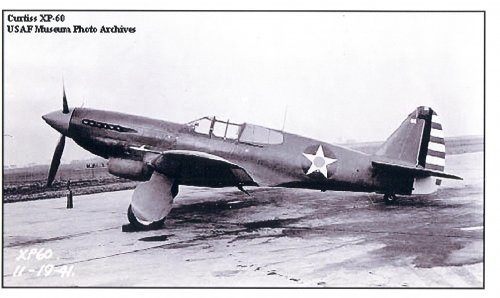

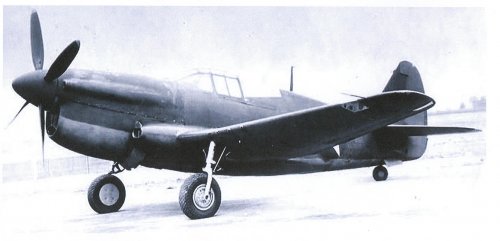

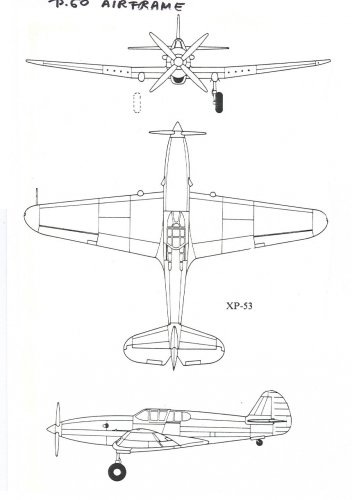

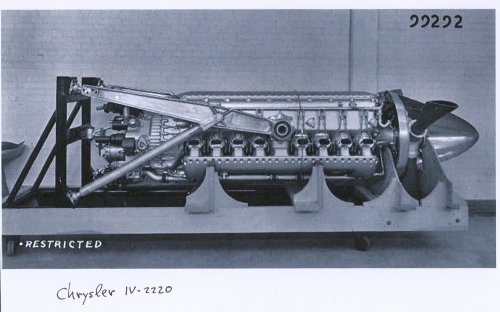

XP-60 info Post-1
Unknown file and source


Attachments

  • Escanear0004.jpg
    279.5 KB · Views: 91
  • Escanear0003.jpg
    170.8 KB · Views: 78
  • Escanear0002.jpg
    183.4 KB · Views: 84
  • Escanear0001.jpg
    244.9 KB · Views: 173

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,763
Reaction score
3,422
Website
www.amazon.com
XP-60 info Post-2

Unknown file and source


Attachments

  • Escanear0008.jpg
    71.6 KB · Views: 97
  • Escanear0007.jpg
    92.3 KB · Views: 111
  • Escanear0006.jpg
    358.2 KB · Views: 87
  • Escanear0005.jpg
    309.8 KB · Views: 87

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,763
Reaction score
3,422
Website
www.amazon.com

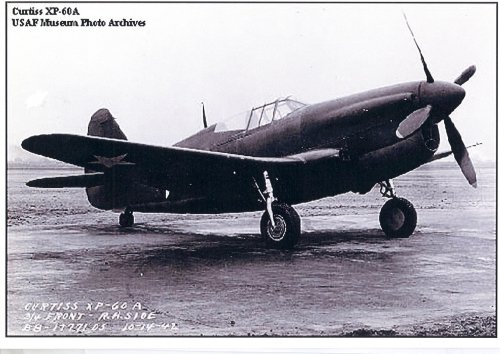

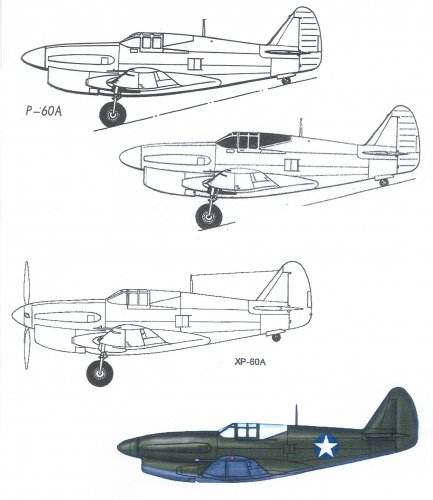

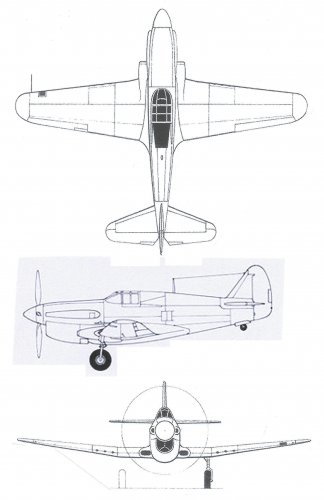

XP-60 A info Post-1
Unknown file and source


Attachments

  • Escanear0005.jpg
    283 KB · Views: 97
  • Escanear0004.jpg
    259.1 KB · Views: 94
  • Escanear0003.jpg
    219.8 KB · Views: 69
  • Escanear0002.jpg
    179.3 KB · Views: 64
  • Escanear0001.jpg
    318.2 KB · Views: 64

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,763
Reaction score
3,422
Website
www.amazon.com

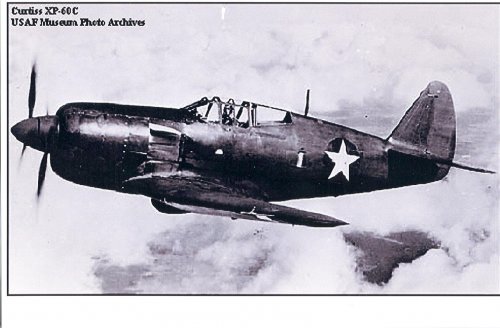

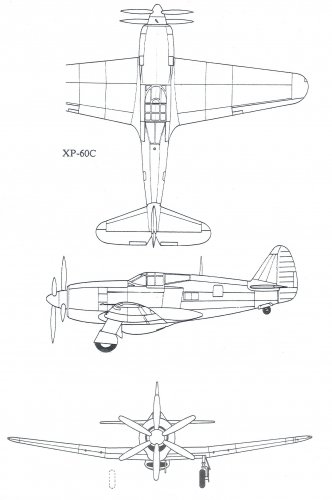

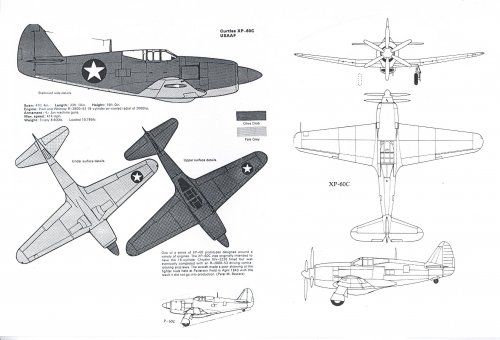

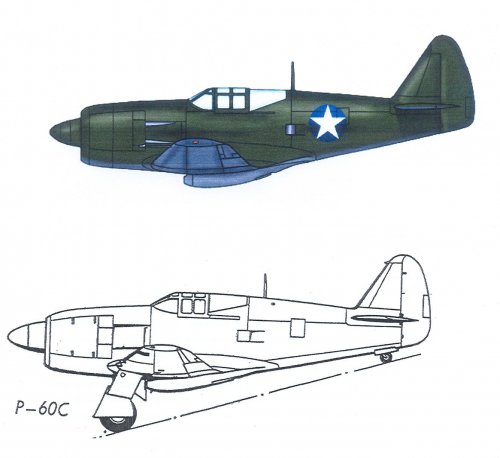

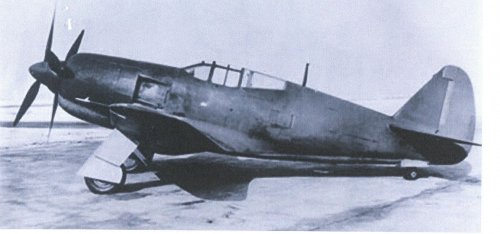

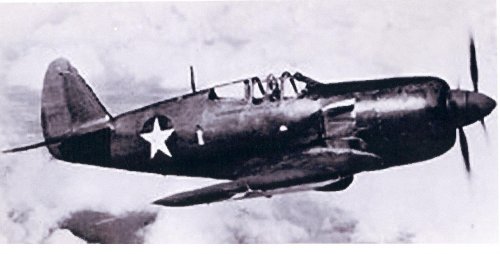

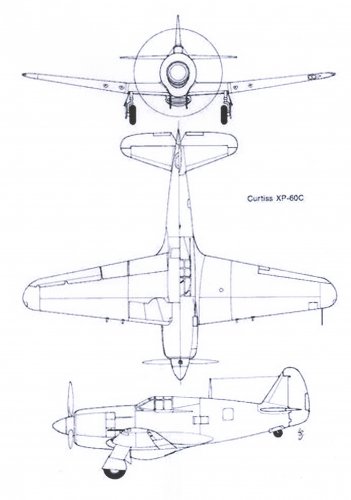

XP-60 C info Post-1
Unknown file and source


Attachments

  • Escanear0002.jpg
    180.4 KB · Views: 55
  • Escanear0003.jpg
    291.4 KB · Views: 59
  • Escanear0004.jpg
    199.7 KB · Views: 63
  • Escanear0005.jpg
    745 KB · Views: 81

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,763
Reaction score
3,422
Website
www.amazon.com
XP-60 C info Post-2
Unknown file and source


Attachments

  • Escanear0009.jpg
    226.1 KB · Views: 71
  • Escanear0008.jpg
    433.2 KB · Views: 84
  • Escanear0007.jpg
    125.7 KB · Views: 69
  • Escanear0006.jpg
    192.9 KB · Views: 76

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,763
Reaction score
3,422
Website
www.amazon.com
XP-60 C info Post-3
Unknown file and source


Attachments

  • Escanear0013.jpg
    241 KB · Views: 66
  • Escanear0012.jpg
    260.7 KB · Views: 59
  • Escanear0011.jpg
    161.3 KB · Views: 59
  • Escanear0010.jpg
    277.2 KB · Views: 53

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,763
Reaction score
3,422
Website
www.amazon.com

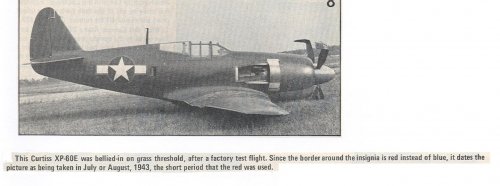

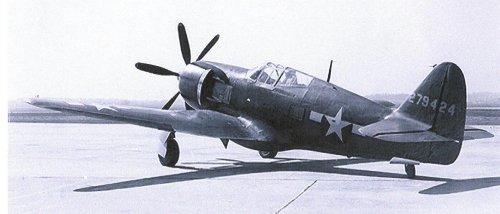

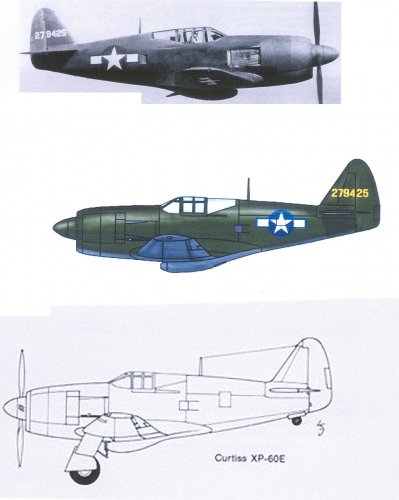

XP-60 E
Unknown file and source


Attachments

  • Escanear0008.jpg
    208.7 KB · Views: 73
  • Escanear0007.jpg
    318.6 KB · Views: 68
  • Escanear0006.jpg
    278 KB · Views: 67
  • Escanear0003.jpg
    160.4 KB · Views: 72
  • Escanear0002.jpg
    220.5 KB · Views: 76
  • Escanear0001.jpg
    128 KB · Views: 66

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,763
Reaction score
3,422
Website
www.amazon.com

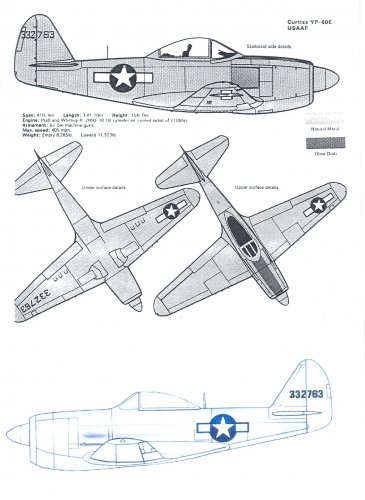

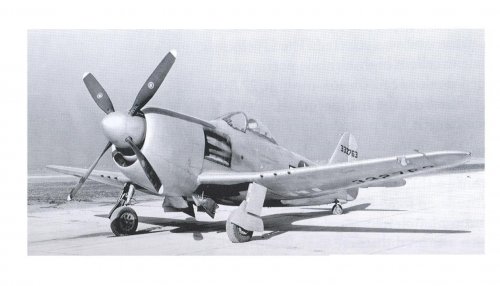

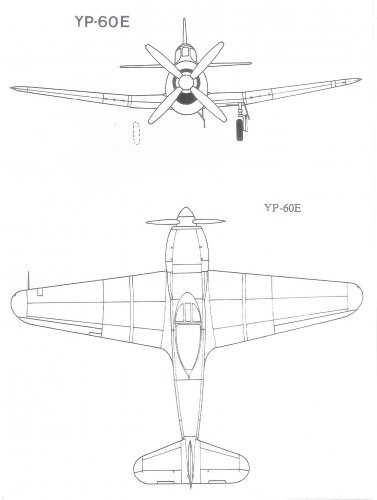

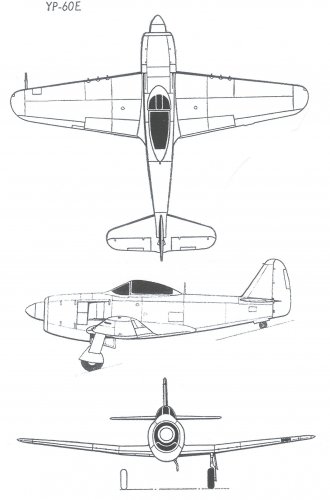

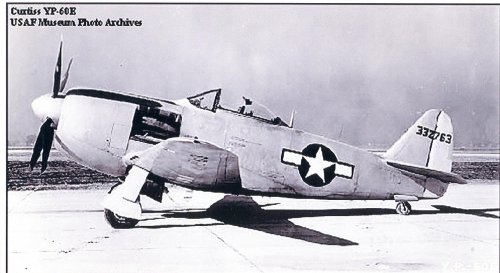

YP-60 E Post-1
Unknown file and source


Attachments

  • Escanear0004.jpg
    163.6 KB · Views: 68
  • Escanear0005.jpg
    262.5 KB · Views: 77

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,763
Reaction score
3,422
Website
www.amazon.com

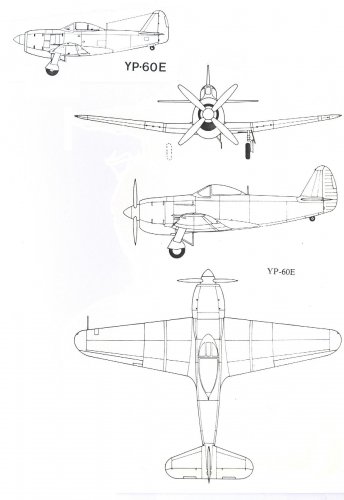

YP-60 E Post-2
Unknown file and source


Attachments

  • Escanear0006.jpg
    136.7 KB · Views: 93
  • Escanear0005.jpg
    230.3 KB · Views: 91
  • Escanear0004.jpg
    266.4 KB · Views: 79
  • Escanear0003.jpg
    381.9 KB · Views: 113
  • Escanear0002.jpg
    114.9 KB · Views: 95
  • Escanear0001.jpg
    142.8 KB · Views: 95

Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
151
Reaction score
14
Sr. Miranda--you're a bottomless well.

Although the plan drawings are all in vague agreement about the wing shape, I still dream of someday finding a photo showing something close to an overhead shot, or a factory drawing...

J

joncarrfarrelly

Guest
Apteryx said:
I've been looking for material on this series, and what I've seen is confusing. So many variants, so much tinkering.

I'm attaching a rough beginning of a side view of the XP-60E. It's incomplete, but more accurate than any side view I've seen. It's totally based on photos of XP-60C, XP-60E and YP-60E, which shared many components. I had intended to do a more accurate plan as well, but I haven't found enough to work from.
One thing that's puzzling is the way Curtiss switched out vertical tails on these three models. There's a larger tail, apparently similar to the XP-60, and, as on this drawing, a more compact tail, but it's either not a linear replacement of one with the other or the dates given on published photos are wrong. Or both.

--Ian

The XP-60E (42-79425, MSN 15525) was the airframe of the never completed XP-60B (V-1710 with Wright SU-504-2 turbo-supercharger), the designation change was covered under Contract AC-28113.
The Material Center at Wright Field took action on October 31, 1942 to change the designation to XP-60E which was described as being " identical to the XP-60C with the exception of the reduction gearing and propeller".

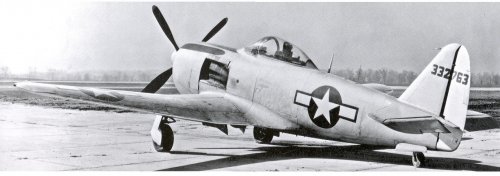

The YP-60E (43-32763, MSN 27691) was one of the aircraft started as a YP-60A-1under the aborted production contract. Evidently it was designated YP-60E because it most closely resembled the XP-60E and was actually completed before the XP-60E, yet accepted nearly six months later.

Info from Curtiss Fighter Aircraft: A Photographic History 1917 - 1948, Francis H. Dean & Dan Hagedorn, Schiffer 2007
Page 333 of the book has a reproduction of Curtiss drawing P-1012-14, General Arrangement XP-60C.

Jon


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Justo, I can't thank you enough for always coming right on cue... As usual this is perfect!

J

joncarrfarrelly

Guest

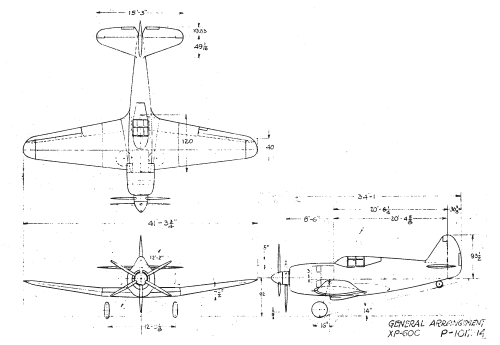

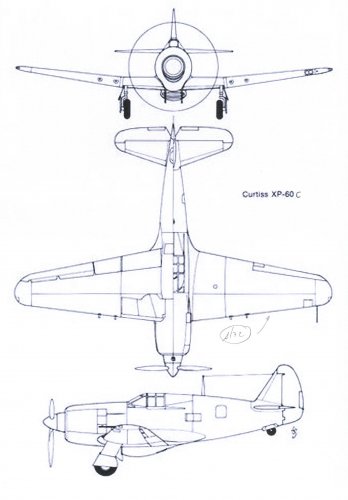

Curtiss drawing P-1012-14, General Arrangement XP-60C.

Note that in the drawing the aircraft has a rudder with a horn balance,
the same as what is in some of the photos. Other photos of the XP-60C
show an inset hinge balance rudder. The XP-60E photos/drawings also
show the two different types of rudder, YP-60E photos and drawings
are inset hinge only.

Jon


Attachments

  • XP60C_01.png
    19.6 KB · Views: 225

Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
151
Reaction score
14
joncarrfarrelly said:
The XP-60E (42-79425, MSN 15525) was the airframe of the never completed XP-60B (V-1710 with Wright SU-504-2 turbo-supercharger), the designation change was covered under Contract AC-28113.
The Material Center at Wright Field took action on October 31, 1942 to change the designation to XP-60E which was described as being " identical to the XP-60C with the exception of the reduction gearing and propeller".

Jon

That gen. arr. drawing is exactly what I was hoping to find. Thanks! I'll have to try and get hold of the Schiffer Curtiss book.

It's not exactly wrong to say the XP-60C and -E were identical apart from the propeller hardware. It's more complicated...

Photos of a (the?) XP-60C prototype show a shorter front fuselage than the -E. There's a plug, about ten inches long, inserted on the -E just forward of the cockpit, presumably to compensate for the reduced weight of the single-rotation prop installation. The confusing part is that other photos of the XP-60C show it with the smaller tail and longer fuselage, like the -E! Yet other photos show the -E with the large tail. Some planes have visible serial numbers, others don't, so it's hard to be sure which airframe is which.

Let me note also--there are two completely different vertical tail assemblies on these various prototypes. It's not just different rudders. The tail sometimes seen on XP-60c and -E, and later on the YP-60E, is considerably smaller than the other unit.

--Ian

J

joncarrfarrelly

Guest
Apteryx said:
joncarrfarrelly said:
The XP-60E (42-79425, MSN 15525) was the airframe of the never completed XP-60B (V-1710 with Wright SU-504-2 turbo-supercharger), the designation change was covered under Contract AC-28113.
The Material Center at Wright Field took action on October 31, 1942 to change the designation to XP-60E which was described as being " identical to the XP-60C with the exception of the reduction gearing and propeller".

Jon

That gen. arr. drawing is exactly what I was hoping to find. Thanks! I'll have to try and get hold of the Schiffer Curtiss book.

It's not exactly wrong to say the XP-60C and -E were identical apart from the propeller hardware. It's more complicated...

Photos of a (the?) XP-60C prototype show a shorter front fuselage than the -E. There's a plug, about ten inches long, inserted on the -E just forward of the cockpit, presumably to compensate for the reduced weight of the single-rotation prop installation. The confusing part is that other photos of the XP-60C show it with the smaller tail and longer fuselage, like the -E! Yet other photos show the -E with the large tail. Some planes have visible serial numbers, others don't, so it's hard to be sure which airframe is which.

Let me note also--there are two completely different vertical tail assemblies on these various prototypes. It's not just different rudders. The tail sometimes seen on XP-60c and -E, and later on the YP-60E, is considerably smaller than the other unit.

--Ian

The "identical to" quote is from the Army document changing the designation. ;)
