Beech Model 24 Utility/Observation aircraft...

  • Thread starter joncarrfarrelly
  • Start date
J

joncarrfarrelly

Guest
Designed for Army Air Corps Specification C-143 in December, 1939.
Wright R-760E2.









Cheers, Jon


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,350
Reaction score
119
Interesting, building on the basic Model 17 concept with greatly increased flap area, fixed gear, and a simiplified structure. With the reverse stagger, I can see it working quite well for the intended role.


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
58
Website
theavgeeks.com
I've always thought the Staggerwing was one of the more elegant aircraft from that time. What was the aerodynamic/engineering basis of the reverse stagger, anyway?

J

joncarrfarrelly

Guest
The designer, Ted Wells, chose the layout for one reason: pilot visibility.
Wells worked for Curtiss-Wright and originated the design in 1931 while working at the Travel Air plant in Wichita.
He showed the concept drawings to Walter Beech who tried to get the C-W brass interested in producing the aircraft, they
refused stating limited demand. Beech and his wife Olive Ann approached Wells with the idea of forming their own company, Wells agreed. In March of 1932 Beech and Wells tendered their resignations to Curtiss-Wright and the Beech Aircraft Company was born on April 19, 1932.

Beech was right and C-W were wrong, there was a demand for a fast, enclosed four-seater.

Cheers, Jon

J

joncarrfarrelly

Guest
Stargazer2006 said:
Pics have gone! Any chance to retrieve them?


Sure, I'll fix the links now.


Did you get my PM on the other board re: the MPM Fireball?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
joncarrfarrelly said:
Stargazer2006 said:
Pics have gone! Any chance to retrieve them?


Sure, I'll fix the links now.


Did you get my PM on the other board re: the MPM Fireball?

In fact I had not been notified of it. Strange! Thanks for the pointer, I replied there.

This Model 24 is a very little known part of Beechcraft history, all the more so since the designation was later reused for the Sierra. Thanks a lot for sharing!


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,214
Reaction score
82
Website
zeef.com
elmayerle said:
Interesting, building on the basic Model 17 concept with greatly increased flap area, fixed gear, and a simiplified structure. With the reverse stagger, I can see it working quite well for the intended role.
Here, it seemed ! :p


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
Considering the fact that:

1°) the Beechcraft Model 24 was an early 1939 effort
2°) the wind-tunnel model is labeled "Hi-Lift"
3°) the design sports large wing flaps for STOL capability
4°) the aircraft is described as a liaison/observation type

... I venture to conclude that the type was submitted against the same specification as the Bellanca Model 49-42 (YO-50) and the Ryan Dragonfly (YO-51).

From this we can assume that Design Specification X-143 was related to Circular Proposal CP 39-2.


jcf

ACCESS: Restricted
Joined
Jun 26, 2017
Messages
34
Reaction score
25
Designed for Army Air Corps Specification C-143 in December, 1939.
Wright R-760E2.

Cheers, Jon

update to post from 2007 with defunct image links


Attachments

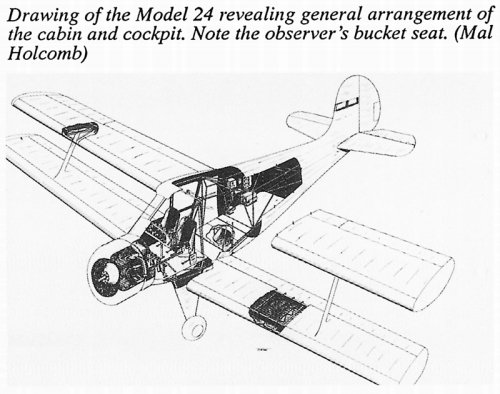

  • BEECH24-01.jpg
    333.1 KB · Views: 46

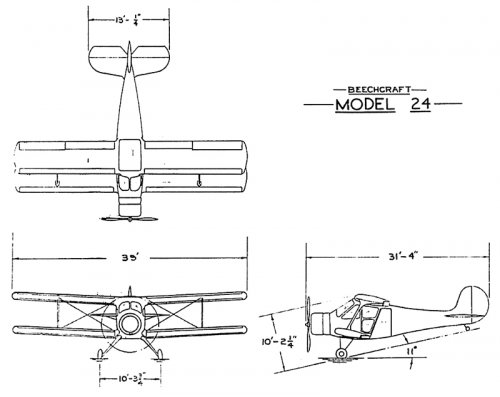

  • BEECH24-02.jpg
    96.1 KB · Views: 57

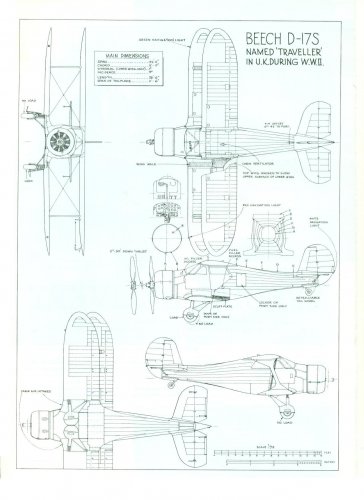

  • BEECH24-03.jpg
    237.7 KB · Views: 68

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
Amazing and brilliant find,thank you Jcf.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
hesham said:
Amazing and brilliant find,thank you Jcf.

What do you mean? We had these already, hesham (as well as the Staggerwing fighter and the Model 20A). That's what jcf means when he says "update to post from 2007 with defunct image links".
