Armstrong Whitworth flying wing transport aircraft

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

the AW flying wing transport aircraft project from 1946.
http://www.flightglobal.com/FlightPDFArchive/1946/1946%20-%201395.pdf


Attachments

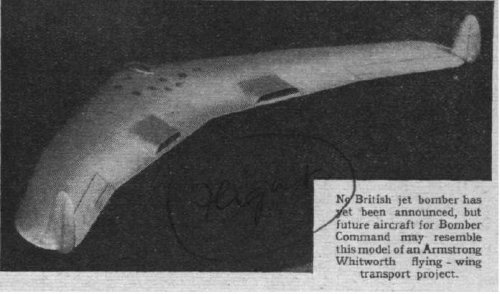

  • AW transport project.JPG
    AW transport project.JPG
    44.9 KB · Views: 420

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
588
Reaction score
93
Interesting design, indeed!
Is there some line drawings of this project available?

Thanks,


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
93
Re: British flying wing

I see that it mentions Armstrong Whitworth in the text but do we know if this is actually one of their designs or the magazine extrapolating?!

Regards,
Barry


SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
8
Re: British flying wing

Armstrong-Whitworth AW.52 Experimental tailless aircraft to E.9/44 to test flying wing concept for large aircraft. 2 built


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
93
Re: British flying wing

To clarify...is the large illustration an extrapolation of AW designs or is it drawn from actual AW released artwork of the craft shape and its internal layout?!

Sincerely,
Barry


fredgell

ACCESS: Confidential
Joined
Jun 10, 2007
Messages
75
Reaction score
2
Re: British flying wing

There were quite a few advertisements (in Flight at least) re a project of this nature.
Not all were AW adverts so searching for them is a bit of a problem...

I have some links but have the same problem on my own system as the tags are
not directly relevant. I do recall one which was for either seating design or windows which
had a the in wing lounge.

It would seem that some pretty serious speculation and design took place in practice.
I'll see if I can trawl up the links.

Fred


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466

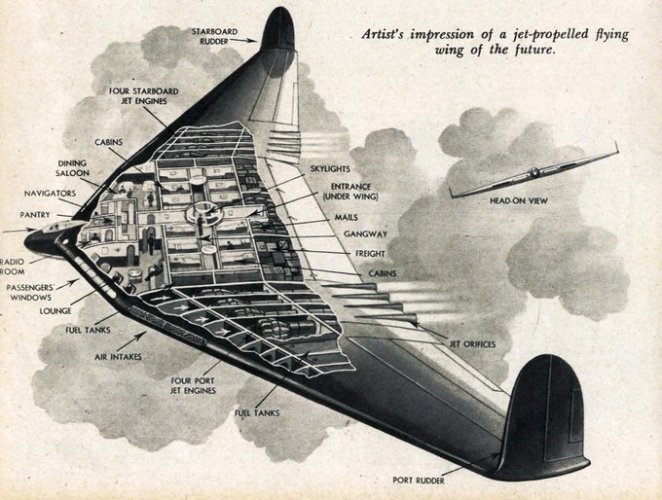

What about this one? Same program or a different one?


Attachments

  • AW.JPG
    68.5 KB · Views: 317

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,738
Reaction score
817
that not aircraft,
This a flying ocean liner !

i wish they had build that craft :'(

THX for pictures


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,915
Reaction score
258
In the new 'Secret Projects: Flying Wings and Tailless Aircraft' book,
the author states that John Lloyd, designer of the AW.52, had hoped
the project would lead to a 'large flying wing airliner, powered by six
turbojets', but that the technical difficulties were too great.
Also, in Putnam's 'Armstrong Whitworth', it is stated that :-
"(the AW.52) would itself be but a step towards the large six-jet
airliner project being actively studied by the company..."


cheers,
Robin.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Thanks for the insight. What I'd like to know is whether the difficulties experienced were due to the material limitations of the time, the over-expenditure development would generate, or if they would still be as unsurmountable today as they were at the time...


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,915
Reaction score
258
From the information given in the sources I've previously quoted,
and also 'British Experimental Jet Aircraft', by Barrie Hygate, and
Barry Jones's 'British Experimental turbojet Aircraft', there were
three main problems, firstly, the degree of laminar flow achieved
was very disappointing, averaging only around 5%, compared
with up to 60% achieved in tunnel tests, secondly, the aircraft's
CLmaxwas low, even with full flap deflection, due to
the short moment arm available with the tailless configuration.
This led to high downloads on the surfaces to correct the pitching
moment at low speed. This was aggravated by the extra pitching
moment generated by the lowered flaps, effectively cancelling out
their extra lift.
Thirdly, and probably most important, the aircraft proved to be
extremely sensitive in pitch. In anything other than the smoothest
air, rapid pitching oscillations would set in, which could, and did,
become divergent. On May 26th, 1949, these pitch oscillations
developed into flutter of one of the wingtips.This rapidly spread to
the whole wing,and became so violent that the pilot abandoned
the aircraft, becoming in the process, the first pilot to use a
Martin-Baker ejection seat in an emergency.
If such an aircraft was to be built today, then artificial stability
would take care of the pitch sensiivity, modern aerodynamics
would probably increase the CLmax, however, large
scale laminar flow is, I believe, still not possible, but I'm expecting
to be corrected! ;D


cheers,
Robin.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Re: British flying wing

Justo Miranda said:

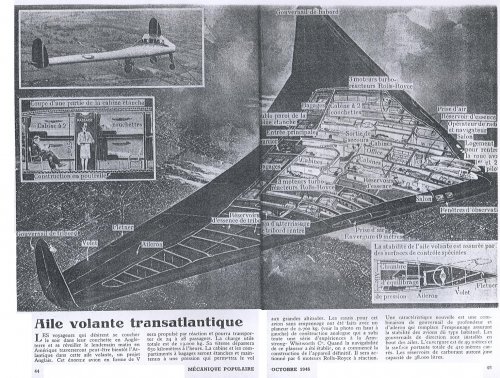

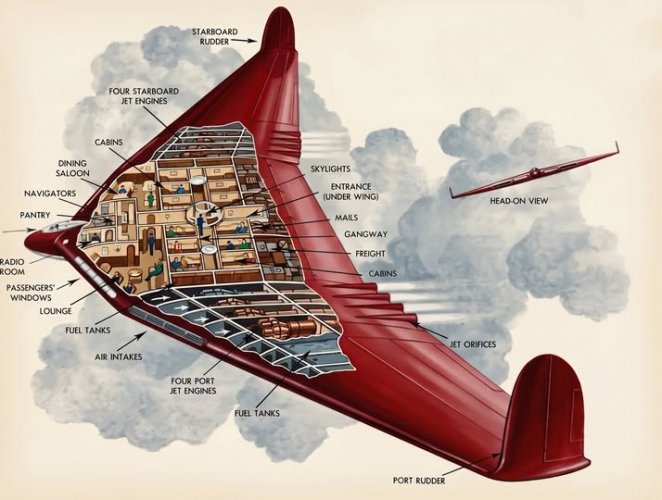

From "Mècanique Populaire" octobre 1946


A bitter copy;


http://books.google.com.eg/books?id=7eEDAAAAMBAJ&pg=PA114&dq=popular+mechanics+transatlantic&hl=en&sa=X&ei=xpz8U-GeEMyO7Qb6poCwAw&ved=0CC8Q6AEwAg#v=onepage&q=popular%20mechanics%20transatlantic&f=true


Attachments

  • 1.png
    989.3 KB · Views: 319

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

http://archive.aviationweek.com/image/spread/19490124/17/2


Attachments

  • 1.png
    531.7 KB · Views: 188

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Was that related to Armstrong-Whitworth ?.


Attachments

  • radtke_raketen002.jpg
    51.9 KB · Views: 48

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,464
Reaction score
511
Source?
BX-27 is an fake registration and 'raketen' is rocket (there are no intakes)
Fantasy, not A-W


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Source?
BX-27 is an fake registration and 'raketen' is rocket (there are no intakes)
Fantasy, not A-W
OK my dear Schneiderman,

and sorry for that,please Moderator,we can transfer it to a proper section.
