Armstrong Whitworth AW.66 and AW.65 projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
Hi,

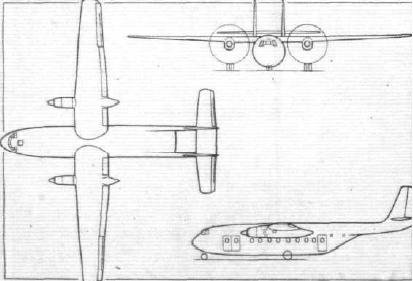

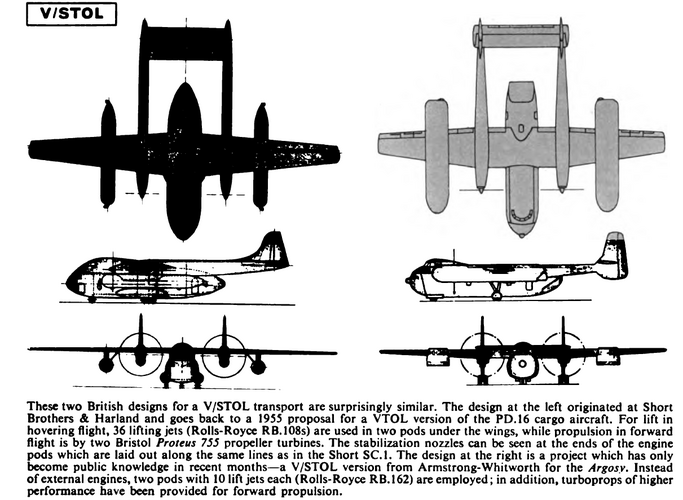

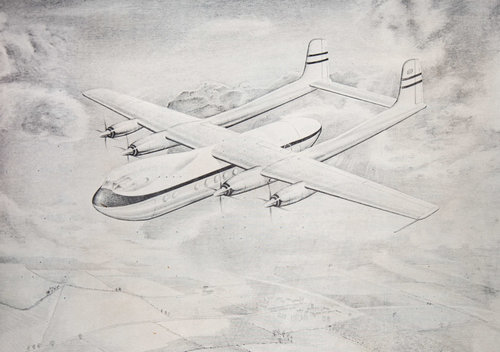

The Armstrong Whitworth AW.65 was in early concept with bi-tail
and the AW.670 Airbus air ferry aircraft projects.


Source; Flightglobal


Attachments

  • AW.65.JPG
    18.1 KB · Views: 313
  • AW-670.JPG
    21.4 KB · Views: 279

zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
214
Reaction score
258
Website
www.flickr.com
overscan said:
Not so hard is it?

:)

One thing that always surprises me about the Argosy is the Shackleton wing... its there in black and white but whenever I tell anyone about they look at me as if im mad... My abiding memory of the argosy is clambering over the wreck of XN819 on the fire dump at Finningly in the early eighties...

Zeb


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,379

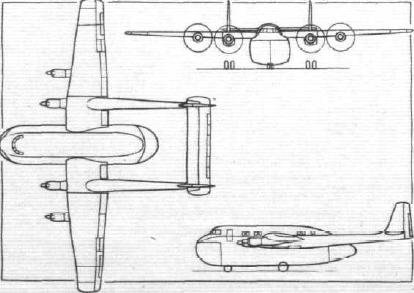

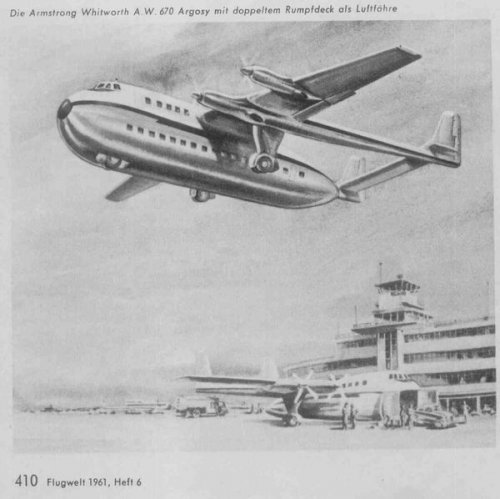

Although known and shown for example in "Stuck On The Drawing Board",
the AW 670, derivative of the Argosy, was shown in Flugwelt 6/1961
with a fixed landing gear :


Attachments

  • AW-670.JPG
    44 KB · Views: 209

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
Hi,

I spoke before about this project,it was Armstrong Whitworth
AW.66,and in Flightglobal the AW.65 after the developments
for it,and from Argosyair site;

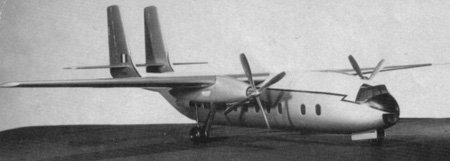

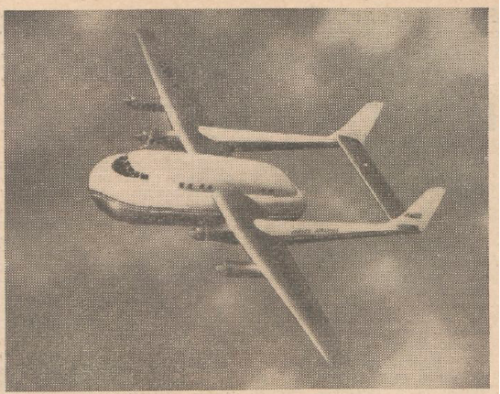

Late in 1955 AWA came up with a design designated AW 66. This was a high wing monoplane with the tail surfaces carried on two closely spaced booms growing out upper sides of the fuselage. At the rear there was a floor level hinged door suitable for both air dropping and ground loading. It had an all up weight in the region of 65,000 lbs. and was powered by two 3,000 hp prop jets. While working on the design of the AW66, extensive market research was carried out. This indicated that there was a potential market for a similar civil aircraft. To meet the civil requirement a revised design was developed, designated AW 65. While the requirement for air dropping disappeared, the need for both front and rear ground loading through full section doors appeared.

http://www.flightglobal.com/pdfarchive/view/1958/1958-1-%20-%200616.html?search=armstrong%20AW
http://www.argosyair.co.uk/introduction.html


Attachments

  • aw66_model.jpg
    20.5 KB · Views: 206
  • AW.65.JPG
    18.1 KB · Views: 204

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638

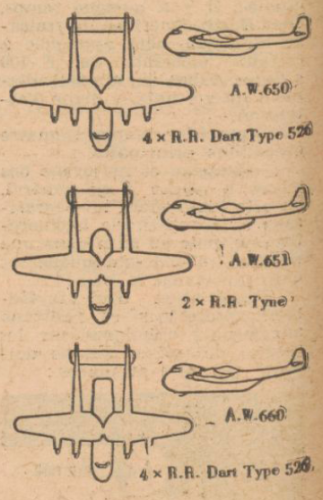

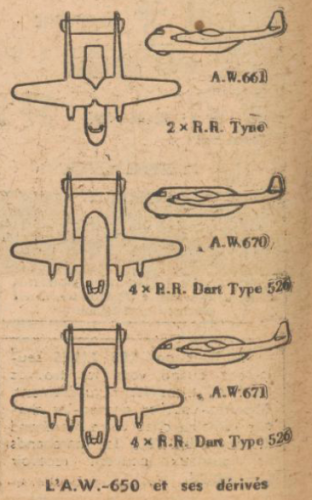

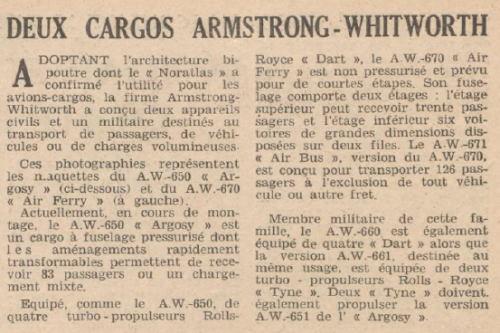

From Ailes 12/1957,

and first time to hear about AW.661.


Attachments

  • 1.png
    348.6 KB · Views: 69
  • 2.png
    389.8 KB · Views: 72

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,559
Reaction score
825
The AW numbering system for the 600 series projects runs in tens, 650, 660, 670 and so on. Intermediate numbers were then for modified versions of aircraft and projects , so AW661 is just AW660(Military Argosy) re-engined with Tynes.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
From Ailes 15/11/1958,

the AW.670.


Attachments

  • 1.png
    422.5 KB · Views: 50
  • 2.png
    372.3 KB · Views: 83

zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
214
Reaction score
258
Website
www.flickr.com

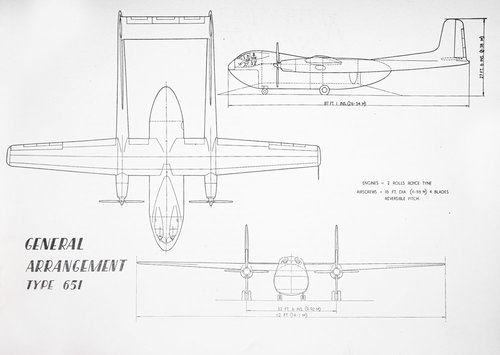

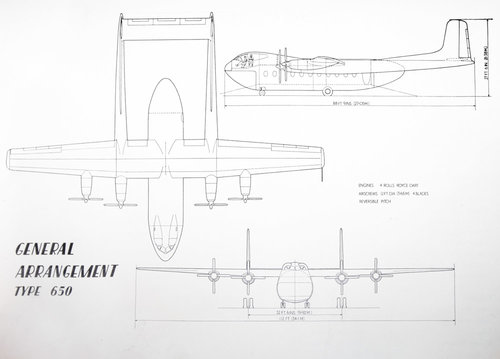

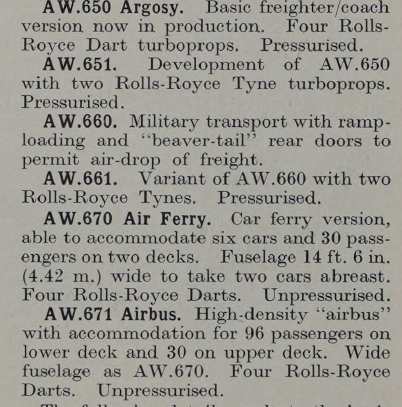

Some more Argosy variants... from an original brochure for the AW650 series "Freightliner"... the Dart powered AW650 and twin Tyne powered AW651...

Of note is the different undercarriage and cockpit arrangement from the final design...

Zeb


Attachments

  • Aw650-1.jpg
    194.5 KB · Views: 75
  • Aw650-2.jpg
    100.3 KB · Views: 77
  • Aw650-3.jpg
    122.1 KB · Views: 70
