Hi,

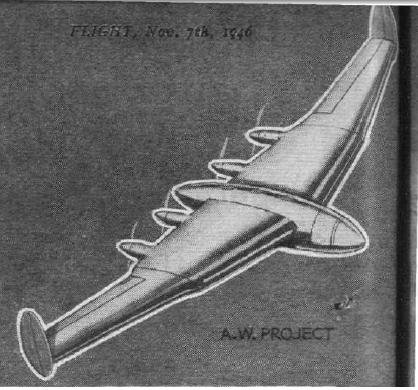

in the Flightglobal site two unknown British flying wing airliners,one
from AW and the other I don't know its company,any help.

http://www.flightglobal.com/PDFArchive/View/1946/1946%20-%202228.html
http://www.flightglobal.com/PDFArchive/View/1946/1946%20-%202229.html


Attachments

  • AW.JPG
    35.5 KB · Views: 655
  • untitled.JPG
    39.1 KB · Views: 621

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
982
Re: British two unknown flying wing airliners

hesham said:
from AW and the other I don't know its company,any help.

Called Flight International artist this company was.


Attachments

  • yyy.JPG
    54.6 KB · Views: 393

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,069
Reaction score
3,746

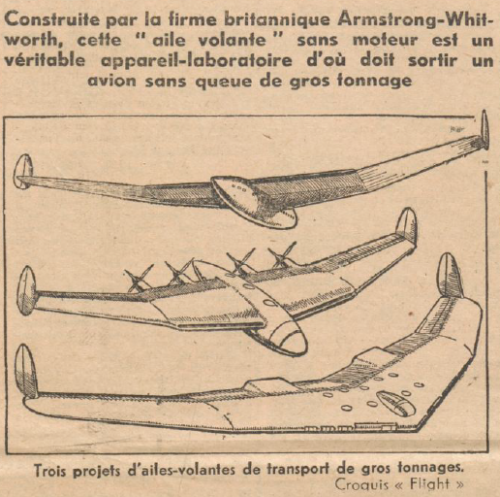

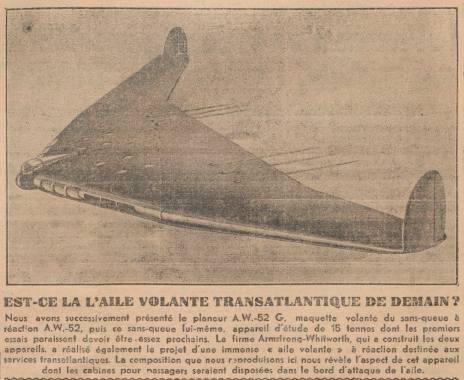

From Ailes 5/1946.

Please Moderator,feel free to transfer it to a proper section.


Attachments

  • 1.png
    521.5 KB · Views: 385
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k97960211_4.jpeg
    1.6 MB · Views: 343

alertken

ACCESS: Top Secret
Joined
Jan 20, 2007
Messages
607
Reaction score
184
Note with interest the timing, 5/46, of the Ailes piece. A recurring "scandal" for conspirators is "monumental blunder" cancellation, 2/46 of supersonic Miles M.52.

B.Lockspeiser,D.Scientific Res.(Chair,MAP Supersonic Cttee.) had funded M.52 29/12/43; (Sir Ben), DGSR(A)/MoS chopped it because we now had no Formed Force enemy and he had only a very modest Aircraft Research budget (UK was broke). He applied it to RAE's perception of innovation of civil potential: VG (Barnes Wallis extracted an expression of interest from new BOAC's MD Whitney Straight, so the Swallow models were funded), Flying Wing (MoS/RAE had a "Tailless Committee") and to suction for laminar flow (MoS "Boundary Layer Control Committee"). So he continued to fund A.W.52G/A.W.52 (and schemes at HP which would lead to an airfoil mounted dorsal on a Lancaster, then Lincoln and at Marshall's with a Budworth turbo-sucker in an Auster as MA.4). A.W.56 bid to 1947 Medium Bomber was suction laminar flow/flying wing.

It was nobody's fault that we must wait decades for Northrop B.2.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,069
Reaction score
3,746
You are right Alertken,

if there was a suitable funding ,we could see many beauties in the sky.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,069
Reaction score
3,746
Hi,

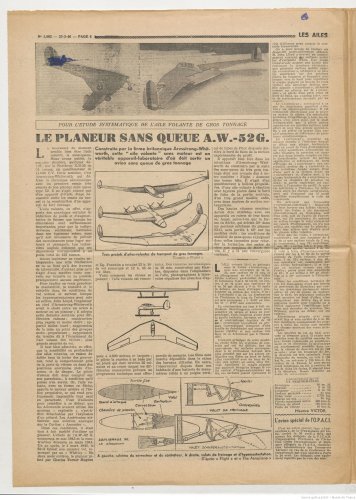

here is a hypothetical drawing to AW.52G.

Ailes 2/1947


Attachments

  • 1.png
    732 KB · Views: 37
  • 2.png
    351.4 KB · Views: 41

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,467
Reaction score
517
.......and featured in many advertisements at the time.


Attachments

  • AW 1948_3.jpg
    AW 1948_3.jpg
    61.3 KB · Views: 60
  • AW 1948_2.jpg
    AW 1948_2.jpg
    299.4 KB · Views: 57
  • AW 1948_1.jpg
    AW 1948_1.jpg
    317.6 KB · Views: 55
  • AW 1947_1.jpg
    AW 1947_1.jpg
    103.8 KB · Views: 76

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,069
Reaction score
3,746
Schneiderman said:
.......and featured in many advertisements at the time.

Thank you my dear Schneiderman.

Last edited:

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,467
Reaction score
517

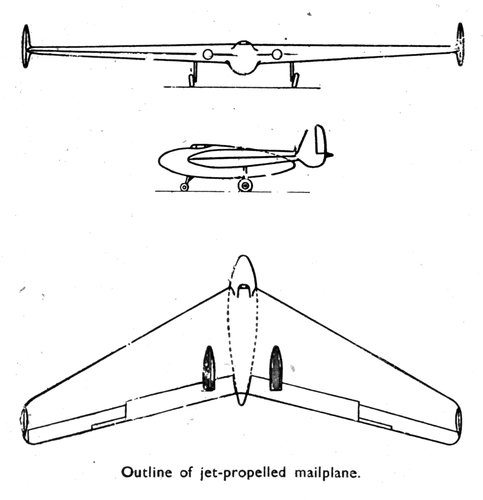

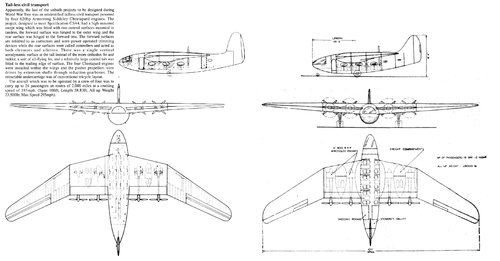

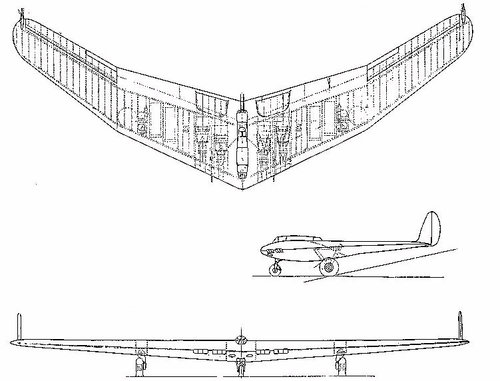

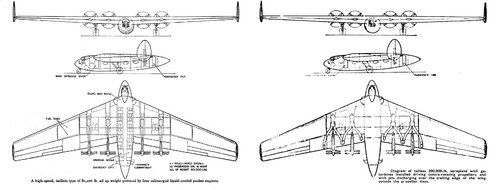

On the left an AW tailless airliner from the article by Ray Williams in Air Enthusiast 43
On the right an illustration from Roy Fedden's paper presented to the Royal Society of Arts in April 1944
They are clearly versions of the same project


Attachments

  • AW projects8.jpg
    AW projects8.jpg
    2.1 MB · Views: 62

Wyvern

ACCESS: Secret
Senior Member
Joined
Jan 25, 2020
Messages
415
Reaction score
366

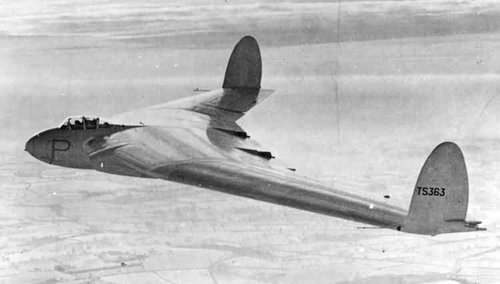

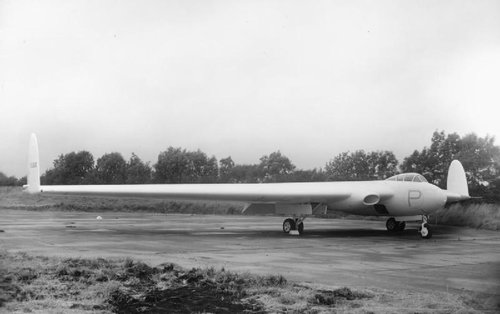

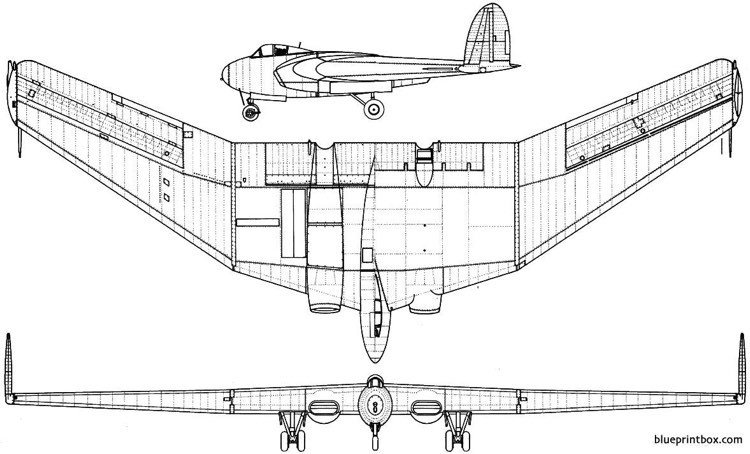

Then there's the Armstrong Whitworth AW.52 flying wing.

Armstrong Whtiworth also desgined the AW.50 and AW.56, with the Aw.50 being an experimental jet bomber design from 1943 and the AW.56 being tendered to the same requirement as the Vickers Valiant, the Avro Vulcan and the Handley Page Victor.

https://flic.kr/p/da46Ta
https://flic.kr/p/b6yqfc


Attachments

  • Armstrong Whitworth AW 52 side.jpg
    Armstrong Whitworth AW 52 side.jpg
    43 KB · Views: 26
  • Armstrong Whitworth AW 52.jpg
    Armstrong Whitworth AW 52.jpg
    38.8 KB · Views: 27
  • Armstrong Whitworth AW.50.jpg
    Armstrong Whitworth AW.50.jpg
    83.6 KB · Views: 39
  • Armstrong Whitworth AW.56.jpg

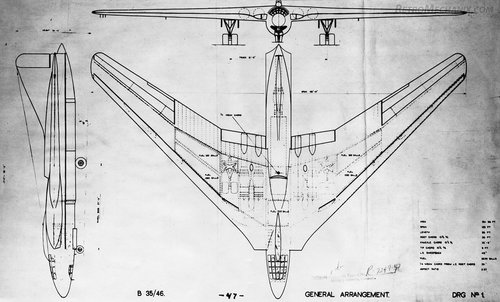

    Armstrong Whitworth AW.56.jpg
    40.3 KB · Views: 40
  • Armstrong Whitworth AW 56.jpg
    Armstrong Whitworth AW 56.jpg
    156.3 KB · Views: 38
