Waco Model W "Aristocraft" cabin pusher

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
100
Dear hesham.
This aircraft was actually built and first flew on 31 December 1946. The Model W Aristocraft was the final original design of the Waco Aircraft Corporation. Engine was one 215 hp Franklin 6A8-215-B9F and performance included maximum speed 154 mph, cruise 135 mph, climbrate 960ft/minute, ceiling 17,500ft and range 520 miles. Wingspan was 38ft. length 25ft 6in and height 7ft 8in.
The aircraft was registered NX34219 and no further examples were built, although it was reported that construction on a second improved aircraft had started when all work on the Model W project was terminated in1947. After a long period of storage NX34219 was acquired by Mr. Terry O'Neill who flew the aircraft for a brief period after he had completed the restoration. It was then heavily modified by Mr. O'Neill and became the Aristocraft II. In this form it had a conventional (tail wheel type) undercarriage and retained most of the original fuselage, the wings and horizontal tail of NX34219, but the engine (200hp Lycoming IO-360-A1B) was now located in the nose. First flight took place in October 1963. Further changes resulted in the aircraft becoming the Model W Winner. It received a tricycle gear, Bellanca style swept vertical tail and the (third) first flight was in October 1968. Despite all changes the aircraft remained registered as N34219. Mr. O'Neill planned to offer the Model W Winner for amateur construction, but no additional aircraft were built.
Dimensions of the Model W with trigear were wingspan 37ft 6in, length 267ft and height 8ft 4in
Walter


walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
100
hesham,

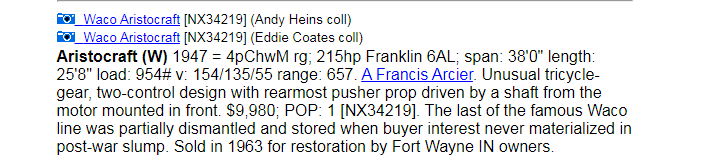

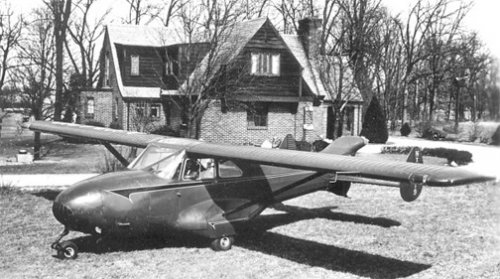

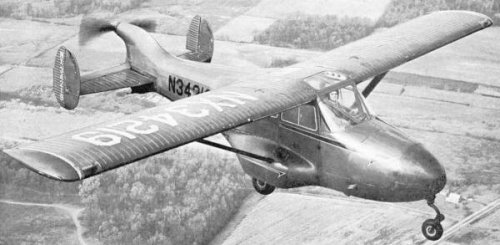

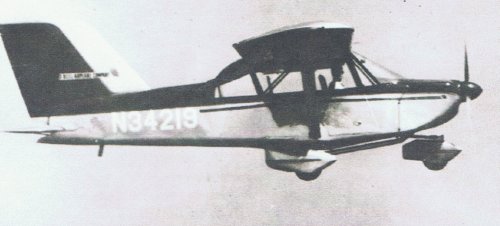

Photo of aircraft in original form (photo Ed Coates) and as Model W Winner.
Walter


Attachments

  • waco aristocraft cc ed coates.jpg
    waco aristocraft cc ed coates.jpg
    100.5 KB · Views: 285
  • W Winner.jpg
    W Winner.jpg
    204.8 KB · Views: 255

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,673
Reaction score
3,465
Thank you Walter,

and sorry for that my dear Overscan,please transfer it to a suitable place.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
The Patent for the Model W Aristocraft can be found here:

http://www.google.com/patents/USD155256


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

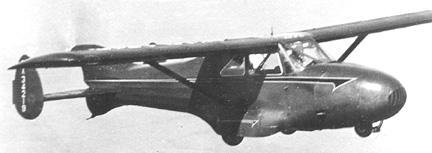

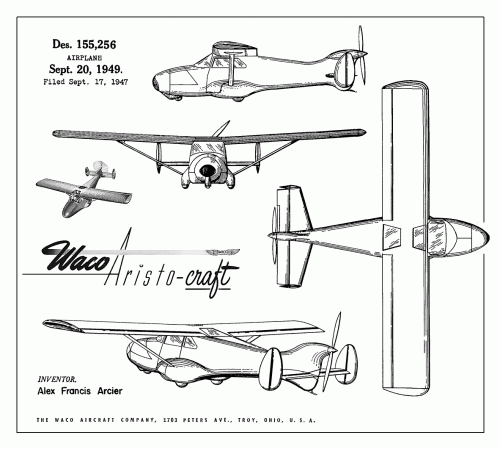

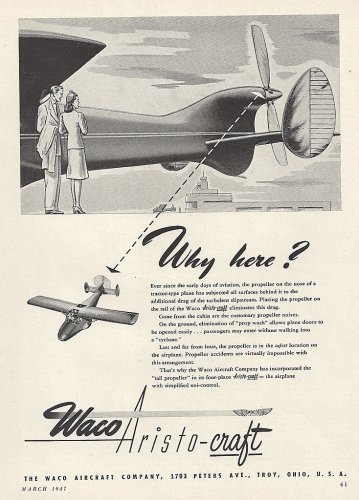

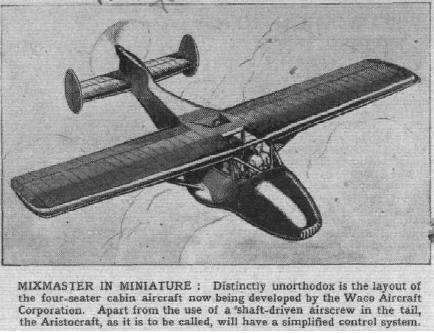

A reworking of the Model W patent art with original product logo (note the spelling: Aristo-Craft), a couple more pics and a 1947 ad:


Attachments

  • Waco W Aristo-Craft patent artwork.gif
    Waco W Aristo-Craft patent artwork.gif
    151.6 KB · Views: 185
  • Aristocraft.jpg
    33 KB · Views: 169
  • waco-aristocraft.jpg
    10.7 KB · Views: 34
  • 1947 ad.JPG
    1947 ad.JPG
    274.8 KB · Views: 41

memaerobilia

ACCESS: Confidential
Senior Member
Joined
Oct 29, 2009
Messages
137
Reaction score
4
Website
www.memaerobilia.com

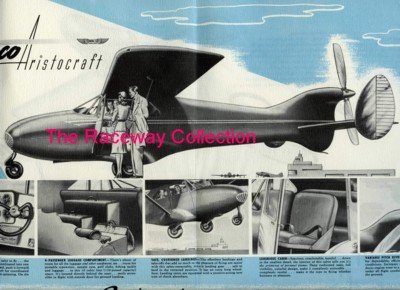

It was hard to scan in enough of a two page spread to include the entire aircraft in one scan.This is from an Original Waco Aristocrat four page brochure with color, from my Original (Weaver, Advance, then..) Waco archives collections. This was no beauty..


Attachments

  • WAC139i.jpg
    39.3 KB · Views: 46

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
A bit small but thanks for sharing anyway. I can see that this time around the name Aristocraft in unhyphenated...
