Hi,

the SAAB-1073 was also STOL transport aircraft,but I have
no more details.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157
the SAAB-1073 was also STOL transport aircraft,but I have
no more details.

Scott gave a nice overview on this Saab project in his "Aerospace Projects Review" V2 N6


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117

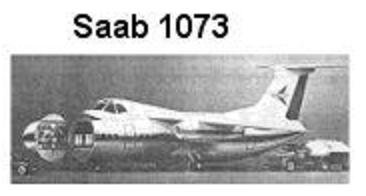

Thank you my dear boxkite,

and here is its artist picture from that great site.


Attachments

  • SAAB-1073.JPG
    10.2 KB · Views: 859

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120

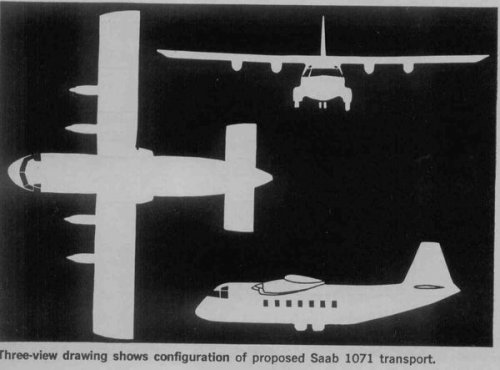

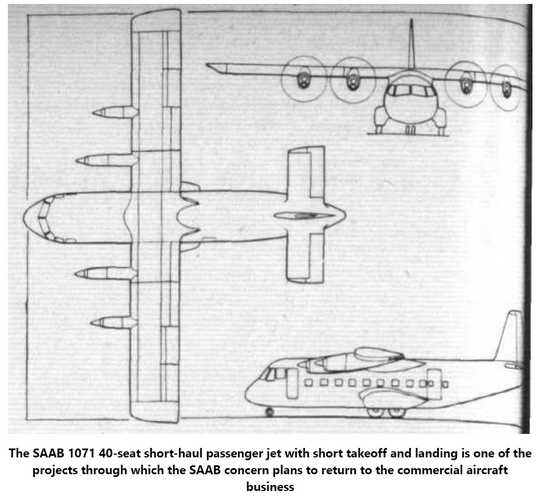

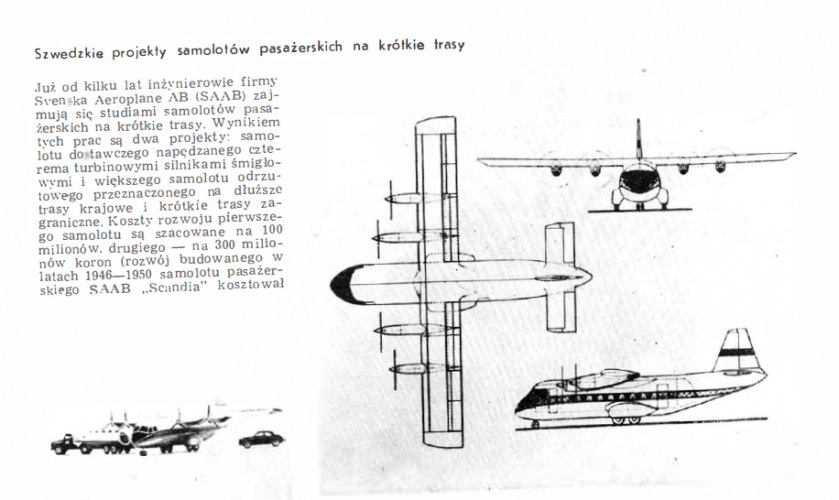

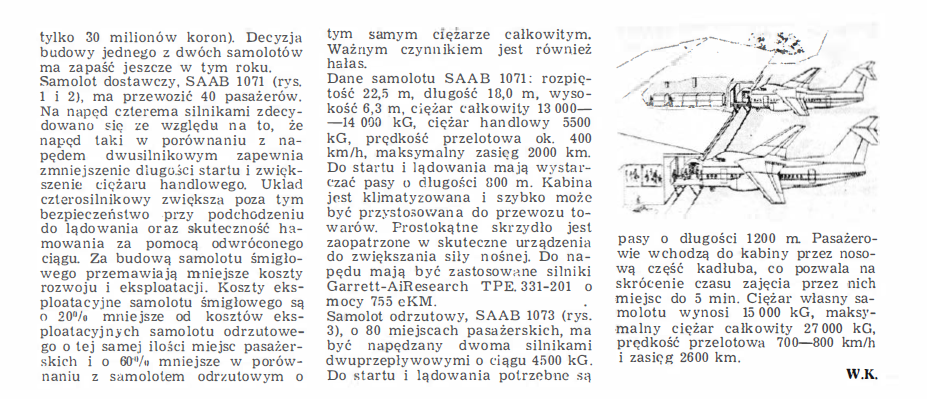

Here's another picture of the Saab 1073 and a 3-view of the Saab 1071 four engined
transport. The 1073 resembles a scaled down Transall C-161.
(from Aviation Week, june 1968)


Attachments

  • Saab-1071.JPG
    29.5 KB · Views: 753
  • Saab-1073.JPG
    29.9 KB · Views: 774

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
187
Reaction score
16
Hi Everyone!

Does anyone know of any 3-views of the SAAB 1073? Its a very interesting design!


Chuck


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120

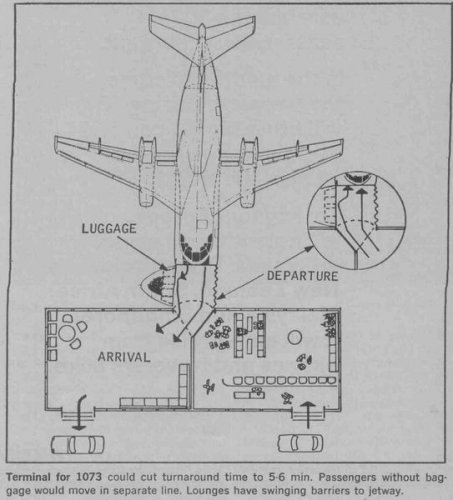

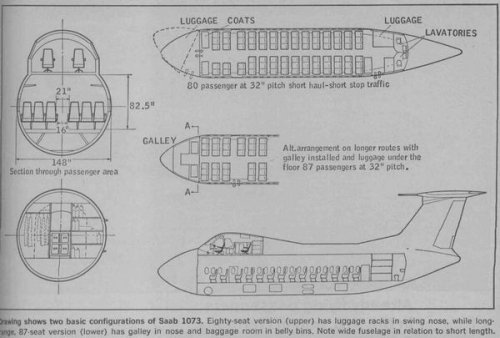

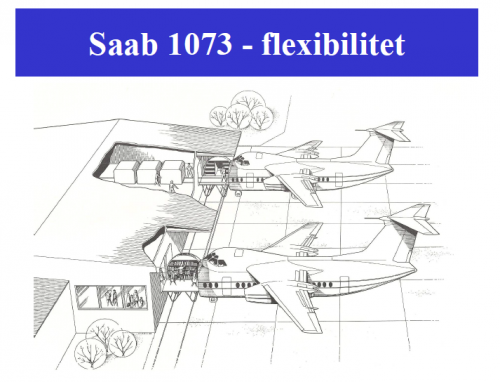

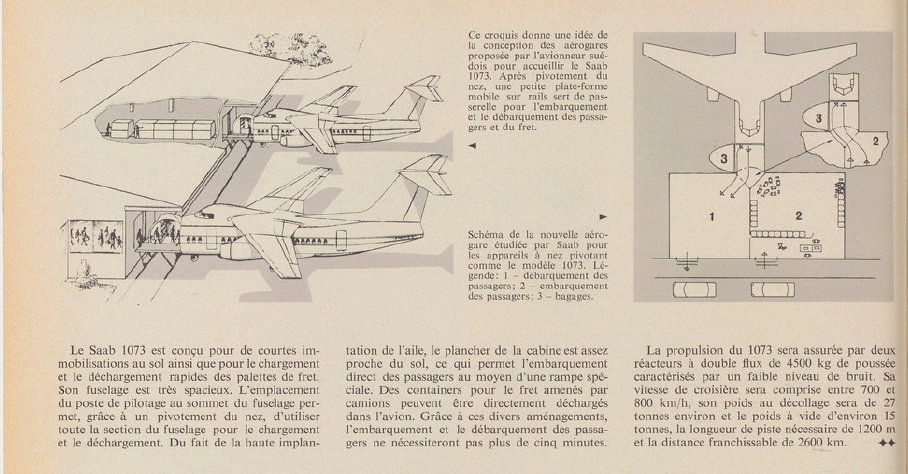

Not actually a 3-view, but a side view, showing the internal arrangement
and a drawing showing the planned terminal, with the 1073 from above.
(both from Aviation Week June 1968)


Attachments

  • 1073-2.JPG
    44.8 KB · Views: 289
  • 1073-1.JPG
    41.9 KB · Views: 769

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157
ChuckAnderson said:
Hi Everyone!

Does anyone know of any 3-views of the SAAB 1073? Its a very interesting design!


Chuck

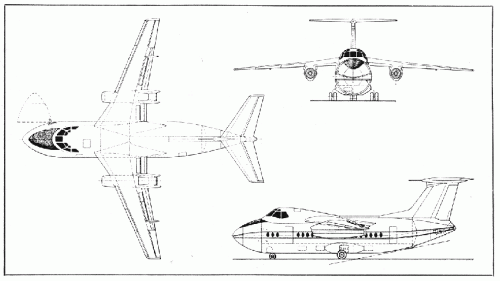

To complement Jemiba's post here is a 3-view of the Saab 1073 from Aerokurier 9/1968.


Attachments

  • Saab 1073.GIF
    Saab 1073.GIF
    52.2 KB · Views: 367

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
pometablava said:

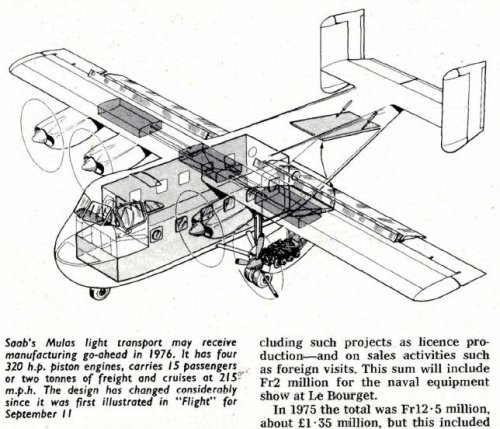

SAAB MULAS Transporter.

Versions: Passenger (19 seats), Cargo (up to 2000 kg), Medevac, SAR, geophysic research
, agricutural and firebomber.

Powerplant: Continental TIARA T6-320 (4 engined version) or UACL PT6A-41 (twin engined version)


SAAB considered that CASA 212 was no rival for its design so it had a bright future.

The SAAB Mulas;
http://www.flightglobal.com/pdfarchive/view/1975/1975%20-%202253.html


Attachments

  • Mulas.JPG
    76.8 KB · Views: 187

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
hesham said:
Thank you my dear boxkite,

and here is its artist picture from that great site.

Hi,

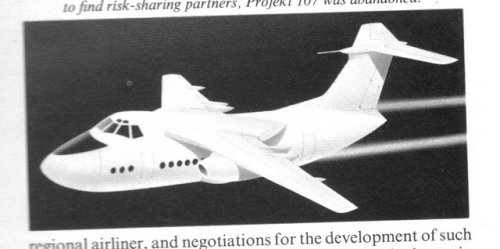

the SAAB 1073,but note; the wing is different from other drawings.


Attachments

  • SAAB 1073.jpg
    SAAB 1073.jpg
    94.9 KB · Views: 271

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,033
Reaction score
215
ChuckAnderson said:
Hi Everyone!

Does anyone know of any 3-views of the SAAB 1073? Its a very interesting design!


Chuck

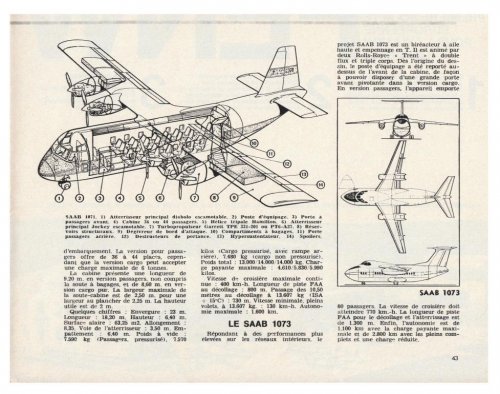

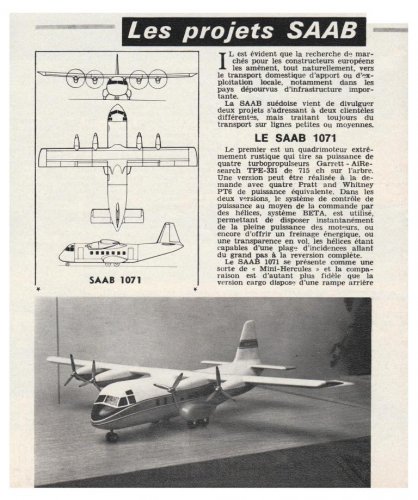

Dear Chuck, here is a 3-view of the SAAB 1073 that I've found in an article in French about SAAB airliner projects including the SAAB 1071......

The article comes from the 15th May 1968 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • SAAB 1071 & 1073 - Aviation Magazine International - No. 491 - 15 Mai 1968 2.......jpg
    SAAB 1071 & 1073 - Aviation Magazine International - No. 491 - 15 Mai 1968 2.......jpg
    153.9 KB · Views: 365
  • SAAB 1071 & 1073 - Aviation Magazine International - No. 491 - 15 Mai 1968 1.......jpg
    SAAB 1071 & 1073 - Aviation Magazine International - No. 491 - 15 Mai 1968 1.......jpg
    139.1 KB · Views: 341

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Hi,

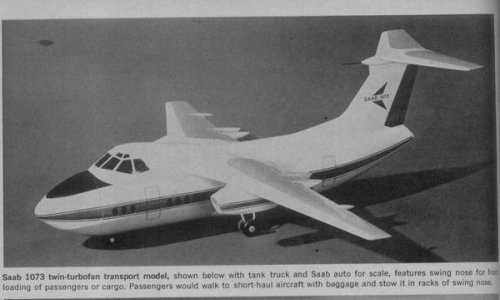

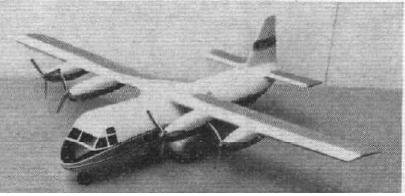

here is the SAAB 1073 Model,from L + K.


Attachments

  • SAAB-1073.JPG
    108.4 KB · Views: 56

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,421
Reaction score
833

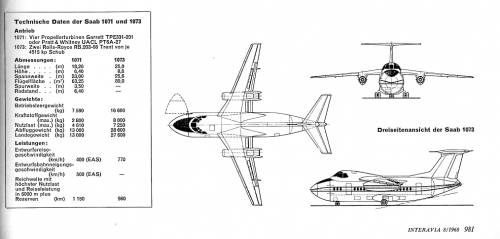

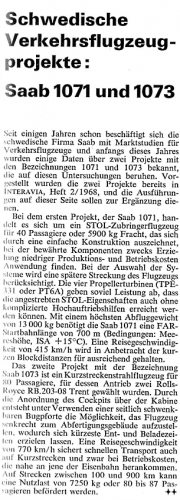

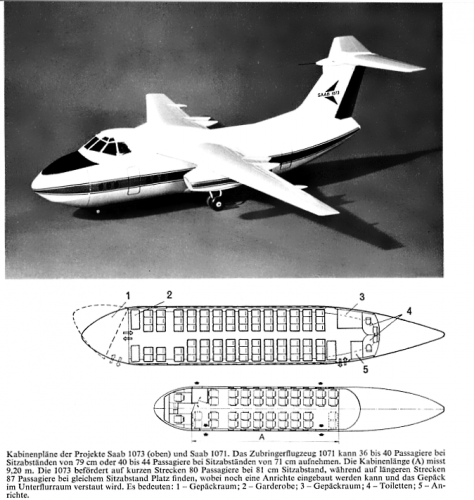

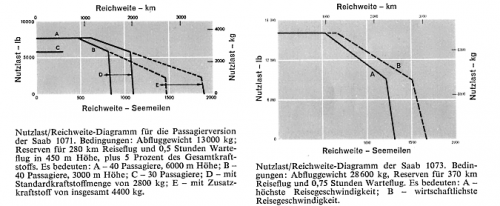

Source: Schwedische Verkehrsflugzeuge: Saab 1071 und 1073 - Interavia Germany August 1968, page 981


Attachments

  • Saab_1071_1073_range_payload_data__Interavia_Germany_August_1968_page981.png
    78.6 KB · Views: 59
  • Saab_1071_1073_data_Saab_1073_3view__Interavia_Germany_August_1968_page981.png
    135.1 KB · Views: 74
  • Saab_1071_1073_picture_cabine_layout__Interavia_Germany_August_1968_page981.png
    333.7 KB · Views: 47
  • Saab_1071_1073_article__Interavia_Germany_August_1968_page981.png
    119.2 KB · Views: 30

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117

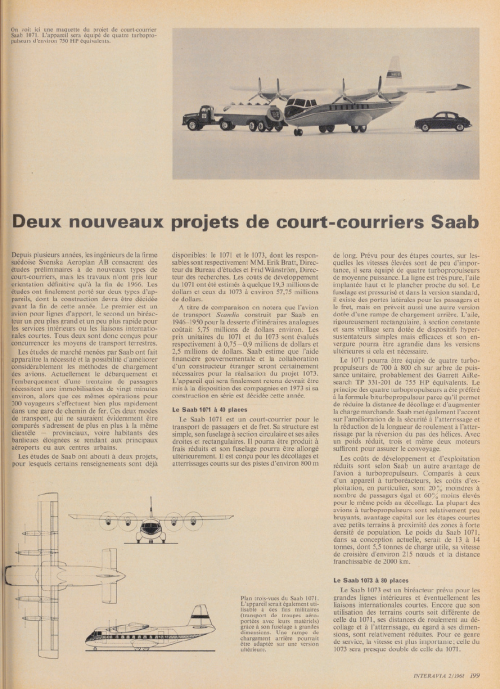

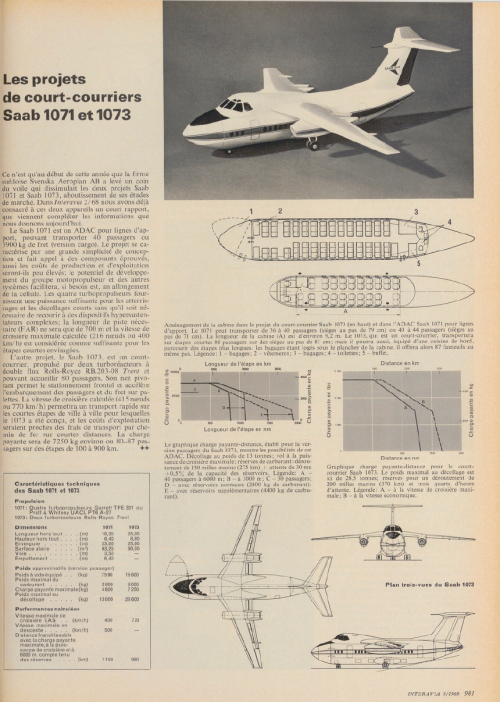

Hi,


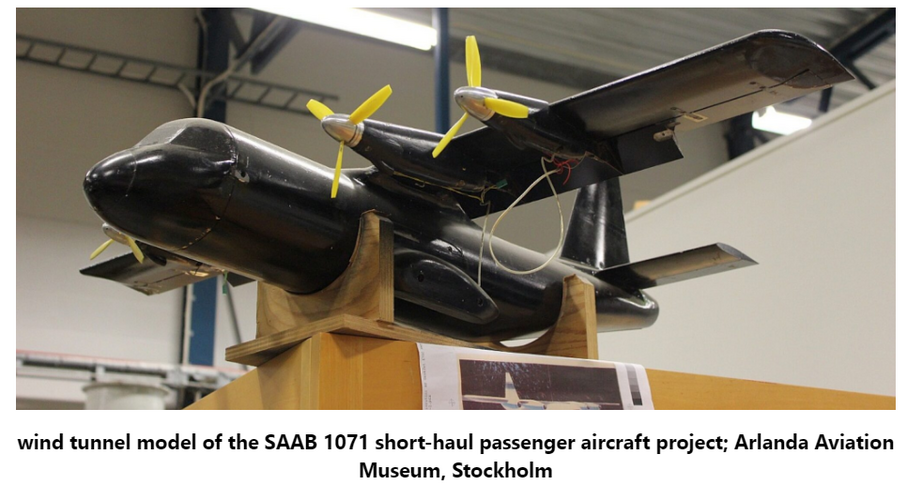

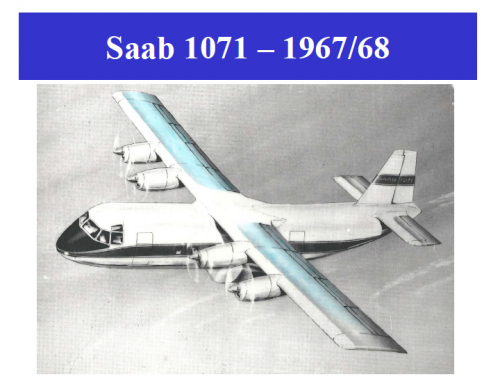

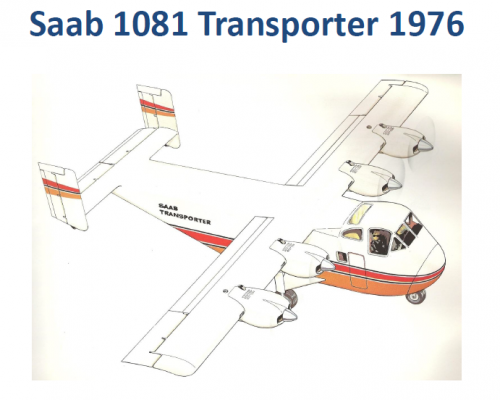

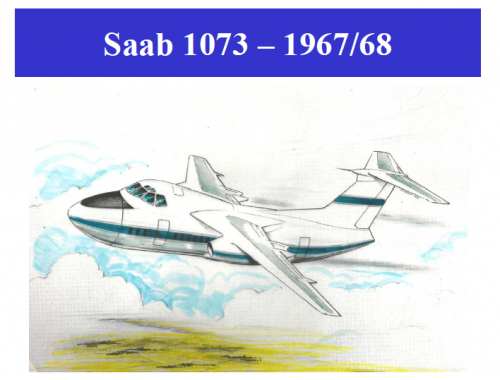

here is the SAAB Models 1071,1073 & 1081.


http://saabveteran.se/lunch/141119_saab340.pdf
http://www.saabveteran.se/110417totalt/110417_edlund.pdf


Attachments

  • 1071.png
    403.4 KB · Views: 52
  • 1073-1.png
    369.8 KB · Views: 58
  • 1073-2.png
    182 KB · Views: 67
  • 1081-2.png
    195.8 KB · Views: 74
  • 1081.png
    162.9 KB · Views: 77
