Antonov Samolyet 'P' (1953)

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,127
Reaction score
1,202

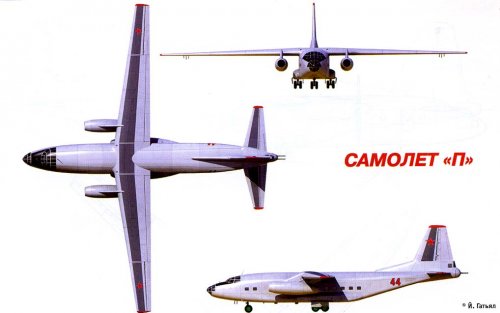

Samolet 'P' (1953)

CGI & color 3-view (c) Josef Gatial

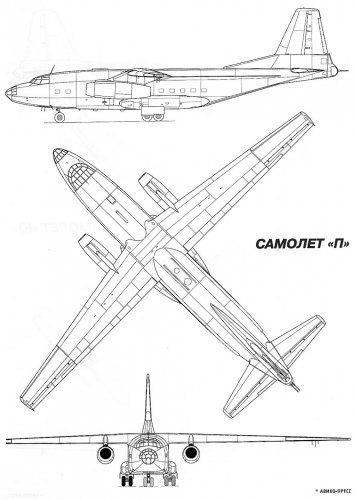

3-view (c) AVICO-PRESS


Attachments

  • p-1.jpg
    139.8 KB · Views: 512
  • p-2.jpg
    46.9 KB · Views: 489
  • p-3.jpg
    111.1 KB · Views: 457
  • p-4.jpg
    119.8 KB · Views: 365

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,280
Reaction score
1,194

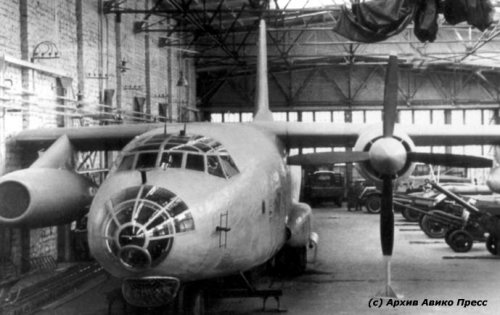

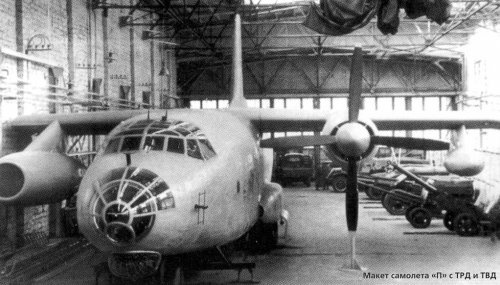

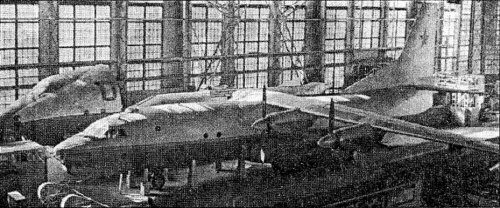

A jet powered An-12 ? The mock-up still seems to have
turbo prop engines at the right wing. Any dimensions for
a comparison ?


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
187
Reaction score
16
Hi Everyone!

I really like that Antonov jet transport! (That should hold me nicely until I get more info on the Antonov AN-50.)
Thanks!

Chuck


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
169
A jet powered An-12 ? The mock-up still seems to have
turbo prop engines at the right wing. Any dimensions for
a comparison ?

No, it was a jet-powered An-8! But there was a jet-assisted An-12 - the STOL transport An-40, built as a mock-up in 1964 or 1965. It has to be equipped with four turboprops and four additional jet engines. A mock-up picture was published in Ukrainian "Aviatsiya i vremya" 1/1995, but it was of poor quality (due to the quality of the used paper & print :'().


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,548
My dears,

we most remember the Antonov An-400 four turboprops engines
heavy transport aircraft which led to An-124 aircraft.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,127
Reaction score
1,202
boxkite said:
No, it was a jet-powered An-8! But there was a jet-assisted An-12 - the STOL transport An-40, built as a mock-up in 1964 or 1965. It has to be equipped with four turboprops and four additional jet engines. A mock-up picture was published in Ukrainian "Aviatsiya i vremya" 1/1995, but it was of poor quality (due to the quality of the used paper & print :'().


Attachments

  • An-40.jpg
    132.9 KB · Views: 385

Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
1
The Egyptians actually did this...kind of. When they were built the Helwan HA300 fighter, the needed a test bed for it's engine. Without any assistance from Antonov, they pulled the inner port turboprop off an An-12 and made a pod for the jet enigne. And it did fly. Apparently, the Egyptian pilot for the tests of this engine would not fly the plane unless the engine designer, a German named Brander, flew with him for the first flight. They both lived.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
583
Slightly different versions (colors, quality) of pictures posted above, both initially posted by ucon in August 01, 2008 in a topic that has since been split:

More detailed info and a lot of pix in www.avicopress.ru


Attachments

  • P-1-3.jpg
    40.9 KB · Views: 41
  • P-1-1.jpg
    48.3 KB · Views: 38
