Hi all,

we all know Sergio Steffanutti for his aircraft S.S.3 and S.S.4, but there must be also a S.S.1 and S.S.2. Do you have some informations about this aircraft/projects? Who knows a short biography of Sergio Steffanutti? ???

Servus Maveric


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,147
Reaction score
5,666
Hi Maveric,

for SS.1 and SS.2 ,a small info about them on;
http://en.wikipedia.org/wiki/Ambrosini_SS.4


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,793
Reaction score
1,367
Maveric,

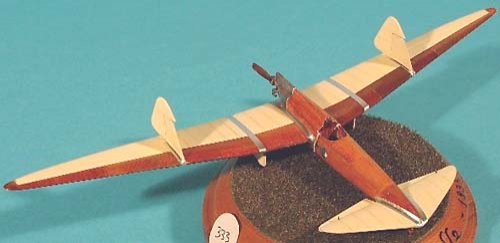

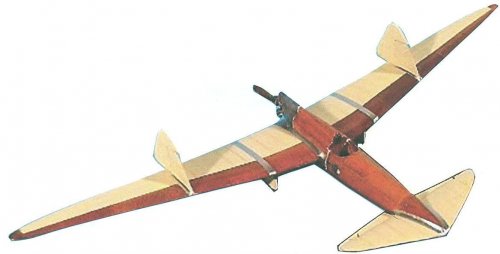

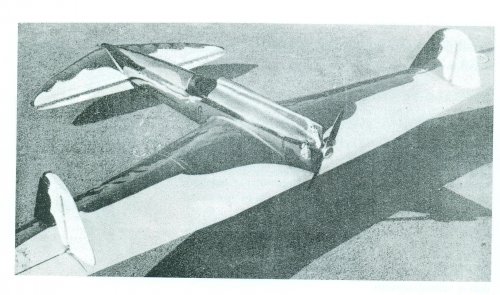

Attached is an SS.2 model by Giampaolo Sellitto (and fully deserving the name "Anitra"!).
original: http://www.cmtonline.it/XV_Mostra_Images/0333.JPG

For SS.2 drawing and colour profile, see: Aerofan No.45 1989/5-6 "First Canard of Stefanutti" .

You might also try No.36 1987/4 "The Ambrosini-Stefanutti Family of Aircraft", and
No.51/52 1991/1 "The Second Stefanutti Canard".

Not sure about the SS.1


Attachments

  • stefanutti-ss2.jpg
    22 KB · Views: 1,083

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,909
Reaction score
434
With all of the talk on the XP-55, I was wondering if anyone had more information on the Ambrossini (SAI) S.S.4? I always thought it was a really nice looking canard fighter.

Also, when I say more info, I mean with regards to any possible existing detail drawings and the like. There is enough info on the net about it's very short lived history. ;)


Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
13

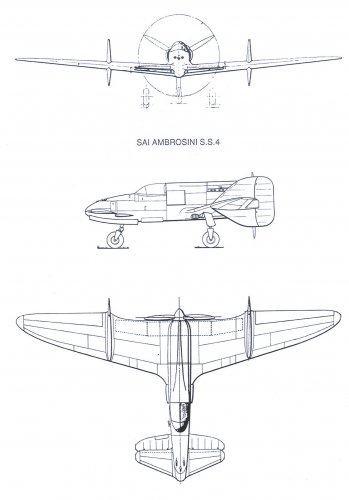

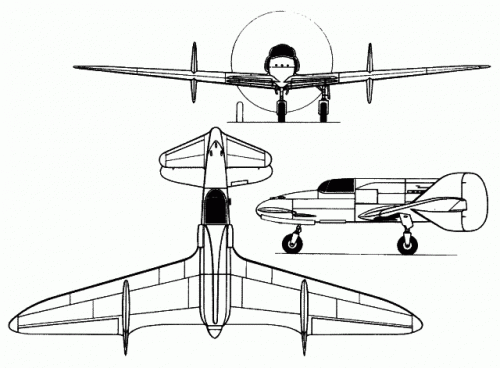

Three view of said aircraft.

Regards Bailey


Attachments

  • SAI S.S 4.gif
    SAI S.S 4.gif
    29.8 KB · Views: 352

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,823
Website
www.amazon.com

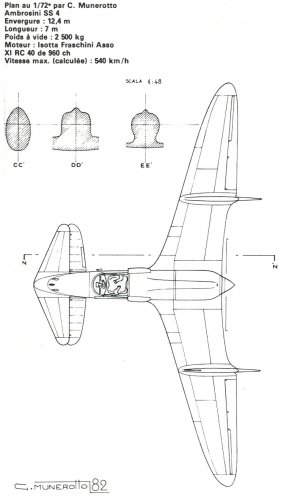

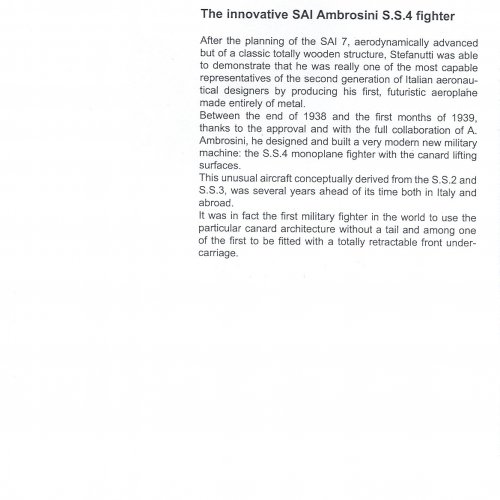

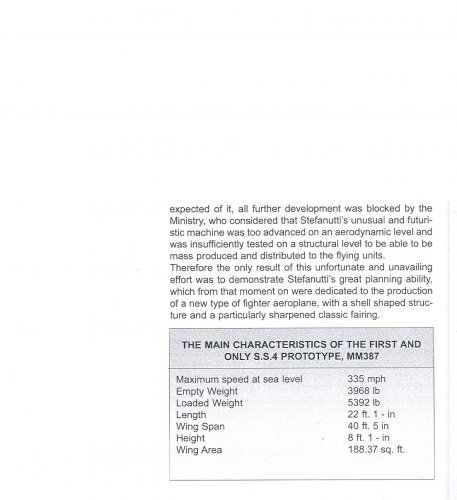

Additional info


Attachments

  • Escanear0007.jpg
    171.9 KB · Views: 126
  • Escanear0006.jpg
    187.5 KB · Views: 126
  • Escanear0005.jpg
    139.4 KB · Views: 161
  • Escanear0004.jpg
    109.3 KB · Views: 228
  • Escanear0003.jpg
    158.4 KB · Views: 246
  • Escanear0002.jpg
    188.3 KB · Views: 236
  • Escanear0001.jpg
    278 KB · Views: 168

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,351
Reaction score
321
A few more details from volume 2 of "Dimensione cielo"

Armament was supposed to be 2x20mm and 1x30mm cannons
fuel tanks between pilot and engine and in inner wing panels

The SS.2 motorglider testbeds (there were 2, built at Guidonia in 1935) were powered by a 16CV Keller two cylinder engine.
In 1937, one of the airframes was modified with the addition of a second seat (becoming the SS.3) and a 38 CV C.N.A. engine (initially rated at 26CV). The SS.3 was flown extensively and made cross-country flight between Rome and Milan.
The SS.4 crashed on March 8, 1939. The loss of the aileron was due to vibrations transmitted from the engine, which was bolted directly on the airframe, as well as to defective installation of the said part.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
72

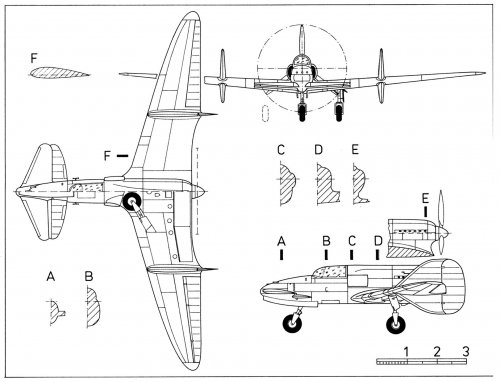

Drawing from L+K 17/1995, by Martin Salajka:


Attachments

  • L_K_1995-17_SS-4 resize.jpg
    L_K_1995-17_SS-4 resize.jpg
    198.7 KB · Views: 137

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,011
Reaction score
417
I have pics from the S.S.2 and S.S.3, but without other informations. Can anybody tell us more about other Steffanutti aircraft? Was the S.S.4 the last S.S.-design? What´s about the S.S.1...


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,823
Website
www.amazon.com

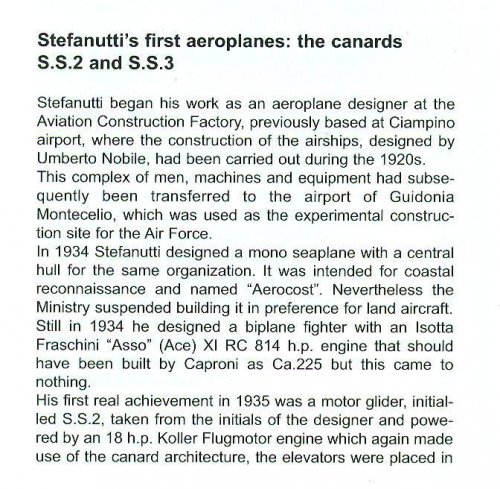

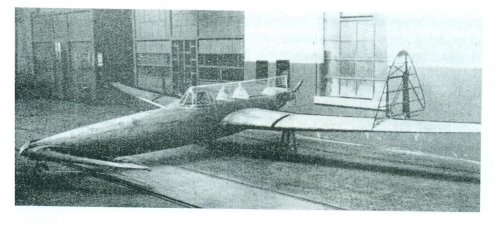

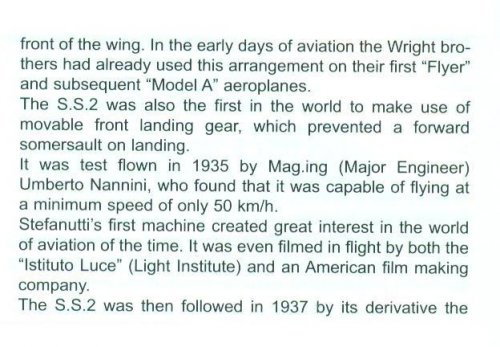

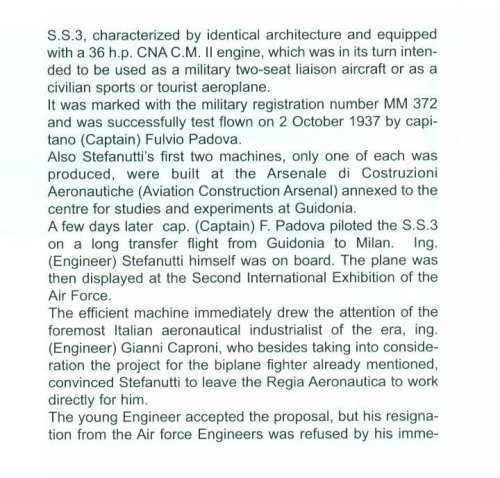

S.S.2 and S.S.3 info here...sorry no drawings :-\


Attachments

  • ñ 007.jpg
    ñ 007.jpg
    53 KB · Views: 106
  • ñ 006.jpg
    ñ 006.jpg
    253.4 KB · Views: 94
  • ñ 005.jpg
    ñ 005.jpg
    266.6 KB · Views: 93
  • ñ 004.jpg
    ñ 004.jpg
    730.5 KB · Views: 104
  • ñ 003.jpg
    ñ 003.jpg
    258 KB · Views: 103
  • ñ 002.jpg
    ñ 002.jpg
    99.9 KB · Views: 72
  • ñ 001.jpg
    ñ 001.jpg
    54.7 KB · Views: 74
  • ñ.jpg
    111.9 KB · Views: 87

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,823
Website
www.amazon.com

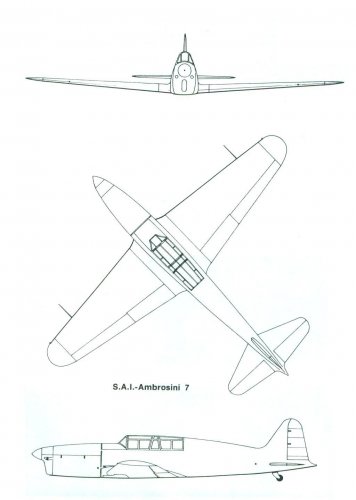

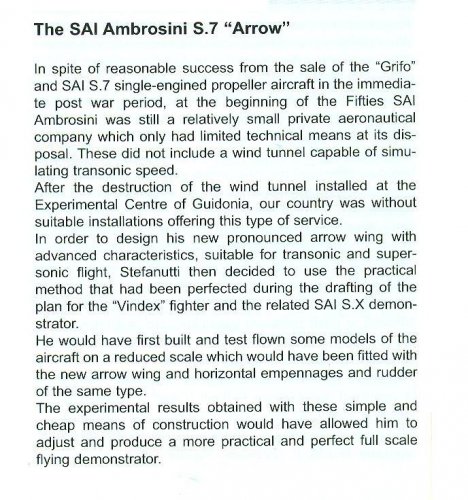

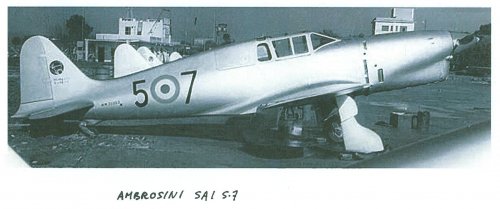

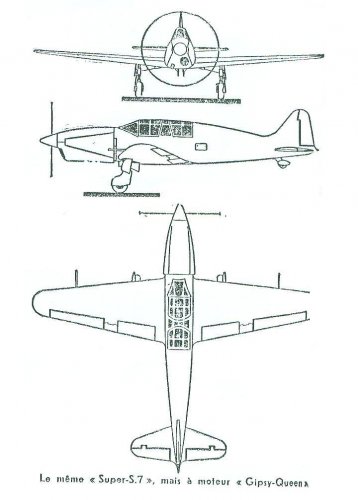

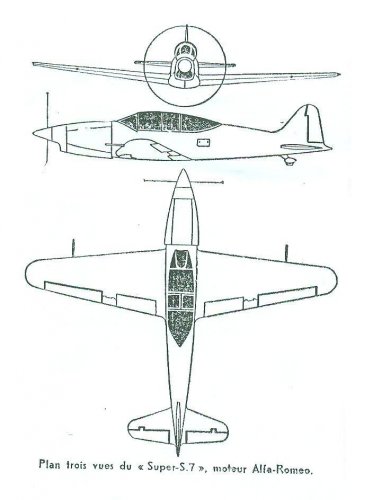

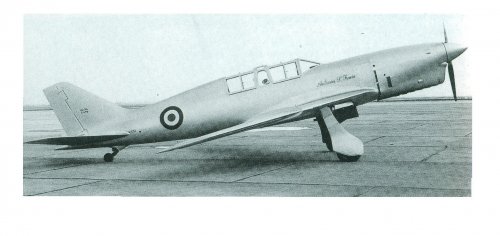

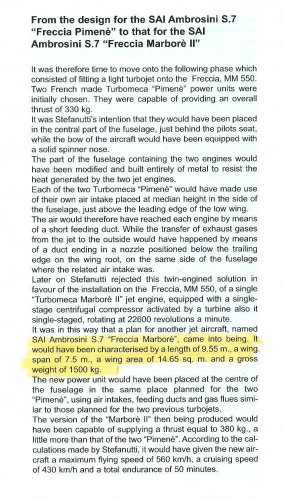

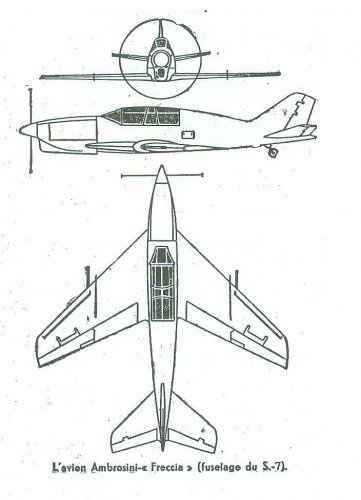

S.7 "Freccia"


Attachments

  • ñ060.jpg
    96.6 KB · Views: 160
  • ñ 003.jpg
    ñ 003.jpg
    469.1 KB · Views: 155
  • ñ 002.jpg
    ñ 002.jpg
    120.4 KB · Views: 137
  • ñ 001.jpg
    ñ 001.jpg
    650.4 KB · Views: 144
  • ñ.jpg
    68.6 KB · Views: 146

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,823
Website
www.amazon.com

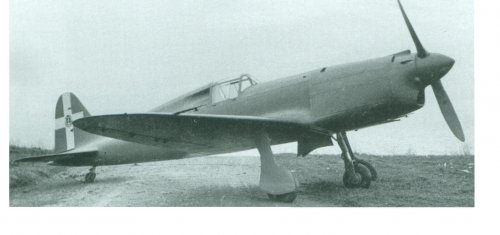

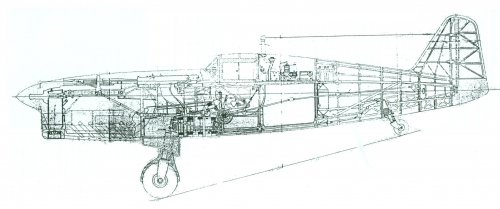

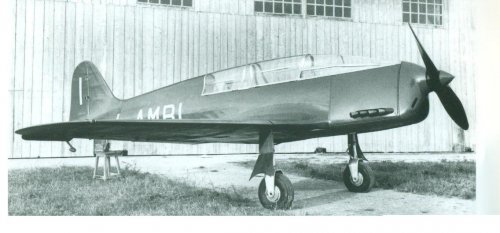

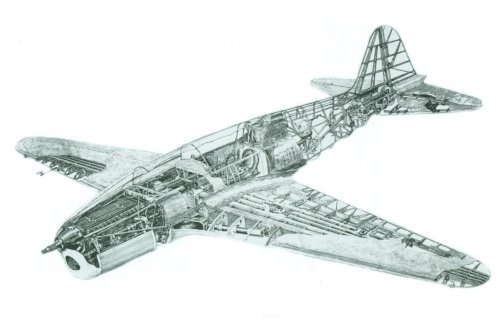

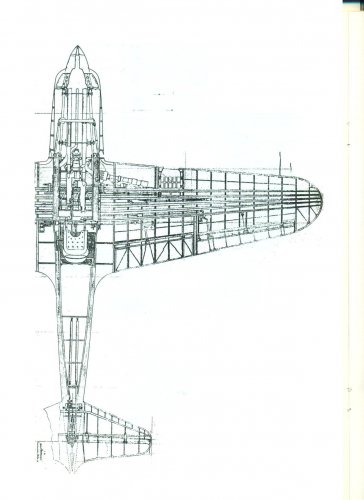

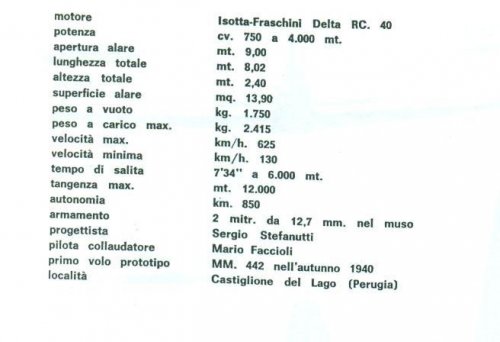

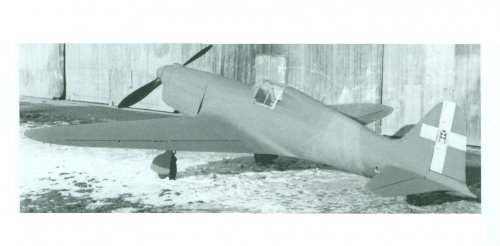

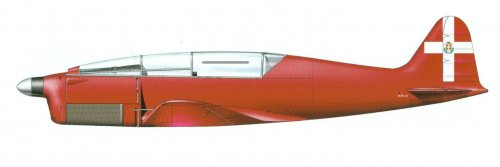

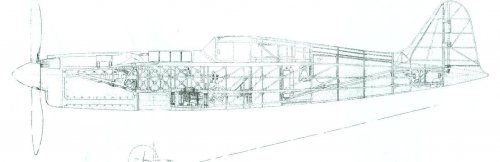

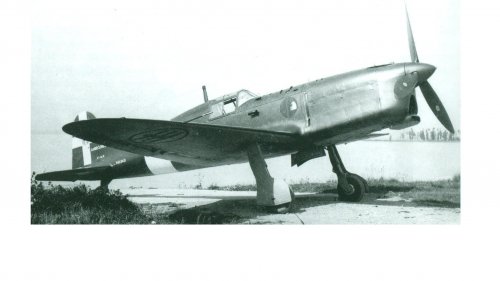

S.A.I. 107 (Fighter)


Attachments

  • ñ 004.jpg
    ñ 004.jpg
    63.3 KB · Views: 134
  • ñ 003.jpg
    ñ 003.jpg
    85.3 KB · Views: 138
  • ñ 002.jpg
    ñ 002.jpg
    211.1 KB · Views: 368
  • ñ 001.jpg
    ñ 001.jpg
    243.7 KB · Views: 370
  • ñ.jpg
    204.3 KB · Views: 384

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,823
Website
www.amazon.com

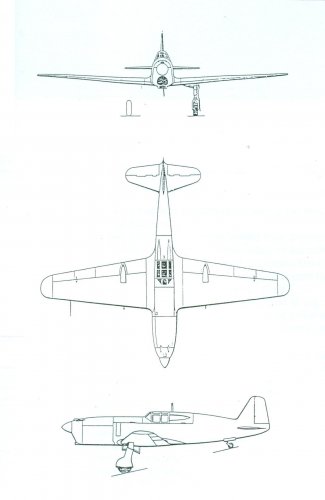

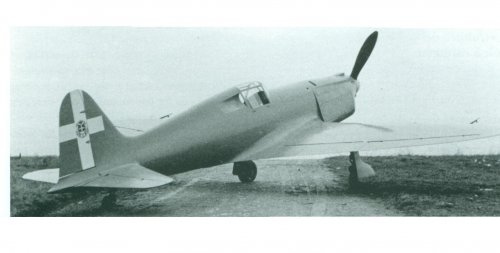

S.A.I. 107 (Racer)


Attachments

  • ñ 004.jpg
    ñ 004.jpg
    53.2 KB · Views: 198
  • ñ 003.jpg
    ñ 003.jpg
    290.8 KB · Views: 645
  • ñ 002.jpg
    ñ 002.jpg
    94.3 KB · Views: 165
  • ñ 001.jpg
    ñ 001.jpg
    88.2 KB · Views: 162
  • ñ.jpg
    328.8 KB · Views: 169

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,823
Website
www.amazon.com

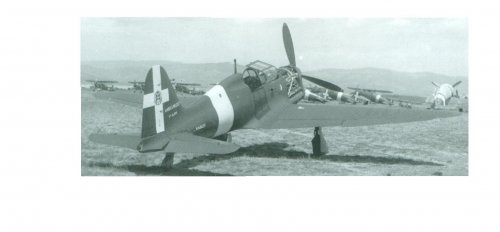

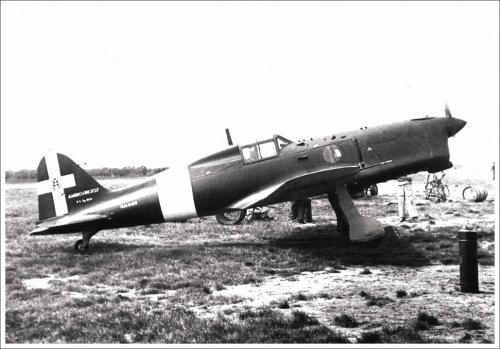

S.A.I.207


Attachments

  • ñ 008.jpg
    ñ 008.jpg
    262.3 KB · Views: 128
  • ñ 007.jpg
    ñ 007.jpg
    30.8 KB · Views: 109
  • ñ 005.jpg
    ñ 005.jpg
    48.1 KB · Views: 121
  • ñ 004.jpg
    ñ 004.jpg
    127 KB · Views: 140
  • ñ 003.jpg
    ñ 003.jpg
    184.7 KB · Views: 145
  • ñ 002.jpg
    ñ 002.jpg
    101.2 KB · Views: 133
  • ñ 001.jpg
    ñ 001.jpg
    182 KB · Views: 88
  • ñ.jpg
    214.2 KB · Views: 91

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,895
Reaction score
3,823
Website
www.amazon.com

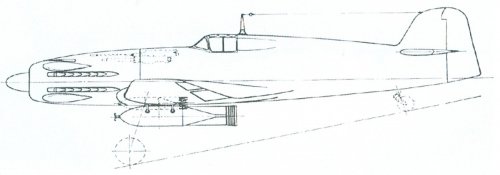

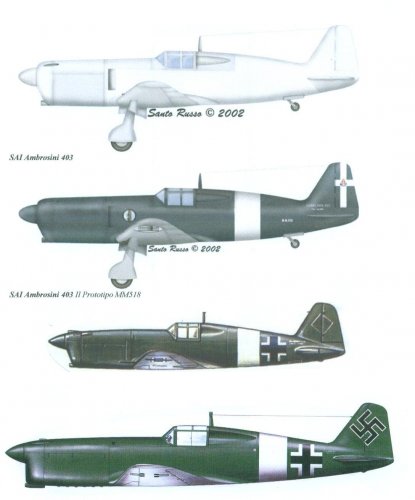

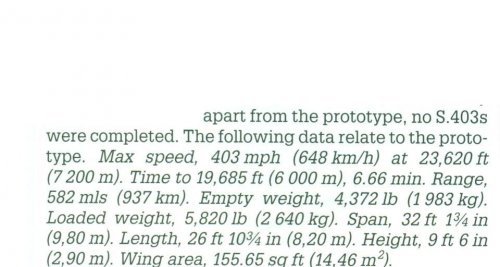

S.A.I.403


Attachments

  • ñ 013.jpg
    ñ 013.jpg
    101.8 KB · Views: 171
  • ñ 012.jpg
    ñ 012.jpg
    413 KB · Views: 159
  • ñ 011.jpg
    ñ 011.jpg
    171.7 KB · Views: 152
  • ñ 010.jpg
    ñ 010.jpg
    61.3 KB · Views: 107
  • ñ 009.jpg
    ñ 009.jpg
    92.4 KB · Views: 112
  • ñ.jpg
    89.8 KB · Views: 111

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
767
Thanks Justo, I know so little about Italian aircraft, and some of these are just fantastic designs!!!


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,351
Reaction score
321
This is AWESOME material, and once again, Thanks Justo. However I suggest we rename the thread to include all Stefanutti's projects :)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,147
Reaction score
5,666
Justo Miranda said:

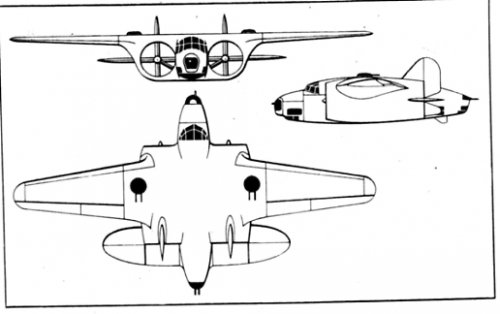

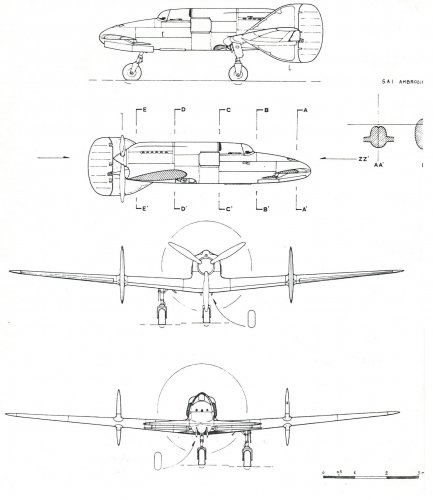

S.A.I.404


But we know that,


SAI-404 was a bomber ?,and this aircraft may be,SAI-503 improved version
of SAI-403.


Attachments

  • SAI-404.jpg
    48.6 KB · Views: 128

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
72

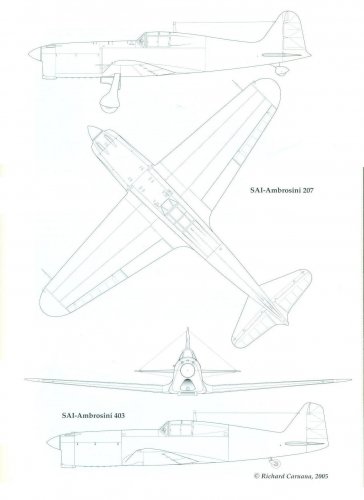

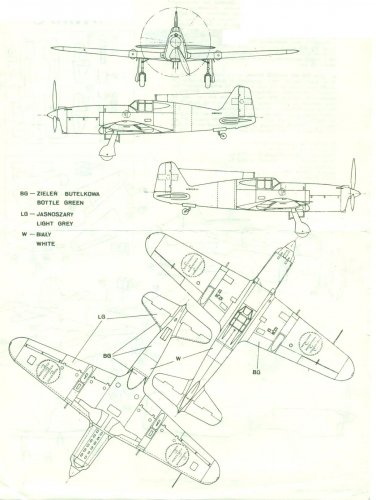

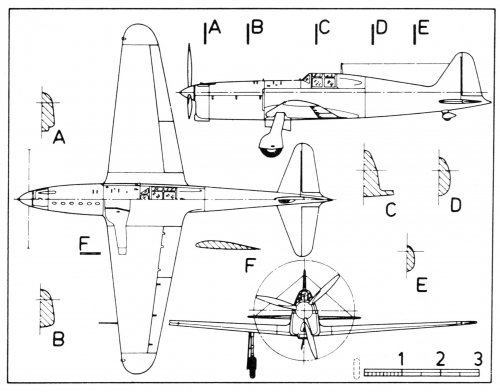

A bit more on SAI-207:


Attachments

  • ambrosini_sai_207_02.jpg
    154.9 KB · Views: 94
  • SAI-207_L-K_1980-17_1-72.jpg
    213.5 KB · Views: 113

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,011
Reaction score
491
Wow! That looks like something outta DUCK TALES!


Moonbat, plz........................................................... ;) ::) ;D


cheers,
Robin.


Attachments

  • dolan.png
    94 KB · Views: 1,018

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,317
Reaction score
1,388
Folks, thanks for your contributions, but please, it would be quite good, to stay with
the
original question and if straying OT, at least to stay with the appropriate section .
I think, I'll clean up a little bit merge this and maybe some other topics to a general
"Ambrosini pre-war types and projets" thread and move the Vindex to the existing thread
in
the post-war section.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,001
Reaction score
5,593
hesham said:
Justo Miranda said:
S.A.I.404


But we know that,


SAI-404 was a bomber ?,and this aircraft may be,SAI-503 improved version
of SAI-403.

Was the SAI-404 meant to be for the Maritime Reconnaissance & Torpedo Bomber roles, perhaps?
(You can answer this once the thread carve up has taken place.)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,147
Reaction score
5,666
Also Ambrosini projects;

Ambrosini SAI.8 :reconnaissance flying boat.
,, SAI.9 :reconnaissance bomber.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,793
Reaction score
1,367
hesham said:
But we know that, SAI-404 was a bomber ?,and this aircraft may be,SAI-503 improved version
of SAI-403.

This stuff does get confusing. Skybolt said elsewhere that "The [SAI] 504 was an evolution of the 404a, which was an evolution ot the 404."
http://www.secretprojects.co.uk/forum/index.php/topic,7835.msg68757.html#msg68757

We can probably assume that by late 1942, SAI Ambrosini felt safe in 'recycling' the 404 designation from a failed 1938 proposal. So, the second SAI.404 concept was an enlarged variantion on the Dardo theme (with Bf 109 influence) powered by an Isotta-Fraschini Zeta.

But what was the SAI.404a? Further confusion springs from planned construction methods. Is it true that the Zeta-powered SAI.504 was to be of wooden construction? Does the Bf 109 influence mean that the SAI.404 to have been of all-metal construction? Or are all of those construction material notes confusing matters with the SAI.503, a Zeta-powered, wooden outgrowth of the SAI.403? :eek:


Nico

ACCESS: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
38
...coming back to the SS.1 problem, none really knows what it was. Someone think that the SS.1 (for Sergio Stefanutti 1) was the subject of the degree thesis of the young engineer; according to others, the SS.1 was a scale flying model of the SS.2.
Nico


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,147
Reaction score
5,666
hesham said:
Also Ambrosini projects;

Ambrosini SAI.8 :reconnaissance flying boat.
,, SAI.9 :reconnaissance bomber.


Amrosini SAI.9 was a twin engined overland observation aircraft project.


http://www.aeronautica.difesa.it/storiaTradizione/ufficioStorico/Documents/documenti/Direzione%20Costruzioni%20Aeronautiche.pdf


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,147
Reaction score
5,666
Hi,

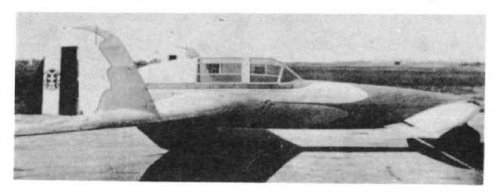

the SS.2 and the SS.3.


Attachments

  • SS-2.JPG
    16.4 KB · Views: 527
  • SS-3.JPG
    21.2 KB · Views: 527
