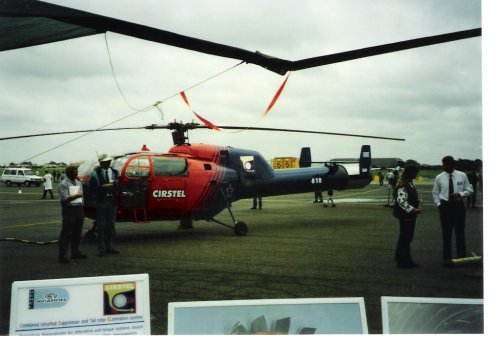

OK. Gents. I finally found my old pictures from the heady days of the early 90's when DENEL had a project for everything.
Anyone have any more information about this NOTAR style testbed that was show (static display only) at one of the 1'st SA Arms expo's?
I only have what's in the photos


Attachments

  • DEXA27.jpg
    233.8 KB · Views: 762
  • DEXA28.jpg
    245.4 KB · Views: 747

kaiserbill

ACCESS: Top Secret
Joined
Jun 7, 2006
Messages
1,358
Reaction score
210

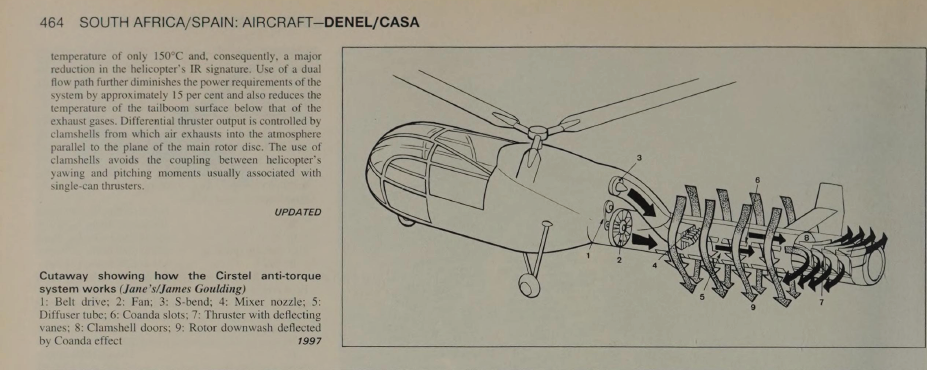

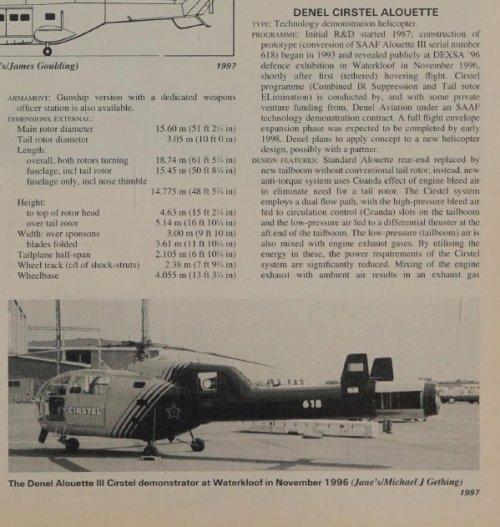

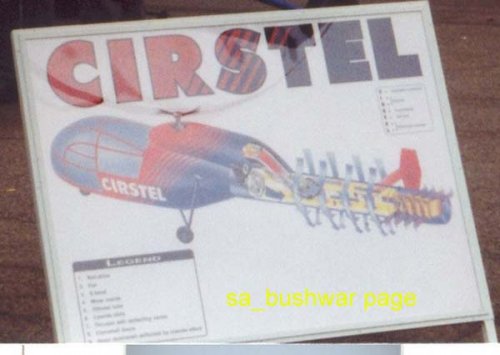

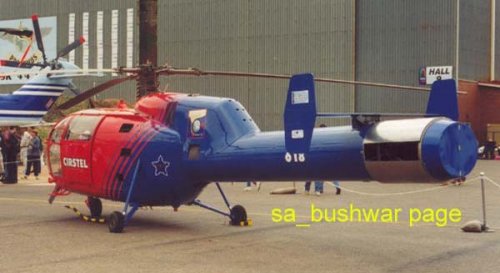

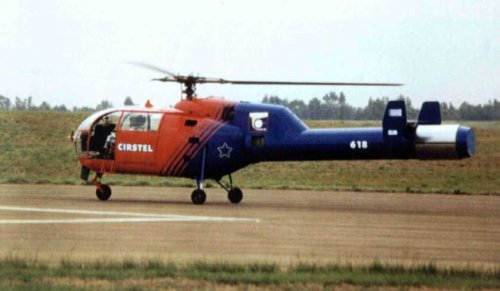

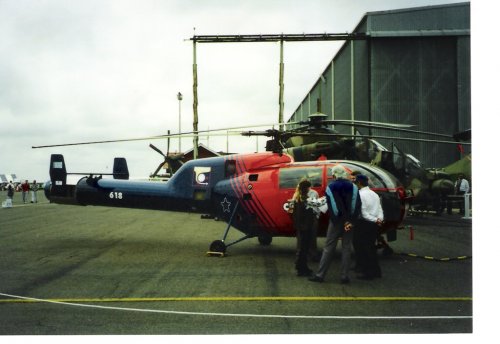

The pictures below are from http://www.geocities.com/sa_bushwar/mainpage.html


Attachments

  • alo50cirstel.jpg
    42.7 KB · Views: 705
  • alocirstel3.jpg
    39.3 KB · Views: 694

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,594
Reaction score
3,910
An SAAF Alouette III technology demonstration helicopter equipped with a new tailboom without a conventional tailrotor or a fenestron was shown by Denel Aviation. The project is known as Cirstel (Combined InfraRed Suppression and Tail rotor Elimination). Initial research and development workbegan in 1987 and construction of the prototype started in 1993. The demonstrator is due to make its maiden flight "in the next few months," according to project engineer Nols Fonternel. The workwas conducted by Denel under an SAAF technology contract. It was administered by Armscor. While Cirstel has some similarities to the McDonnell Douglas NOTAR(NO Tail Rotor) system, it is a different design, Fonternel said.Although, like NOTAR, it uses the Coanda effect of the engine bleed-air to eliminate the need for a tail rotor while also incorporating suppression of the exhaust's infrared signature. The Cirstel principle splits the high pressure air from the enginefor use in the Coanda slots, while the low pressure air is bled-off for the tail thruster and to mix and cool the engine exhaust. The thruster nozzle is a Denel-patented clamshell design, unlike McDonnell Douglas' `rotating can' concept. Denel intends "to apply the Cirstel to a new helicopter design, to be developed - hopefully - with a new partner," Fonternel said.

JDW 20 Nov 1996
http://www.janes.com/articles/Janes-Defence-Weekly-96/CIRSTEL-BREAKS-HELICOPTER-CONVENTIONS.html


kaiserbill

ACCESS: Top Secret
Joined
Jun 7, 2006
Messages
1,358
Reaction score
210
Hmmmm... interesting. I wonder what that new helicopter design was? Obviously part of an Allouette replacement study?


compton_effect

ACCESS: Confidential
Joined
Jun 13, 2007
Messages
69
Reaction score
3
Hmmmm... interesting. I wonder what that new helicopter design was? Obviously part of an Allouette replacement study?
Very likely - this was probably just a test bed, judging from the Alpha XH-1 project. I did hear rumours once that they tried to buy Dauphin plans. Around the same time that they were 'developing' the Oryx. Maybe this was part of indigenous Light Utility project that was started instead.


Graugrun

ACCESS: Top Secret
Joined
May 17, 2011
Messages
501
Reaction score
199

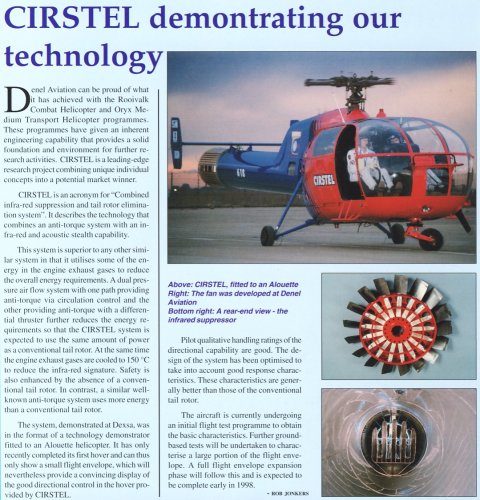

Here's an article from "Airviews" the in-house magazine for Atlas Aircraft/Denel Aviation. It was written by Rob Jonkers, who IIRC was the overall project manager for the Rooivalk program at one stage or another. It has a slightly nationalistic stance (being an in-house magazine), however it contains some interesting detail non theless. The three big advantages it had over the Hughes 500 NOTAR where the following:

1. It used far less power, the same as a conventional rotor - whereas the Hughes NOTAR needed far more power than a conventional rotor to work (apparently a big reason for the Hughes' lack of commercial success).
2. It also cooled the exhaust gas to 150 Degrees, drastically reducing it's infrared/heat signature - very handy for military operations - the Hughes NOTAR did not cool the exhaust gas.
3. It would have been cheaper to manufacture and operate.

I think it was simply a case of no funds being available, as with most South African projects at the time - commercially the lack of the Hughes NOTAR success also had strong impact on the future of CIRSTEL (the Hughes NOTAR was successful in it's own right, but it was not the great commercial success that it was expected to be).

This is a project that I think Denel should seriously reconsider, if they get it right (with the promise it had), they could potentially earn themselves a great monetary windfall on the world market with it.


Attachments

  • CIRSTEL 1-01.jpg
    CIRSTEL 1-01.jpg
    379.6 KB · Views: 154

Graugrun

ACCESS: Top Secret
Joined
May 17, 2011
Messages
501
Reaction score
199

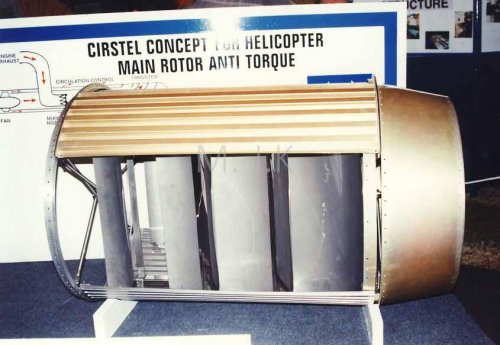

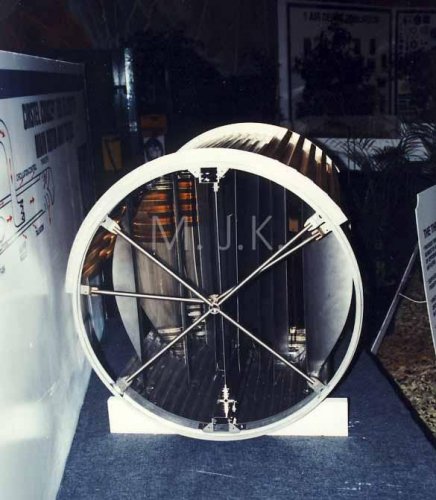

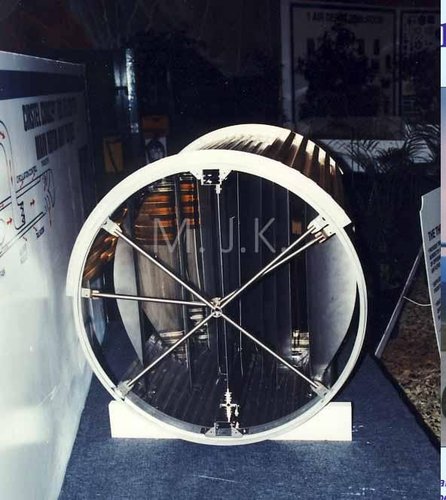

Some close-up pics I took at one of the DEXSA shows - I have some more info that I still need to dig up and post.


Attachments

  • Cirstel-04WM.jpg
    51.8 KB · Views: 89
  • Cirstel-03WM.jpg
    63.8 KB · Views: 71

kaiserbill

ACCESS: Top Secret
Joined
Jun 7, 2006
Messages
1,358
Reaction score
210
Thanks Graugrun!

A real pity that this project suffered the massive budget slashes.

As you said, it would be interesting if they had continued with it, particularly if it performed as advertised it could have made considerable inroads into the helicopter market.
I was always surprised the Hughes NOTAR never utilised exhaust gases, which is, from what I understand, basically a waste product apart from nominal negligable thrust.
And that is apart from the huge potential to cool the exhaust simultaneously as was part of the CIRSTEL.

Look forward to any other pics/info.


Graugrun

ACCESS: Top Secret
Joined
May 17, 2011
Messages
501
Reaction score
199

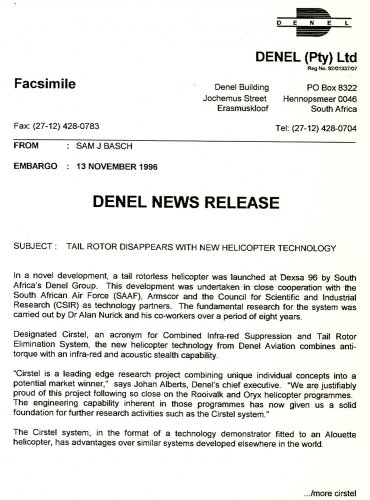

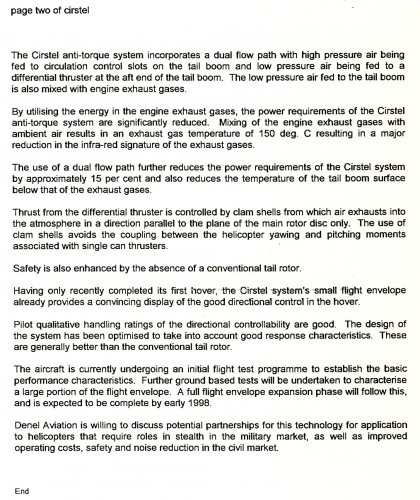

A small - but official Denel release when they unveiled CIRSTEL at the DEXSA '96 show, covering what they believed to be it's selling points and advantages.


Attachments

  • CIRSTEL-15.jpg
    279.3 KB · Views: 64
  • CIRSTEL-16.jpg
    348.7 KB · Views: 77

Graugrun

ACCESS: Top Secret
Joined
May 17, 2011
Messages
501
Reaction score
199

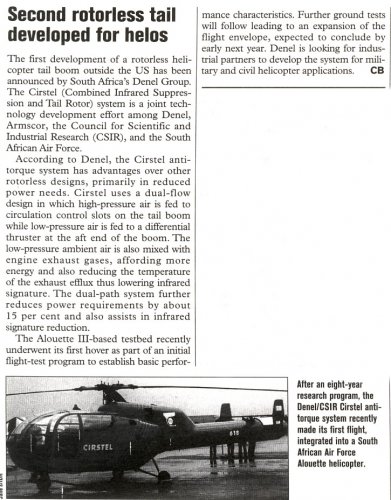

Article from Janes IDR covering CIRSTEL - Feb 1997


Attachments

  • Cirstel - IDR-02-1997.jpg
    Cirstel - IDR-02-1997.jpg
    205.3 KB · Views: 88

jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
2,243
Reaction score
315

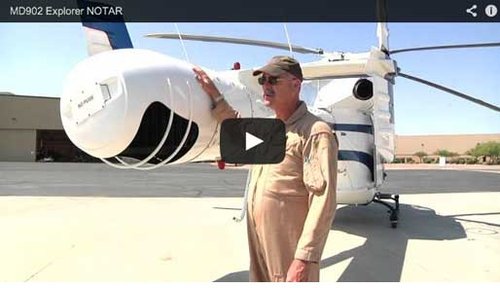

Graugrun is understating this technology's potential impact. This technology especially with capability to increase thrust out of the tail rotor for additional speed should define it as the BIGGEST discussion in helicopter technology. Why isn't in. Quiet, Stealthy jet choppers where are you?


Attachments

  • just add another turbine.jpg
    just add another turbine.jpg
    86.6 KB · Views: 54
  • opps no way to add a turbine.jpg
    opps no way to add a turbine.jpg
    37.3 KB · Views: 48

gmapro

ACCESS: Restricted
Joined
Mar 15, 2020
Messages
1
Reaction score
0
It will cool to add exaust air to NOTAR fan and we will have less heat around helicopter,that's will be cool for our ennemy infrared tracking


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,233
Reaction score
618
My guess is that CRISTEL was primarily developed to suppress IR exhaust.
Remember that South Africa had supported Rhodesia in its war against communist-backed freedom-fighters during the 1970s. The SAAF even supplied Alouette III helicopters and crews to support the Rhodesian Army.
During the 1980s and 1990s, South Africa backed Dr. Jonas Savimba's UNITA forces trying to prevent communist take-over of Angola. Russia and other communist nations might (?) have supplied heat-seeking missiles to communist freedom-fighters, similar to the way that the USA supplied Stinger missiles to UNITA and Afghan mujahaden.
The other factor is that the European communist bloc collapsed during the early 1990s, vastly reducing the number of arms given to communist freedom-fighters in Africa.
As the threat of communist invasion declined, South Africa reduced defense spending.
Finally, Nelson Mandela was elected President of South Africa in 1994, signalling the end of white rule. Again, defense spending dropped.

So CRISTEL may have been a valuable concept for fighting communist-backed freedom-fighters, but most of them quit during the 1990s as the the flow of arms from the Warsaw Pact ended.


jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
2,243
Reaction score
315
It will cool to add exaust air to NOTAR fan and we will have less heat around helicopter,that's will be cool for our ennemy infrared tracking
A cooled exaust able to propel and balance horizontally has no current tecnological comparison therefore deserves more than a cursory look for helicopter, multi aspect stealth and flight efficiency.
