Aircraft of the GDR

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,


here is the drawing for Type-160.


Attachments

  • 160.png
    130.4 KB · Views: 64
  • Duesenzeitalter_242-243.pdf
    293.1 KB · Views: 37

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,426
Reaction score
839
boxkite said:
Maveric, that's not a mock-up. It's a wind tunnel model with working propellers, tested at the Aerodynamische Laboratorien der FWD (i. e. Aerodynamical Laboratories of the Flugzeugwerke Dresden) in 1960.


Source: Flieger Revue extra 07, November 2004, page 13


Attachments

  • Typ-157_Flora_FliegerRevueExtra_07_page13.png
    985.2 KB · Views: 112

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541

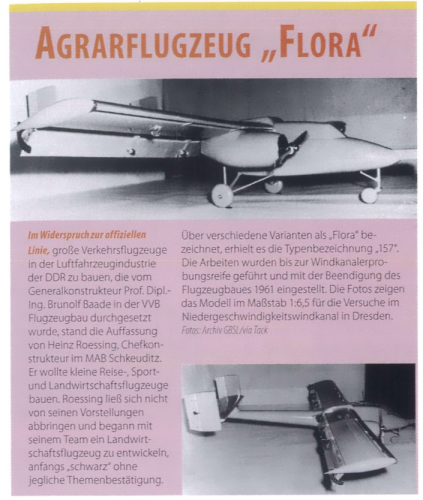

Splendid. I like that design very much. An agricultural aircraft, is that what it says?


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
315
Reaction score
143

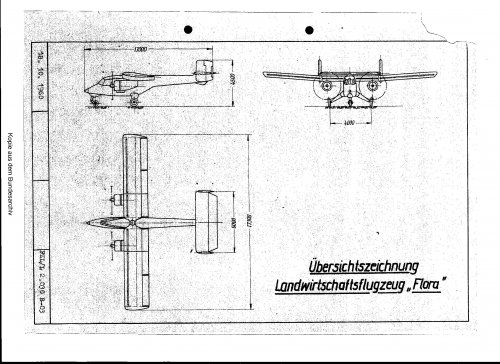

"An agricultural aircraft, is that what it says?" Yes it was constructed for agricultural use. But when the whole aviation industrie in estern germany was cancelled in 1961 it also ended (soon after). It was replace by the soviet an-14 "bienchen" (little bee) and L-60 Brigadyr.
There was a so called "sozialistische Arbeitsgemeinschaft Landwirtschaftsflugzeug" (socialist working team on an agricultural plane) headed by Ing. Wolf und overseen by Prof. Baade. There where several different agri-Planes planned, from SP-042 till 046. First meetings where in 1959 in series production was invisioned for 1967. If one ist intested in these planes there are several interestiing documents in the german Bundesarrchiv (federal archive) in Berlin-Lichterfelde.

Best Regards
Athpilot


Attachments

  • Flora.jpg
    1.1 MB · Views: 98

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,426
Reaction score
839

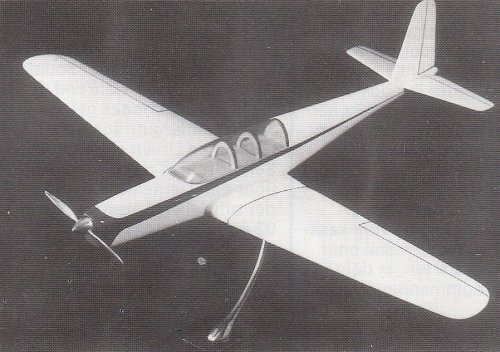

Maveric said:

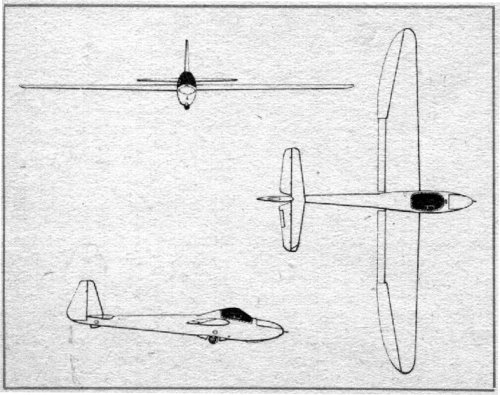

VEB Apparatebau Lommatzsch Lo-56, training aircraft.

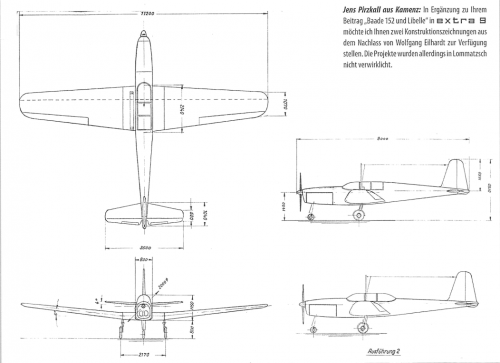

Here a 3-view of the VEB Apparatebau Lommatzsch Lom-56.
Source: Flieger Revue Extra 10, August 2005, page 7


Attachments

  • VEB_Apperattebau_Lommatzsch_project_GDR_page7_FliegerRevueExtra10_August2005.png
    171.2 KB · Views: 116

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

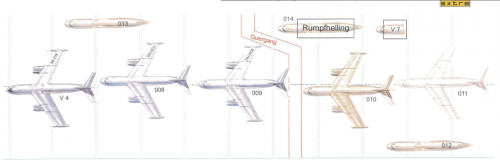

Also from Flieger Revue Extra,


here is the GDR 152 drawings for the variants; V.4,V.7,008,009,010,011,012,013
& 014.


Attachments

  • 152.png
    229.7 KB · Views: 112

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

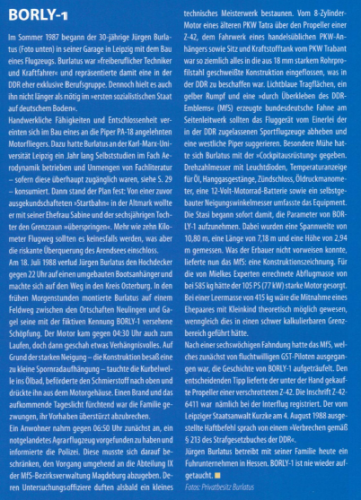

From Flieger Revue Extra,


here is the Borly-1 aircraft,I don't know if it was belonged to GDR or not ?.


Attachments

  • Borly   1.png
    Borly 1.png
    166.1 KB · Views: 67
  • Borly   2.png
    Borly 2.png
    466.6 KB · Views: 65
  • Borly   3.png
    Borly 3.png
    536.7 KB · Views: 54

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
166
Impressive, especially considering life conditions in the GDR: scarce materials, probably no flying lessons, and all your brainwashed neighbors ready to report you for favors with the Stasi. Good engineering and the thirst for freedom built this plane and others like it -- I hope they were successful!


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,121
circle-5 said:
... -- I hope they were successful!

Unfortunately not, although the aircraft was built carefully, but when the engine was started, a lot of oil was
leaking from the engine. Fearing a fire and due to the day already dawning, Jürgen Burlatus, the designer
and constructor and his wife and daughter had to leave the aircraft behind at the improvised "runway",
where it was seized later by the police. The main clue for arresting him came from the found propellor,
which came from a scrapped Zlin Z-42. :-[


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
315
Reaction score
143

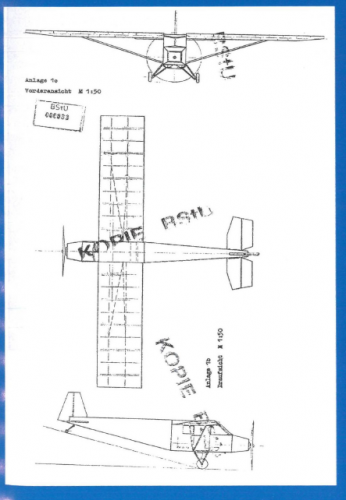

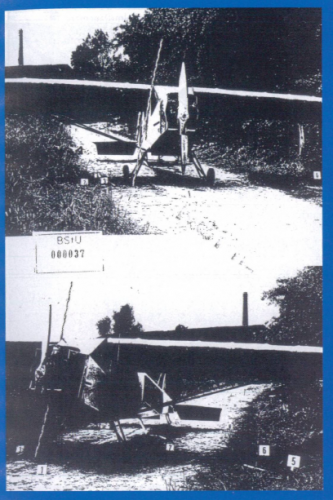

There were several attemps to flight from the gdr by self made aircraft and even in balloons (Hollywood made a Film of it [with John Hurt]) For additional information see this book:


Attachments

  • Müller-Faszination Freiheit.jpg
    Müller-Faszination Freiheit.jpg
    199.2 KB · Views: 678

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

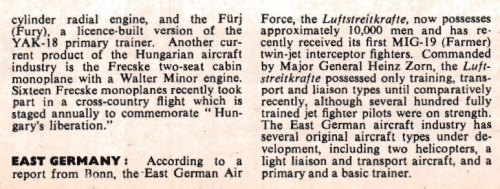

In Flying Review 8/1957,


here is a strange statement about East Germany developed two indigenous helicopters,can
anybody tell me what are them ?.


Attachments

  • 1.png
    454.9 KB · Views: 502

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Jemiba said:

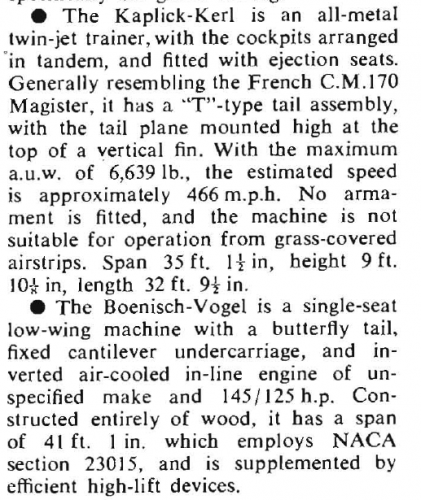

From Aero, September 1958:
Two designs from the institute for aeronautical technology of the technical university Dresden,
lead by professor Landmann:

- A jet trainer for the GDR airforce with straight wing, using a NACA-651/412 airfoil, T-tail and
tandem seating. Predicted max. speed 750 km/h and an endurance of 1.5 to 2 hours.
This type is mentioned as Kaplick "Kerl" (chap), Kaplick probably the name of the chief designer.

- A single-seat glider tug, mentioned as Boenisch "Vogel" (bird) with fixed landing gear and V-tail,
powered by an inline engine and able to tow up to two gliders.

Both aren't from a dedicated aircraft company, so it's unclear, if they really count as "projects".


And from Air Pictorial 7/1958.


Attachments

  • b.png
    206 KB · Views: 344

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
571
Reaction score
195

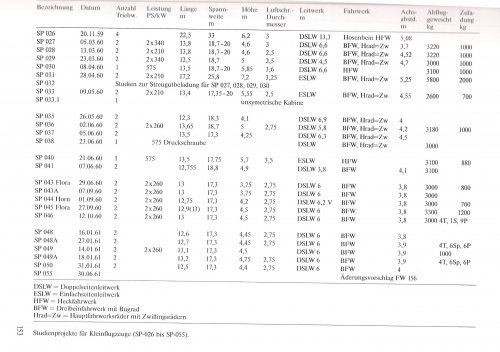

A table of East German aircraft studies & projects (Studienprojekte der Flugzeugewerke) is listed in Die deutsche Luftfart 22: Luftfahrt Ost 1945-1990 by JM Michels & J Werner (Bernard & Graefe) ISBN 3763761098

The book also covers Lommatzch (Lom), Forchungs und Entwicklungstelle (FES or VEB Waggonbau Gotha) and Gesellschaft fur Sport und Technik (GST) designs as well DDR engine designs.


Attachments

  • Studienprojekte_der_Flugzeugewerke_List.jpg
    678.7 KB · Views: 292

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
571
Reaction score
195

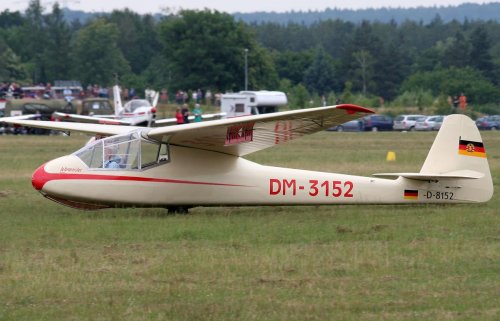

Some notes on various East German (GDR) Gliders

Arvo 1
Also known as the VO1 and designed as early as 1942 by Arno Vogel. Used as the base for the later VOX-1

FES (Gotha) SG 38
Primary training glider, licence built between 1951-54 with 329 made.

FES (Gotha) Baby IIb
Training glider, licence built between 1952-57 with 68 produced.

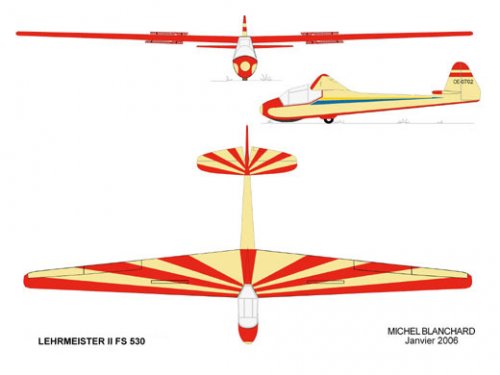

FES 530 Lehrmeister
Training two seat glider which is also referred to by the earlier name of VEB Waggonbau Gotha Go 530). 17.0 m wing span, length 7.95 m. First flew 15 June 1954. Over 100 examples completed.

FES 530/I Lehrmeister I
Improved basic model with 22 built by Lommatzsch.

FES 530/II Lehrmeister II
Improved basic model with 15 m wing span. 101 built by Lommatzsch.

FES 540
High wing glider. Glider project started by Hans Wegerich in 1954 at the VEB Waggonbau Gotha.

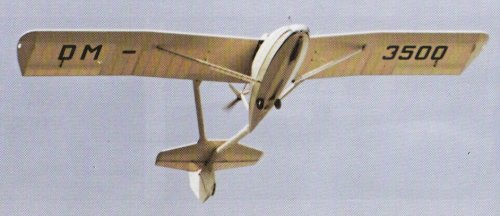

Landmann La-16 V-1 Lerche
Experimental Motor Glider with Kroedber-Motor M5 (13.4 kW with a Go 535 wing profile and a V-tail. First flew December 1955. Built at the Technischen Hochschule Dresden (TH Dresden).

Landmann La-16 V-2 Heidelerche
In 1958-59 the Lerche was developed by TH Dresden )Institute for Flight Construction. First flew with an engine in October 1961. Registered first as a glider as DM-3501 in 1958. It was retired in 1976.

Landmann La-17
Experimental motor glider from Professor Landmann with a BK 350 (12 kW) engine. Wing profile of B106. Built at TH Dresden and first flew in 1959.

Landmann La-19
A project undertaken at TH Dresden for a two seat glider during 1960-61.

Lommatzch Baby IIb
Training glider, licence built between 1952-57 with 246 produced.

Lommatzsch Lo 55
Single seat glider dating from 1955.

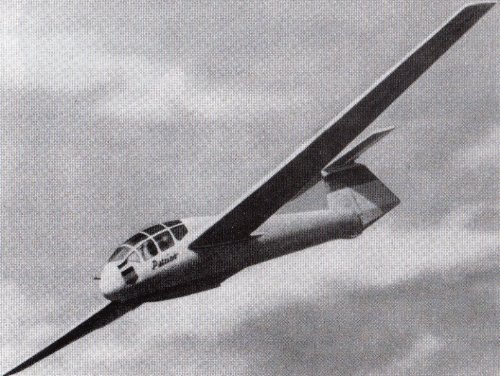

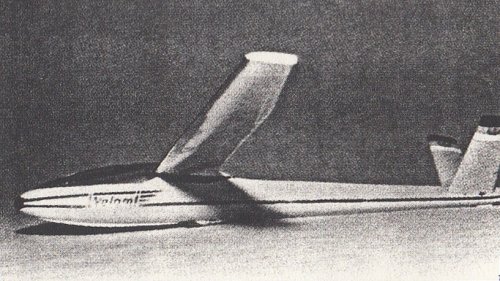

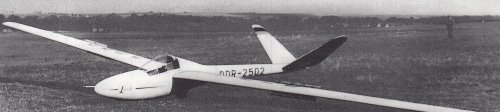

Lommatzsch Lom 55 V-1 Libelle
Single seat glider with a 16.5 m wing span, 6.5 m length and a V-tail. First flew 13 February 1957.

Lommatzsch Lom 55 V-2 Libelle
A V-2 development was built in 1957.

Lommatzsch Lom 57 V-3 Libelle
Developed as a three seat glider. Test flights in June 1957.

Lommatzsch Lom 57/I Libelle
Serial production version, 13 built.

Lommatzsch Lom 57/II Libelle II
Project from November 1957 which was to have been built by Gesellschaft fur Sport und Technik (GST).

Lommatzsch Lom 58 Libelle Standard
Glider with a 15 m wing span. Produced in some numbers (around 70).

Lommatzsch Lom 58/I Libelle Standard
Glider with a 15 m wing span. Produced in some numbers. It had a 20 cm fuselage extension.

Lommatzsch Lom 58/II Libelle-Laminar
High wing single seat glider. 22 produced. Prototype DM-2599 was built with a Lom 57 fuselage.

Lommatzsch Lom 59 Meise
Glass-fibre and metal glider which first flew on 5 July 1960. Four built.

Lommatzsch Lom 60 Libelle Akrobat
Aerobatic sailplane built between 1958-1962.

Lommatzsch Lom 61 Favorit
High wing single seat glider from 1961-62

Lommatzsch Lom 62 Favorit
High wing single seat glider based on the Lom 61 with a 15 m wing span.

Lommatzsch Lom 63 Favorit
High wing single seat glider with improved wing profile from 1962.

Lommatzsch Lom 64 Favorit
High wing single seat glider based on the earlier Lom 61. Longer wing span of 16.5 m

TH Dresden FL 60 Dresden
High wing single seat glider from 1958.

TH Dresden We 3
High wing single seat glider design of which which appeared in 1962. Had a V-tail. Took part in the 1968 world gliding championships.

TH Dresden We 4
Low wing single seat glider design of which which appeared in 1964. It had a 12.0 m wing span and was 5.59 m in length. It had a high T-tail.

Vogel VOX 1
Experimental glider from developed from the Arvo 1 (VO1). First flew in 1952.

Vogel VOX 2
Project for a motor glider based on the Lommatzch Baby IIb mass-produced design. Engine in the fuselage.

Source:

Die deutsche Luftfart 22: Luftfahrt Ost 1945-1990 by JM Michels & J Werner (Bernard & Graefe) ISBN 3763761098


Attachments

  • FES_530_I_Lehrmeister_Brochure_Cover.JPG
    125 KB · Views: 175

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
41

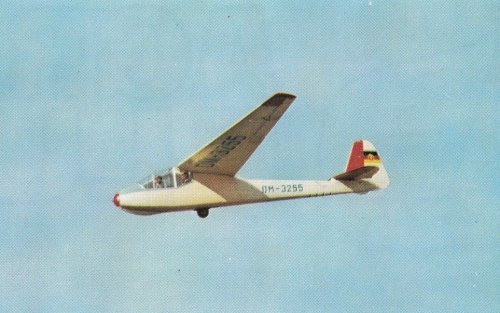

Some moire , various sources …


Reinecke Patriot , two seater , 1952 .(one built)


Super-Baby , 1958 .(one built)


Gerber-Weber IF-1 , 1960 .(only parts built)


Wuckel , 1953 .(one built)


Thale Arbeiter Gruppe , 1949 .(one built)


VVB Flugzeugbau übungssegler1958 (Project)


Lom-57 Libelle modified with a LS-1 cockpit .[/size]: the only DDR sailplane sold to BDR .
[/size]
Ulf & Uwe Kern Hängegleiter (monoplane) , late 70' or 80' (?) (one built)


Ulf & Uwe Kern Uwe Kern Hängegleiter (biplane) 1989 .Thun-Jahnsbuch Hängegleiter (monoplane) 1977 (one built)


Theo Kühne Hängegleiter , 1959 (one built)


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
I have a picture from the Wuckel, but I can´t find it at the moment.

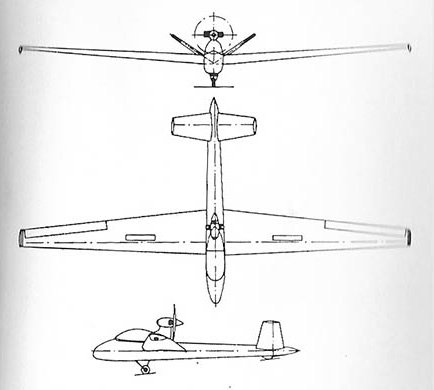

A drawing of the Gerber-Weber IF-1...


Attachments

  • Weber-Gerber IF-1-.jpg
    Weber-Gerber IF-1-.jpg
    475.6 KB · Views: 42

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352

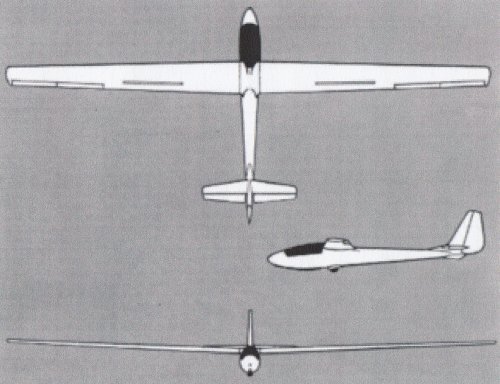

The TH Dresden (Weber) We.3...


Attachments

  • Weber We-3.jpg
    Weber We-3.jpg
    247.5 KB · Views: 34

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352

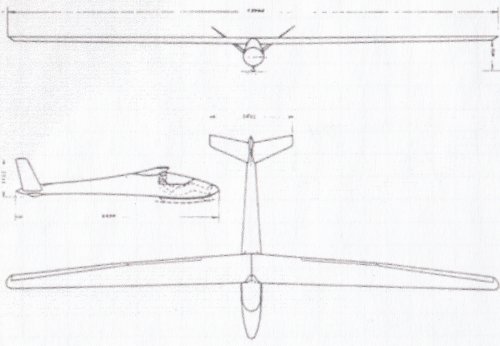

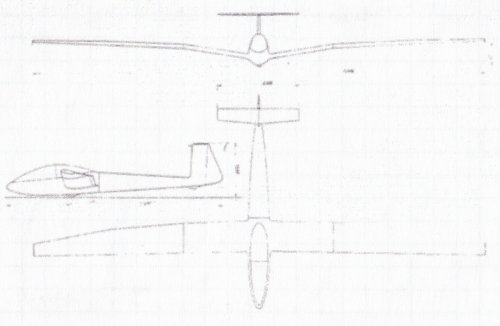

TH Dresden (Weber) We.4...


Attachments

  • Weber We-4-.jpg
    Weber We-4-.jpg
    309.1 KB · Views: 39

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352

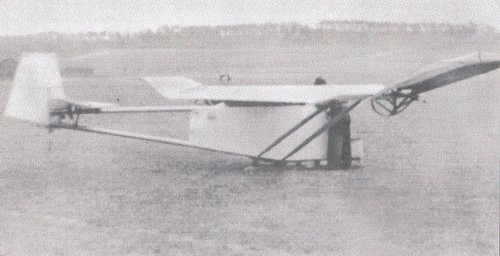

Arno Vogel VOX.1


Attachments

  • Vogel VOX-1.jpg
    Vogel VOX-1.jpg
    850.6 KB · Views: 145

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352

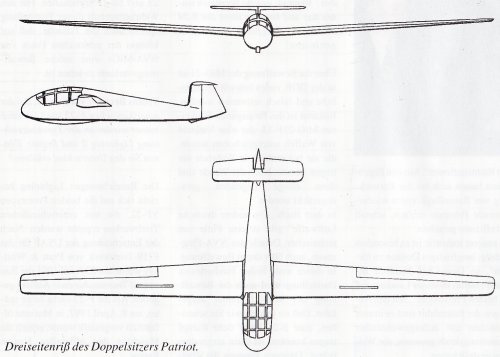

VEB Nagema Schmiedeberg Patriot


Attachments

  • VEB Nagema Schmiedeberg Patriot.jpg
    VEB Nagema Schmiedeberg Patriot.jpg
    973.7 KB · Views: 248
  • VEB Nagema Schmiedeberg Patriot-.jpg
    VEB Nagema Schmiedeberg Patriot-.jpg
    353.7 KB · Views: 202

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352

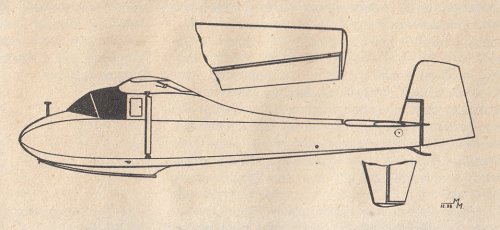

VEB Apparatebau Lommatsch "Super Baby"


Attachments

  • VEB Apparatebau Lommatsch Super Baby.jpg
    VEB Apparatebau Lommatsch Super Baby.jpg
    267.7 KB · Views: 190

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352

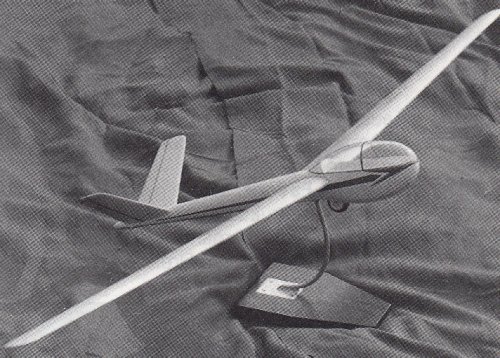

TH Dresden-Felder FL-60 Dresden


Attachments

  • TH Dresden-Felder FL-60 Dresden.jpg
    TH Dresden-Felder FL-60 Dresden.jpg
    452.6 KB · Views: 181

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352

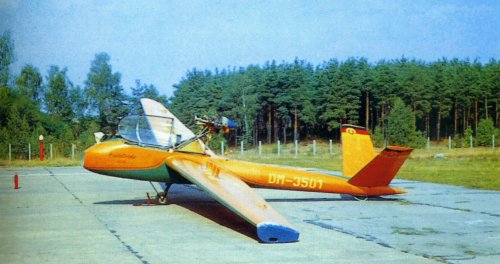

Landmann La-16 Heidelerche


Attachments

  • Landmann La-16 Heidelerche.jpg
    Landmann La-16 Heidelerche.jpg
    576.7 KB · Views: 114
  • Landmann La-16 Heidelerche-.jpg
    Landmann La-16 Heidelerche-.jpg
    53 KB · Views: 40

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
Landmann La-17


Attachments

  • Landmann La-17.jpg
    Landmann La-17.jpg
    890.2 KB · Views: 36

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
VEB Apparatebau Lommatzsch Lo-55 Libelle


Attachments

  • VEB Apparatebau Lommatzsch Lo-55 Libelle.jpg
    VEB Apparatebau Lommatzsch Lo-55 Libelle.jpg
    417.7 KB · Views: 34

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352

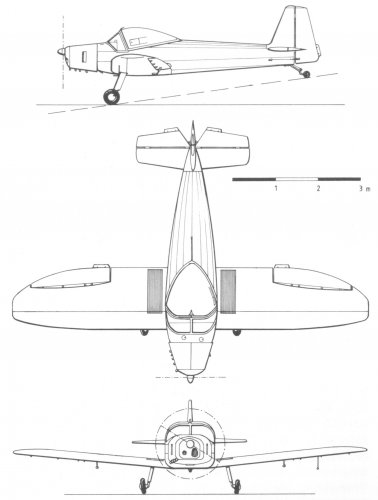

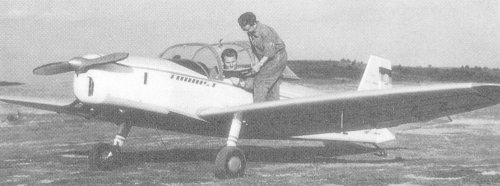

VEB Apparatebau Lommatzsch Lo-56


Attachments

  • VEB Apparatebau Lommatzsch Lo-56.jpg
    VEB Apparatebau Lommatzsch Lo-56.jpg
    630.9 KB · Views: 27

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
VEB Apparatebau Lommatzsch Lom-55 Libelle


Attachments

  • VEB Apparatebau Lommatzsch Lom-55 Libelle.jpg
    VEB Apparatebau Lommatzsch Lom-55 Libelle.jpg
    574.8 KB · Views: 26
  • VEB Apparatebau Lommatzsch Lom-55 Libelle-.jpg
    VEB Apparatebau Lommatzsch Lom-55 Libelle-.jpg
    253 KB · Views: 25

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
VEB Apparatebau Lommatzsch Lom-57 Libelle


Attachments

  • VEB Apparatebau Lommatzsch Lom-57 Libelle-.jpg
    VEB Apparatebau Lommatzsch Lom-57 Libelle-.jpg
    372.9 KB · Views: 23

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352

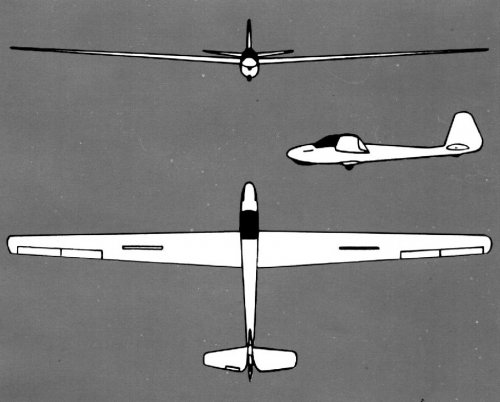

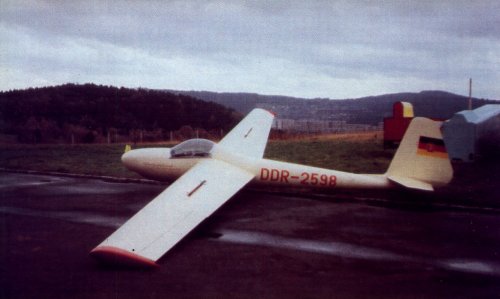

VEB Apparatebau Lommatzsch Lom-58 Standard Libelle


Attachments

  • VEB Apparatebau Lommatzsch Lom-58 Standard Libelle-.jpg
    VEB Apparatebau Lommatzsch Lom-58 Standard Libelle-.jpg
    175.4 KB · Views: 27
  • VEB Apparatebau Lommatzsch Lom-58 Standard Libelle.jpg
    VEB Apparatebau Lommatzsch Lom-58 Standard Libelle.jpg
    420.1 KB · Views: 28

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352

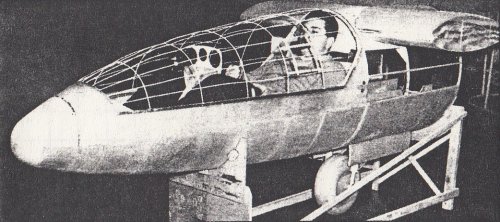

VEB Apparatebau Lommatzsch Lom-59 Lo-Meise


Attachments

  • VEB Apparatebau Lommatzsch Lom-59 Lo-Meise.jpg
    VEB Apparatebau Lommatzsch Lom-59 Lo-Meise.jpg
    1.7 MB · Views: 28

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
VEB Apparatebau Lommatzsch Lom-60 Libelle Akrobat


Attachments

  • VEB Apparatebau Lommatzsch Lom-60 Libelle Akrobat-.jpg
    VEB Apparatebau Lommatzsch Lom-60 Libelle Akrobat-.jpg
    184.8 KB · Views: 23

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352

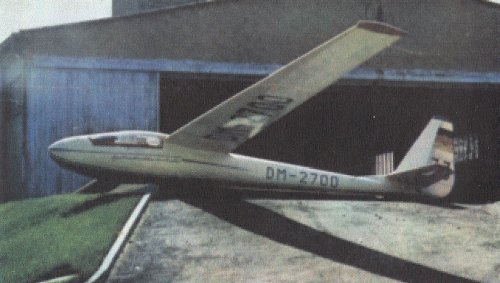

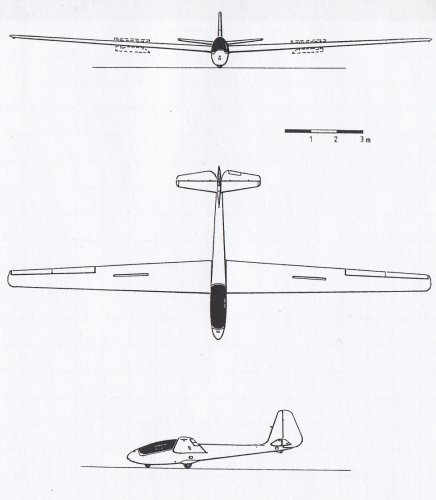

VEB Apparatebau Lommatzsch Lom-61 Favorit


Attachments

  • VEB Apparatebau Lommatzsch Lom-61 Favorit.jpg
    VEB Apparatebau Lommatzsch Lom-61 Favorit.jpg
    817.8 KB · Views: 22
  • VEB Apparatebau Lommatzsch Lom-61 Favorit-.jpg
    VEB Apparatebau Lommatzsch Lom-61 Favorit-.jpg
    1.2 MB · Views: 26

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
VEB Waggonbau Gotha FES-530 Lehrmeister II


Attachments

  • VEB Waggonbau Gotha FES-530 Lehrmeister II.jpg
    VEB Waggonbau Gotha FES-530 Lehrmeister II.jpg
    110.2 KB · Views: 28
  • VEB Waggonbau Gotha FES-530 Lehrmeister II-.jpg
    VEB Waggonbau Gotha FES-530 Lehrmeister II-.jpg
    66.1 KB · Views: 34

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
FlugsportSchule Schönhagen F.S.S. 100 "Tourist"


Attachments

  • FSS-100 Tourist.jpg
    FSS-100 Tourist.jpg
    838.1 KB · Views: 426
  • FSS-100 Tourist-.jpg
    FSS-100 Tourist-.jpg
    400.7 KB · Views: 366

Similar threads

Top
