Hi all,

following aircraft and projects from the formerly German Democratic Republic - VEB Flugzeugwerke Dresden.

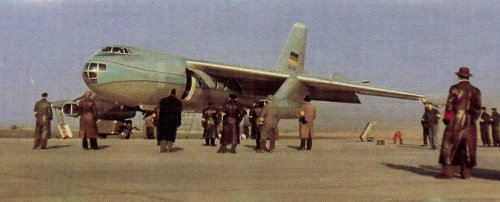

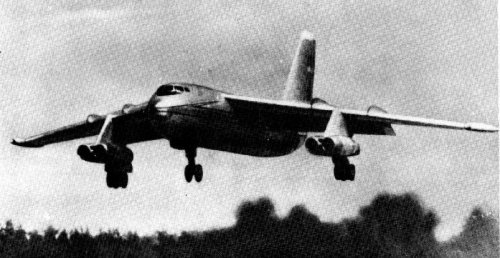

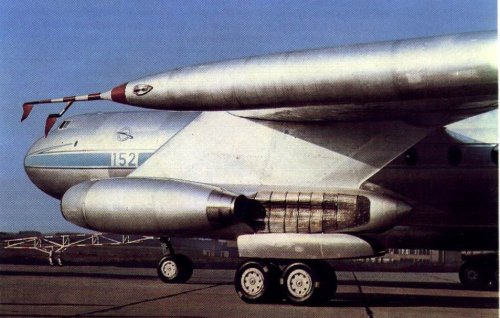

At first the first german passenger jet after WWII - the Flugzeug 152V-1 (1.Prototyp).


Attachments

  • VEB Flugzeugbau Dresden Flugzeug 152V-1.jpg
    VEB Flugzeugbau Dresden Flugzeug 152V-1.jpg
    141.3 KB · Views: 2,092
  • VEB Flugzeugbau Dresden Flugzeug 152V-1-.jpg
    VEB Flugzeugbau Dresden Flugzeug 152V-1-.jpg
    380.6 KB · Views: 1,997

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352

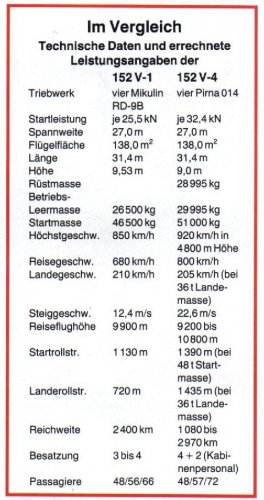

...and Flugzeug 152V-4 with data for V-1 and V-4 (all from FliegerRevue 1990).


Attachments

  • VEB Flugzeugbau Dresden Flugzeug 152V-4.jpg
    VEB Flugzeugbau Dresden Flugzeug 152V-4.jpg
    104.5 KB · Views: 1,622
  • VEB Flugzeugbau Dresden Flugzeug 152V-4--.jpg
    VEB Flugzeugbau Dresden Flugzeug 152V-4--.jpg
    129.5 KB · Views: 1,604
  • VEB Flugzeugbau Dresden Flugzeug 152V-1+V-4.jpg
    VEB Flugzeugbau Dresden Flugzeug 152V-1+V-4.jpg
    82.3 KB · Views: 1,491

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352

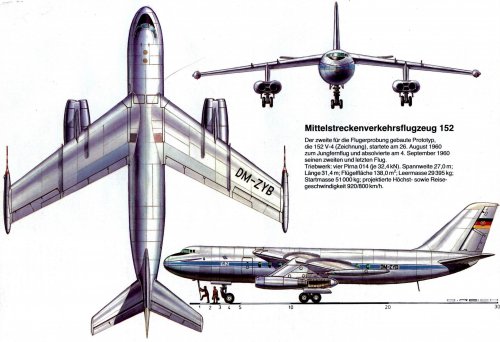

A 3view drawing for the V-4


Attachments

  • VEB Flugzeugbau Dresden Flugzeug 152V-4-.jpg
    VEB Flugzeugbau Dresden Flugzeug 152V-4-.jpg
    732.7 KB · Views: 339

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352

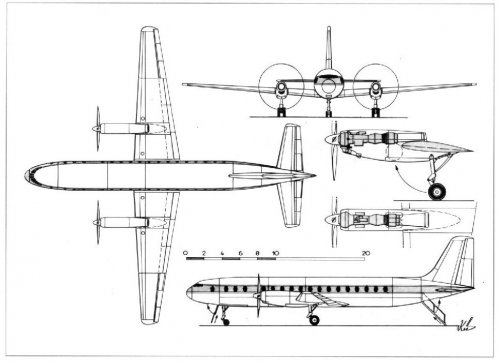

...the Flugzeug 153 project.


Attachments

  • VEB Flugzeugbau Dresden Flugzeug 153-.jpg
    VEB Flugzeugbau Dresden Flugzeug 153-.jpg
    68.3 KB · Views: 381

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352
...sorry this was the Flugzeug 153A.

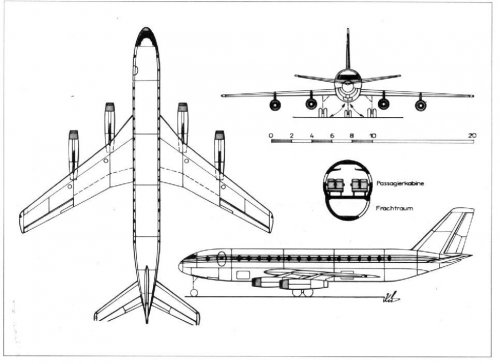

And the Flugzeug 154A. ::)


Attachments

  • VEB Flugzeugbau Dresden Flugzeug 154-.jpg
    VEB Flugzeugbau Dresden Flugzeug 154-.jpg
    62.3 KB · Views: 445
  • VEB Flugzeugbau Dresden Flugzeug 154.jpg
    VEB Flugzeugbau Dresden Flugzeug 154.jpg
    46.5 KB · Views: 241

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352
...the Flugzeug 155A.


Attachments

  • VEB Flugzeugbau Dresden Flugzeug 155.jpg
    VEB Flugzeugbau Dresden Flugzeug 155.jpg
    46.2 KB · Views: 245
  • VEB Flugzeugbau Dresden Flugzeug 155-.jpg
    VEB Flugzeugbau Dresden Flugzeug 155-.jpg
    53.3 KB · Views: 345

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352

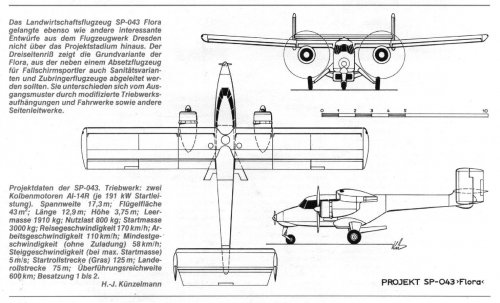

...and the S.P. 043 "Flora".


Attachments

  • VEB Flugzeugbau Dresden SP-043 Flora-.jpg
    VEB Flugzeugbau Dresden SP-043 Flora-.jpg
    183 KB · Views: 348

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
Hi all
Interresting your photos of the veb 152 and others...
German aeronautical engineers stationed in Soviet Union in Savelovo
near Moscow worked on the "ef 150""
after working on this plane, they worked on the project 15-2, a passenger
jet plane.
They continued their work after returning in East Germany
The Chief engineer was Brunolf Baade previously headed a developement
division at Junkers in Dessau
The first 35 minute test flight took place on December 4 1958
The second flight March 4 1959 ended with the crash of the plane.....
Bye


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352
Hi all,

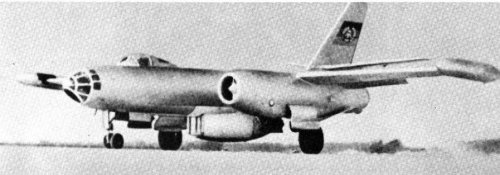

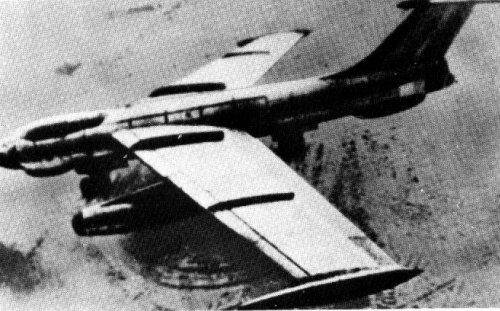

a pic from OKB Samoljot 150.
The second is a Iljuschin Il.28 as testbed for the Pirna 014 powerplant. This was used in the V.4 prototyp.


Attachments

  • ScanImage22.jpg
    95.2 KB · Views: 191
  • ScanImage25.jpg
    89.8 KB · Views: 216

funkychinaman

ACCESS: Restricted
Joined
Nov 11, 2008
Messages
33
Reaction score
0
Air and Space magazine did a cover story on the Flugzeug 152V-1 and the DDR aerospace industry a couple of years back.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
125

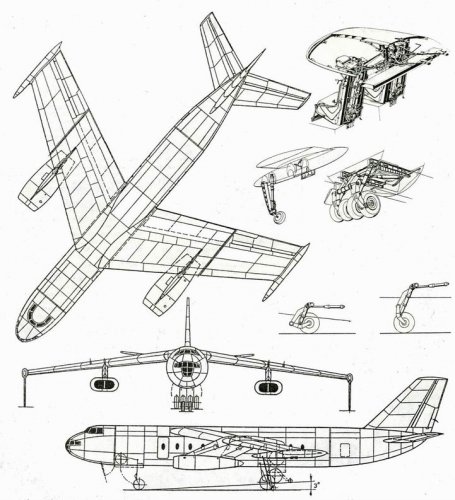

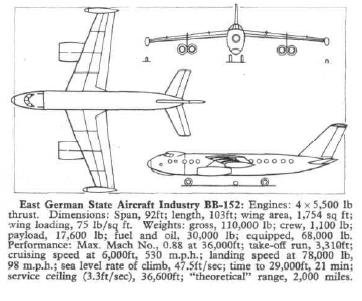

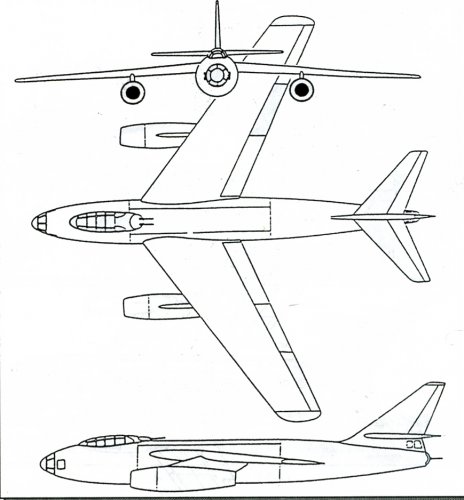

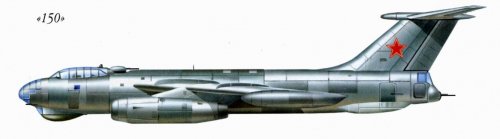

"152" V-1 (1954 OKB-1) Fig. 1)

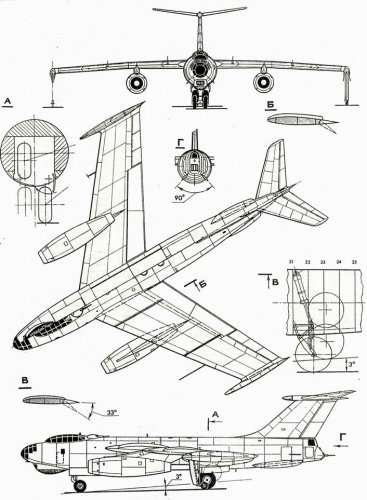

The basis for it has created previously/Initial form bomber "150"
Modifications: 2) the initial form of EF-150
3) RB-2 (1948 OKB-1)
sources:"Aircraft of World"#1/95
"Bastion' Vol.2 S.Ganin,A.Karpenko, V.Kolnogorov


Attachments

  • '150'.jpg
    33.2 KB · Views: 357
  • '150'  3v.jpg
    '150' 3v.jpg
    112.2 KB · Views: 289
  • RB-2.jpg
    290.3 KB · Views: 266
  • EF-150 Initial form.jpg
    EF-150 Initial form.jpg
    70.8 KB · Views: 349
  • '152'.jpg
    101.2 KB · Views: 306

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120

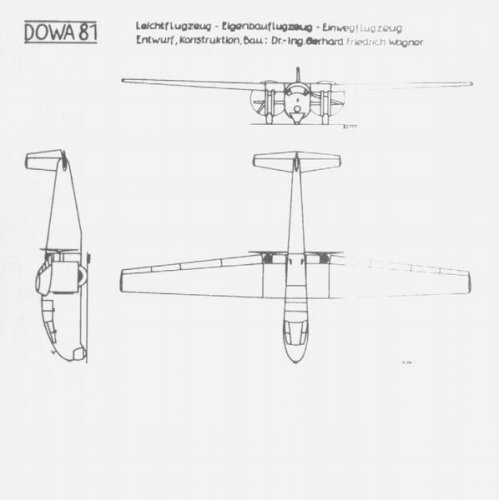

As we are talking about aircraftprojects of the former GDR, we shouldn't
forget those, for which the DOWA 81 is a good example : Really top secret,
powered by two motorbike engines, basically a ultra-light, but able to carry
5 persons ! The designations came from its designer, Gerhard WAgner
and the year 1981, when he intended to escape from the GDR with his
wife and his 3 children in this aircraft.
(from FliegerRevue extra N°16)


Attachments

  • DOWA81.JPG
    19.2 KB · Views: 282

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
125
boxkite said:
Anyone who is interested in details of these designs should visit

http://www.flugzeug-lorenz.de/index.php?id=45

The books (especially Kennzeichen Junkers and Der Passagier-Jet "152") are stuffed with pictures of excellent quality and a huge amount of information (see PDF previews, e. g. http://www.flugzeug-lorenz.de/fileadmin/user_upload/PDF-Junkersbuch/Junkers_232-235.pdf). Highly recommended!
Vielen Dank, Thomas. Sehr interessant.
A few pictures on the site Marek Rys :
http://www.airart3d.ovh.org/html/gallery.htm


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157
Jemiba said:
As we are talking about aircraftprojects of the former GDR, we shouldn't
forget those, for which the DOWA 81 is a good example : Really top secret,
powered by two motorbike engines, basically a ultra-light, but able to carry
5 persons ! The designations came from its designer, Gerhard WAgner
and the year 1981, when he intended to escape from the GDR with his
wife and his 3 children in this aircraft.
(from FliegerRevue extra N°16)

And here are pictures of the built, but never flown aircraft:

http://www.deutsches-museum.de/en/collections/transport/aeronautics/propeller-planes/after-1945/dowa-81/

http://airventure.de/dmpics/dmus_DOWA81.jpg


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157
A few pictures on the site Marek Rys :
http://www.airart3d.ovh.org/html/gallery.htm

Nice addition :) . Thanks for the link, borovik.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
597
Reaction score
112
Jemiba said:
As we are talking about aircraftprojects of the former GDR, we shouldn't
forget those, for which the DOWA 81 is a good example : Really top secret,
powered by two motorbike engines, basically a ultra-light, but able to carry
5 persons ! The designations came from its designer, Gerhard WAgner
and the year 1981, when he intended to escape from the GDR with his
wife and his 3 children in this aircraft.
(from FliegerRevue extra N°16)

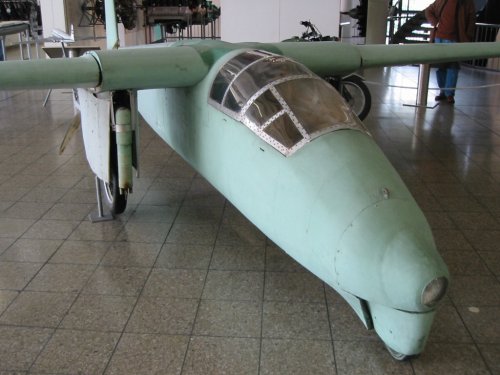

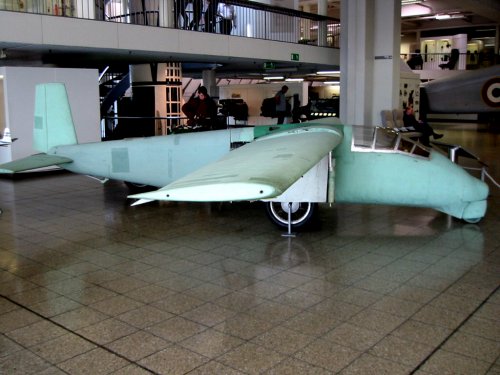

This pathetic aircraft is now preserved and presented at the Deutsche Museum, Munich.


Attachments

  • 032.jpg
    495.5 KB · Views: 733
  • 033.jpg
    182.8 KB · Views: 671
  • 046.jpg
    181.4 KB · Views: 603
  • 034.jpg
    192.6 KB · Views: 605

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,052
Reaction score
1,435
Website
www.aerospaceprojectsreview.com
Jemiba said:
when he intended to escape from the GDR with his
wife and his 3 children in this aircraft.

I guess I'm going to have to revise my opinion that socialism does not bring out the best in people. Why, in this case it brought out the innovator in a man in order for him to get the hell away from it....


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120
"..it brought out the innovator in a man .."

AFAIK, it was said, that he was an aviation engineer, but that not
necessarily mean, that he was allowed to work in that field ... ;)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120

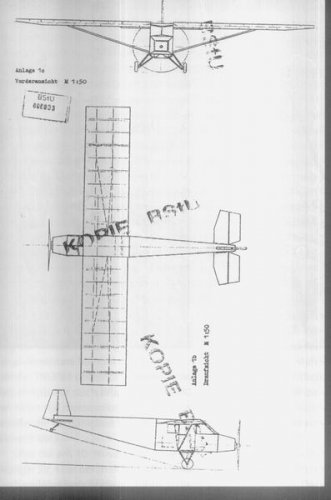

Another "GSP" (GDR Secret Project), although there aren't enough
for another issue by Tony Buttler, I think. ;)
This time, the constructor wasn't experienced in the field of aviation,
and the only "manufacturers drawing" was made, when the aircraft and
its designer were already "secured" by the MfS (ministry for security):
By the MfS itself !


Attachments

  • Borly-1.JPG
    25.4 KB · Views: 579

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,421
Reaction score
833
For our non German Readers:
"Kopie BStU" mean "Copy BStU".
The BStU (Bundesbeauftragte für die Unterlagen des Staatssicherheitsdienstes der ehemaligen Deutschen Demokratischen Republik / better: Bundesbeauftragte für Stasi-Unterlagen - Office of the Federal Commissioner Preserving the Records of the Ministry for State Security of the GDR), commonly known as the Gauck office or Birthler office after the first and second lead commissioners respectively, preserves and protects the archives of the former Stasi, the secret police and intelligence organization of the German Democratic Republic (East Germany). From Wikipedia, the free encyclopedia


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,052
Reaction score
1,435
Website
www.aerospaceprojectsreview.com
Jemiba said:
This time, the constructor wasn't experienced in the field of aviation,
and the only "manufacturers drawing" was made...

Nice and bland. I like it. When the plane's job is simply to fly a few people a few miles, and only do it once, bland is *great.* You don't need to be futzing around with interesting new aerodynamics when you've got exactly one flight to get it right... and your wife and kids are in the plane with you.


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,060
Reaction score
1,571
Are there any stats on the Flugzeug 153A and 154A?
I'm assuming the engines are Soviet types and that both are 1960s designs. I'm I right?

I must say these were completely new to me as most sources end with the Baade and say the government closed-down the aero industry. I always felt sure the USSR closed the GDR's amibitons through Comecon (just like the Bulgarian Yak-18 production line), the 153A and 154A would directly compete with Soviet airliner products.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157
Hood said:
Are there any stats on the Flugzeug 153A and 154A?
I'm assuming the engines are Soviet types and that both are 1960s designs. I'm I right?

Turboprop aircraft:
'153' and '153A' -> 2 x Pirna 018 turboprops (2 x 5,000 hp / two of the engines were built for tests, but one of them destroyed the test bench in February 1959)

'154' (first use of this designation) -> 4 x Pirna 018

'155' -> 2 x Soviet turboprops of unknown type (2 x 6,250 hp)

Jet aircraft:
'154' (second use of this designation) -> 4 x Pirna 014 jet engines (4 x 3,150 kp), later 4 x Pirna 020 by-pass jet engines (4 x 3,700 kp)

'155A-1' -> 2 x Pirna 014


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106

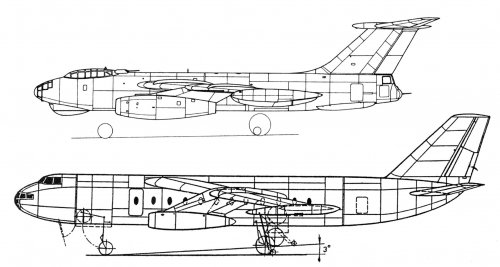

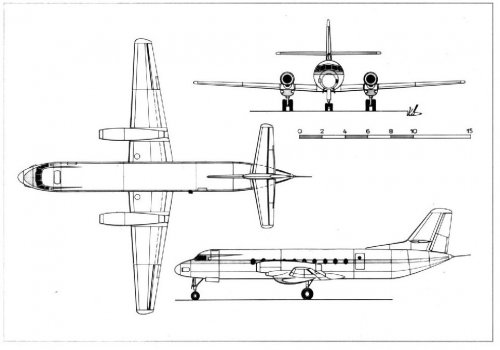

Dear Maveric and Boxkite.
I have a problem !
If look the three views drawing Maveric give us on the site and,
if I look after the ones of Boxkite on
"flugzeug-lorents..."
the cockpits forms are not identical !
this for ef 152 153 154
Two versions ? Please tell me.
Thanks


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352
You´re right toura,

Flugzeug 153/I from 1955 and Flugzeug 153A from 1956
Flugzeug 154/I from 1955 and Flugzeug 154A from 1959
Flugzeug 155/I from 1955 and Flugzeug 155A from 1960


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
dear Maveric
I'm sorry, I don't read very well Boxkite answer !!
Thank you.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352

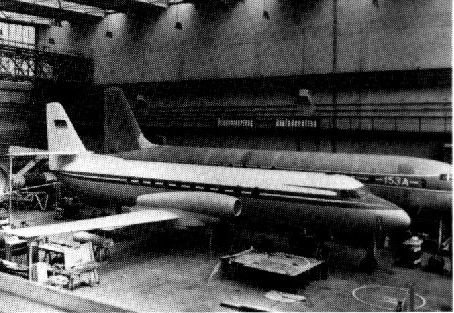

...a Mock-up for the SP.043 "Flora".


Attachments

  • z.flora.jpg
    22.9 KB · Views: 162

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157
Maveric said:
...a Mock-up for the SP.043 "Flora".

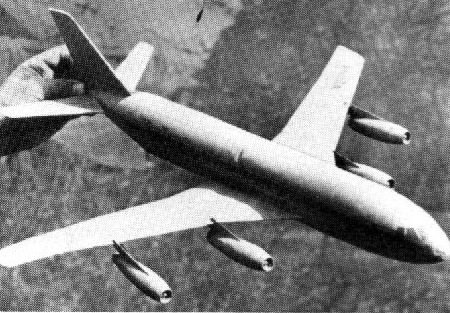

Maveric, that's not a mock-up. It's a wind tunnel model with working propellers, tested at the Aerodynamische Laboratorien der FWD (i. e. Aerodynamical Laboratories of the Flugzeugwerke Dresden) in 1960.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,125
A little different in its drawing for Baade 152;
http://www.flightglobal.com/pdfarchive/view/1956/1956%20-%201701.html


Attachments

  • untitled.JPG
    22.3 KB · Views: 963

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,125
Hi,

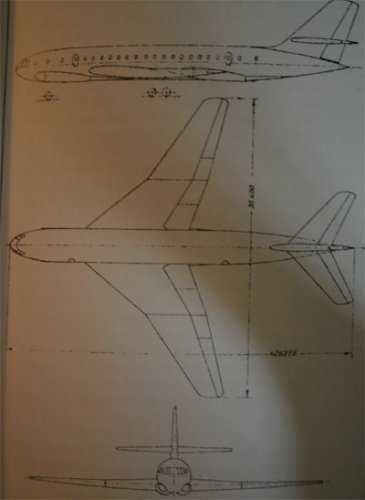

here is the Type-160,but sorry I have no more info.


Attachments

  • type-160.jpg
    21.9 KB · Views: 942

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,033
Reaction score
216
Thanks Hesham, the Type 160 looks like the jet engines are under the cabin floor; imagine internal the noise and difficulty of integrating engines into a pressurised fuselage. Imagine too the slaughter in the cabin from an uncontained engine failure......

Terry (Caravellarella)


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
782
Reaction score
211
Aerodynamically the Type 160 resembles a Victor Bomber?


T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
365
Reaction score
22
Hello guys i was guessing if there were projects of fighters in the German democratic republic,I know in Poland they had a project that looked like a MIG-23
I hope someone known something about such projects
best regards T-50


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157
More detailed book on the Baade 152 is published now, see here http://www.flugzeug-lorenz.de/index.php?id=123 .


Attachments

  • baade_152_new.jpg
    27.1 KB · Views: 903

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
55
The "152" airliner is often considered to be only a modification of Soviet-built Alexeyev/Baade "150" bomber prototype.
But is it true?

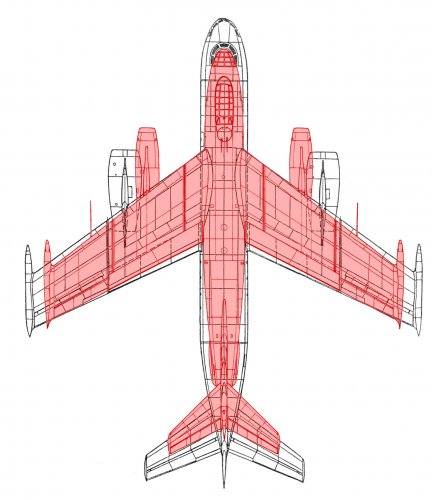

Here are some comparison pictures I made...


Attachments

  • 150-vs-152_1.jpg
    152.3 KB · Views: 769
  • 150-vs-152_2.jpg
    283.7 KB · Views: 720
  • 150-vs-152_3.jpg
    284.1 KB · Views: 117

thebig C

ACCESS: Confidential
Joined
Dec 28, 2010
Messages
108
Reaction score
5
Great thread. I think there was an article on the Baade B-152 in "Airliner World" last year. I have some old copies, I will see if I can dig it out:)

C


Similar threads

Top
