Yakovlev Yak-44E

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu

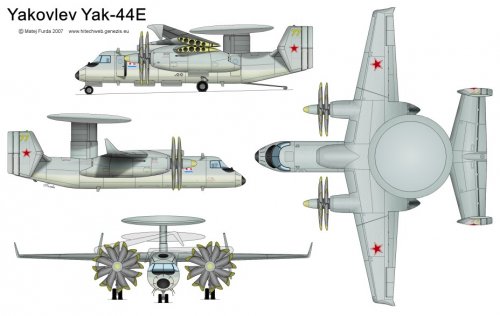

ASW and AWACS navy project. Related aircrafts are here:

http://www.secretprojects.co.uk/forum/index.php/topic,353.0.html


Attachments

  • Yak-44E.jpg
    86.4 KB · Views: 1,469

starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,060
Reaction score
145
Matej said:
ASW and AWACS navy project. Related aircrafts are here:

http://www.secretprojects.co.uk/forum/index.php/topic,353.0.html

Didn't this progress to the detailed mock-up stage, or am I thinking of another Soviet AEW aircraft?

Starviking


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu

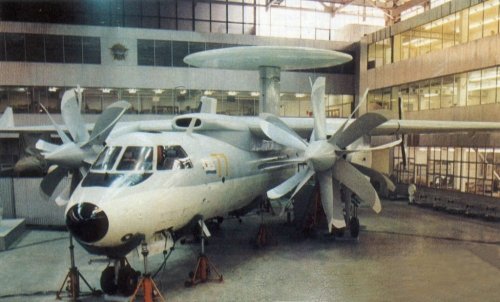

Yep! :) I am trying to post some info, but it doesn't look good with my free time. :-\


Attachments

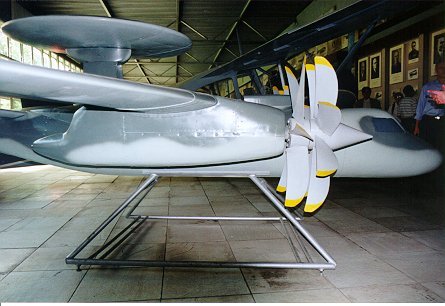

  • Jak-44E_full-scale.jpg
    148.2 KB · Views: 1,020

Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,023
Reaction score
106
I'm surprised that India hasn't bought this aircraft. They are desperately looking for a carrier AEW plane.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,044
Reaction score
870
Excellent, Mato!


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
rickshaw said:
I'm surprised that India hasn't bought this aircraft. They are desperately looking for a carrier AEW plane.

If you look carefully, you might notice that the photograph appears to depict only a mock up.

I don't know how far along the Yak-44E progressed, but it would not have been an inexpensive proposition even if it had been near completion at the time of the economic collapse of the Soviet Union. Even the D-27 propfans, shared with the An-70, were never fully developed and are currently thought to be out of production. Then comes the thorny issue of the actual radar system....


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,023
Reaction score
106
The Indians appear to be quite able to supply the radar, going the reports of their efforts with their Hs-748 prototypes are anything to go by. Their real problem was a suitable aircraft for carrier operations. This appears to be able to offer some solution.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,044
Reaction score
870

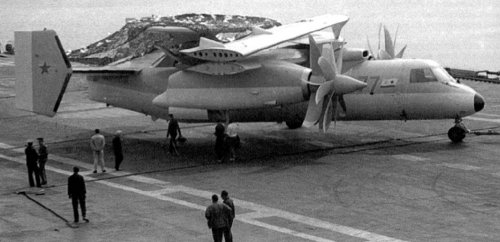

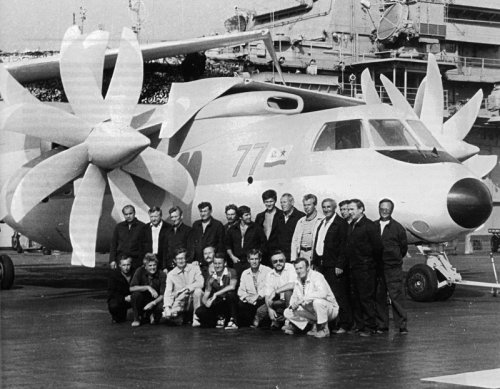

Yak-44 full-scale mock-up on the desk of Tbilisi during carrier compatibility tests, early spring of 1990
Source: Arsenal, 03/2008


Attachments

  • Yak-44_mockup_seatrials_spring-1990.jpg
    179.1 KB · Views: 868

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
Yakovlev Yak-44E

Type: Projected twin-turboprop airborne early warning and control aircraft.

Program: Originally planned for naval service after abandonment of Antonov An-72 derivative known to NATO as "Madcap." Program terminated by Defense Ministry late 1993. Yakovlev continued export marketing effort through 1994. Export version canceled in 1995.

Design features: Configuration very likely that of Grumman E-2 Hawkeye; major differences include straight wing trailing-edge and winglets; wings fold upward and forward; rotodome on high aerofoil section mast, lowers to same height as fins and folded wings for stowage; two tailfins only; twin main wheels; contra-rotating propellers on long shafts.

Dimensions external
Wing span: 25.20 m (82 ft 8.25 in)
Length overall: 20.59 m (67 ft 6.75 in)
Height overall rotodome up: 7.00 m (23 ft 0 in)
Height overall rotodome lowered: 5.14 m (16 ft 10.5 in)
Wheelbase: 9.373 m (30 ft 9 in)

Source: Lambert, Mark ed. Jane's All the World's Aircraft 1994-1995 Jane's Information Group Ltd. 1994 p. 387.

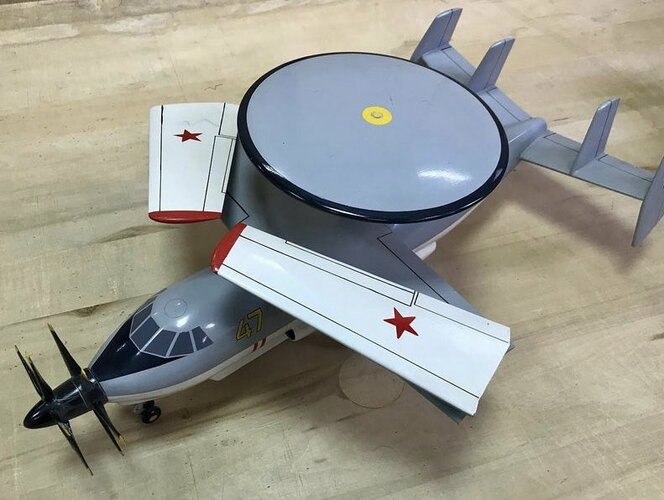

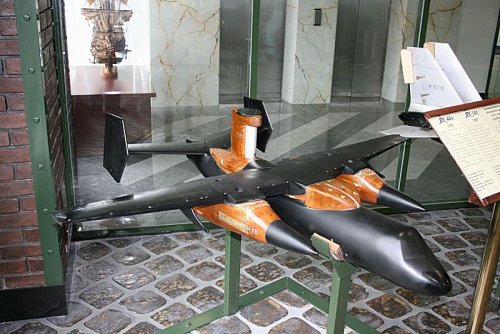

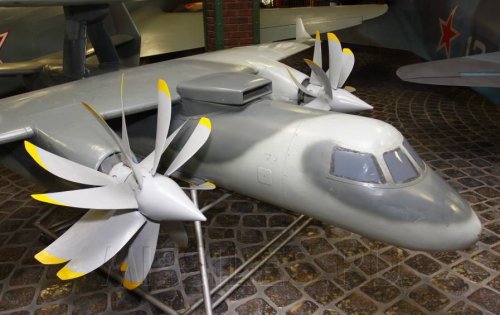

Model of Yakovlev Yak-44E.
Source: http://mig29.egloos.com/1631048


Attachments

  • f0060489_4ab9a16ee3cb1.jpg
    36.6 KB · Views: 174

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
Wow
What a loss on behalf of the Soviet`s (and latter Russia!)
The Soviet`s (both Navy and Air Force) could have done with such an important force-multiplier like the Yak-44E.
With the continues and ever growing want (and realization of importance) of AEW/AWACS platforms throughout the worlds military organizations, Russia could have/be making a packet out of this Hawkeye type aircraft, as opposed to the large and expensive (to both purchase and operate!) IL-78 platform.

Regards
Pioneer


foiling

ACCESS: Secret
Joined
Aug 12, 2007
Messages
280
Reaction score
9

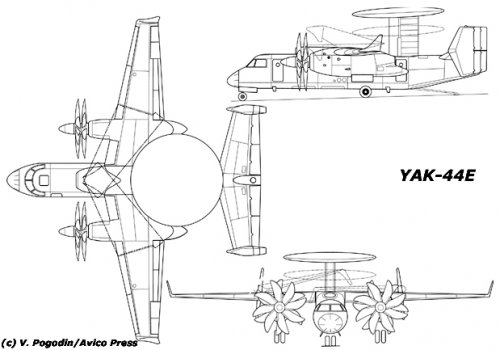

Thanks for the beautiful 3-views Matej & Ucon - nothing but the best & most interesting from you guys.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

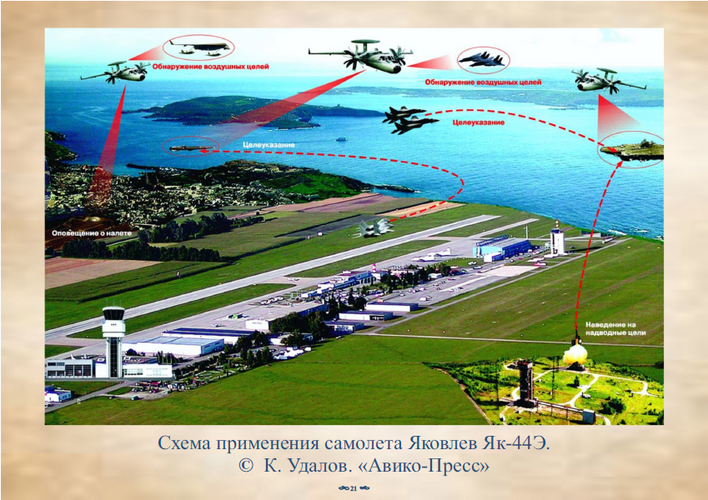

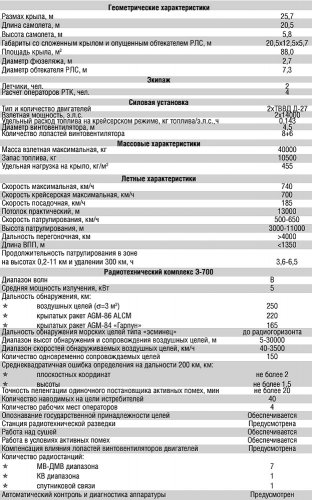

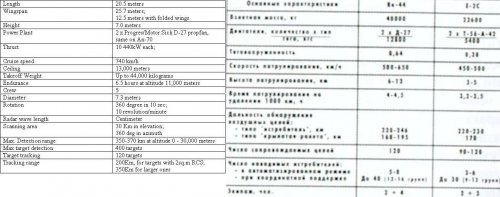

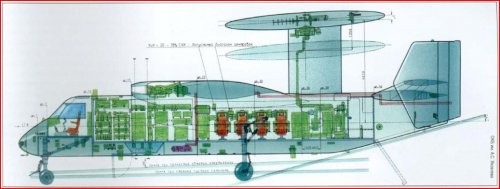

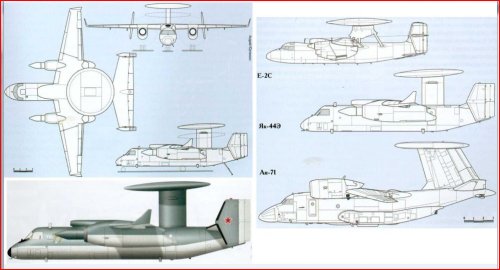

Source: http://www.yak.ru/DOCS/yak-44.pdf


Attachments

  • 25_74491_c16a65fe34f9800.jpg
    86.3 KB · Views: 451
  • 25_74491_110dba16c2337a8.jpg
    114.1 KB · Views: 230
  • 25_74491_5f4cf8f9e5a9f9b.jpg
    73.6 KB · Views: 212

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

Attachments

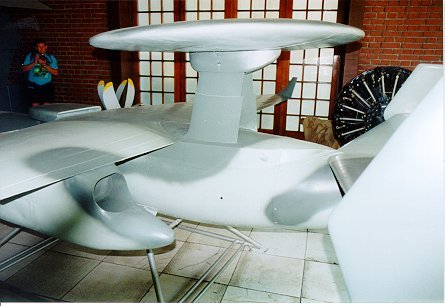

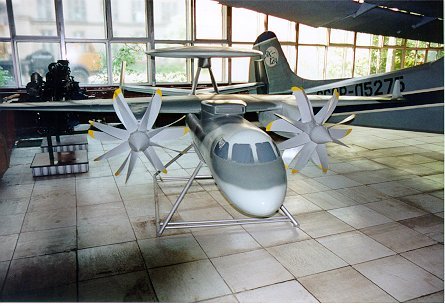

  • _MG_9912.jpg
    63.7 KB · Views: 116
  • day07_025.jpg
    100.7 KB · Views: 95
  • day07_021.jpg
    40.9 KB · Views: 78

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,044
Reaction score
870
http://www.yak.ru/DOCS/Yak-44E.pdf


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

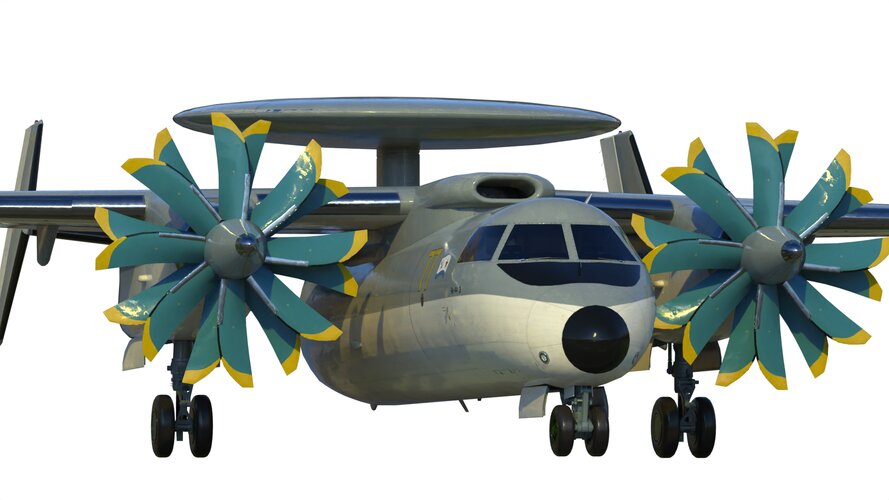

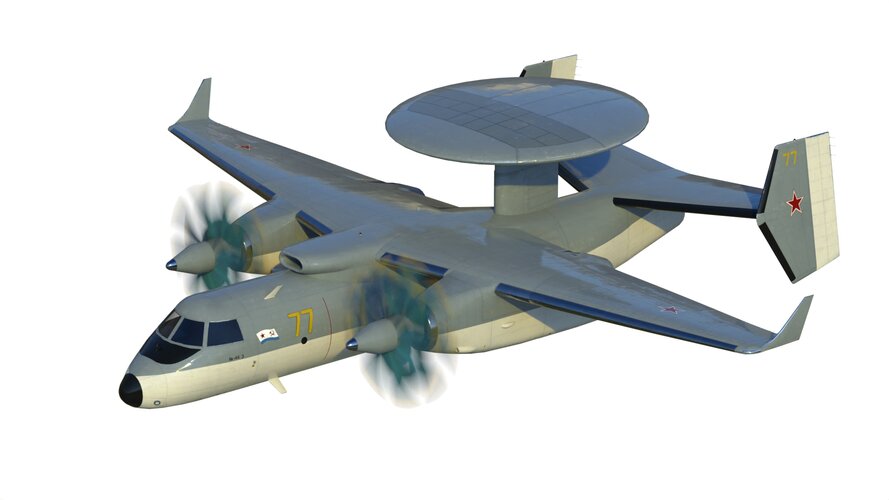

Pavel_P said:
Triton, you think YAK-44 was redesigned by Chinese?

I found the graphic on paralay and noticed the Chinese marking as well. The model could be entirely speculative. I was wondering though if the Peoples' Republic of China had expressed interest in licensing the Yakovlev Yak-44E design for use on its aircraft carrier(s). Did Yakovlev market the design to the Chinese for this purpose? Anyone know?


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
Paralay used to make interesting collages - the combination of photos and drawing. Regarding the licensing - very unlikely. If there was ever such an idea, than the primary customer should be the India.


T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
362
Reaction score
22

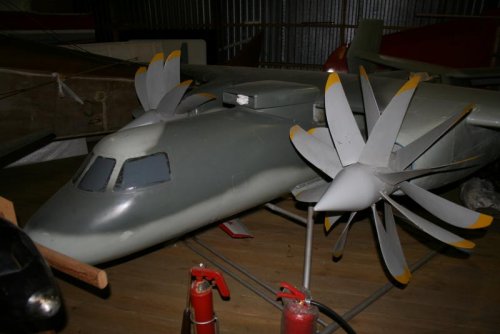

What's happened with the mockup of this very promising aircraft?
