This is for Tophe ;)

AW&ST June 12,2000 Pg 50. "Tu-160 launch program revamped to cut costs" by William B. Scott.

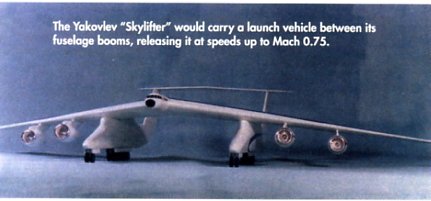

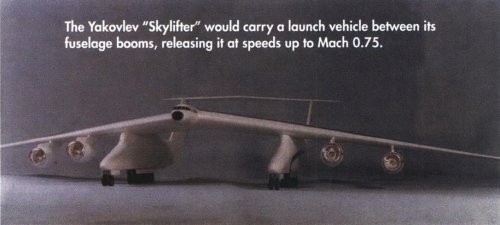

It is a huge double-fuselage aircraft that could launch either expendable rockets or a RLV. Projected to carry a 900,000-1 million-lb payload and launch it from altitudes up to 29,000 fet and speeds of Mach 0.65-0.75. It could also carry containerized cargo, a firefighting pod, emergency power module, or a mobile hospital/command post for disaster relief. In order to minimize costs, the outer wing sections are from an An-124 and its forward fuselage section from a Yak-40. Landing gear is derived from An-225. Cargo carriying area is 7 m high and 24 m wide


Attachments

  • File0275.jpg
    94.6 KB · Views: 761

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
47
Website
cmeunier.chez-alice.fr
Thanks, Antonio...
At the Portuguese site
http://ogrunho.wordpress.com/2006/05/09/yak-skylifter-o-aviao-que-quer-colocar-em-orbita-pessoas-e-cargas/
I got this (thanks to AltaVista BabelFish):
The Yakovlev currently develops a complex and extremely difficult program that it intends to construct a great airplane that can launch rockets or manned space vehicles.
The project "Skylifter" will be capable to carry a load up to 408 tons, corresponding to the gross weight of several of the systems of launching (RLVs), up to 9 km of altitude and to a maximum speed of Mach 0.65-0.75.
The Yak "SkyLifter" would substitute thus the conventional systems of launching, reducing the cost of load launching for terrestrial orbit. (…)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,223
Reaction score
1,568

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,189
Reaction score
4,653
It remind me THIS one
http://astronautix.com/lvs/sysem49m.htm


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
923
Website
deeptowild.blogspot.com
Source:
http://archive.aviationweek.com/issue/20000612#!&pid=50


Attachments

  • 28161591_10210653856558428_7512392806351918363_o.jpg
    143.7 KB · Views: 252
