Antonov An-124 development and variants

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
145
Website
www.hitechweb.genezis.eu

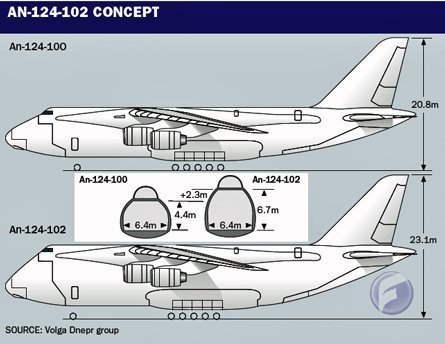

Russian outsize freight carrier Volga-Dnepr has detailed its proposed modified version of the Antonov An-124, which would have a taller fuselage to accommodate a greater range of industrial payloads.

The aircraft, designated the An-124-102, would be developed effectively by slicing a baseline An-124 lengthwise, from nose to tail, on a horizontal plane just below the level of the cockpit.

Additional fuselage structure would then be inserted that would jack the upper section by around 2m (6.5ft), increasing the tail height of the freighter from 20.8m to 23.1m. This would raise the interior cargo bay height from 4.4m to 6.7m, although the fuselage width would remain unchanged.

Volga-Dnepr said last year that it was studying a modified An-124, and group commercial director Dennis Gliznoutsa says the company is exploring whether there is sufficient commercial interest from a pool of customers who might use such an aircraft if it became available.

He admits the modification would be a "very expensive exercise", but claims that other outsize types - such as the Airbus A300-600ST and Boeing's 747 Large Cargo Freighter - are unavailable for ad hoc charter because of commitments to their respective airframers.

Current limitations mean certain payloads, such as helicopters and empennage assemblies, have to be dismantled to fit the An-124. The An-124-102's taller hold would enable it to handle the overwhelming majority of aerospace cargo, he adds, with the exception of certain Airbus A380 components.

Aerospace clients would be the "prime target" for the jet, but Volga-Dnepr is also approaching industrial firms that manufacture large-scale equipment for the energy sector.

Gliznoutsa points out that the An-124's lower floor would allow "drive on, drive off" loading and unloading. It would not require the specialised elevating platforms needed to load the A300-600ST and the 747LCF, whose deck heights are around 5m from the ground.

Volga-Dnepr has developed computer-based models of the proposed aircraft and released projected performance data that indicates the overall payload capacity would be reduced to 135t against the 150t of the most modern version of the An-124. The range with this payload would also shorten from 4,000km (2,160nm) to 2,500km.

Fuel consumption would increase by about 10%, says Gliznoutsa, and the aircraft would be about 25kt (45km/h) slower in cruise. Modification could be completed in about 18-25 months. The company estimates the cost of the aircraft at $195 million.

If it secures enough interest in the An-124-102, Volga-Dnepr has two options for a candidate airframe. Its preference is to obtain, subject to Russian government approval, an unused military example. Alternatively it could modify one of its own An-124s, although Gliznoutsa says this is the "less desirable situation".

http://www.flightglobal.com/articles/2008/07/17/225715/picture-volga-dnepr-details-proposed-taller-an-124-variant.html


Attachments

  • 325983296.jpg
    33.4 KB · Views: 1,997

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
660
Website
deeptowild.blogspot.com
Volga-Dnepr Big News newsletter from August 2008 (Issue 15) containing the cover story "Volga-Dnepr evaluates stretched AN-124-102 for special aerospace and industrial payloads."

The article points out that Volga-Dnepr would prefer to purchase an An-124 from the Russian Air Force and then perform the modification as a retrofit provided that the capability generates sufficient customer interest. If it cannot acquire an existing military aircraft, Volga-Dnepr would perform the retrofit on one of the An-124 aircraft in its fleet.

http://www.jamierochepr.co.uk/newsletters/volga-dnepr/august2008/download/Volga-Dnepr_Big_News_Issue_15.pdf


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
530

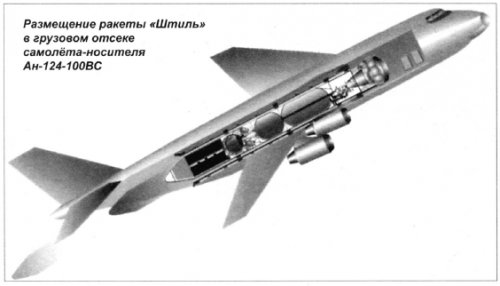

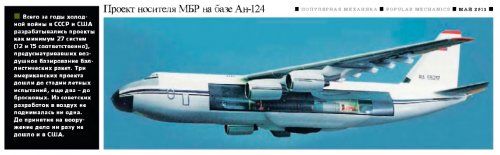

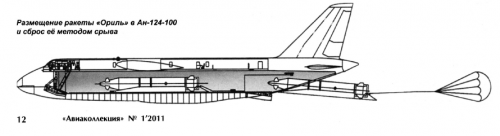

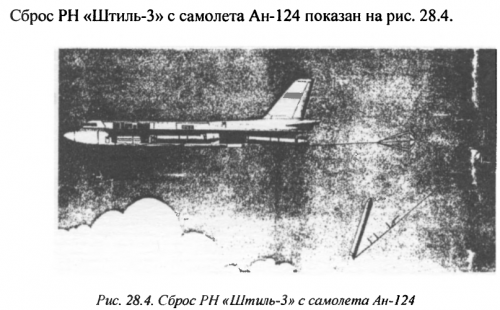

The An-124 was one of several aircraft studied as possible airborne InterContinental Ballistic Missile (ICBM) launchers, a project reminiscent of Boeing's own MC-747:


Attachments

  • An-124 ICBM launcher.jpg
    An-124 ICBM launcher.jpg
    190.1 KB · Views: 1,548

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
Skyblazer said:
The An-124 was one of several aircraft studied as possible airborne InterContinental Ballistic Missile (ICBM) launchers, a project reminiscent of Boeing's own MC-747:


The same idea as I think.


Attachments

  • 124.png
    295.7 KB · Views: 1,172

ZacYates

LHX SuperTeam fanboy
Joined
Dec 26, 2012
Messages
83
Reaction score
19
Please forgive my dredging-up of an old thread: were there ever (Soviet?) plans to give the Ruslan defensive armament or any sort of countermeasures?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
ZacYates said:
Please forgive my dredging-up of an old thread: were there ever (Soviet?) plans to give the Ruslan defensive armament or any sort of countermeasures?

Good question Zac,but who can help in this ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057

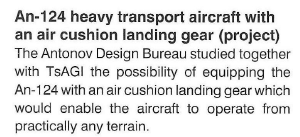

From a Russian book.


Attachments

  • 1.png
    85.7 KB · Views: 626
  • 2.png
    76.8 KB · Views: 599

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
Hi,

as I know,early Project for An-124 was smaller and had only 120t weight in 1968 ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
hesham said:
as I know,early Project for An-124 was smaller and had only 120t weight in 1968 ?.

Also,there was anther Project in 1972,given the designation An-124,with 120t weight ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
Hi,

anther Project given the designation An-124 was in 1976,but no more details are known.


stashandr

ACCESS: Confidential
Joined
Jul 9, 2007
Messages
55
Reaction score
13
There were 3 projects: An-122 (development of An-22), four-engine An-124 and six-engine An-126.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
Thank you for the Info Stashandr,

and for An-122 it was appeared in two different Projects.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
Thank you for the Info Stashandr,

and for An-122 it was appeared in two different Projects.

An-122/I was a developed version of An-122,for cargo and transport duties,maximum weight 120 ton and range 2500 km,Project
An-122/II was a heavy transport military aircraft of 1966,maximum weight 270 ton,Project
