XV-1,XV-2,XV-3 competition

devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Friends.

know, that in competition participated seventeen firms: 19 proposals.

1) McDonnell Model M-82--------------XV-1
2) Sikorsky Model S-57------------------XV-2
3) Bell Model B-200----------------------XV-3
4) Lockheed TDN Model L-203

Help to find and other projects...


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
860
Reaction score
206
Btw, David Brown gave the designation D200 to the Bell XV-3 in his"The Bell Helicopter Textron Story" instead of B-200. This should be correct.


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Hi boxkite.

I think, that should be: Model 200(B-200),
Because, development of model D-188/XF-109, in 1955-1956 years,
and development of Model 200, in 1950-1951 years.
(development of Model D-200 more late, than Model D-188)

Model 200-------------XV-3
Model D-188A--------XF-109
Model D-200--------what scheme or what type of the helicopter or airctraft or ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Hi,

Was that Piasecki SUP project belong to that competition ?.


Attachments

  • piasecky-sup.jpg
    8.3 KB · Views: 1,106

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,115
Reaction score
659
I am sure that Martin also entered a design to this competition

Regards
Pioneer


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
24
That could be the MArtin 365 model, but I have no other information.

Jos Heyman


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Hi Jos,

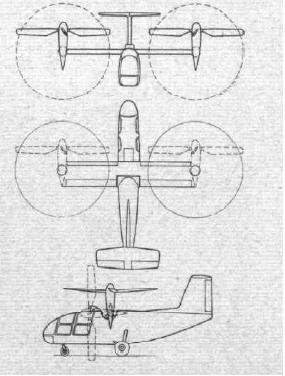

Do you know that Gyrodyne project involved in this competition ?.


Attachments

  • Gyrodyne-military convertiplane.jpg
    Gyrodyne-military convertiplane.jpg
    31.1 KB · Views: 871

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Hi,

The Kellett K-25 was a project of convertiplane powered by two
Lycoming XT53-L-1 gas turbine engines,it was involved in this
competition.


source for drawing only; Flightglobal.


Attachments

  • K-25.jpg
    20.8 KB · Views: 874

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Hi,

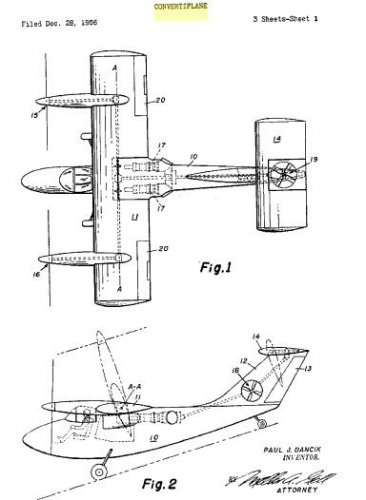

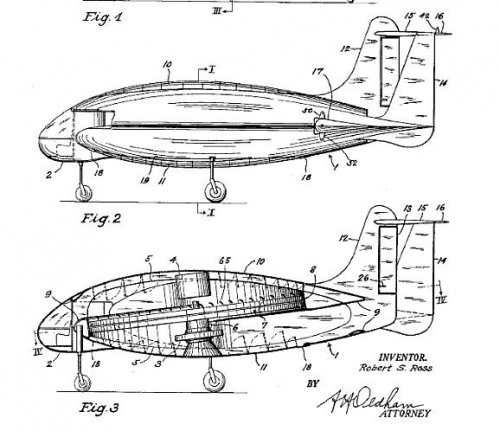

May be the that Vertol convertiplane project was the
proposal for this competition,please see;
http://www.google.com/patents?id=BFBkAAAAEBAJ&printsec=abstract&zoom=4&dq=vertol+convertiplane#PPA4,M1


Attachments

  • Vertol.JPG
    29.3 KB · Views: 752

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
24
Considering that the XV-1, XV-2 and XV-3 appeared in the 1953/54 period (based on their serials), I would not consider a patent dated 1960 as part of that competition. Perhaps this patent is an outgrwoth of the Vertol VZ-2.


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
16
Hello All!

The competitor from firm Gyrodyne: Model GCA-5 (or Model GCA-15, as it is written in a picture.Picture on top)


luedo34

The worst is yet to come!
Joined
May 9, 2009
Messages
98
Reaction score
3
Hi, where there any other tiltrotor-contenders in this competition, apart from the built XV-3 and the (unbuilt) Kellet K-25?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Hi,

for Kellett K-25,it was displayed here;

http://www.flightglobal.com/pdfarchive/view/1958/1958%20-%200381.html

And for the Gyrodyne I think it was GCA-32 project.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Thank you Luedo 34,

and I check from GCA-33,it had only two seat and one engine,and the GCA-32
was a convertiplane,but it powered by two engines and had seven seat,also
its rotor diameter 60ft,and for GCA-33 28ft.So I think it's anther project
for this competition,may be GCA-31.
The Goodyear Convo,I think it involved too.


Attachments

  • Convo.JPG
    23.5 KB · Views: 1,766

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115

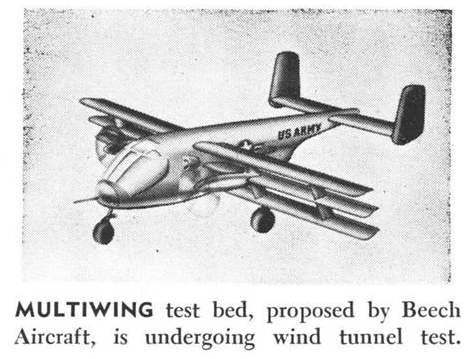

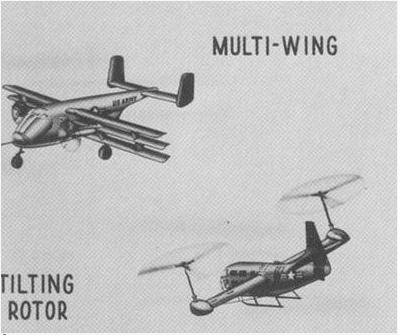

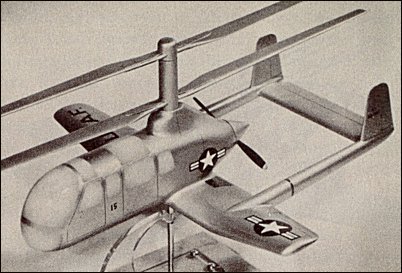

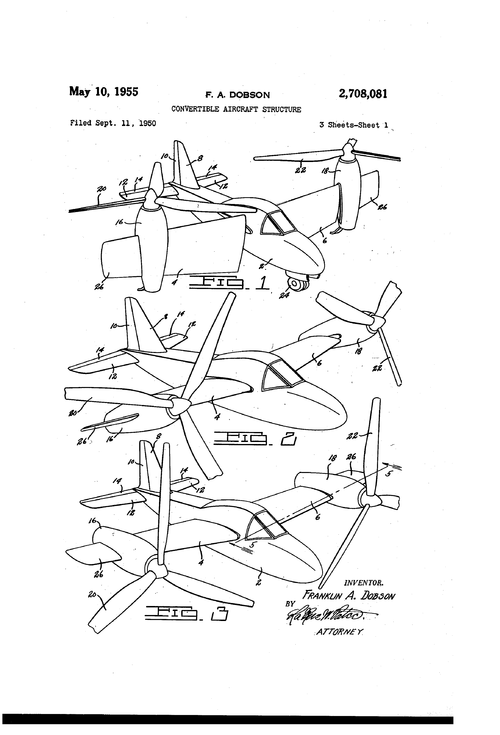

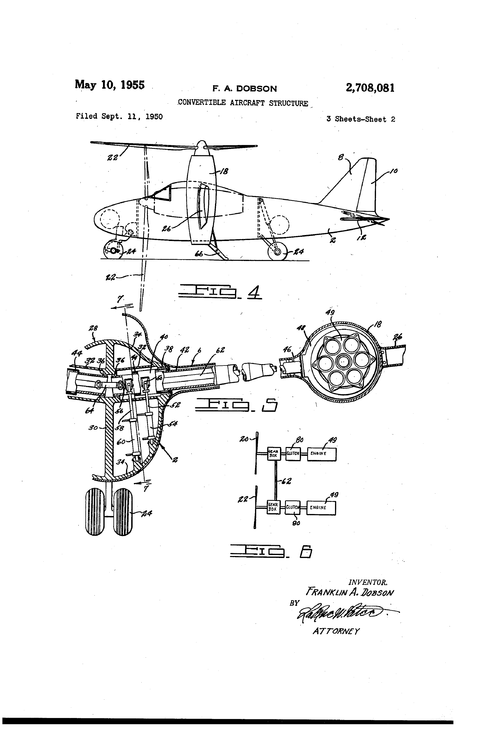

The convertiplane below in the illustration seems to be
an early design sketch of the McDonell XV-1..
Which is the multiwing aircraft ?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
Error..
The convertiplane is the Bell design ofcourse..
I'm getting older.. ;D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
hesham said:
Hi,

May be the that Vertol convertiplane project was the
proposal for this competition,please see;
http://www.google.com/patents?id=BFBkAAAAEBAJ&printsec=abstract&zoom=4&dq=vertol+convertiplane#PPA4,M1

I think the Vertol VTOL aircraft which was mentioned in this patent,discribe
in this Flightglobal page;

http://www.flightglobal.com/pdfarchive/view/1956/1956%20-%201573.html


Attachments

  • Vertol.JPG
    29.3 KB · Views: 580

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
24
I think we discussed this Vertol design earlier in this set of postings. Timing is wtrong.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
I suggest that,

the Convertiplane for Prof.Rutowski from the Wayne University
was involved in this competition,because the tender began in
1951.


Attachments

  • Convertiplane.JPG
    26.3 KB · Views: 587

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
24

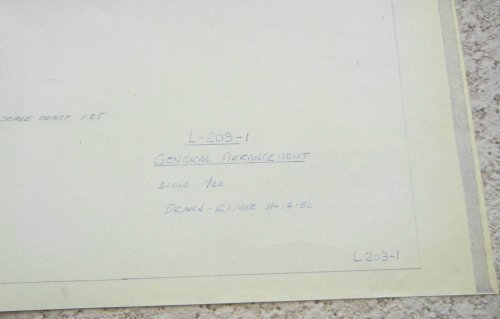

In June 1952 Bell presented a mock-up of the Bell 200, what later became the XV-3.
Would anybody have a photo of that mock-up?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com

Attachments

  • $_57L203F.JPG
    208 KB · Views: 66
  • $_57L203E.JPG
    145.7 KB · Views: 79
  • $_57L203D.JPG
    208.4 KB · Views: 86
  • $_57L203C.JPG
    321.5 KB · Views: 91
  • $_57L203B.JPG
    290.9 KB · Views: 91
  • $_57L203A.JPG
    216.1 KB · Views: 175

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011

Attachments

  • Rutowski.png
    431.1 KB · Views: 187

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
hesham said:
Thank you Luedo 34,

and I check from GCA-33,it had only two seat and one engine,and the GCA-32
was a convertiplane,but it powered by two engines and had seven seat,also
its rotor diameter 60ft,and for GCA-33 28ft.So I think it's anther project
for this competition,may be GCA-31.
The Goodyear Convo,I think it involved too.

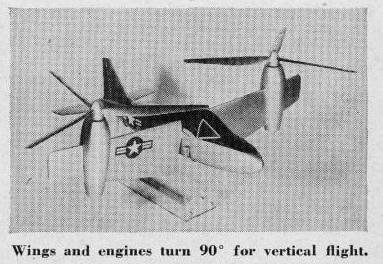

It's Beech design.

http://archive.aviationweek.com/issue/19570909#!&pid=68


Attachments

  • 1.png
    161.5 KB · Views: 519

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
hesham said:
It's Beech design.
http://archive.aviationweek.com/issue/19570909#!&pid=68

The design you're showing, hesham, is the Beechcraft Cascade.
We've got a whole topic on it:
http://www.secretprojects.co.uk/forum/index.php/topic,12266.0


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
Oh sorry my dear Skyblazer,

we can transfer it to this topic.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
hesham said:
hesham said:

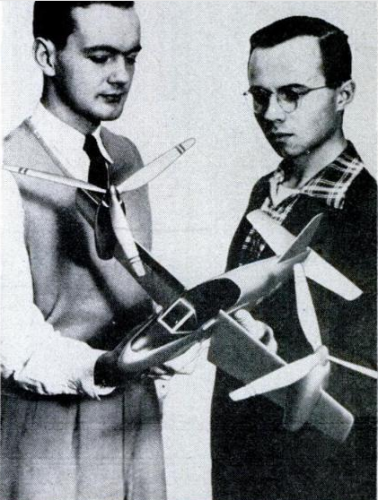

I suggest that,

the Convertiplane for Prof.Rutowski from the Wayne University
was involved in this competition,because the tender began in
1951.

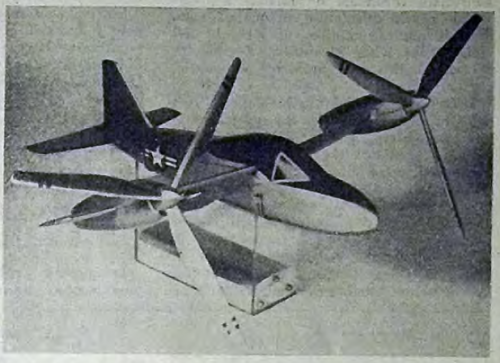

And anther picture to Rutowski convertiplane Model.


http://books.google.com.eg/books?id=1t4DAAAAMBAJ&pg=PA118&dq=popular+mechanics+vertiplane&hl=en&sa=X&ei=nxz_U8ezOOis0QWGr4HYDg&ved=0CCQQ6AEwAg#v=onepage&q=popular%20mechanics%20vertiplane&f=true

And from A'Ala;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala/L'Ala%201951%2004.pdf


Attachments

  • 1.png
    527.5 KB · Views: 344

Hypersonics Anonymous

ACCESS: Restricted
Joined
May 3, 2021
Messages
10
Reaction score
27

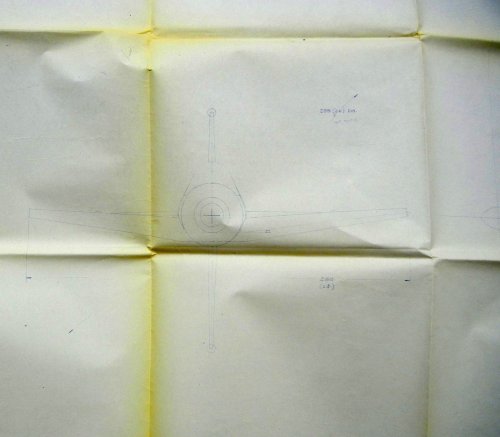

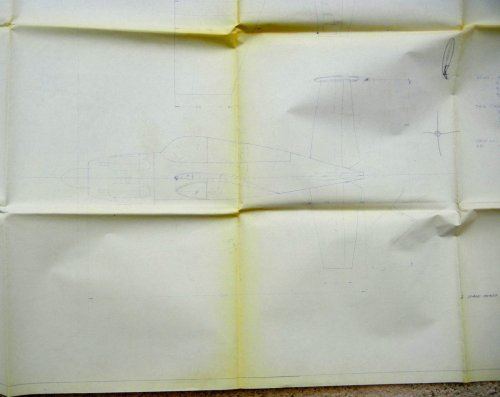

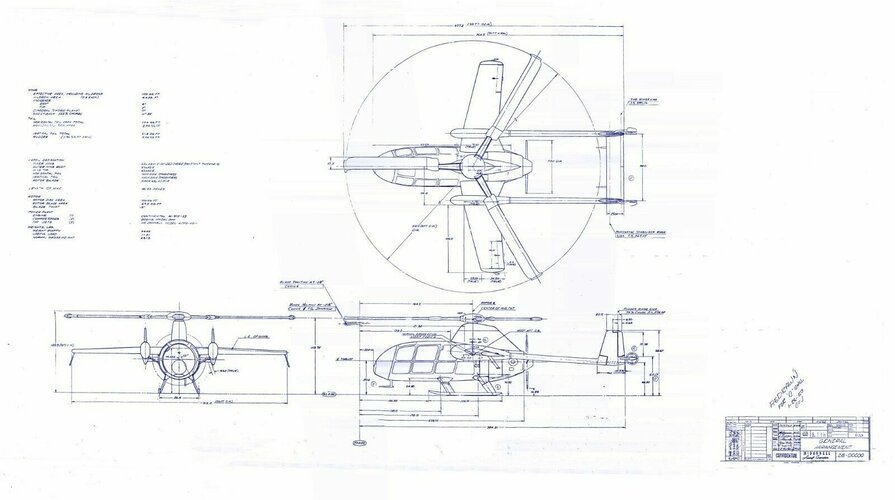

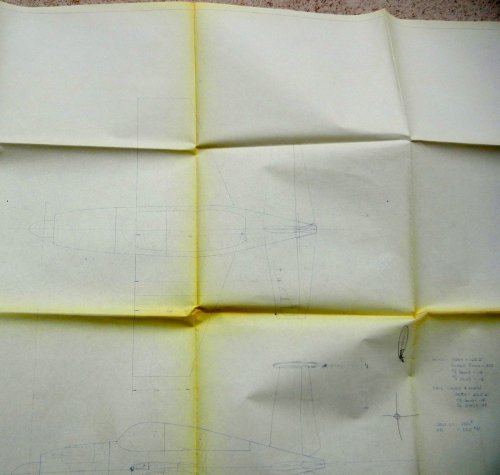

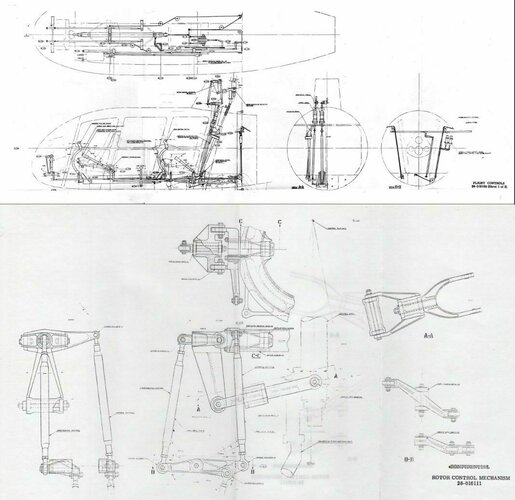

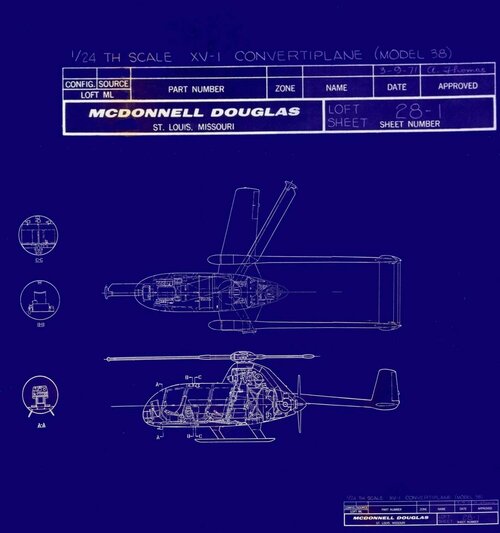

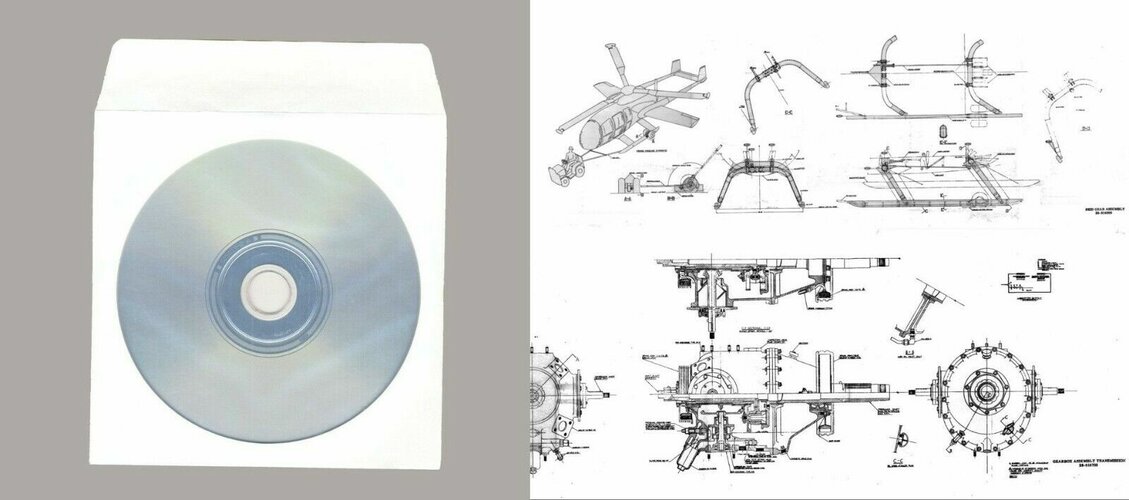

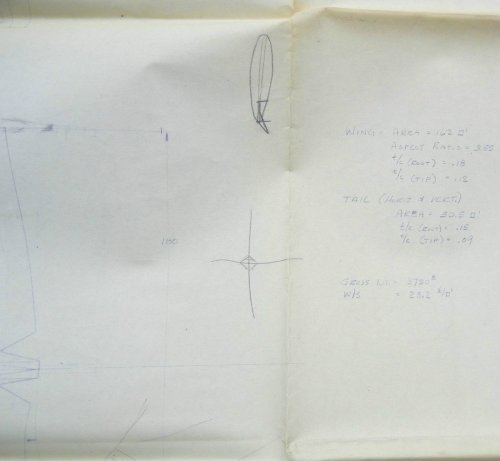

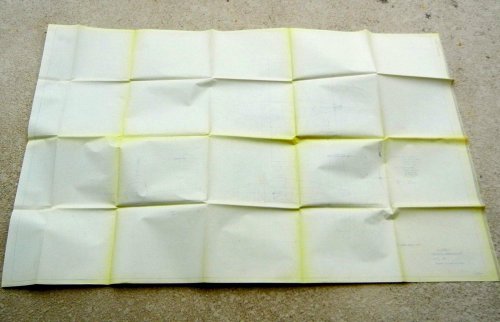

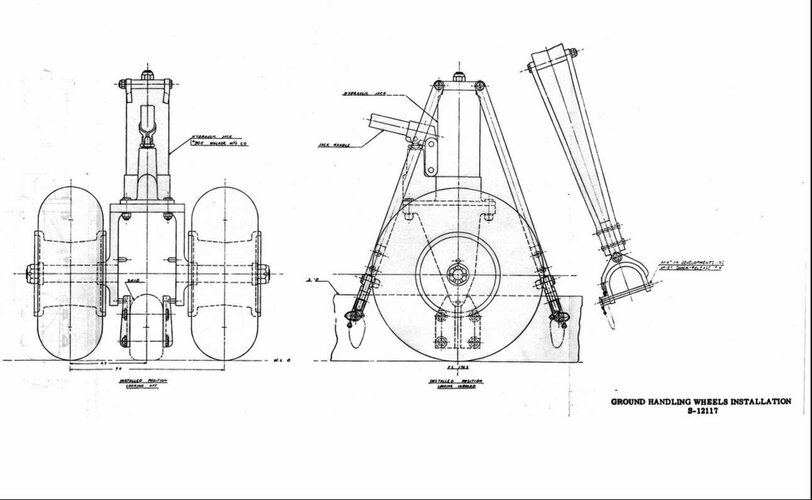

Not sure if this goes here: McDonnell XV-1, blueprints are up on Ebay (not sure who's interested, I for one am not bidding. And for clarification, I'm not the seller either): McDonnell-XV-1-Helicopter-blueprint-plans-report-1950s-RARE.jpg


Attachments

  • McDonnell-XV-1-Helicopter-blueprint-plans-report-1950s-RARE-_57.jpg
    163.2 KB · Views: 34
  • McDonnell-XV-1-Helicopter-blueprint-plans-report-1950s-RARE-_571.jpg
    127.8 KB · Views: 32
  • McDonnell-XV-1-Helicopter-blueprint-plans-report-1950s-RARE-_572.jpg
    83 KB · Views: 30
  • McDonnell-XV-1-Helicopter-blueprint-plans-report-1950s-RARE-_573.jpg
    104.3 KB · Views: 34
