Hi,

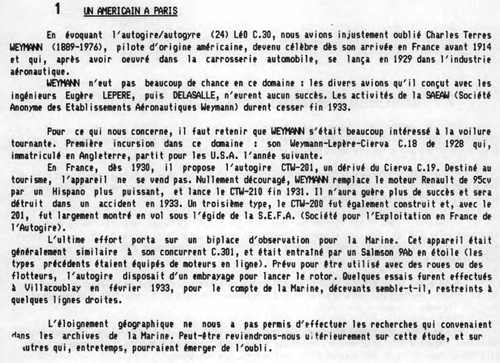

Mr. Charles Terres Weymann was born in Haiti,and became a French pilot and designer after moved to France,he
made some aircraft and Projects,until he opened Société des Avions Weymann-Lepère in 1929,and his list was as
following;

WEL-10 was a two-seat parasol wing recce monoplane,powered by one 650 hp Hispano-Suiza 12Nb engine
WEL-11 was a two-seat parasol wing observation monoplane,developed from WEL-10

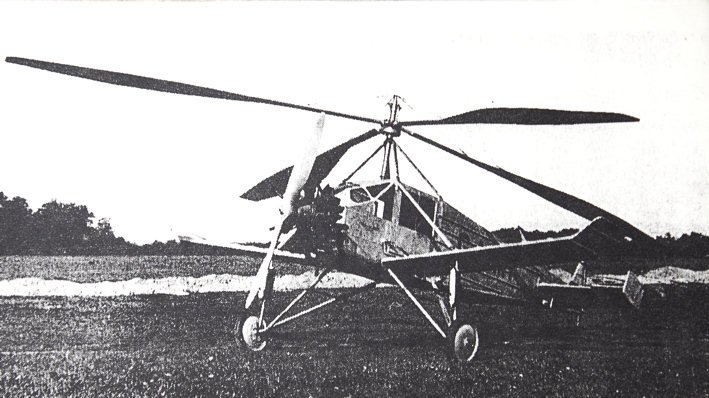

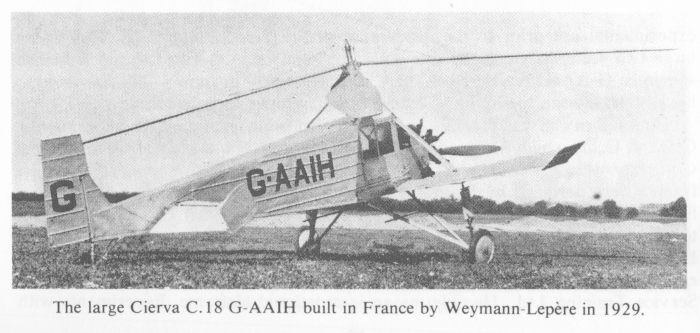

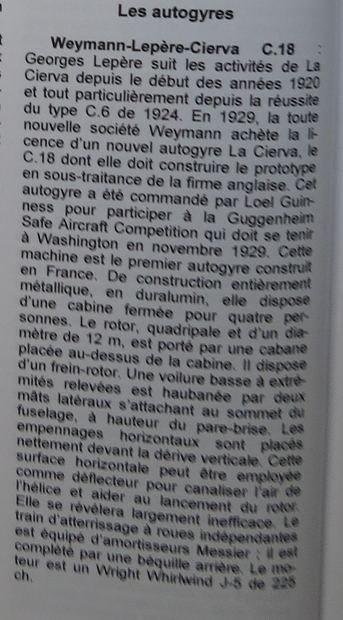

CTW-20 was a the same as Lepere/Cierva C.18,need confirm
WEL-30 ------?
WEL-40 was a colonial transport aircraft Project,intended to compete in 1930 competition
WEL-50 was a high-wing tourist monoplane,powered by one 95 hp Renault 4Pb pusher engine,mounted on pylon
WEL-51 was a development of WEL-50,ordered in two prototypes but never completed,need confirm
WEL-52 was a refined version of WEL-50,also a tourist aircraft
WEL-60 was a three engined colonial transport high-wing monoplane of 1930,powered by three 250 hp Wright-Hispano 9 Qa engines
WEL-63 was a three engined colonial/transport high-wing monoplane,need confirm;
CTW-66 was a three-seat colonial aircraft,powered by three 300 hp Lorraine 9Na engines
WEL-70 was a three-seat night recce aircraft Project,intended for RN.3 contest
WEL-80 was a two-seat recce biplane aircraft,powered by one 650 hp Hispano-Suiza 12Nb engine
WEL-81 was a two-seat recce biplane,derivative of WEL-80,need confirm
WEL-90 ------?
CTW-100 was a three-seat recce biplane developed from WEL-80,powered by one 575 hp Hispano-Suiza 9Va engine
CTW-110 ------?
CTW-120 ------?
CTW-130 was a two-seat tourist biplane aircraft,powered by one 95 hp Renault 4Pb engine
CTW-131 was a modified version of CTW-130 as a tourist aircraft,powered by 150 hp Hispano-Suiza 5Q engine
CTW-132 was a light and tourist aircraft,based on CTW-130,need confirm
CTW-140 to CTW-190 ------?,probably not used

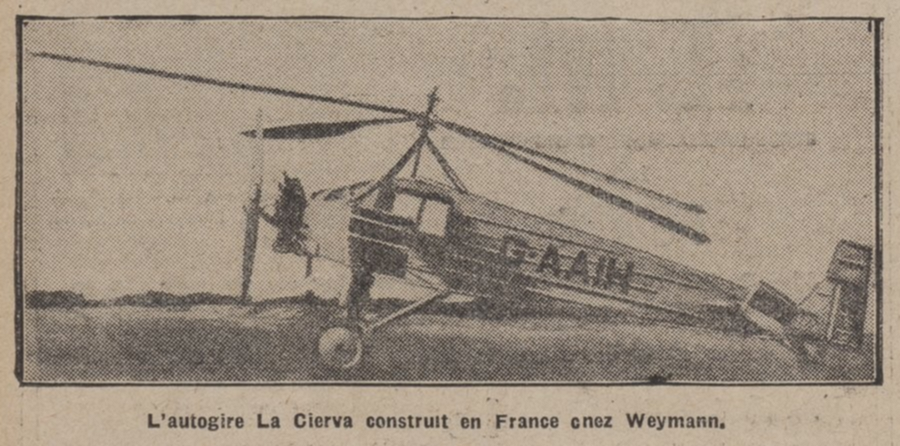

WEL-200 was a two-seat autogiro built on request of La Cierva for Pitcairn in the United States,powered by one 225 hp Wright J 6 engine,1929
WEL-201 was a two-seat autogiro,powered by one 95 hp Renault 4 Pb engine,1930

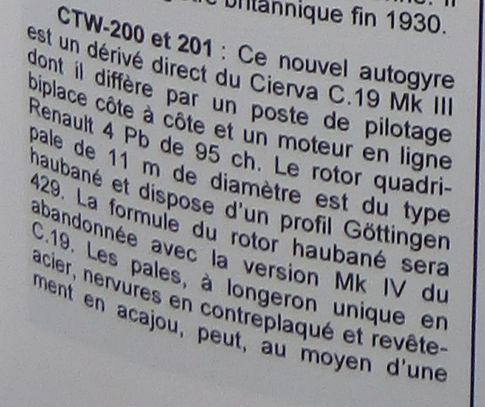

CTW-200 was a two-seat tourist autogiro,powered by one 100 hp Renault 6Pa engine,1933

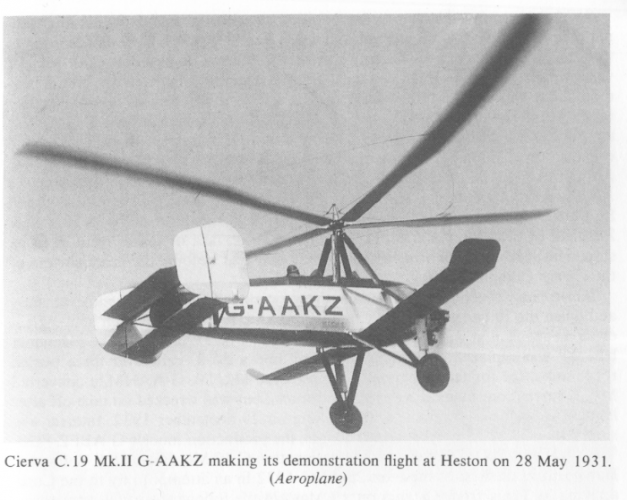

CTW-201 was a two-seat tourist autogiro,derivative of Cierva C.19/3,powered by one 95 hp Renault 5Pb engine
CTW-210 was a two-seat tourist autogiro,powered by one 100 hp Hispano-Suiza 6Pa engine
CTW-220 ------?
CTW-230 & CTW-231 was a two-seat tourist autogiro,powered by one 100 hp Hispano-Suiza 6Pa engine


- the early aircraft and Projects will illustrate later

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,372
Reaction score
6,031
Hi,

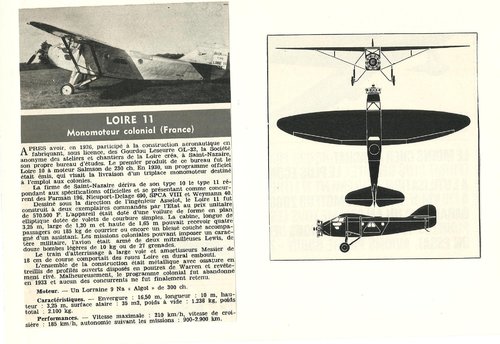

I edit the WEL-40, it was a colonial light transport aircraft Project for 1930 contender,and here is the proof.

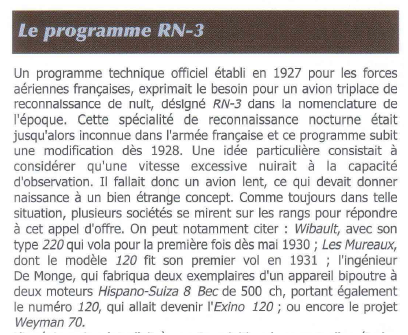

For WEL-70, I remember the source for it was RN.3,or a three seat night recce aircraft Project,from AFM magazine.


Attachments

  • Loire-11.jpg
    606.7 KB · Views: 28
  • 2.png
    143.5 KB · Views: 30
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,372
Reaction score
6,031
For non-standard series and early one;

W-1 was a single-seat biplane fighter,powered by one 80 hp Clegret pusher engine
1918 was colonial all-metal wing aircraft Project,powered by one engine
1919 was a single seat biplane experimental fighter Project,based on W-1,also powered by one pusher engine


any additions or corrections are welcome


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,857
Reaction score
1,499
Thanks hesham. As noted before, the correct company name was: Société des Avions Weymann-Lepère - not 'Leper'. Some sources give the name as Weymann-LePère (Societé des Avions).

Minor biographical notes:

Charles Terres Weymann was indeed born in Port-au-Prince but since his father was an American, he too became a US citizen. After testing aircraft for Nieuport during WWI, he became best known for automotive coachwork - Société de Carrosserie Weymann (Paris); Weymann Motor Body Co. (London), and later Weymann American Body Co. (Indianapolis).

Capt. Georges LePère was a French aeronautical engineer with a previous American connection. While attached to the French Aeronautical Mission to the US, Capt. LePère was approached to design what became the Packard-Le Père LUSAC-11.

LePère later became the chief designer for Aviméta (Société pour la Construction d'Avions Métallique) - part of Schneider et Cie. There, in 1927-29 he designed such all-metal aircraft as the Aviméta A.V.M. 88 2-seat fighter, A.V.M. 92 cabin monoplane, and A.V.M. 132 trimotor.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,372
Reaction score
6,031
Thank you my dear Apophenia,

I fixed it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,372
Reaction score
6,031
Hi,

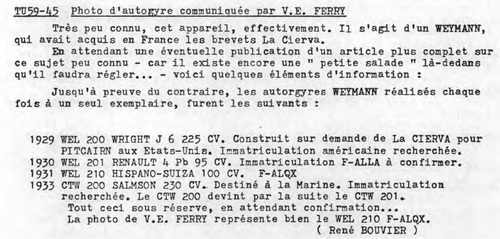

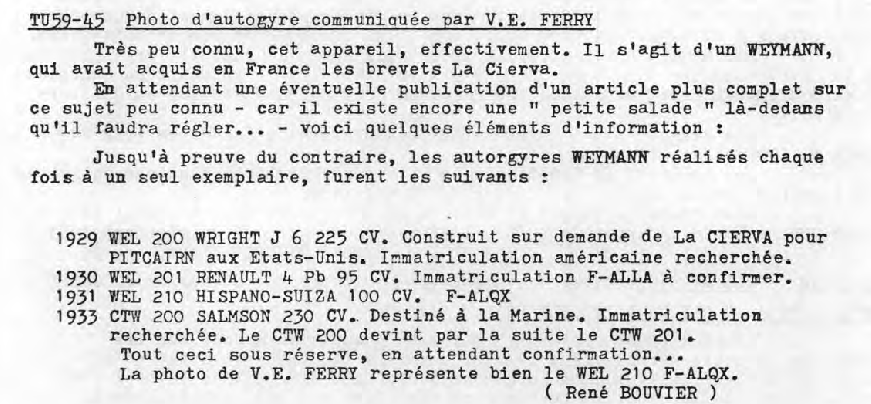

I add WEL-200 & WEL-201 to the list,they differ from CTW-200 & CTW-201.

TU magazine.


Attachments

  • W-1.png
    448.2 KB · Views: 11
  • W-2.png
    286.2 KB · Views: 10
