Vultee XP1015 and other twin engined Vultee fighter projects

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,516
Reaction score
250
Vultee XP1015 twin engined fighter

Again an excellent find hesham! Congratulations.

While waiting for more opinions from other members, I think that Vultee design is the Model XP-1015 or a very close relative.

XP-1015 was Vultee's entry to USAAC Circular Proposal X-608 for high altitude interceptor pursuit aircraft. The winner was Lockheed Model 22 which entered mass production as P-38 Lightning.

A Vultee XP-1015 drawing can be found on Warren M. Bodie "The Loockheed P-38 Lightning". Widewing Publications. Pg 19.

Best Regards,

Antonio


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
11
Vultee XP1015 twin engined fighter

Hi All!

Vultee Model XP-1015-----Vultee Model 35 (V-35)


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Vultee XP1015 twin engined fighter

What is your source Nugo ?


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
11
Vultee XP1015 twin engined fighter

Hi lark!


Attachments

  • 1.jpg
    27.4 KB · Views: 1,490
  • 3.jpg
    27.9 KB · Views: 1,604
  • 2.jpg
    25.3 KB · Views: 1,585

nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
11
Vultee XP1015 twin engined fighter

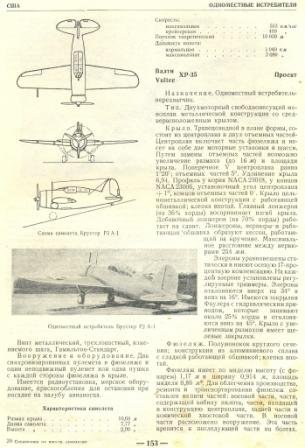

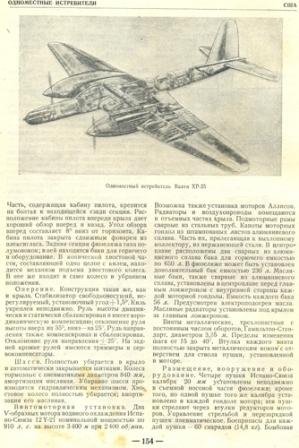

source: soviet book " Ñïðàâî÷íèê ïî Èíîñòðàííûì Ñàìîë¸òàì" , ïîä ðåäàêöèåé Ì. Í. Øóëüæåíêî ( ÖÀÃÈ, 1940 ãîä)
pages: 153-155

and "Vultee Aircraft 1932-1947" , Jonathaan Tompson
page: 128
(Model) 35 Pursuit Project

Vultee XP-1015 AKA XP-35 AKA Model 35


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,516
Reaction score
250
Vultee XP1015 twin engined fighter

Great!! Many Thanks Nugo :)

Antonio


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Vultee XP1015 twin engined fighter

Splendid ! Many thanks Nugo.


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
243
Reaction score
31
Website
www.res-aeronautica.com
Vultee XP1015 twin engined fighter

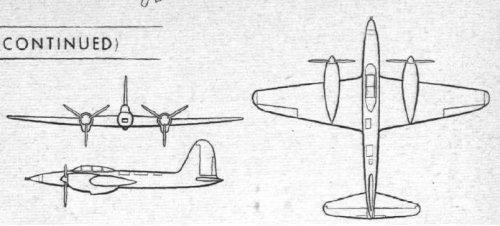

Hi friends! I found the 3-view of an unknown Vultee fighter in an old italian newspaper. I don't know if it is a real project: in the article the're no more infos about that project, they just indicate the aircraft like "Vauguard".


Attachments

  • Immagine.jpg
    117.5 KB · Views: 963

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
478
Vultee XP1015 twin engined fighter

That's the Vultee XP-1015 project (see further above). I've merged your topic with the existing one!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,778
Vultee XP1015 twin engined fighter

Hi,

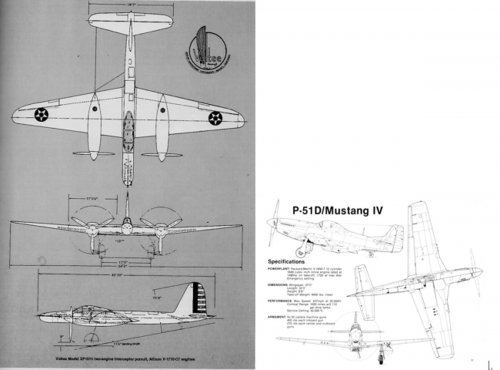

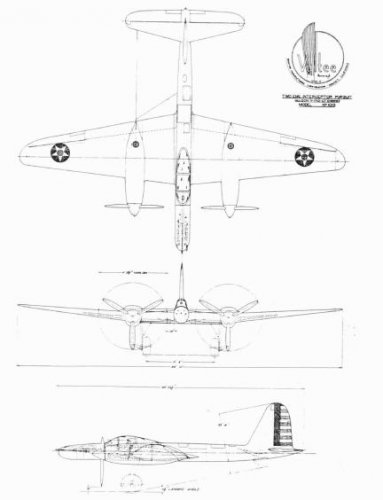

here is anther 3-view to Vultee XP-1015 twin engined fighter project.


Attachments

  • XP-1015.JPG
    19.6 KB · Views: 293

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Vultee XP1015 twin engined fighter

You forgot once again to mention the source Hesham.

in this case : Vultee "P-38" by Dusty Carter in AAHS Journal Spring 1988.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,778
Vultee XP1015 twin engined fighter

Ok my dear Lark,but the source is;


the book; The Lockheed P-38 Lightning by Warren M. Bodie.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Vultee XP1015 twin engined fighter

Ah , interesting ! Then the same drawing must have been used...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,778
Vultee XP1015 twin engined fighter

lark said:
Ah , interesting ! Then the same drawing must have been used...


Yes my dear lark,and I think exactly it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,778
Vultee XP1015 twin engined fighter

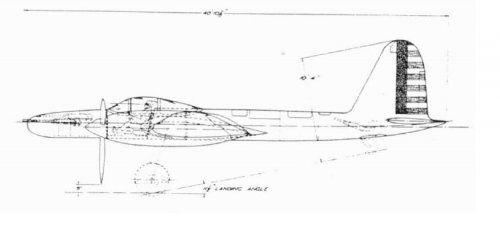

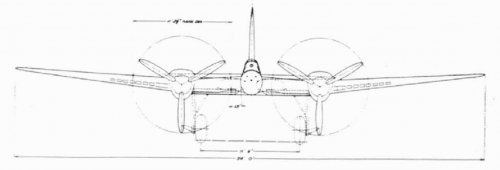

And I repeat the drawing but seperately,to help in Modelling form.


Attachments

  • 3.JPG
    22.7 KB · Views: 767
  • 2.JPG
    25 KB · Views: 778
  • 1.JPG
    29.5 KB · Views: 764

Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
10
Re: Vultee XP1015 twin engined fighter

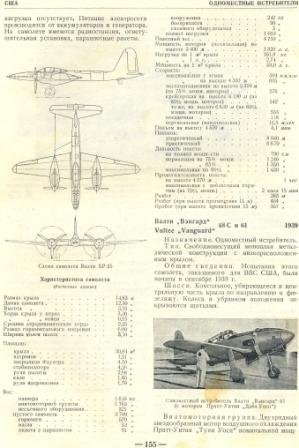

Well, we found in soviet documents description and general views. But... as XP-35.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,778
Re: Vultee XP1015 twin engined fighter

Nice find Taranov.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,761
Reaction score
858
Re: Vultee XP1015 twin engined fighter

Taranov said:
Well, we found in soviet documents description and general views. But... as XP-35.

Yes that make sense because the XP1015 was Competitor for USAAF ‘Twin-engine, High Altitude Interceptor’
in end it winner was Lockheed Model 22 / XP-38 better know as P-38 Lightning


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,497
Reaction score
2,808
Re: Vultee XP1015 twin engined fighter

Hi!
Where is the radiator? ;D
Did XP1015 has a turbocharger?
Bottom drawing is XP-35?
Engine nacelle shape is little different from XP1015.


Attachments

  • XP1015.jpg
    320.3 KB · Views: 188
  • ANOTHER SHAPE.jpg
    ANOTHER SHAPE.jpg
    40 KB · Views: 155

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Re: Vultee XP1015 twin engined fighter

Taranov ,

The Vultee project on the drawing is indeed the Vultee XP-35. (Vultee desingnation not to confuse with the US AAC system)
It was a smaller version of the their XP 1015...

What are the origings of your drawing..?


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
151
Reaction score
13
Re: Vultee XP1015 twin engined fighter

Taranov said:
Well, we found in soviet documents description and general views. But... as XP-35.

This is a most interesting discovery. The drawing looks as though it might have come directly from Vultee. Were the Soviets looking at purchasing manufacturing rights, or buying planes from Vultee?


Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
168
Reaction score
32
Re: Vultee XP1015 twin engined fighter

IIRC, the USSR did buy some V-11s in this general time period, so there was apparently contact and it is possible other aircraft were offered by Vultee.
Best Regards,
ArtieBob


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
151
Reaction score
13
Re: Vultee XP1015 twin engined fighter

blackkite said:
Hi!
Where is the radiator? ;D
Did XP1015 has a turbocharger?

According to Dusty Carter's article in the Spring 1988 AAHS Journal, he worked on the proposal as a junior draftsman. He states it had twin turbos, four .50 caliber and one 20mm gun mounted in the nose, and radiators buried in the wings (note openings in the outboard leading edges).


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,497
Reaction score
2,808
Re: Vultee XP1015 twin engined fighter

Apteryx said:
blackkite said:
Hi!
Where is the radiator? ;D
Did XP1015 has a turbocharger?

According to Dusty Carter's article in the Spring 1988 AAHS Journal, he worked on the proposal as a junior draftsman. He states it had twin turbos, four .50 caliber and one 20mm gun mounted in the nose, and radiators buried in the wings (note openings in the outboard leading edges).
Thanks a lot. It's logical that XP1015 had twin turbo because XP1015 was a competitor of P-38. But I can't find where turbo charger was.
Turbocharger was located at the fuselage same as XP-71?
Radiator position was a big problem for every radical designer who designed the aircraft with liquid cooling engine.


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
151
Reaction score
13
Re: Vultee XP1015 twin engined fighter

blackkite said:
Thanks a lot. It's logical that XP1015 had twin turbo because XP1015 was a competitor of P-38. But I can't find where turbo charger was.
Turbocharger was located at the fuselage same as XP-71?
Radiator position was a big problem for every radical designer who designed the aircraft with liquid cooling engine.

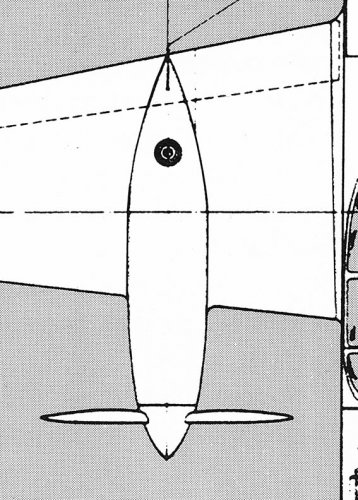

See the detail of the nacelle. I assume the round thing towards the rear is a GE turbocharger.


Attachments

  • Vultee XP1015 nacelle.jpg
    Vultee XP1015 nacelle.jpg
    132.6 KB · Views: 43

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,497
Reaction score
2,808
Re: Vultee XP1015 twin engined fighter

Oh I see. Thanks a lot again. :eek:

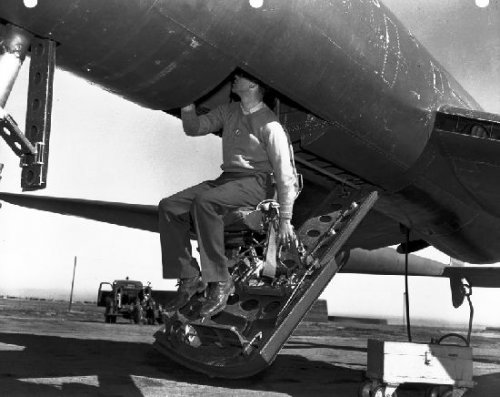

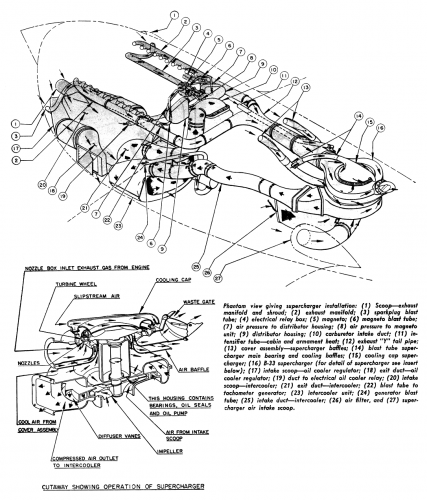

Perhaps air intake for turbo charger, air intake for intercooler and air intake for oil cooler were also located at the wing leading edge.

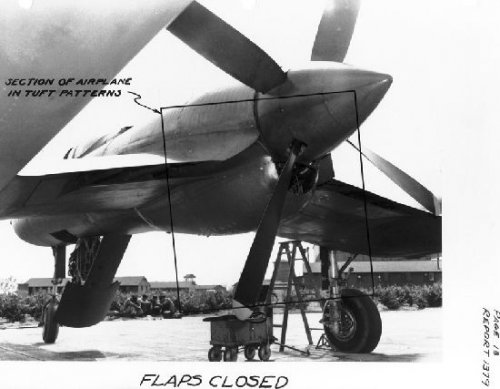

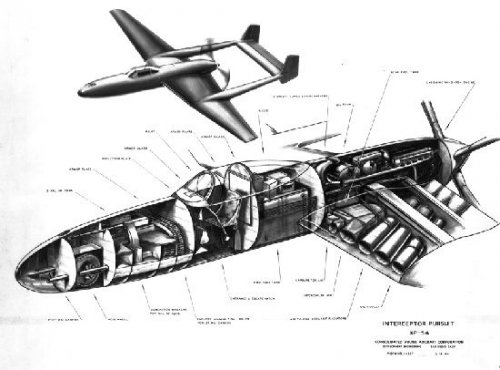

Vultee XP-54 wing leading edge airintakes were as follows.
From inboard to outboard
①Air intake for turbocharger
②Air intake for intercooler
③Air intake for radiator
④Air intake for radiator
⑤Air intake for oil cooler


Attachments

  • P-38 V1710 turbocharging system.png
    P-38 V1710 turbocharging system.png
    250.6 KB · Views: 59
  • 4556605726_9d4a31dfc8_z.jpg
    57.4 KB · Views: 55
  • 4556605696_d6055aea9f_z1_zps24ed3874.jpg
    65.2 KB · Views: 64
  • XP-54.jpg
    61.5 KB · Views: 111

Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
151
Reaction score
13
Re: Vultee XP1015 twin engined fighter

blackkite said:
Oh I see. Thanks a lot again. :eek:
Perhaps air intake for turbo charger, air intake for intercooler and air intake for oil cooler were also located at the wing leading edge.
Vultee XP-54 wing leading edge airintakes were as follows.
From inboard to outboard
①Air intake for turbocharger
②Air intake for intercooler
③Air intake for radiator
④Air intake for radiator
⑤Air intake for oil cooler

Thanks for sharing the XP-54 cutaway--I had not seen it before. Do you know the source of the image?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,497
Reaction score
2,808
Re: Vultee XP1015 twin engined fighter

Hi!
Page 144. ;)


Attachments

  • 61RSAP2dCQL__SY498_BO1,204,203,200_.jpg
    72.9 KB · Views: 39

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Re: Vultee XP1015 twin engined fighter

A bit more information...

XP-1015 Vultee's proposal for X-608 powered by two Allison V-1710-C7 engines

XP-35 aimed for the foreign market powered by two Hispano-Suiza 12Y-21 engines.
XP-35 also noted as configuration XP-236 on a drawing dated August 1937-after the end
of X-608 competition.

From: Convair Advanced Designs Vol II- Robert E.Bradley- Crécy /UK


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
151
Reaction score
13
Re: Vultee XP1015 twin engined fighter

lark said:
A bit more information...

XP-1015 Vultee's proposal for X-608 powered by two Allison V-1710-C7 engines

XP-35 aimed for the foreign market powered by two Hispano-Suiza 12Y-21 engines.
XP-35 also noted as configuration XP-236 on a drawing dated August 1937-after the end
of X-608 competition.

From: Convair Advanced Designs Vol II- Robert E.Bradley- Crécy /UK

The Soviet connection makes even more sense now. The Hispano-Suiza 12Y was being produced and developed in Russia by 1938.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,497
Reaction score
2,808
Hi!

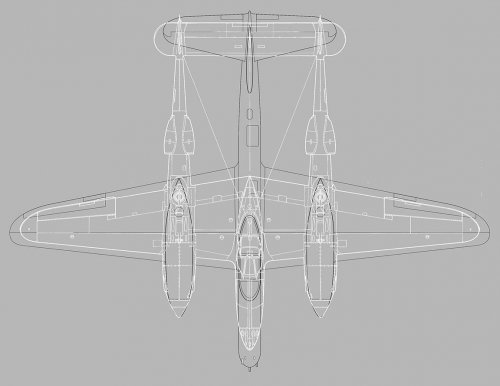

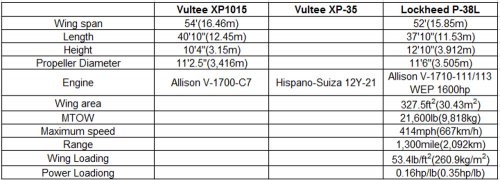

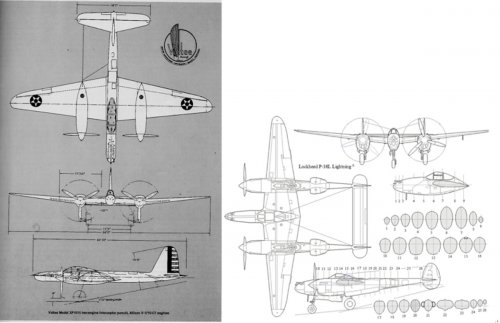

Almost same scale.

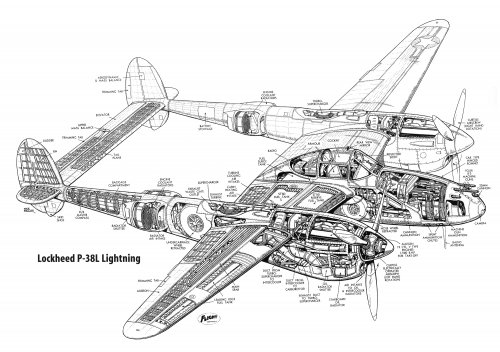

XP1015 is very slim. Cockpit is narrow for American pilot? But cockpit breadth kept P-51 size.;D
I imagine that XP1015 had smaller room for fuel compared with p-38. XP1015 large main landing gears were retracted to the inboard wing and outboard wing was filled with intercooler, radiator and oil cooler. Main landing gears of P-38 were retracted to the engine nacelle.

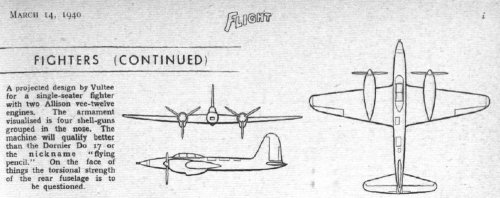

Flight said that XP1015 torsional strength of the rear fuselage is to be questioned.
Too slim? ;D
Of course P-38 connected twin rear fuselage torsional stregth is enough. C.L.Johnson's design is excellent.

http://www.engineeringtoolbox.com/torsion-shafts-d_947.html


Attachments

  • strength of the rear fuselage is to be questioned.jpg
    strength of the rear fuselage is to be questioned.jpg
    100.6 KB · Views: 362
  • 9cdfa9f21a69106416071a93b3a106d5.jpg
    1.4 MB · Views: 457
  • Almost same scale 2.jpg
    Almost same scale 2.jpg
    123.2 KB · Views: 464
  • Aircraft16.jpg
    82.2 KB · Views: 495
  • Almost same scale.jpg
    Almost same scale.jpg
    128.6 KB · Views: 512

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,497
Reaction score
2,808
Someone please show me blanked part. ;)


Attachments

  • XP1015.jpg
    120.9 KB · Views: 67

Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
151
Reaction score
13
I've superimposed the plan views of the Vultee XP1015 and the P-38E to scale. Overall dimensions are similar, but the Lockheed has notably less wing area (P-38E drawing from: P-38 Lightning In Action, Larry Davis).


Attachments

  • Vultee Lockheed Twins.jpg
    Vultee Lockheed Twins.jpg
    77.7 KB · Views: 88

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,497
Reaction score
2,808
Apteryx said:
I've superimposed the plan views of the Vultee XP1015 and the P-38E to scale. Overall dimensions are similar, but the Lockheed has notably less wing area (P-38E drawing from: P-38 Lightning In Action, Larry Davis).
.
Thanks a lot. Excellent drawing. :eek: I felt so,too. Perhaps P-38 wing loading was larger than XP1015 wing loading.
I really want to konw XP1015 empty weight or MTOW.


Similar threads

Top
