Vought (LTV) V-530 and V-534 (US Navy "Type A" proposals)

[Stargazer]

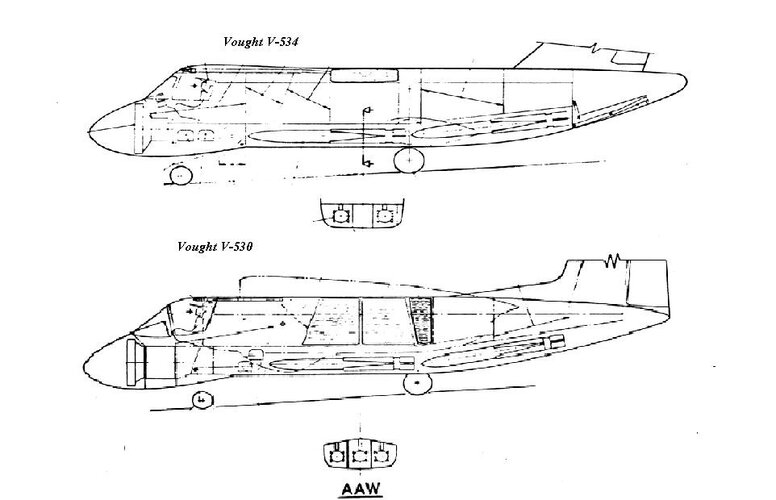

From GRC via NARA (straightened & cropped):

Thanks for these superb images of one of my all-time favorite almost-were aircraft.



[Dew]

Thanks for these superb images of one of my all-time favorite almost-were aircraft.

There's this scan also without the Vought title



[Scott Kenny]

Hi folks,

Over on Whatifmodelers, there was mention of a proposal to test podded pegasus on the Lockheed S-3 Viking to possibly create a VSTOL verion. Does anyone know anything of this?

Regards,

Greg

Hadn't heard about it, but that would be one heck of a hotrod! going from ~9,000lbs to ~20,000lbs thrust per engine is going to do interesting things!



[Pioneer]

Ok, there's a question here that begs the question, which I thought someone would have already asked.
What would the 'missile' depicted in this Vought V-530 & V-534 be? The fact they have folded fins.....

Regards
Pioneer



[TomS]

Ok, there's a question here that begs the question, which I thought someone would have already asked.
What would the 'missile' depicted in this Vought V-530 & V-534 be? The fact they have folded fins.....

Regards
Pioneer

Any relation to this one? They look similar aside from the folding wings.

https://www.secretprojects.co.uk/threads/bendix-aam-n-10-eagle-aam-rival-proposals-and-developments.4264/post-633966



[Pioneer]

Any relation to this one? They look similar aside from the folding wings.

https://www.secretprojects.co.uk/threads/bendix-aam-n-10-eagle-aam-rival-proposals-and-developments.4264/post-633966

Thank you TomS for your response.
Yeah, I'm not sure, what with the folded wings...But being completely honest, I know dido about the said Vought V-415A missile

Although, I'm just thinking, if the V-415A was a competitive design of the Eagle missile, would it still be associated with a 1970's design like the V-530 & V-534?

In which case, I guess, it's off to do some research on the V-415A.....

Regards
Pioneer
