Hi,
Looking for information on the LTV V-517 V/STOL fighter proposed for the Sea Control Ship.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,112
Tony Buttler published a 3 view of the V-517, a perspective drawing of the V-517 and a front view of the related V-520 design plus information on it in American Secret Projects: Fighters and Interceptors 1945-1978.

I highly recommend you pick up a copy :)


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,695
Reaction score
824

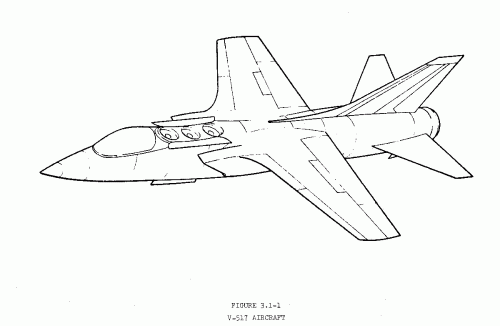

Here are some drawings for the V517 courtesy of the Vought Archives.

Enjoy the Day! Mark


Attachments

  • xVought V-517.gif
    xVought V-517.gif
    10 KB · Views: 1,588

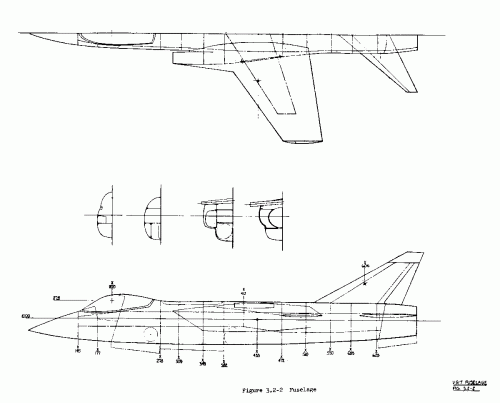

  • xVought V-517 Inboard Profile.gif
    xVought V-517 Inboard Profile.gif
    18.2 KB · Views: 849
  • xVought V-517 side & upper view.gif
    xVought V-517 side & upper view.gif
    13.6 KB · Views: 842

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,695
Reaction score
824
...and the V520, again from the Vought Archives.

Enjoy the Day! Mark


Attachments

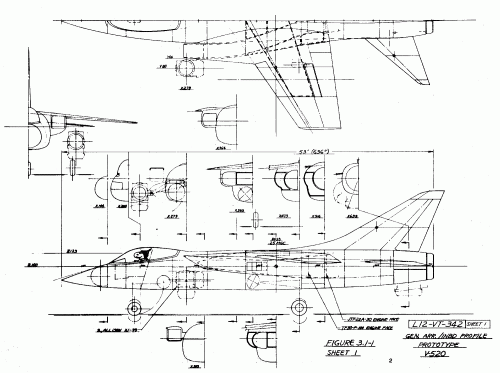

  • xV-520 General Arrangement & Inb Profile.gif
    xV-520 General Arrangement & Inb Profile.gif
    52.8 KB · Views: 1,545

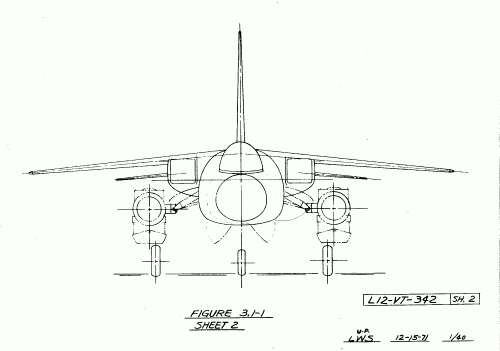

  • xV-520 Front View.gif
    xV-520 Front View.gif
    23.8 KB · Views: 824

OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
27
Website
www.io.com
XB-70 Guy said:
Loving Snoopy as the pilot of V-517 (bottom drawing)!

...Agreed! It begs for more examples of subtle humor in blueprints, much as the "Easter Eggs" found in the Star Trek TNG Enterprise blueprints.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,434
Reaction score
303
OM said:
XB-70 Guy said:
Loving Snoopy as the pilot of V-517 (bottom drawing)!

...Agreed! It begs for more examples of subtle humor in blueprints, much as the "Easter Eggs" found in the Star Trek TNG Enterprise blueprints.

Heh, or the "Goodstone" tire logo that appears on the B-2 GA drawings (though you really have to enlarge them in CADAM to see that).


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
The difference between the V-517 and V-520 models seems to reside only in the fact that the former had a "fixed" engine. What does that mean exactly here?


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,695
Reaction score
824
Variations on a theme. Seems the fold out lift engines were a design fashion of sorts in that general time frame when you look at some of the other designs coming out of Republic, Fairchild and the like though you can say the same for the lift engines in the fuselage along the center line. It would be interesting to read what the Navy was thinking and if they had preferences that the two designs were trying to cater to.

I would think that the fold out engine version has better roll control in slow flight/hover and possibly a more stable hover than the lift engines mounted in the fuselage aft of the cockpit. I would also think that general maintenance would be easier with the fold out engines though you pay a price with a bit more complexity in the mechanics of the set up. Either way though, that's not a whole lot of airframe and volume for the fuel needed to make things go for more than a few miles!

Enjoy the Day! Mark


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,695
Reaction score
824
Greetings All -

Here are two more 3 views for the V-517 out of different documents. You'll note the use of two lift engines vs. three as shown on the first drawings I posted and other minor details/refinements too. The listing of the engines is useful too.

Enjoy the Day! Mark


Attachments

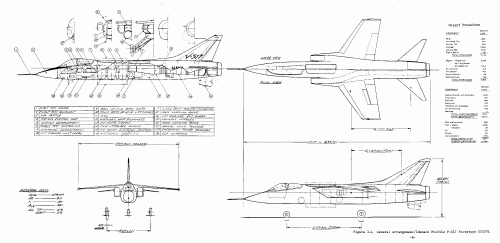

  • Vought V-517 3V - 1.gif
    Vought V-517 3V - 1.gif
    50.7 KB · Views: 353
  • Vought V-517 3V - 2.gif
    Vought V-517 3V - 2.gif
    221.5 KB · Views: 418

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,695
Reaction score
824
Greetings All -

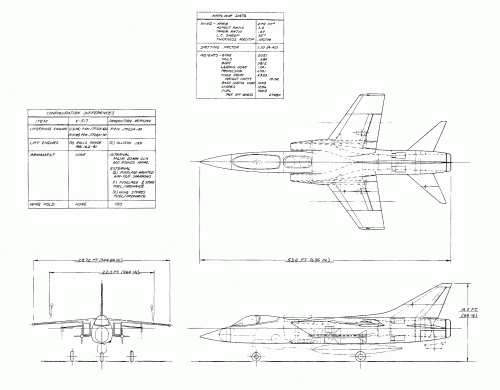

Here's two more 3 views of the V-517 - one has three lift engines as per the previous drawing posted and the other has only two lift engines and wing folding too.

Enjoy the Day! Mark


Attachments

  • Vought V-517 3V - 2.gif
    Vought V-517 3V - 2.gif
    221.5 KB · Views: 420
  • Vought V-517 3V - 1.gif
    Vought V-517 3V - 1.gif
    50.7 KB · Views: 464

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
"Fixed" engine, I think, means fixed air inlet for speeds in the 1.5 Mach number range.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
608
Reaction score
637
Late to the party as always. The reasoning between three fixed lift engine vs two was Vought's desire to cut cost by using two Allison J99 lift engines in place of three Rolls Royce R.B. 162 engines which was estimated to save $20 million in the prototype program.
A little more on the engines The J99s were expected to have a thrust of 8510 lbs with an allowable 5% bleed to provide roll control for the aircraft in hover and transition. The combination lift/cruise engine is the P&W JTF22A-30 a version of the F401-PW-400 that was anticipated for use in the F-14B by 1978.
Vought ultimately offered two versions of the V-517 for consideration.
V-517A was to be powered by a TF30-P-100 modified for lift cruise for program cost and risk reduction.
V-517B was to be powered by the F401-PW-400. The aircraft was essentially the same as the V-517A with the exception of an airframe mounted accessory gearbox, and the risk of delays in the engine development program. These was also the mention "the Navy may desire to develop the swivel nozzle for the F401,"

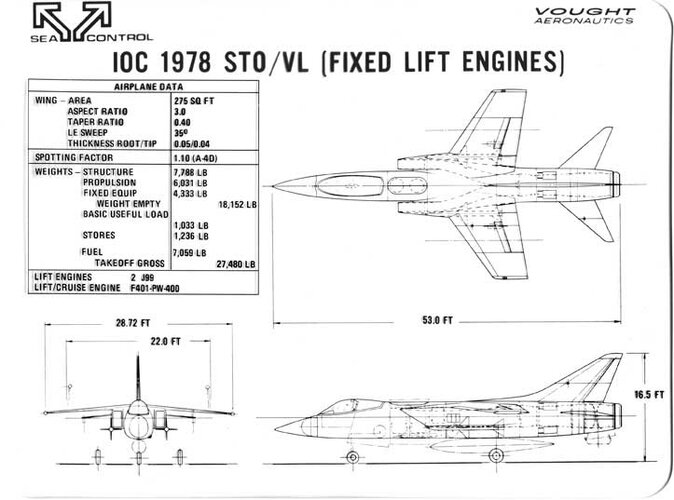

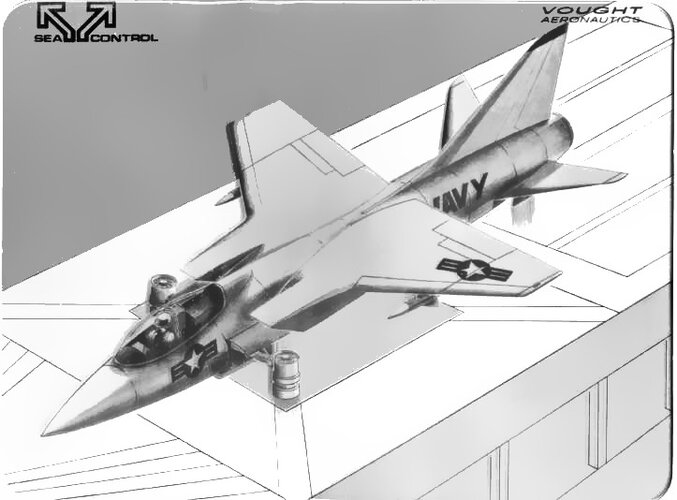

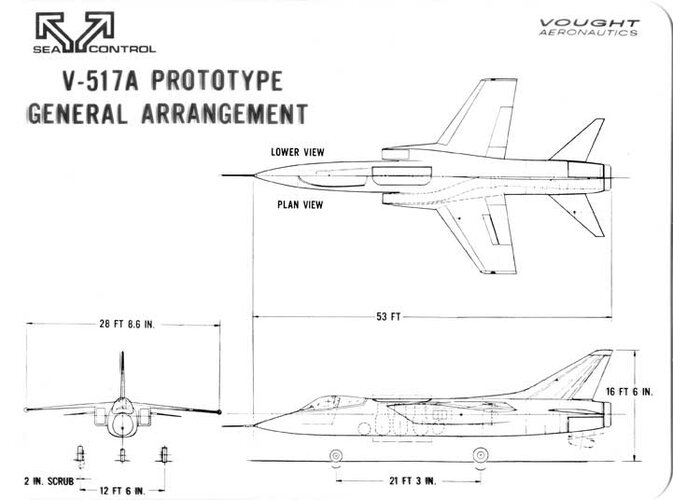

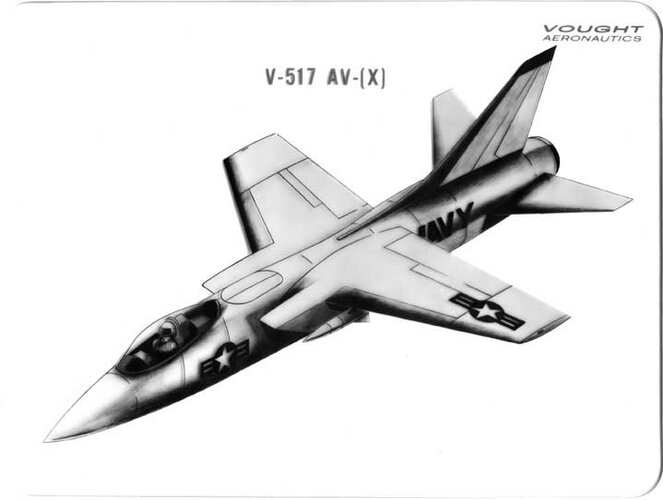

Mark pretty well drained the pool of illustrations, I have a couple scanned from a view foil presentation that are attached including an Isometric view, V-517A General Arrangement and the production version (IOC 1978) General Arrangement for your viewing pleasure.


Attachments

  • V-517A_Isometric_View_Grayscale_Viewgraph.jpg
    21.6 KB · Views: 110
  • x-V-517A_General_Arrangement_Grayscale_Viewgraph.jpg
    28.3 KB · Views: 107
  • V-517A_General_Arrangement_Color_Viewgraph-1.jpg
    42 KB · Views: 117

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
608
Reaction score
637

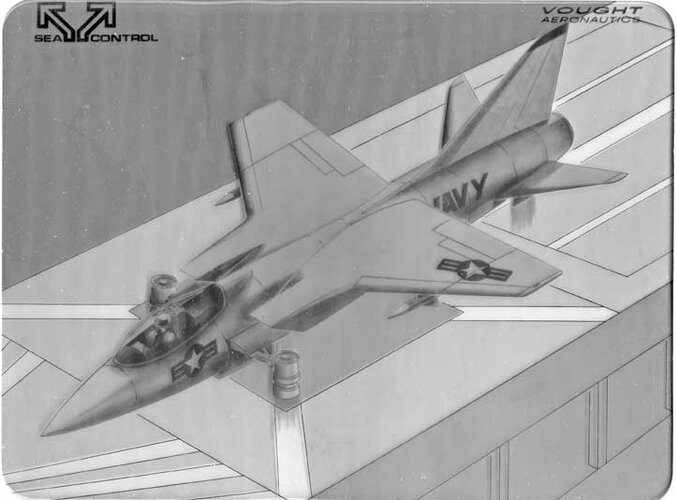

Not much to add on the V-520 for the moment. I do have this illustration that shows a little more of the lift fans. There again a scan of a view foil, doing the best I can with those images! :)


Attachments

  • V-520A_Isometric_View_Grayscale_Viewgraph.jpg
    30 KB · Views: 138

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,068
Reaction score
4,154
I'm little worried that the main engine will suck in the exhaust from the lift engine.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,112
Not much to add on the V-520 for the moment. I do have this illustration that shows a little more of the lift fans. There again a scan of a view foil, doing the best I can with those images! :)

If you feel like sending me higher res scans I'm pretty sure I can do better.


Attachments

  • V-520A_Isometric_View_Grayscale_Viewgraph.jpg
    123.9 KB · Views: 106

H_K

ACCESS: Secret
Joined
Feb 21, 2010
Messages
260
Reaction score
513
Love these drawings! Was any thought given to STOL instead of STOVL?

I.e. Low speed approach with some wing lift and the rest from the lift jets and swivel nozzle. Like a precursor to SRVL...
