US VSTOL Projects

Status
Not open for further replies.

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244
Sources:

Le Fana de L'Aviation Avril 2003 Nº401: Rockwell XFV-12A. Alexis Rocher pg 38 to 45.

Air Progress June 1973

Air International October 1974 pg 204. Refered as Model 200A

Minidocavia Nº7. Les Chasseurs Navals Américains (2ème partie) pg 32 for Grumman Type 607 info

Future Flight, the next generation of Aircraft Technology. Siuru and Busick. 1989 TAB Books ISBN 0-8306-9415-3. On page 67 it is a very from Model 200 taking off from a SCS deck. In the background there is a CL-84 in USN markings.

Aircraft 2000. The future of Aerospace Technology. Bill Sweetman. Hamlyn. ISBN 0 600 34726 5. 1984. On page 89, a drawing of a very similar aircraft is identified as GD Model 218.

From Le Fana: In November 1971 a research program was launched to develop an STOVL fighter and a "Sensor Aircraft" for the future Sea Control Ship airwing. About 10 proposals were submitted for the first and 19 for the second one.

Fighter projects came from:
Lockheed (an XFV-1 development with delta wing and Allison T56 engine)
Boeing (twin jet tail seater)
Fairchild Republic (a derivative from its US-German AVS design)
Convair Model 200
Grumman Model 607A
LTV V-517
VFW Fokker VAK.191 Mk.3 (A VAK 191B derivative, bigger and more powerful)
McDonnell Douglas Advanced Harrier AV-16
McDonnell Douglas Model 258-52 (A Harrier derivative with Pegasus 15-03)
North American Rockwell NA or NR-356.

The winner was the NA-356 which became the XFV-12 for the USN.

The Convair GD Model 200 was retained as a backup for the XFV-12
Technical Data:
Wingspan: 8,7 m
Lenght: 15,5 m
Empty weight: 8300 Kg
Max TO weight: 13400 Kg
Max Speed: Mach 2
Main engine: P&W JTF22A-30B at 12450 Kg with reheat
Auxiliary engine: 2x RR/Allison XJ99 at 4270 Kg each
Weapons: 1 M-197 20mm gun, 2 x AIM-7 Sparrow, 2 x AIM-9 Sidewinder

The cancellation of the SCS ended the XFV-12 program too.

A conventional derivative called Model 201 competed to VFAX which was awarded to the McDD submission (now the F-18 Hornet).


If anybody is interested in drawings please feel free to send me an email.
Any information about this designs will be wellcome:
Lockheed (an XFV-1 development with delta wing and Allison T56 engine)
Boeing (twin jet tail seater)
Fairchild Republic (a derivative from its US-German AVS design)
LTV V-517
McDonnell Douglas Model 258-52 (A Harrier derivative with Pegasus 15-03)

Still too awesome projects are mentioned by Alexis Rocher in Le Fana:

North American NA-382: A VSTOL Hercules Replacement with 4 GE F101

North American NA-431: A VSTOL S-3 Viking replacement

Any info?

Regards,
Antonio


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
887
Reaction score
56
pometablava said:
The cancellation of the SCS ended the XFV-12 program too.

It is true that 14,000 ton (Sea Control Ship) was indeed cancelled, although it was followed by a succession of small carrier carrier design studies - notably the 22,000-29,000 ton (Vertical Support Ship) concepts. The end of Admiral Zumwalt's tenure didn't end interest in V/STOL carriers.

However, the Rockwell XFV-12A was complete failure in its own right. To the best of my recollection, the XFV-12 demonstrator wasn't even capable of tethered flight.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836
Yes, the XFV-12 didn't work. The concept worked ok in scale models but did not scale.


From Air Enthusiast 1972, should be possible to match up with the above

US Navy reduces V/STOL projects for sea control ships to 8;

Lockheed: 24,000lb turboprop-powered tail sitter derived from XFV-1
Boeing: Twin YJ101 tailsitter, 17,000lbs, Mach 2.6
Rockwell: Augmented wing double delta - F401 engine - weighing 20,000lbs (STO) and 15,000lbs (VTO) - Mach 2.4
Fairchild-Republic: F100 engine, rotating XJ99 lift engines, 27,000lbs (STO) and 21,000lbs (VTO)
McDonnell-Douglas: Two Harrier developments; one subsonic with supercritical wing and Pegasus 15, and one Pegasus 15-03 engined, supersonic (Mach 1.6-2.0), takeoff weight 28,000lbs VTO
Grumman: Mach 2.0, F401 engine, 2 XJ99 liftjets ducted to rotating nozzles
General Dynamics: F100 engine, paired XJ99 liftjets ejecting through the bottom of the fuselage
LTV: TF30 engine, paired XJ99 liftjets ejecting through the bottom of the fuselage


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,366
Reaction score
129
I believe the NA-382 and NA-431 were both based on the same principles the XFV-12A was supposed to demonstrate. Its failure pretty well killed them, too. As I remember, there was an article on the NA-382 in a 1975 issue of AW&ST.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,780
Reaction score
587
Gereral Dynamics and/or Convair !?!


Attachments

  • Convair - China Lake VTOL[1].jpg
    Convair - China Lake VTOL[1].jpg
    33.9 KB · Views: 1,526
  • General Dynamics maybe model 252.jpg
    General Dynamics maybe model 252.jpg
    69 KB · Views: 1,506
  • General Dynamics model 324 - 01.jpg
    General Dynamics model 324 - 01.jpg
    34.5 KB · Views: 1,288
  • Short Snort.jpg
    Short Snort.jpg
    33.6 KB · Views: 1,329

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244
From Aerospace Projects Review Volume 5, Number 2 (Scott Lowther) pg 27 XFV-12A Follow-ons.

US Navy/NASA Ames program for the design of a single-engine supersonic fighter/attack aircraft. February 1982

Submissions:

Rockwell: unknown design number evolved from XFV-12A. (intermediate stages 026E and 035C)

General Dynamics E-7

McDonnell Douglas 279-3

Vought TF120


sky105

ACCESS: Restricted
Joined
Mar 2, 2006
Messages
3
Reaction score
1
Hi

I have this picture...


Attachments

  • vtol.jpg
    62 KB · Views: 2,060

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244
Cool Pic!!

Thanks Sky105.

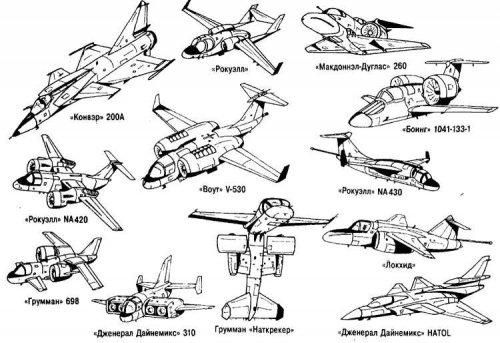

I can read cirylic alphabet, could you help me identifying this designs?

Reading clockwise

Convair 200A

Unidentified

McDonnell Douglas 260

Unidentified

Rockwell NA430

unidentified

General Dynamics HATOL
Grumman Nutcracker
General Dynamics 310
Grumman 698
Rockwell NA420

In the center: Vought V-530

Thank you very much for the Rockwell NA-430 ASW design. I have read about it in Le Fana de l'Aviation Number 401. This aircraft was based in the XV-12 research. It was an S-3 Viking replacement capable to be operated even from a destroyer flight deck.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836
Convair 200A
Rockwell
McDonnell Douglas 260
Boeing 1041-133-1
Rockwell NA430
Lockheed
General Dynamics HATOL
Grumman Nutcracker
General Dynamics 310
Grumman 698
Rockwell NA420
Vought V-530


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
To start a thread about US VSTOL projects means to open a pandoras box! ;D

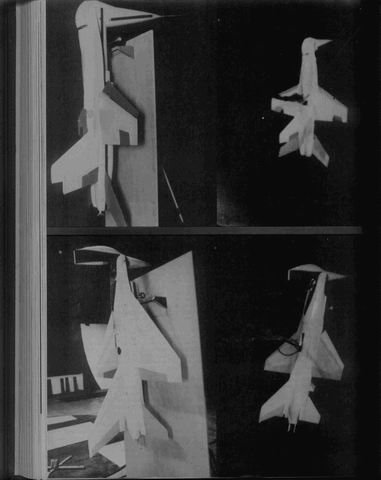

Sikorsky S-57 with single blade stowed rotor and NASA concept studies for
F-16/F-17 tailsitters with tilting nose (Aviation Week 1960 and 1975 ).


Attachments

  • sikorsky_xv2_01.jpg
    10.4 KB · Views: 348
  • NASA-F16-F17-VTOL-2.JPG
    21 KB · Views: 396

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244
US VSTOL projects from French Magazine "Aviation Magazine International" Number 466 May 1967

Very misterious for me...anybody can add more data?

The Sikorsky has a rotor that retracts for flight, you can see the doors of the bay along the aircraft's back. It sounds too complex to operate. I'm sure it had to be short legged too.

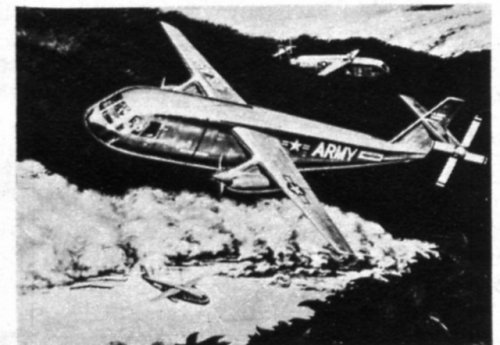

The second design from Lockheed is a "Compound" transport but I can see how it works in VTOL mode... ???


Attachments

  • Lockheed unknown project.jpg
    Lockheed unknown project.jpg
    144.2 KB · Views: 310
  • Sikosky unknown project.jpg
    Sikosky unknown project.jpg
    152.3 KB · Views: 382

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
The two prop. Lockheed VTOL is probable a stowed rotor concept.
For the Sikorsky , I'll search my "Air Revue" mag's of the sixties...

Keep up the good work !


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836
Its amazing, the variety of projects documented here. Only scratching the surface still, I'm sure.


Dronte

Argentinean ugly bird
Joined
Feb 19, 2006
Messages
96
Reaction score
18

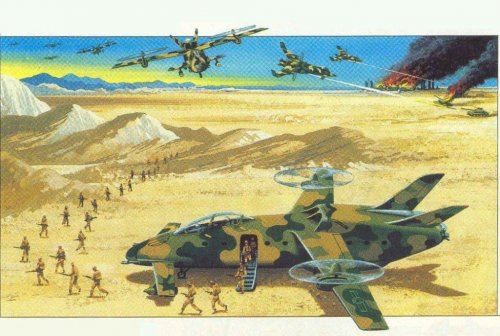

The Patriot of American Aircraft Corp. of the one that three versions
were planned: attack and assault ( Mi-24 like), attack and transport.

(source Mechanical Popular edition Chilean March of 1991)


Attachments

  • Patriot.jpg
    156 KB · Views: 675

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836
Found a great new source for US Navy secret projects, thanks to SteveO on Keymags forums:

http://www.history.navy.mil/nan/backissues/newbackissues.htm

From Sept 1978 issue, a VSTOL article.

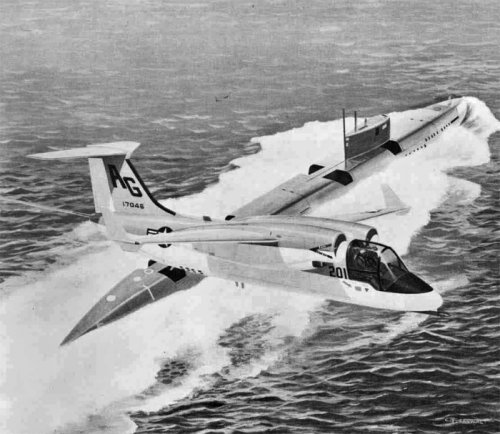

Rockwell NA430, Convair Model 200, plus unknown models by manufacturer as indicated by filename


Attachments

  • Rockwell-NA430.jpg
    142.5 KB · Views: 536

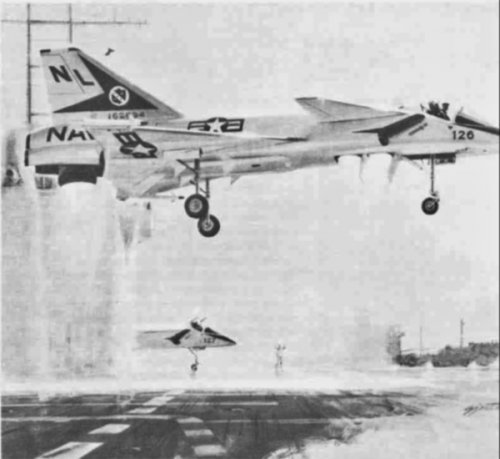

  • Convair-VTOL.jpg
    61.6 KB · Views: 2,197
  • Boeing-VTOL.jpg
    64.4 KB · Views: 2,146

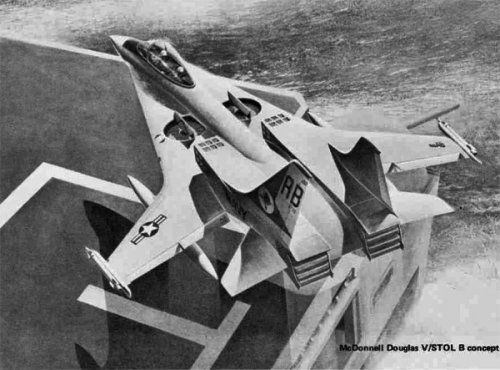

  • McDD-VTOL.jpg
    101.2 KB · Views: 675

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,366
Reaction score
129
pometablava said:
AW&ST. April 23 1990

Lockheed concept for an advanced STOVL fighter. "The Navy has a tentative requirement for such an aircraft that could be fielded by 2010"

Interesting!! you can definitely see bits of their JSF entry here.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,565
Reaction score
1,581
overscan said:
Don't know much about this one. Pictures sourced online; possibly from an old Aviation Week.

Wow that brings back memories. There was a book called "Aircraft 1974" that might have been a Jane's volume that I read in elementary school. Had the first image there along with what was intended to be the production Rockwell XFV-12 and was talking about Sea Control Ships. The book also had an artists impression of the YF-16 and a photo of the mockup of the Northrop P.530 Cobra.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Sferrin,

The book you mention is an Ian Allan Ltd publication.
(Aircraft Annual series) Compiller was the late John W.R.Taylor.

This book is still available seccond hand.
You'll never know...

Lark


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976

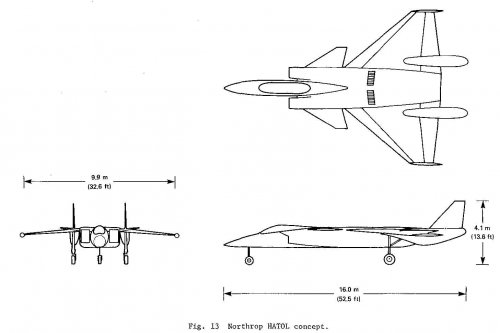

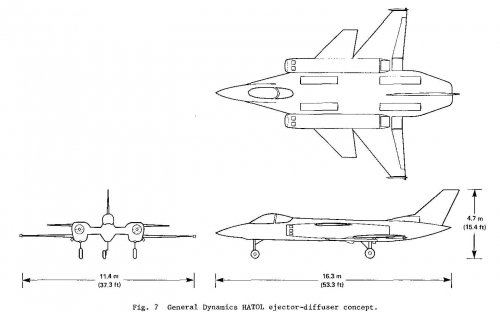

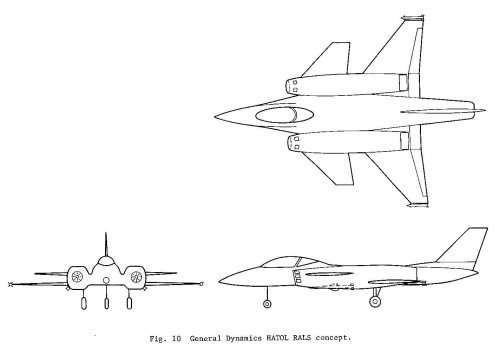

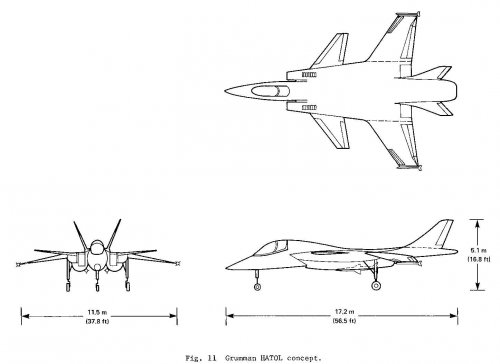

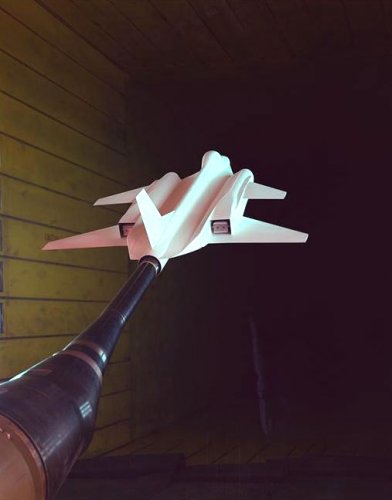

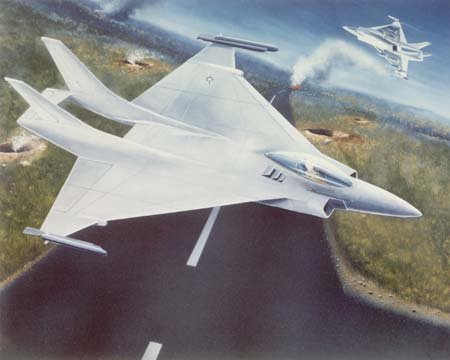

HATOL/VATOL concepts from various contractors


Attachments

  • Northrop 1978 HATOL.jpg
    Northrop 1978 HATOL.jpg
    57.3 KB · Views: 605
  • Grumman 1978 HATOL.jpg
    Grumman 1978 HATOL.jpg
    63.2 KB · Views: 610
  • GD 1978 HATOL RALS.jpg
    GD 1978 HATOL RALS.jpg
    54 KB · Views: 661
  • GD 1978 HATOL.jpg
    GD 1978 HATOL.jpg
    59.2 KB · Views: 740

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,048
Reaction score
564
Website
beyondthesprues.com
Gregory,

Both of those concepts (the Boeing 1975 Nutcracker for Sea Control Ship & the 'Boeing supersonic tiltrotor') are outstanding. Where did you find the information and do you have more details?

Regards,

Greg


rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
9
The F-106X will reminds you of where the Convair 200 come from, if you guys have seen the shape of F-106X. I do think the Convair 200 just redesigned basically on F-106X


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,565
Reaction score
1,581
rousseau said:
The F-106X will reminds you of where the Convair 200 come from, if you guys have seen the shape of F-106X. I do think the Convair 200 just redesigned basically on F-106X

Put them side by side and you'll see the resemblance is superficial. Much like the F-15 resembles the Mig-25.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
131
Website
www.hitechweb.genezis.eu
Nice article about XFV-12A can be found in Naval Aviation News, September 1973, pg. 8 - 13.

http://www.history.navy.mil/nan/backissues/1970s/1973/sep73.pdf


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
4
Hi overscan

These projects participated in what competition?
North American-Tailsitter, Temco Model 39, Convair VLWF & Lockheed CL-295...


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976

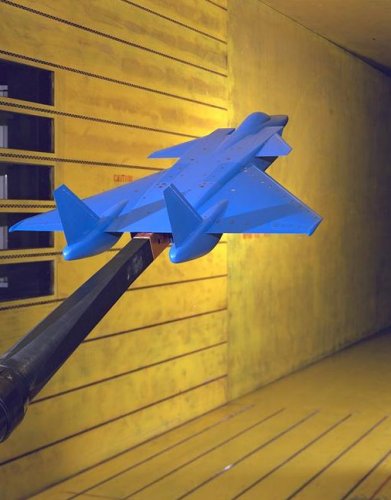

Found at the same site


Attachments

  • 1988_12778L.jpg
    18.4 KB · Views: 658
  • 1988_12780L.jpg
    18.1 KB · Views: 459
  • 1988_12784L.jpg
    11.6 KB · Views: 638

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836
Absolutely fabulous stuff, Grigori. I'm pretty sure they are all known projects, but great drawings.


Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
620
Reaction score
67
That last one is a BAE project P116


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,511
Reaction score
244
Thanks a lot Flateric ;)

1976_02208L : Model 260


Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,057
Reaction score
142

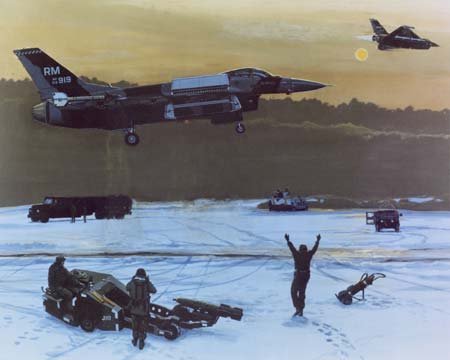

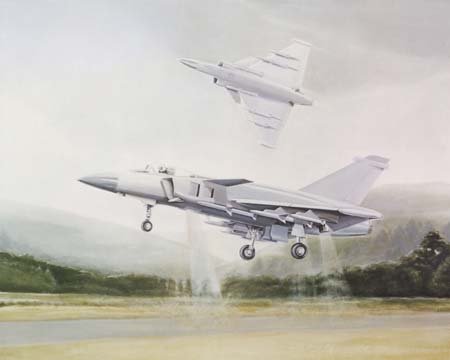

The top pic of the second batch is the General Dynamics E-7, the second is a Grumman Remote Augmented Lift System design and the last one is the BAe Warton P.112, a model of which is in BSP Fighters. All were studied in the US/UK work of 1986-88.


Firefly 2

ACCESS: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
8
Hmmm, reminds me a bit of the the VTOL plane depicted in the movie Contact from afar.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,366
Reaction score
129
flateric said:
Found at NASA Glenn Research Center ImageNet site

Title says VARIABLE STEAM CONTROL ENGINE - MCAIR MCDONNELL AIRCRAFT V/STOL VERTICAL SHORT TAKE OFF LANDING - RI V/STOL - BOEING V/STOL that questions whose stuff it is

The pictures are labelled, I seem to remember that the McAir design uses large geared fans driven off a separate gas generator. The RI design appears competitive with the Vought Tandem-fan designs for the same mission. Oh, is that "Variable Steam Control Engine" or "Variable Stream Control Engine"? The later makes rather more sense, IMHO.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
...even more


Attachments

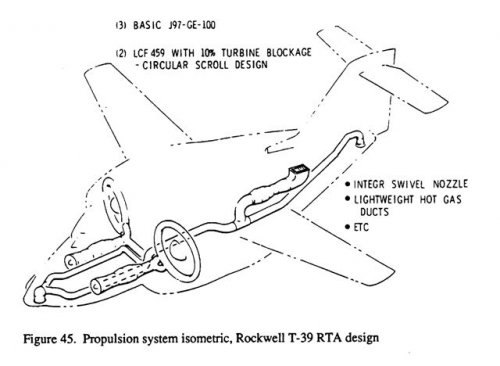

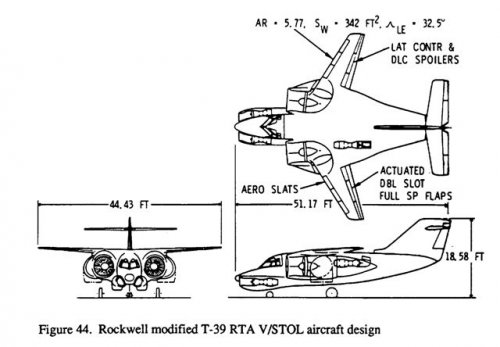

  • Rockwell modified T-39 RTA VSTOL aircraft design1.jpg
    Rockwell modified T-39 RTA VSTOL aircraft design1.jpg
    38.8 KB · Views: 345
  • Rockwell modified T-39 RTA VSTOL aircraft design.jpg
    Rockwell modified T-39 RTA VSTOL aircraft design.jpg
    41.8 KB · Views: 417

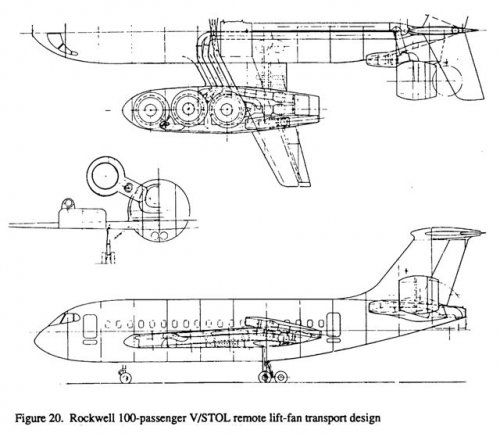

  • Rockwell 100-passenger VSTOL remote lift-fan transport design.jpg
    Rockwell 100-passenger VSTOL remote lift-fan transport design.jpg
    56.5 KB · Views: 388

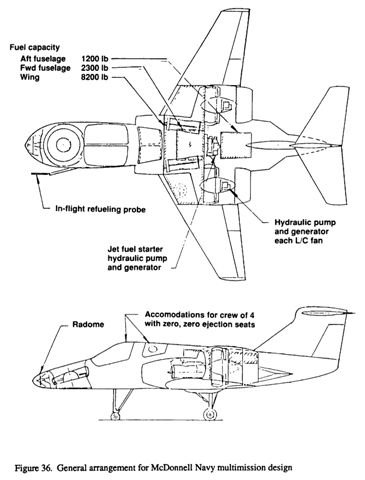

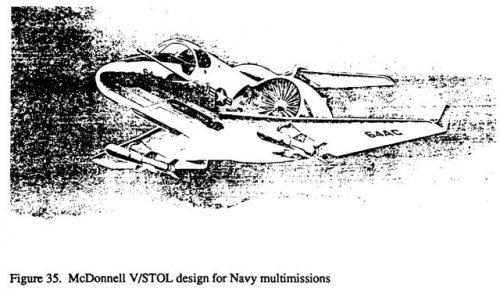

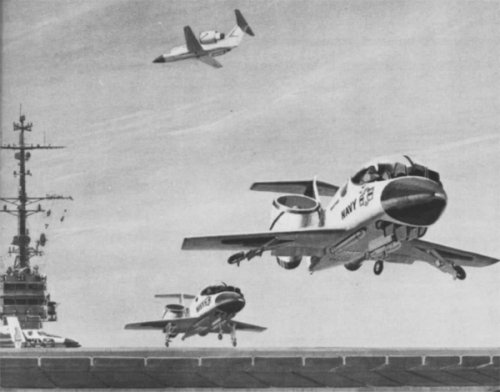

  • McDonnell VSTOL design for Navy multimissions1.jpg
    McDonnell VSTOL design for Navy multimissions1.jpg
    29.1 KB · Views: 428
  • McDonnell VSTOL design for Navy multimissions.jpg
    McDonnell VSTOL design for Navy multimissions.jpg
    62.5 KB · Views: 392

PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
760
Reaction score
100
Thorvic said:
That last one is a BAE project P116

Any projected performance figures for the P116 (and the P112)?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
Hi,

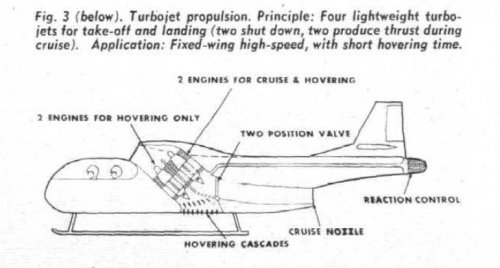

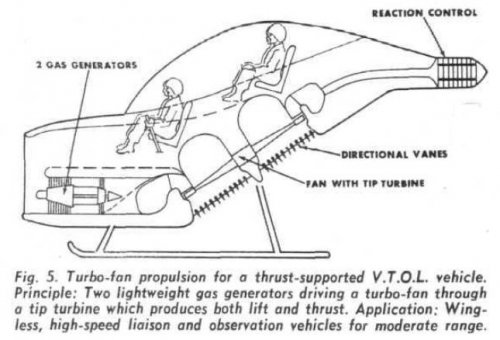

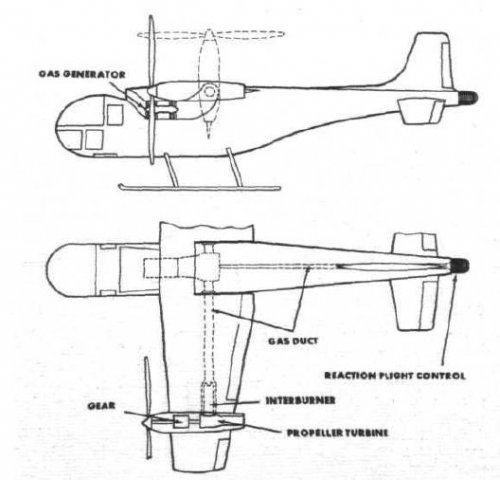

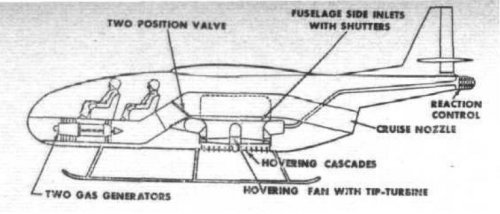

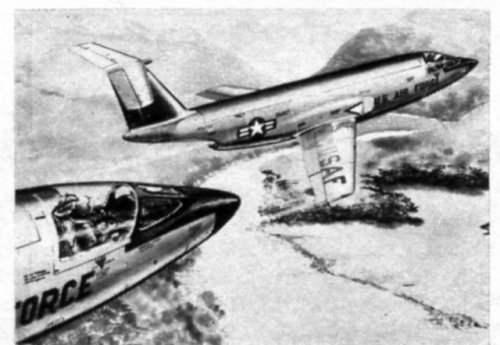

the VTOL aircraft projects from 1957.
http://www.flightglobal.com/FlightPDFArchive/1957/1957%20-%200153.pdf
http://www.flightglobal.com/FlightPDFArchive/1957/1957%20-%200154.pdf


Attachments

  • VTOL 1.JPG
    VTOL 1.JPG
    29.9 KB · Views: 117
  • VTOL 2.JPG
    VTOL 2.JPG
    35.1 KB · Views: 118
  • VTOL 3.JPG
    VTOL 3.JPG
    41.5 KB · Views: 117
  • VTOL 4.JPG
    VTOL 4.JPG
    42 KB · Views: 150

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836
Hesham, if you read the article you will see that AV-8SX was a supersonic demonstrator derived from the AV-8A, the drawing you posted is a McDonnell-Douglas proposal for a follow on operational STOVL design.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836
Hi Mike - sorry for delayed replay. My copy is the stinet one. Doubt Stormingmedia one is any different.

We generally post NASA and stinet reports in appropriate topics like this. Are you thinking of a dedicated library section?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976

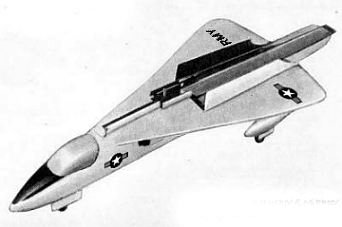

Second one is Republic AP-100
http://www.secretprojects.co.uk/forum/index.php/topic,542.msg4013.html#msg4013


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
It's Kentron International's stuff. Looks pretty alike these weird Burt Rutan future fighter concepts. http://www.secretprojects.co.uk/forum/index.php/topic,295.msg1732.html#msg1732


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
Hi,

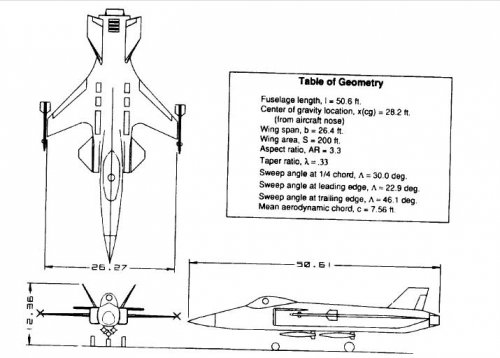

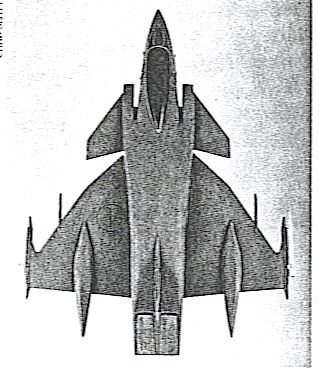

the California university STOVL aircraft.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19910008850_1991008850.pdf


Attachments

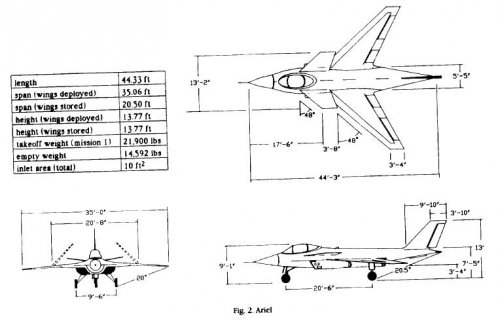

  • Ariel.JPG
    48.3 KB · Views: 273

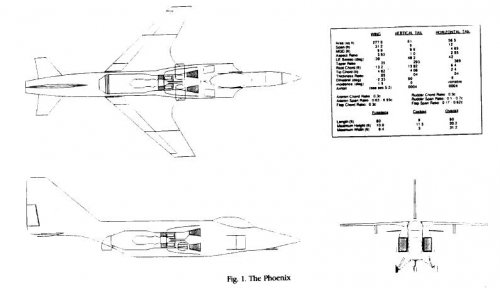

  • Phoenix.JPG
    34.2 KB · Views: 283
  • Sea Hawk.JPG
    Sea Hawk.JPG
    47.5 KB · Views: 265
Status
Not open for further replies.

Similar threads

Top
