Vertol tiltwing

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
171
Was there a 'serious' project for an US Army tiltwing transport behind this Vertol experiments in connection with the NASA?

(SOURCE: "Vertikalstartflugzeuge und Luftkissenfahrzeuge" by Just)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

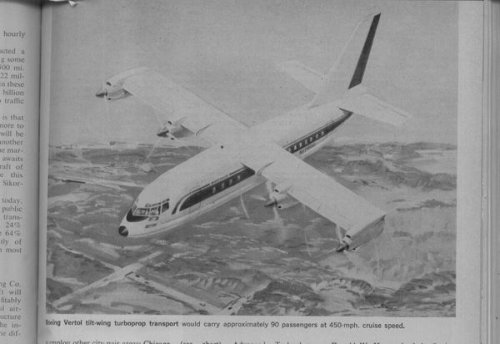

Just fund a civil tilt wing project with four engines ...
(from Aviation Week 19/1968)


Attachments

  • Boeing-Vertol-tilt-wing.JPG
    33.7 KB · Views: 487

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,769
Reaction score
4,886

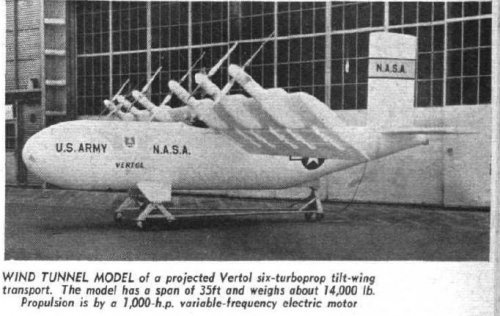

Hi,

a small info about the vertol tiltwing aircraft.
http://www.flightglobal.com/PDFArchive/View/1959/1959%20-%200634.html


Attachments

  • Vertol.JPG
    57.6 KB · Views: 424

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,769
Reaction score
4,886
And from NASA;

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19630005174_1963005174.pdf


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
Tilt-wing VTOL/helicopter hybrid concept art press photo circa 1956.

URL: http://cgi.ebay.com/1956-Tilt-Wing-VTOL-Helicopter-Concept-Art-Press-Photo-/290490329362


Does anyone recognize this concept?


Attachments

  • zaq495.jpg
    501.4 KB · Views: 389

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644

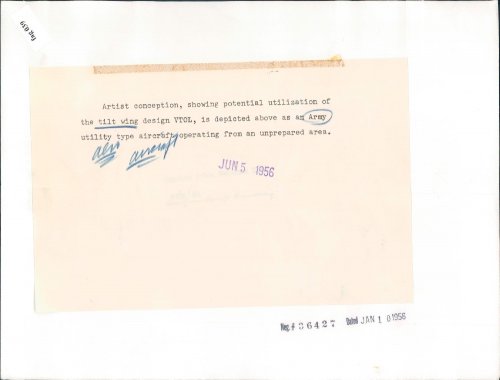

Back of photo is attached below.

It seems like the artwork is signed "M. Metzler", but I've been unsuccessful so far in identifying that artist.


Attachments

  • zaq496.jpg
    209.2 KB · Views: 313

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Orionblamblam said:
I've seen that design before. I *think* it's a Hiller.

It does have something Hiller-ish about it. The closest Hiller design I've found is the Model 1057, but it's still pretty different in that it has a tail rotor and also a single, not twin, fin.


Attachments

  • Hiller 1057.jpg
    Hiller 1057.jpg
    14.8 KB · Views: 76

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

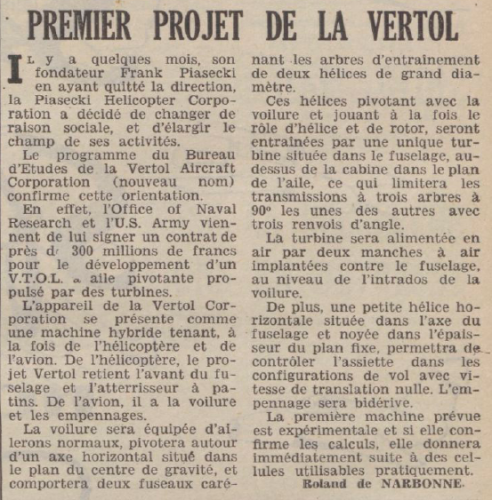

Found in the AHS Newsletter June 1956: "Vertol announces military contract for development of
VTOL-type aircraft" and this artist impression (post #4 to #7). I hope, this riddle is solved.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Jemiba said:
Found in the AHS Newsletter June 1956: "Vertol announces military contract for development of
VTOL-type aircraft" and this artist impression (post #4 to #7). I hope, this riddle is solved.

Not if you forget to mention that this design was also identified last week in another topic as the "Piasecki Model 76". This became the Vertol Model 76 program when the company changed names (after Piasecki's departure), and existed only in prototype form as the Army's VZ-2. Not that Boeing had not yet taken over Vertol at that stage.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
98
Vertol ,ex-Piasecki according to "Science et Vie" trimestriel Aviation 1957.(p.132)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,769
Reaction score
4,886
Jemiba said:
Just fund a civil tilt wing project with four engines ...
(from Aviation Week 19/1968)

Hi,

http://archive.aviationweek.com/image/spread/19680624/53/2


Attachments

  • 2.png
    280.3 KB · Views: 56

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,769
Reaction score
4,886
Hi,

http://archive.aviationweek.com/image/spread/19591109/54/2


Attachments

  • V-3.png
    335.8 KB · Views: 51
  • V-4.png
    343.5 KB · Views: 52
  • V-5.png
    365 KB · Views: 62

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,769
Reaction score
4,886

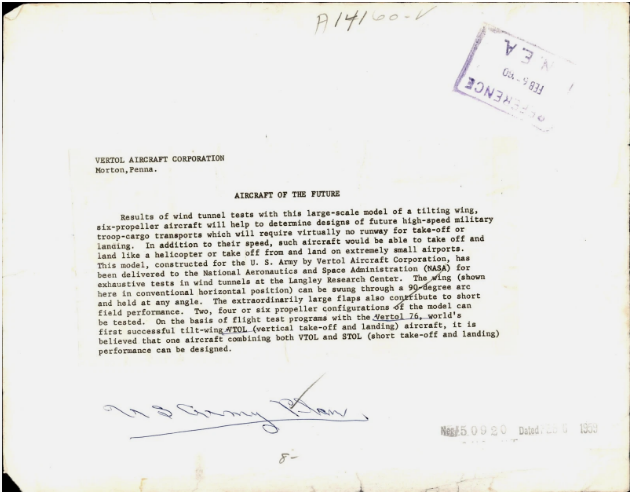

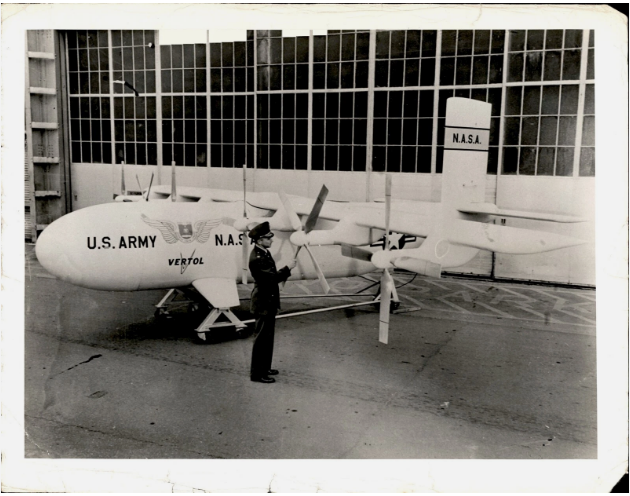

From Ailes 6/1956.


Attachments

  • a.png
    484 KB · Views: 45
  • b.png
    550.4 KB · Views: 39
