Various Lockheed helicopter projects

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,267
Reaction score
1,781
with the XH-51 and AH-56, Lockheed dominate the compound helicopter segment in the 60's. The firm wanted to use the system of the cheyenne for civilian applications.

The last of this cheyenne derivatives was the "Composite aircraft" of 1967. The revolutionnary idea was to stop and then, retract the rotor in the fuselage! As there was no rotor anymore, the plane could fly as fast as ordinary airplanes...(no destructive vibrations, no increasing drag, no speed limitation at 600 km/h...)

The concept was aparently validated at Ames in 1967, but the conflict between the US Army and USAF about fixed-wing aircraft prevented any prototype to be build.
This is the ultimate convertible aircraft for me, so i wanted to know if someone has more datas about this project (which seems much better than a V-22!)


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
117
Website
www.hitechweb.genezis.eu

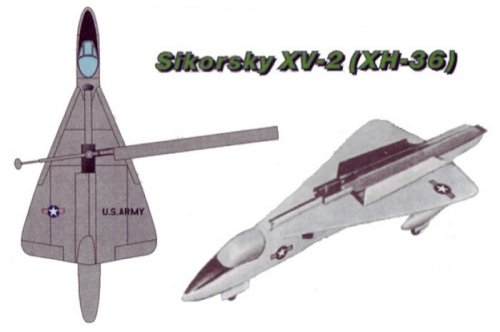

I am faster ;D Lockheed "composite aircraft" and Sikorsky XV-2. My opinion is that its very complicated and unpractical idea.


Attachments

  • Lockheed_stow_rtr.jpg
    38.8 KB · Views: 848
  • Sikorsky_XV-2_XH-36.jpg
    38.7 KB · Views: 854

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
37
Website
cmeunier.chez-alice.fr
Thanks a lot ;D Matej: I had never seen this XV-2 previosly, and I have immediately updated my asymmetric-aircraft page with it (at the end of http://cmeunier.chez-alice.fr/Asymm_addition.htm ). Thanks again! ;D


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,267
Reaction score
1,781
I understand it could be very, very complicated to retract a rotor... but just look at the advantages! If you let the rotor turning, you have bad vibrations and enormous drag. If you try to stop it, you have the X-wing concept - it doesn't work, NASA proved it 20 years ago-
Changing the rotor into a wing? well, as you said, the X-50 crashed two times...
Well its my point of view!!


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953
..but I have one more ! ;D

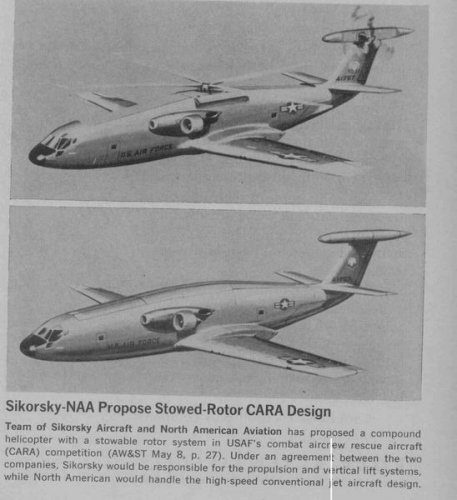

The Sikorsky / North American CARA design :

... and another one from Marchetti/Lauffer:
Not just folding and retracting, but additionally with telescopic blades ..


Attachments

  • Sikorsky-CARA.JPG
    48.1 KB · Views: 851
  • Marchetti Stowed Rotor grey.jpg
    Marchetti Stowed Rotor grey.jpg
    14.9 KB · Views: 1,001

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953
But a stoppable rotor doesn't necessarily mean a straight wing or x-wing .

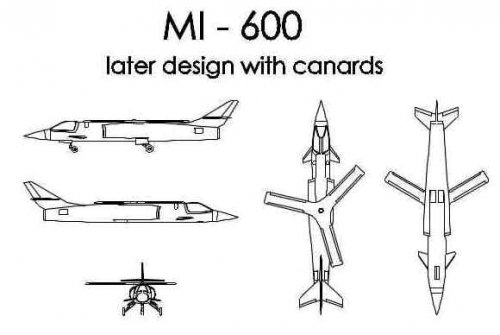

Here's another Marchetti design with a stoppable rotor.


Attachments

  • MI-600.JPG
    16.6 KB · Views: 838

Andreas Parsch

ACCESS: Secret
Joined
Mar 2, 2006
Messages
246
Reaction score
9
Matej said:
I am faster ;D Lockheed "composite aircraft" and Sikorsky XV-2. My opinion is that its very complicated and unpractical idea.

Indeed. Even with today's computer-based flight control systems it seems to be very difficult to make such things work. But the 1950s were very optimistic times ;)!

Anyway, the XV-2 was never designated XH-36. I only wonder how this rumour has come up in the first place.


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,267
Reaction score
1,781
If i understand well...
If you have a four-bladed rotor, first step is to stop it, then group the blades, then retracting the rotor in a special room... Well it's quite complicated, that's right! Maybe one day a guy like the one at CarterCopter or Hummingbird will try the concept


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
117
Website
www.hitechweb.genezis.eu
Andreas Parsch said:
Indeed. Even with today's computer-based flight control systems it seems to be very difficult to make such things work. But the 1950s were very optimistic times ;)!

Just see how stupid is an idea to have one-blade rotor with balast instead of two blades... And yes, 1950s were very optimistic. Now I have in mind some SSTO reusable CTOL spaceplane studies :D

Andreas Parsch said:
Anyway, the XV-2 was never designated XH-36. I only wonder how this rumour has come up in the first place.

I didnt draw this picture so I dont know. Maybe for someone XV-2 looked more like helicopter than experimental VTOL plane.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
37
Website
cmeunier.chez-alice.fr
In my files I noted that XH-36 was Bell, so I was actually surprised it would have been Sikorsky - while Google finds nothing for Bell XH-36, I don't remember where the info came from.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

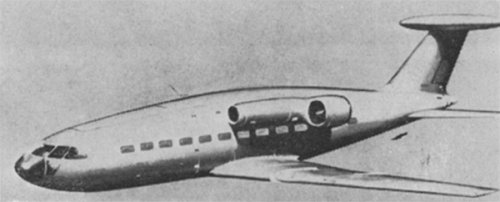

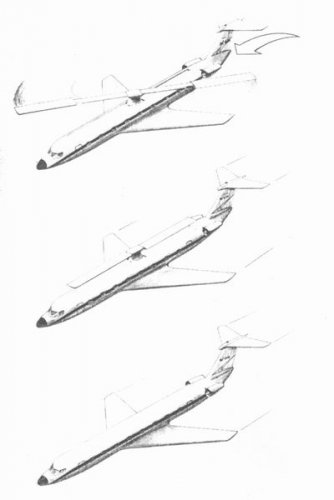

"If you have a four-bladed rotor, first step is to stop it, then group the blades, then retracting the rotor in a special room... Well it's quite complicated, that's right!"

To fold a rotor is common practice on helicopters. To do this at a speed of about
200 km/h, when the wing generates sufficient lift may be another thing ... and
lowering the rotor probably is a mechanical adventure. There were several projects,
which circumvented this problem, simply by folding the rotor backwards, without
retracting. One example was the BAC NGTE, a 1-11 derivative IIRC. But not even
this principle was tested in reality.


Andreas Parsch

ACCESS: Secret
Joined
Mar 2, 2006
Messages
246
Reaction score
9
Tophe said:
In my files I noted that XH-36 was Bell, so I was actually surprised it would have been Sikorsky - while Google finds nothing for Bell XH-36, I don't remember where the info came from.

I don't know the original origin of the "Bell" info, but some serial number listings (notably Joe Baugher's) mention the name "Bell" in connection with the cancelled XH-36 serial 59-5926.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
844
Reaction score
145

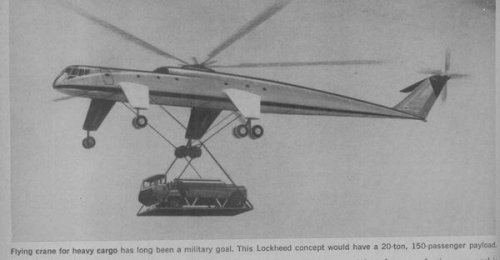

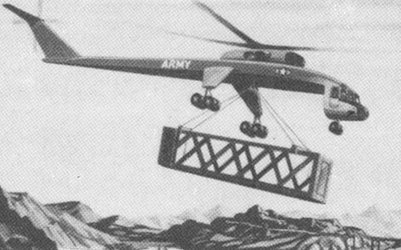

I want to add a Lockheed proposal for a crane helicopter. My standard question: Which model number? Further information? The only thing I know is the payload of 20 t mentioned in the caption of the artwork.

SOURCE: "Der Flieger" magazine 12/1965 (page 293)


Attachments

  • Lockheed crane helicopter.jpg
    Lockheed crane helicopter.jpg
    26.1 KB · Views: 389

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

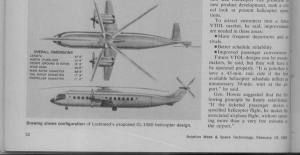

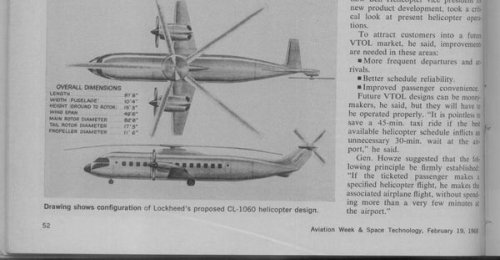

The cockpit section looks similar to the CL-1060 compound project. Maybe a
crane derivative ? Aviation Week 1968 02/19

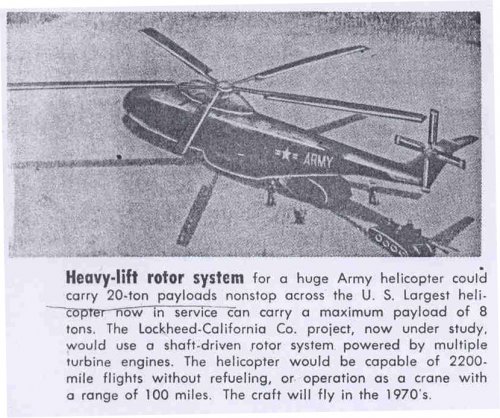

But to make matters worse, I've found another Lockheed project (in Aviation
Week 1966 10/17), which is credited with a payload of 20 t, too, but looks
different and larger.


Attachments

  • Lockheed-CL1060.JPG
    30.1 KB · Views: 554
  • Lockheed-heavy-crane-heli.JPG
    20.8 KB · Views: 521

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

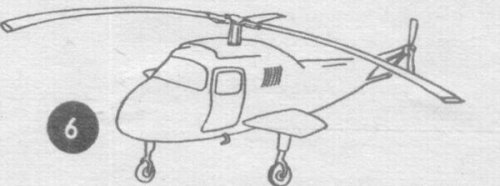

in RAF Flying Review 1/62, unknown to me :
a Lockheed four-seat helicopter without any designation

[quote author=hesham] Dear Jemiba,

is that helicopter related to CL-595 ?.[/quote]

Sorry, there's no further explanation at all. :-[


Attachments

  • Lockheed_Heli.JPG
    18.3 KB · Views: 309

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,741
Reaction score
3,503
Hi,

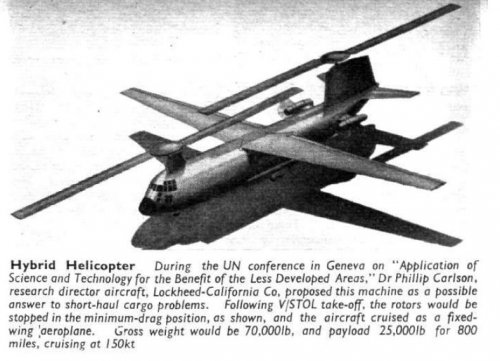

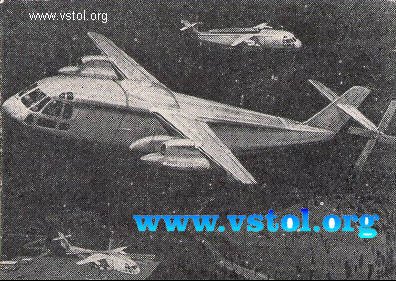

I don't remember if we displayed this artist picture to Lockheed
VTOL project which its arrangement was a pplied to C-130.


Attachments

  • vtol.JPG
    31 KB · Views: 602

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,741
Reaction score
3,503
Hi,

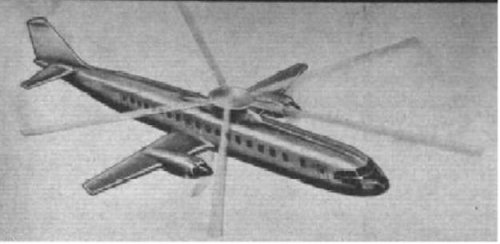

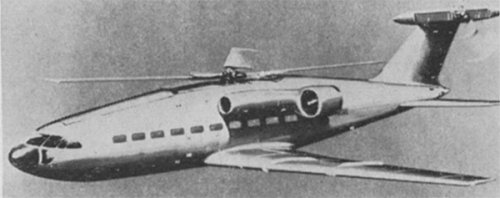

The Lockheed CL-1090 95-seat heavy helicopter project.


http://www.flightglobal.com/FlightPDFArchive/1968/1968%20-%202739.pdf


Attachments

  • CL-1090.JPG
    23.3 KB · Views: 538

nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
11
Hi All!
Lockheed Model CL-?

"Machine Design",1965,N 11, 13/V, p.8.


Attachments

  • Untitled-1.jpg
    285.8 KB · Views: 559

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,741
Reaction score
3,503
Hi,

Does anyone have a drawing to Lockheed CL-879 a 80-passenger
compound helicopter project ?.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

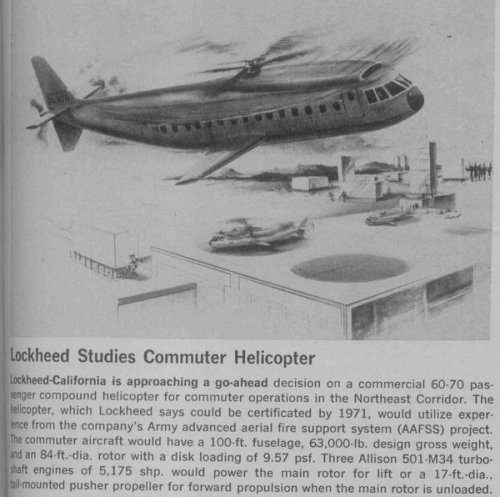

I'm not sure, because there's no designation given to this picture in
Aviation Week 19-27 1966, but the description and time of publication
could be ok.


Attachments

  • Lockheed-commuter-heli.JPG
    58 KB · Views: 467

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476

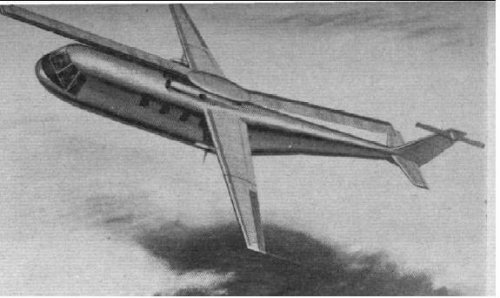

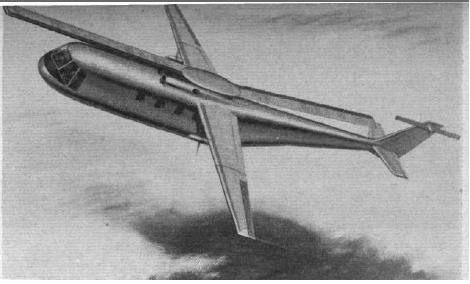

Lockheed convertible helicopter

Source:
Flying Review International August 1968


Attachments

  • LockheedConvertible-a.jpg
    45.1 KB · Views: 163
  • LockheedConvertible-b.jpg
    41.4 KB · Views: 125

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

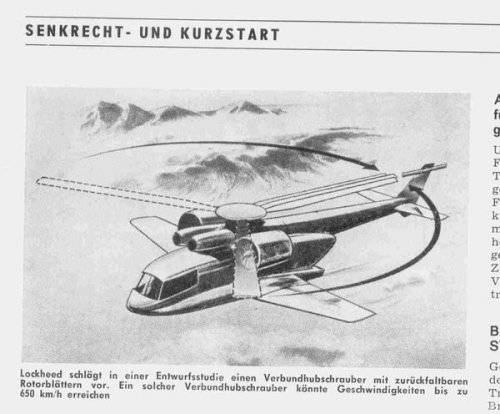

Another Lckheed design with a foldable rotor :
(fom aerokurier 2/65 )


Attachments

  • Lockheed_Compound.JPG
    46.2 KB · Views: 171

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953
As you've probably noticed, Today I've made a visit to the library
and I thought, I post some of the material I've found, before it
disappears in the endless universe of my HD ... ::)

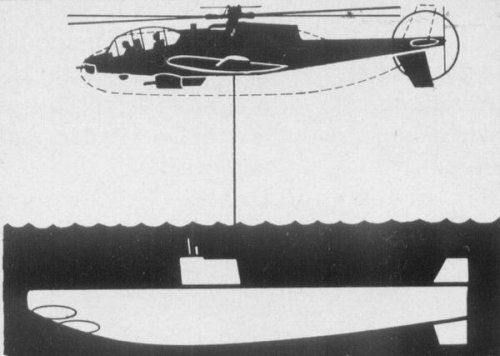

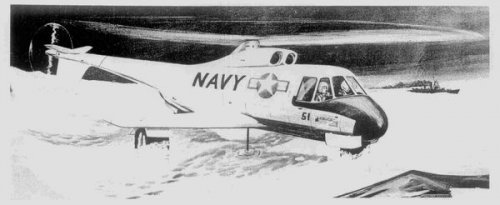

Here's an ASW compound helicopter,
that was intended to land on the sea surface.
(from aero 1964)


Attachments

  • Lockheed_ASW_a.JPG
    25 KB · Views: 163

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953
"that looks like another cheyanne variant"
Yes, maybe it's the one I was looking for quite a time ago, shown here only with dotted lines.
There seem to be just the pusher prop and no tail rotor and the shape of the fuselage is
different, but the very crude drawing from the lockheed ad shouldn't be taken too seriously,
I think( as shouldn't this artist impression !)

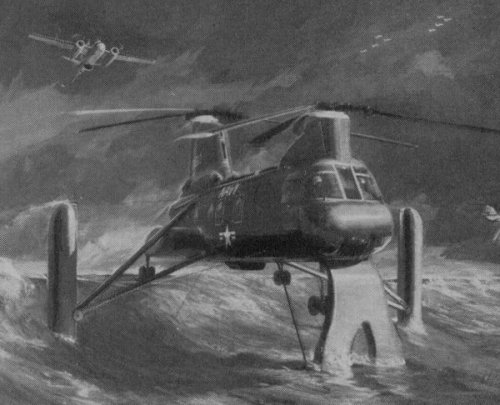

At least the floating gear reminds me at a Boeing proposal, we already saw here, too:
(both pictures from Aviation Week)


Attachments

  • Lockheed-AH56_ASW.jpg
    28.6 KB · Views: 133
  • Boeing-Vertol-heli-on-floats.jpg
    54.9 KB · Views: 189

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,741
Reaction score
3,503
Hi,

I know my dear Jemiba displayed this aircraft before,but here,it is displayed
with a more info.
http://www.flightglobal.com/pdfarchive/view/1964/1964%20-%201606.html?search=CWL


Attachments

  • untitled.JPG
    20.9 KB · Views: 109

stevoe

ACCESS: Restricted
Joined
May 29, 2006
Messages
21
Reaction score
15
And what is that?


Attachments

  • 6_big.jpg
    124.3 KB · Views: 398

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,589
Reaction score
891

Attachments

  • hercules-hybrid-helicopter.jpg
    65.7 KB · Views: 476

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
503
Website
deeptowild.blogspot.com

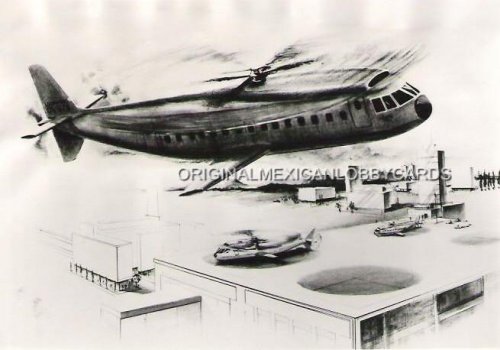

Lockheed Helicopter Artist's Concept 1967

URL: http://cgi.ebay.com/ARTISTIC-CONCEPTION-OF-THE-LOCKHEEDS-HALF-H-PHOTO-1967_W0QQitemZ350317943581QQihZ022QQcategoryZ419QQcmdZViewItemQQ_trksidZp3911.m7QQ_trkparmsZalgo%3DLVI%26itu%3DUCI%26otn%3D4%26ps%3D63%26clkid%3D7941003034243910230


Attachments

  • LockheedHelicopterConcept.JPG
    40.4 KB · Views: 336

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Dear Boys and Girls, here is a picture with a caption in French of a Lockheed CARR retractoplane "project" along with the Lockheed XH-51A prototype (does this have its own topic?) showing Lockheed's intentions to progress from their high-speed rigid-rotor concept onto stoppable folding rotors in the future......

The pictures come from the 15th January 1965 issue of Aviation Magazine International......

Terry (Caravellarella)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
459
Although it's a retractoplane concept, I don't think it is the CARR (CL-945) because it looks different, it's smaller, and the folded-back blades don't seem to be housed within the fuselage here.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Stargazer2006 said:
Although it's a retractoplane concept, I don't think it is the CARR (CL-945) because it looks different, it's smaller, and the folded-back blades don't seem to be housed within the fuselage here.

It's a helicopter Stéphane; I don't like them and I don't know much about them :eek:

If it's not a CARR, then is it a pre-CARR?

Terry (Caravellarella)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
459
Caravellarella said:
If it's not a CARR, then is it a pre-CARR?

So in fact you're admitting that your knowledge about helos is pre-CARR-ious, right? ;D


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
459
This topic regroups various Lockheed helicopter projects from old topics.

More Lockheed rotorcraft projects on this forum:
  • Lockheed (Vega) V-307 helicopter here.
  • Lockheed L-161 & L-197 helicopter projects here.
  • Lockheed CL-475 helicopter here.
  • Lockheed CL-1098 crane helicopter here.
  • Lockheed AH-56 Cheyenneand derivatives here.
  • Lockheed Model 186 here and especially here.
  • Lockheed AAH contender (AH-64 program) here.
  • Lockheed XH-59A wind tunnel model here.
  • Lockheed composite aircraft studies here.
  • More Lockheed composite aircraft studies here.
  • Lockheed VSTOL/STOL projects here.
  • Team US101 VH-71A All-Weather Medium Lift Military Helicopter here.
  • EADS/Lockheed Martin Armed Scout AS645 here.
  • Lockheed Martin Samarai monocopter UAV here.
  • Lockheed Martin UCAR proposal here.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,741
Reaction score
3,503

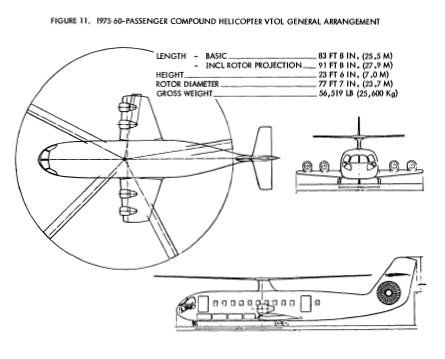

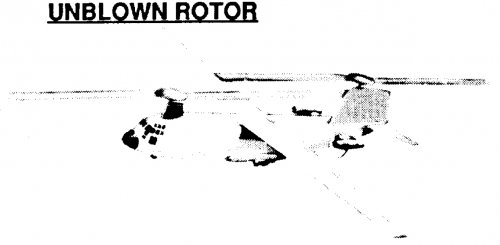

Attachments

  • CL-1060.png
    48.5 KB · Views: 473
  • CL-1026.jpg
    11.9 KB · Views: 761

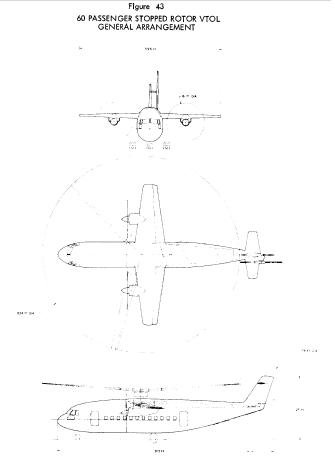

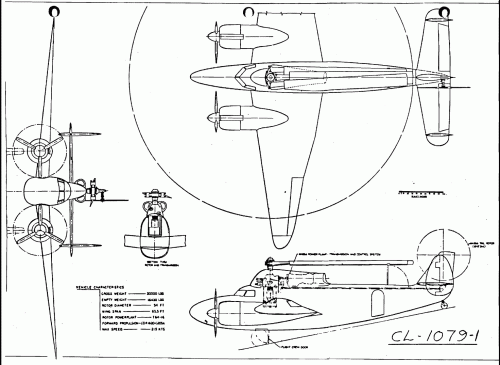

  • cl-1079-.gif
    129.9 KB · Views: 115
  • CL-977.JPG
    11.7 KB · Views: 101

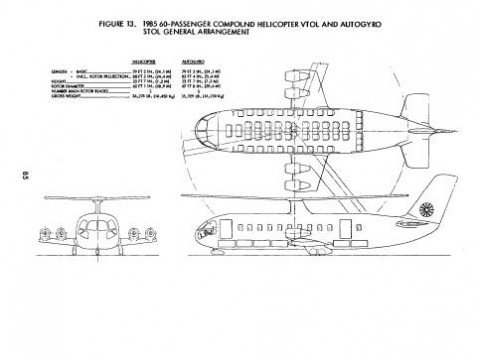

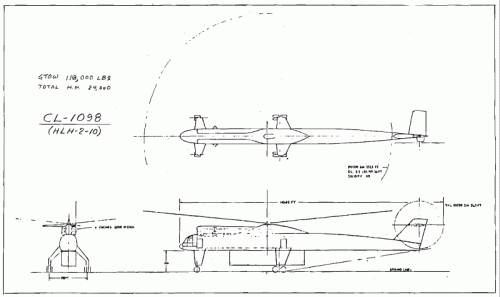

  • CL-1098.GIF
    27.2 KB · Views: 105
  • 2.JPG
    28.8 KB · Views: 125
  • 1.JPG
    30.7 KB · Views: 256

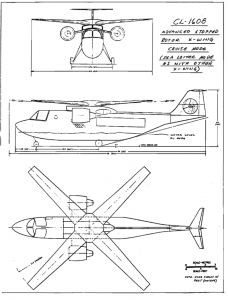

  • CL-1608.png
    56.1 KB · Views: 467

Similar threads

Top
