Lockheed stopped-rotor concept

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
91
Website
sites.google.com
Didn't know where else to put this.

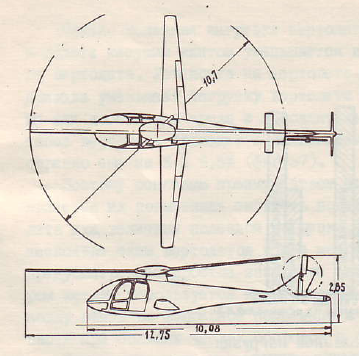

This is a concept for a stopped-rotor aircraft based on the XH-51 fuselage, from an old Russian magazine.
A pusher prop increased speed from 305 to 325km/h. Then a wing is added, which increased speed by 35 to 90 km/h. Last modification was two blade stopped rotor, it stopped along longitudinal fuselage axis, speed increased by 110 km/h compared to standart helicopter.


Attachments

  • Untitled.png
    163.2 KB · Views: 193
