Various Kocherigin projects

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,203
Hi!
Designation system.
http://www.secretprojects.co.uk/forum/index.php/topic,27178.0

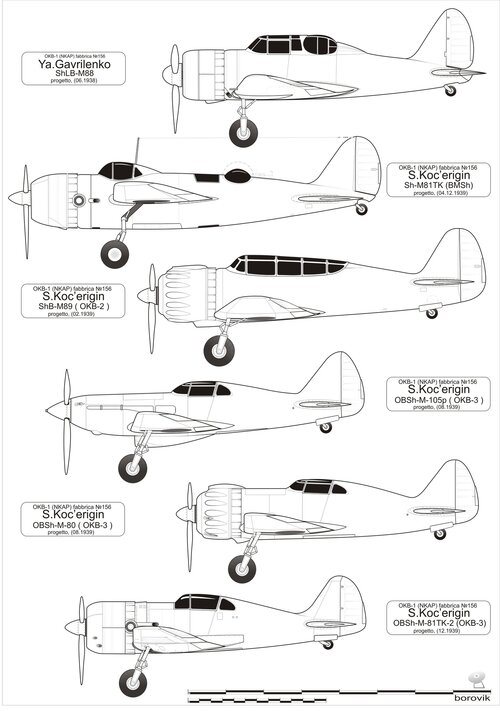

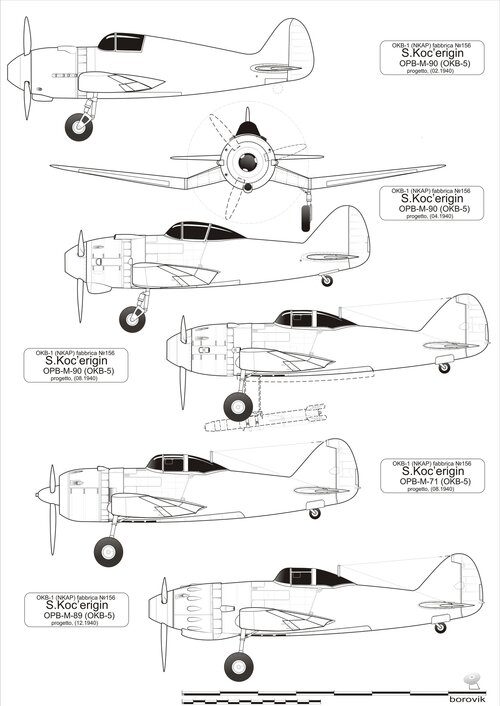

borovik-san's chart.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=17877.0;attach=581666;image

http://forum.worldofwarplanes.com/index.php?/topic/2008-kocherigin-opb-5/

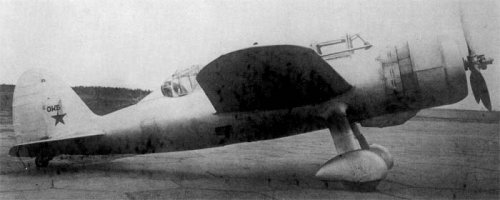

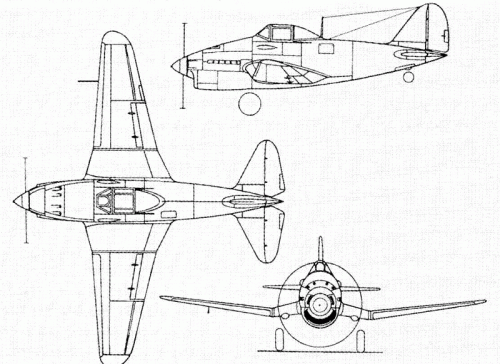

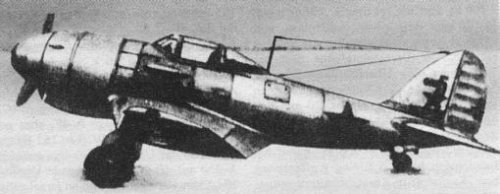

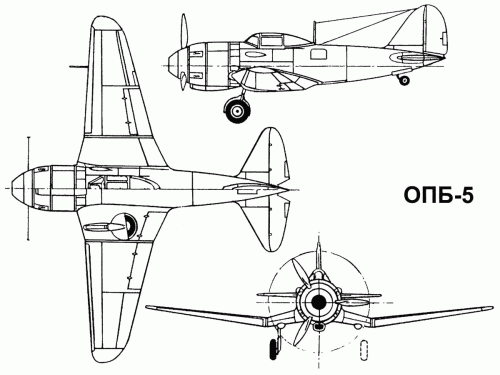

"The Kocherigin OPB-5 is one of the least known soviet aircraft to be built, but it had great potential. I first found it in Shavrov's book of soviet aircraft from 1938-1950. It was built as a high speed ground attack and dive bomber aircraft also capable of being a fighter. It had an internal bombay capable of holding 500kg of bombs and could be armed with 4 rocket projectiles. Gun armament was 2 syncronized 7,62mm ShKAS MGs firing at 1500 rpm and 2 wing mounted 12,7mm UBK MGs firing at 1000rpm. There were plans of mounting 2 wing mounted 23mm VYa cannons firing at 600rpm. The engine was a 1425hp M90 radial but there were also plans of mounting the M82FN and AM37 engines. Speed was 600km/h at altitude and 504km/h at sea level. The aircraft flew in 1941 and showed favourable performance, but there were some large delays for production. However Kocherigin's design bureau terminated in 1942 and further development was stopped."

Photo and drawing source.
http://www.unicraft.biz/on/opb/opb.htm
http://www.ctrl-c.liu.se/misc/ram/opb-5.html


Attachments

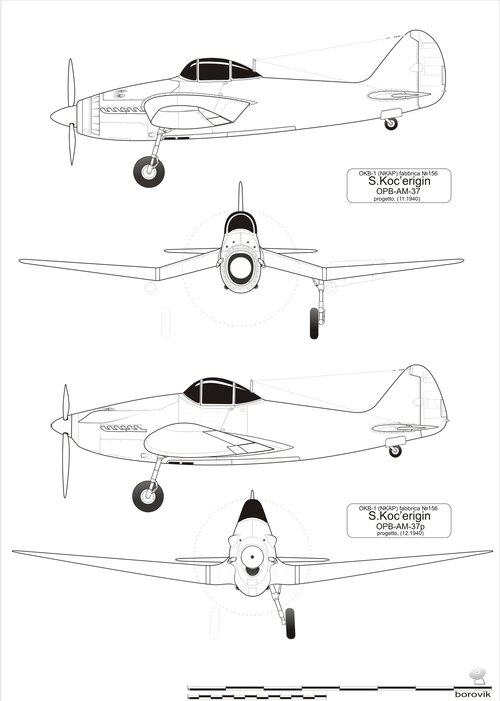

  • Kocherigin OPB-5 with AM37.gif
    Kocherigin OPB-5 with AM37.gif
    264.7 KB · Views: 449
  • Kocherigin OPB-5 with M90.gif
    Kocherigin OPB-5 with M90.gif
    199.9 KB · Views: 435

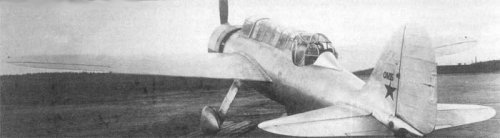

  • opbphoto.jpg
    18.6 KB · Views: 410
  • opb-shavrov.jpg
    51.7 KB · Views: 409

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,203

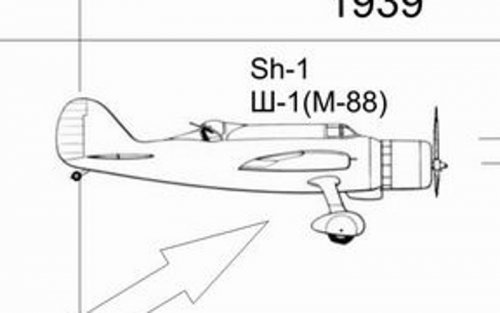

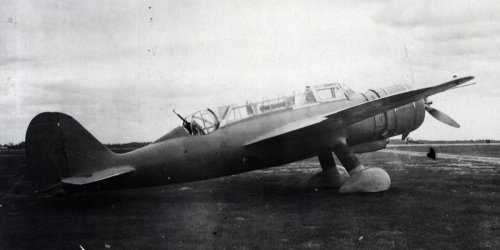

Hi! LBSh.(Sh)(Кочеригин ЛБШ) I feel following pictures and drawing shows little different shape from borovik-san's chart. :-[
http://live.warthunder.com/post/541826/en/
http://worldofwarplanes.ru/warplanes/history/air-technics/16-lbsh-soviet-attack-aircraft/

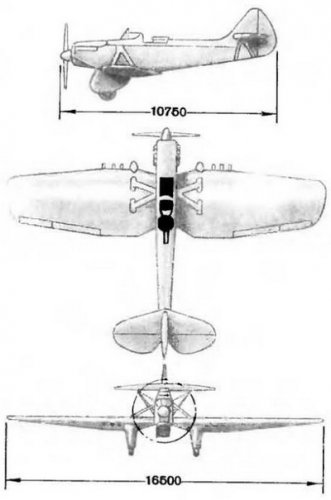

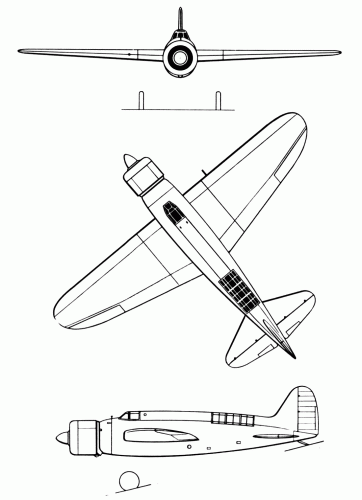

"LBSh
During the mid 1930s, Kochyerigin developed a monoplane dive-bomber to replace the Polikarpov R-5. The new R-9 however was rejected and the Soviet designer now had to look for a a way to make the design worth the effort he had put into it. He ultimately decided to develop the R-9 into a heavily armed two-seat attacker. Official specifications called for a fast recon/attack aircraft able to reach ~500km/h at altitude. It was to be able to carry 400kg of bombs and be armed by either two 20mm ShVAK as well as two 7.62mm ShKAS or four ShKAS.
The new LBSh (initially known simply as Sh for shturmovik = attacker) was a monoplane of mixed construction with fixed, spatted undercarriage and conventional tail. The cannon were mounted in the wingroots (The LBSh was one of the first aircraft with this configuration) and the MGs were located further outwards.
The first prototype made its maiden flight in July 1939, powered by a M-88 radial. This engine however had reliability issues resulting in the second prototype being fitted by a M-87A. The 87 was less powerful than the troublesome M-88 which resulted in the LBSh being underpowered."

http://xn--80aafy5bs.xn--p1ai/aviamuseum/aviatsiya/sssr/shturmoviki/legkij-shturmovik-sh-1-lbsh/


Attachments

  • kocherigin.jpg
    35.3 KB · Views: 37
  • Legkij-shturmovik-SH-1.jpg
    92.4 KB · Views: 58
  • LBSh.jpg
    180.7 KB · Views: 67
  • lbsh-2.jpg
    28.2 KB · Views: 45
  • lbsh-1.jpg
    35.3 KB · Views: 397

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,203

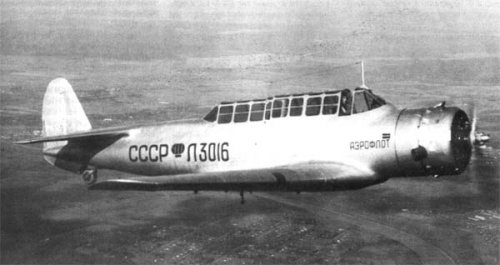

Hi SR!
http://www.airwar.ru/enc/other1/sr.html


Attachments

  • sr-1.gif
    167.7 KB · Views: 47

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,203

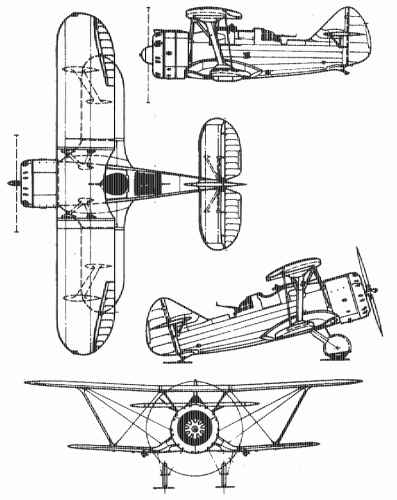

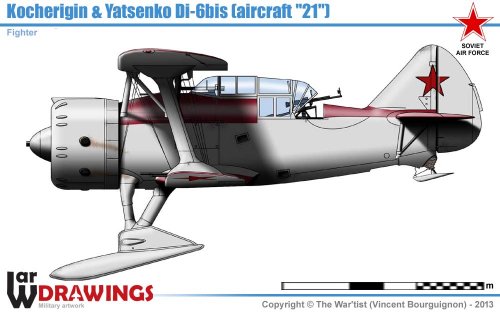

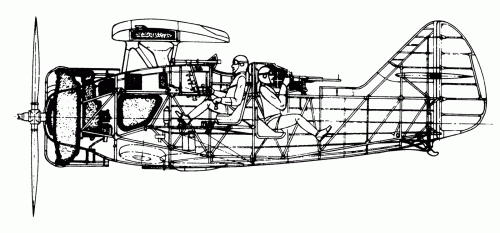

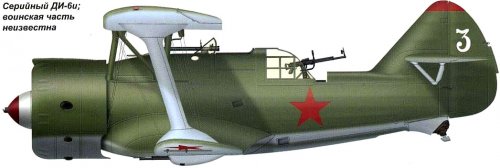

Hi! DI-6 heavy fighter.

http://www.secretprojects.co.uk/forum/index.php/topic,25087.msg254772.html#msg254772

https://forum.warthunder.com/index.php?/topic/242881-br1-13-kochyerigin-di-6-34heavy34-fighter/

http://www.wardrawings.be/WW2/Files/2-Airplanes/Allies/2-USSR/01-Fighters/Di-6sh/Di-6-bis.htm


Attachments

  • p1.jpg
    70.7 KB · Views: 48
  • 1_5.jpg
    65.6 KB · Views: 45
  • di6-2.gif
    199.1 KB · Views: 45
  • di6-1.gif
    144.6 KB · Views: 47

iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
504
Reaction score
416

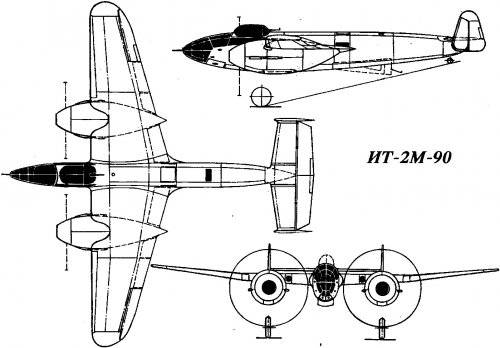

IT (Re: Various Kocherigin projects)

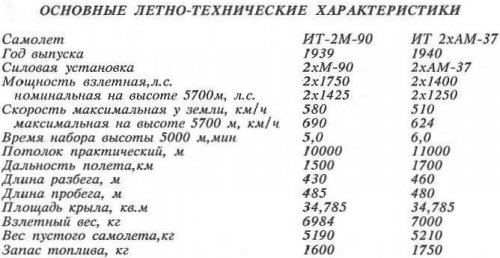

My source was an online translation of a Russian magazine article, title since forgotten.

According to my notes, the IT was a 1940 project for a multirole aircraft intended for attack, antitank, and heavy fighter duties. Top speed was supposed to be 680-700 km/h--hence the retractable canopy (and pilot's seat) and ventral gun position.

Armament included a flexible 7.62 mm machine ShKAS rapid-fire machine gun in the navigator's position in the nose, four fixed 20-mm ShVAK cannon in the fuselage sides, and a bomb-bay package holding either two 37-mm or 45 mm cannon. Single, flexible ShKAS guns were to be at the rear of the canopy and in the ventral position.

Engines: 2 M-90 or AM-37
Top speed: 510 or 580 km/h at sea level, 624 or 690 km/h at 5700 m
Climb to 5000 m: 5 or 6 min
Ceiling: 10000 or 11000 m
Range: 1500 or 1700 km
Takeoff run: 430 or 460 m
Wing area, 34.785 sq-m
Takeoff weight, 7000 kg
Empty weight, kg 5200 kg


Attachments

  • pic_32.jpg
    40.7 KB · Views: 45
  • pic_33.jpg
    39.7 KB · Views: 47

iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
504
Reaction score
416
OBSh M-81 (Re: Various Kocherigin projects)

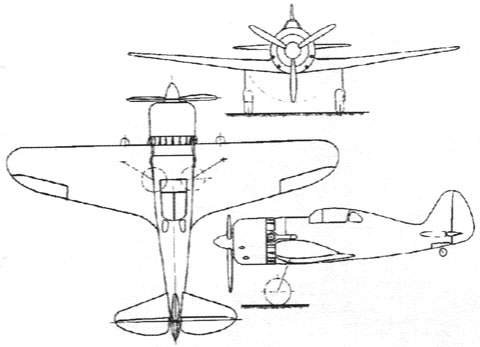

I have no info on this beyond the pictures (source unknown). It is turbocharged, so I assume that it is a high-altitude interceptor.


Attachments

  • ksa_1.jpg
    15.2 KB · Views: 54
  • s25.gif
    52.8 KB · Views: 70

iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
504
Reaction score
416

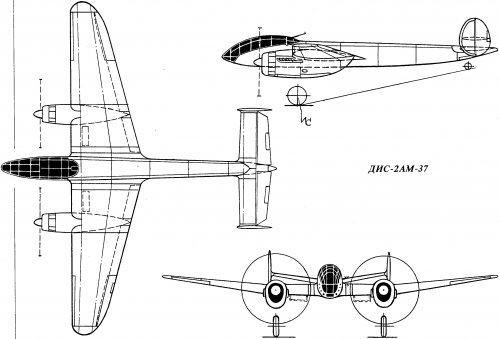

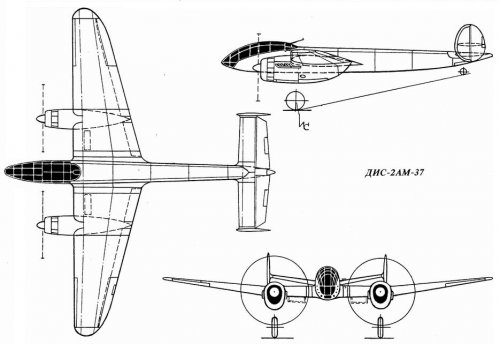

DIS-2 (Re: Various Kocherigin projects)

I have this drawing in my Kocherigin folder. But I am not sure on what grounds.


Attachments

  • Kocherygin DIS-2 AM-37.jpg
    Kocherygin DIS-2 AM-37.jpg
    127.7 KB · Views: 70

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
793
Reaction score
167
http://www.secretprojects.co.uk/forum/index.php/topic,12185.0/all.html


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,203
Excellent contribution!! Thanks a lot, gentlemen. :D

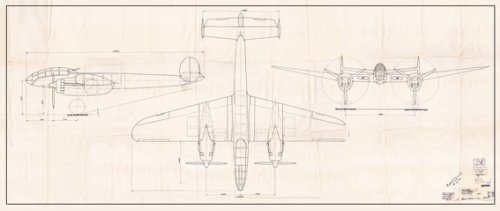

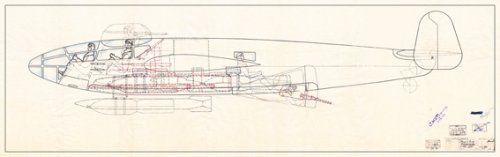

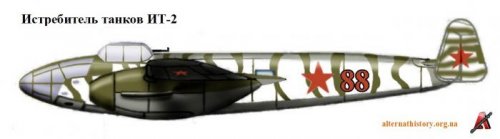

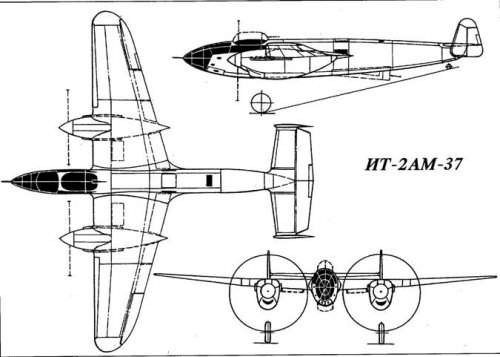

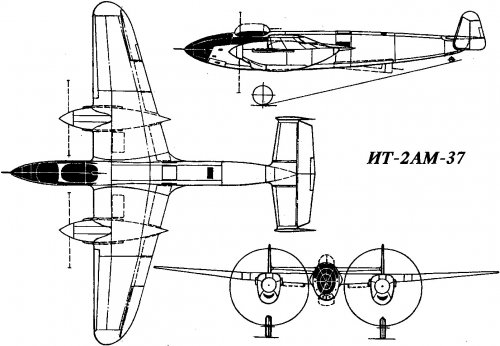

Please enjoy very beautiful Kocherigin DIS(Кочеригин ДИС) and IT(ИТ)with retractable turrets larger drawing.
http://aviadejavu.ru/Site/Crafts/Craft31066.htm
http://aviadejavu.ru/Site/Crafts/Craft20396.htm
http://alternathistory.com/projekt-tyazhelogo-istrebitelyaistrebitelya-tankov-it-2-sssr


Attachments

  • it-2am-37-03.jpg
    44.6 KB · Views: 61
  • it-2am-37-03-700x194.jpg
    16.8 KB · Views: 55
  • 24-2.jpg
    209.9 KB · Views: 44
  • 24-1.jpg
    205.9 KB · Views: 48
  • DIS.jpg
    577.8 KB · Views: 48

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,203

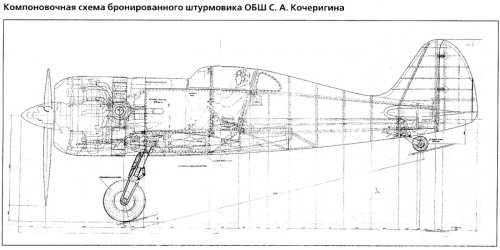

Hi! OBSh.
http://alternathistory.com/shturmovik-obsh-m-81-kocherigin-proekt-1939g?form_build_id=form-55ddf378efff3d783779097f2d4d69de&form_id=comment_controls&mode=3&order=1&comments_per_page=50&op=%25D0%25A1%25D0%25BE%25D1%2585%25D1%2580%25D0%25B0%25D0%25BD%25D0%25B8%25D1%2582%25D1%258C+%25D0%25BD%25D0%25B0%25D1%2581%25D1%2582%25D1%2580%25D0%25BE%25D0%25B9%25D0%25BA%25D0%25B8


Attachments

  • OBSh.jpg
    134 KB · Views: 58
  • OBSh_side_view.jpg
    55.3 KB · Views: 70

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,203
BSh-1.
https://www.aviarmor.net/aww2/aircraft/ussr/bsh-1.htm


Attachments

  • ps43_1.jpg
    34.9 KB · Views: 43
  • bsh1_c1.jpg
    19.4 KB · Views: 42

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,203

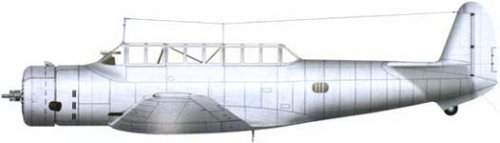

Hi! TSh-3.(ТШ-3)
http://www.sovplane.ru/readarticle.php?article_id=63


Attachments

  • tsh3_r.jpg
    33.5 KB · Views: 46
  • tsh3.jpg
    41.3 KB · Views: 52
  • maxresdefault.jpg
    96.8 KB · Views: 77

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,203
Oh thanks a lot. Indeed American style. :D


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
555
Reaction score
206
Website
www.avicopress.ru

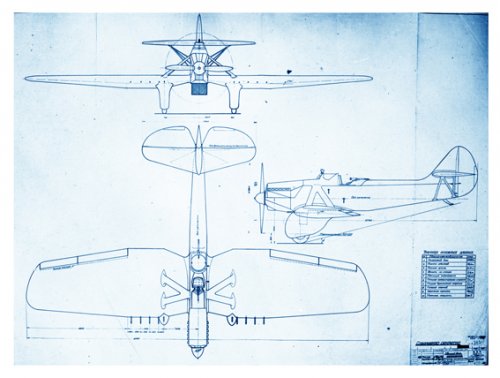

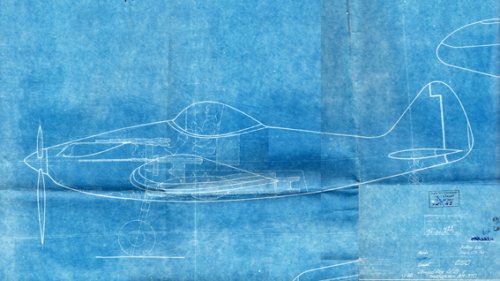

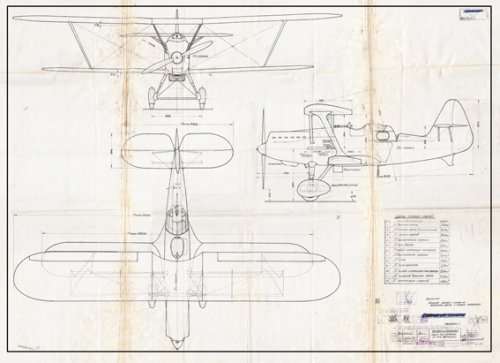

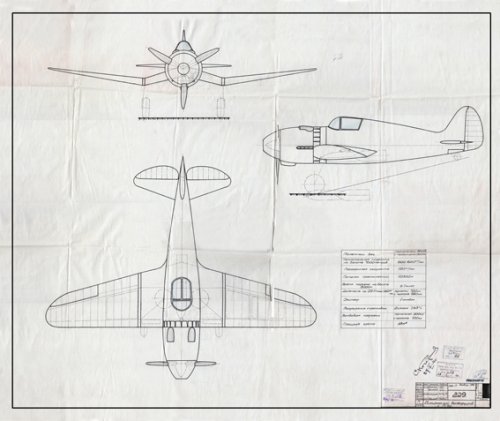

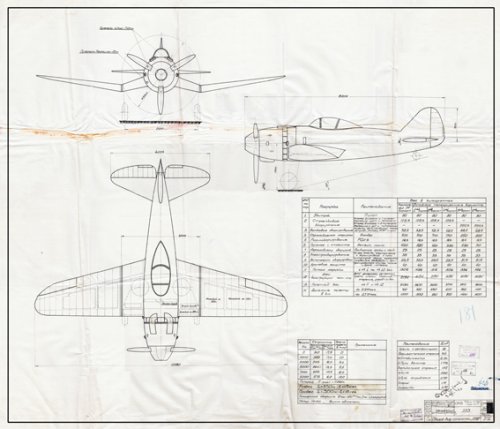

TSH-3 original drawings and one of very rare pic


Attachments

  • TSH-3 original drawings.jpg
    TSH-3 original drawings.jpg
    220.4 KB · Views: 167
  • TSH-3 very rare photo Behind I-17.jpg
    TSH-3 very rare photo Behind I-17.jpg
    103.9 KB · Views: 157
