Hi Everyone!

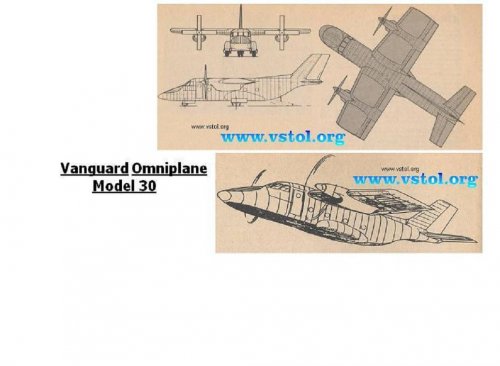

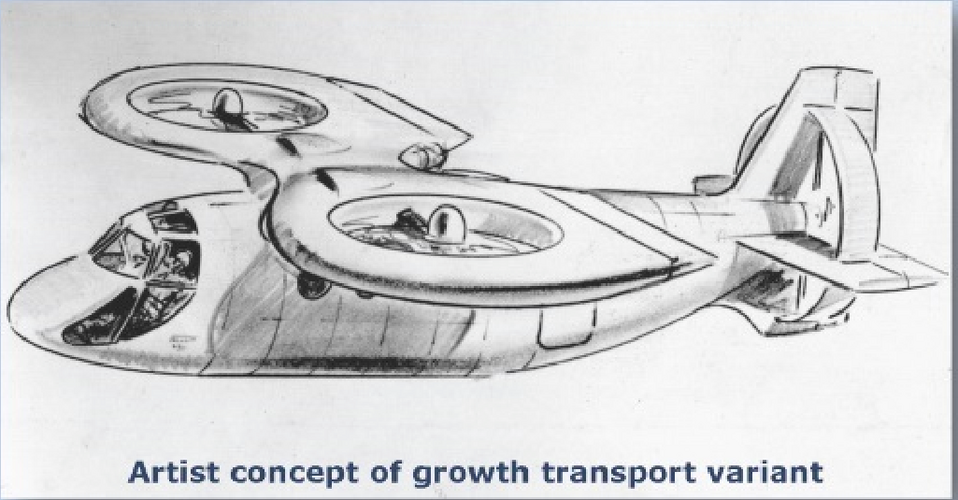

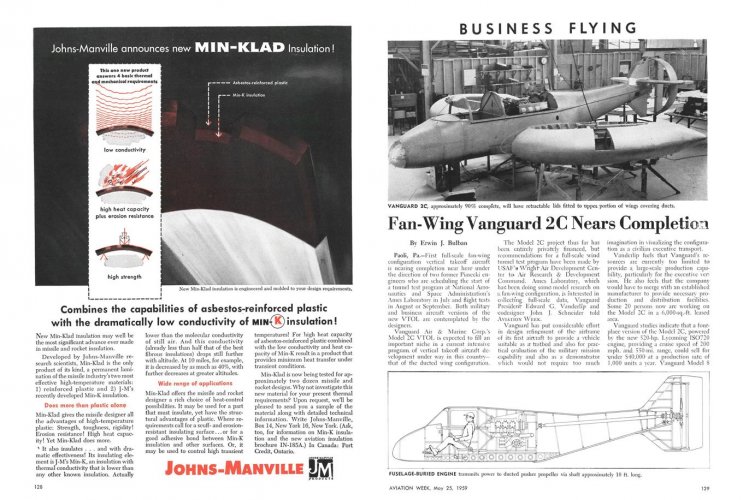

Here's some information on a VSTOL transport design, the Vanguard Omniplane Model 30.

All I've been able to find is a three-view and one other illustration, but if anyone can find other information such as Tech Data please post it on this website. Thanks!

Chuck


Attachments

  • Vanguard Omniplane Model 30.JPG
    Vanguard Omniplane Model 30.JPG
    67 KB · Views: 377

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,462
Dear Chuck,

all information you need is here:

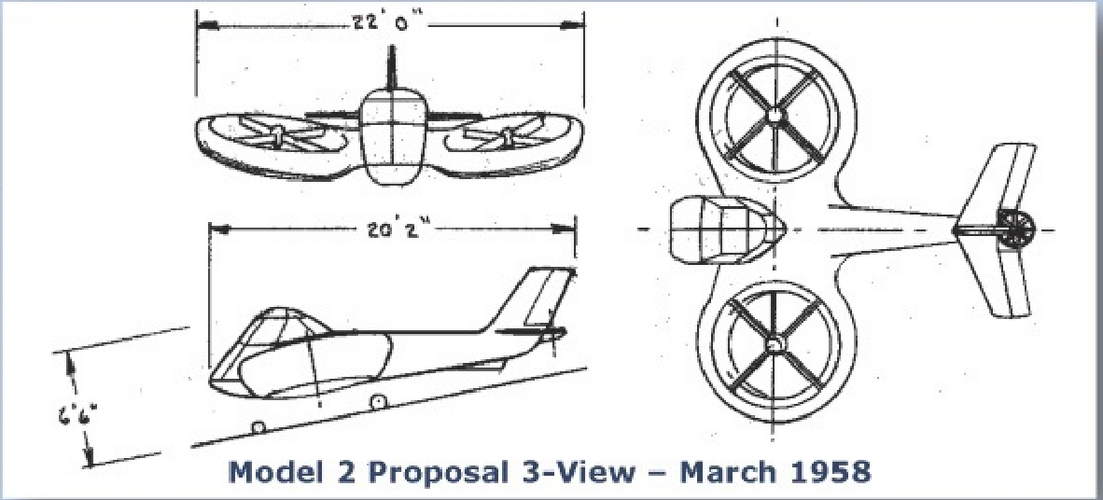

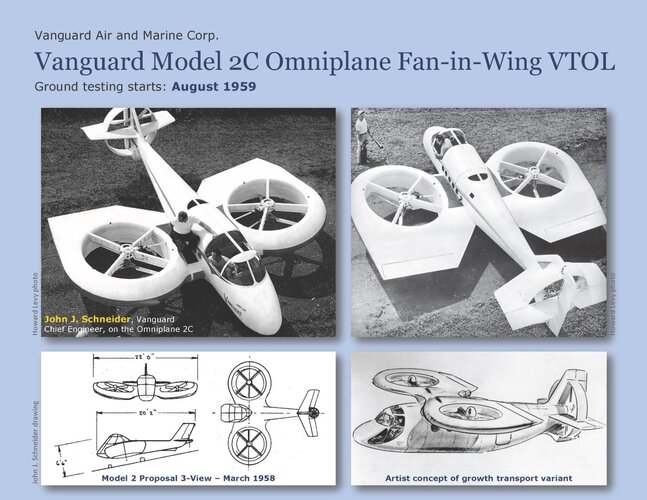

www.aiaa.org/tc/vstol/unbuilt/vanguard/index.html


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
hesham said:
Dear Chuck,

all information you need is here:
www.aiaa.org/tc/vstol/unbuilt/vanguard/index.html

Hi hesham!

Thanks very much for the information. Actually that's where I originally got my information, however I guess I should have been a bit more specific when I was asking for Tech Data on this aircraft, as I was thinking more the dimensions of the aircraft.

Thanks again for taking time and making the effort for researching this information for me.

Chuck


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
929

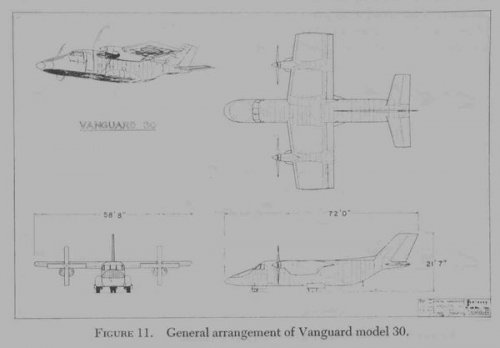

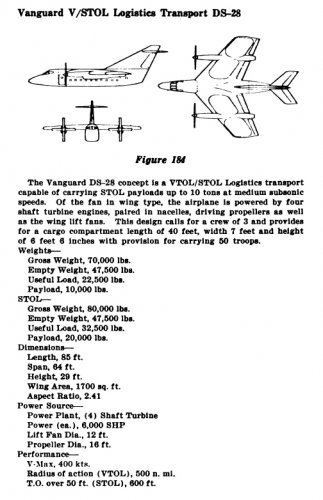

Here's another 3-view (and an artist's impression) with some
dimensional data
(from :Vertical Take-off and Landing <VTOL> Aircraft, (Series of papers ... of
a conference held on Dec. 10-12, 1962) ; Consulting ed.: I. B. Laskowitz )


Attachments

  • Van-1.JPG
    16.5 KB · Views: 335
  • Van-2.JPG
    42 KB · Views: 295

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
Hi Jemiba!

Thank you so much for the information on the aircraft's dimensions!
You hit the jackpot!

Chuck


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

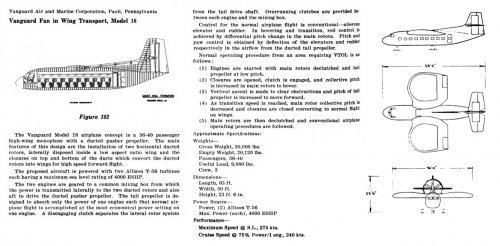

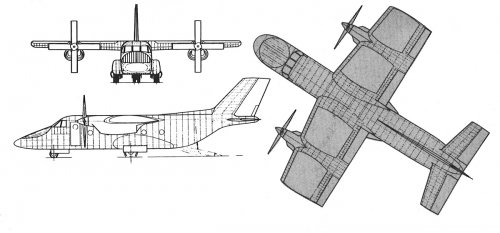

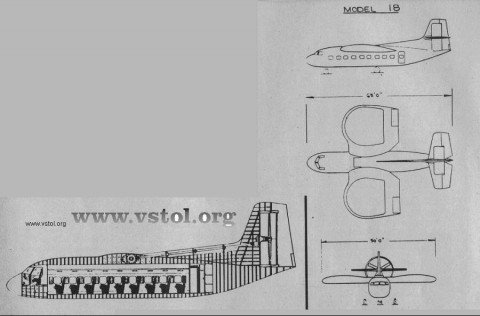

A direct development of the Omniplane design, the Vanguard Model 18 was meant as a 36-40 passenger short haul transport powered by two Allison T56 turbines.

Source: "Project Hummingbird", 1961
http://hdl.handle.net/2027/mdp.39015009821359


Attachments

  • Vanguard 18.jpg
    Vanguard 18.jpg
    341.3 KB · Views: 240

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,627
Reaction score
508
Greetings All -

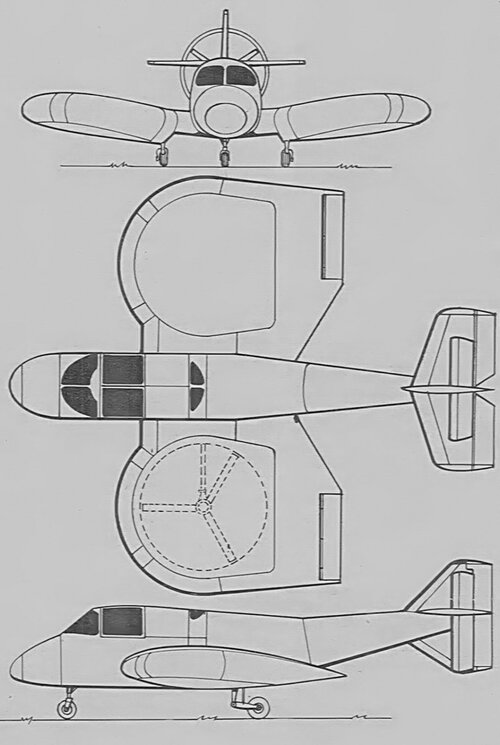

a better 3 view - from the Summer 1962 Air Progress.

Enjoy the Day! Mark


Attachments

  • xVanguard Model 30 VTOL 3V.jpg
    xVanguard Model 30 VTOL 3V.jpg
    160.6 KB · Views: 86

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Topics merged.

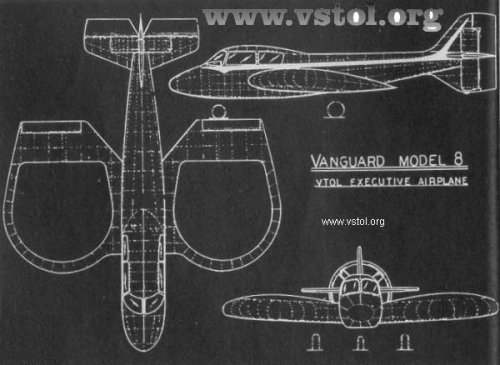

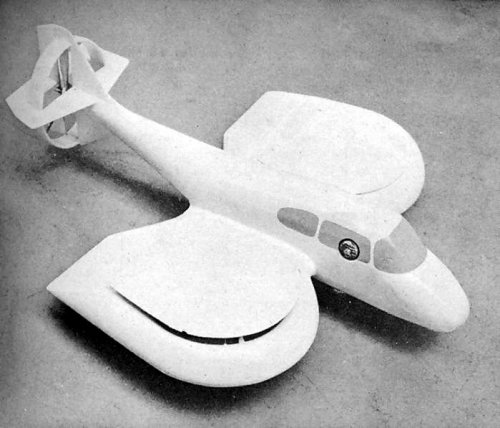

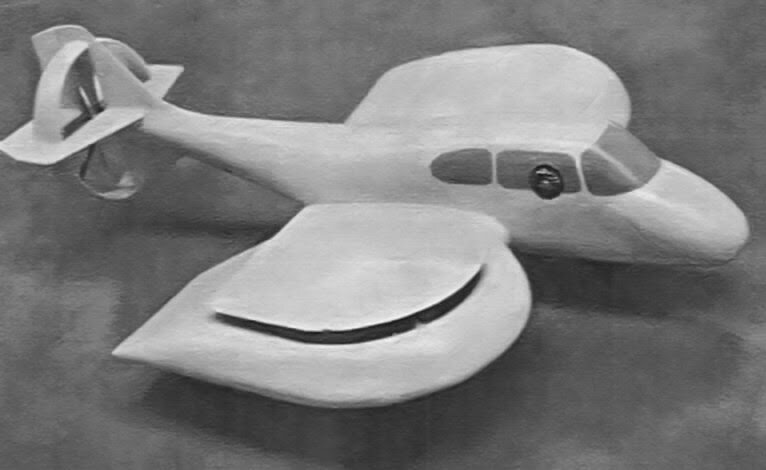

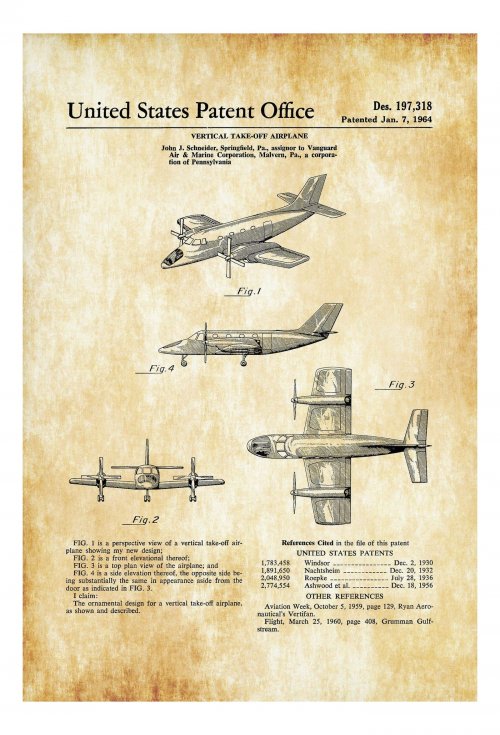

Here is the Vanguard Model 8 VTOL business aircraft project.


Attachments

  • vanguard_model8_01.jpg
    54.3 KB · Views: 28
  • model_8a.jpg
    39.3 KB · Views: 34
