US Supersonic Transport(SST) Program post-1971

[Triton]

Model of Lockheed SST concept.

Source: http://www.fabiofeminofantascience.org/RETROFUTURE/RETROFUTURE6.html



[Triton]

Supersonic transport aircraft concept incorporating a natural laminar flow wing and thermal laminar flow control (courtesy of Northrop Grumman and Aeronautical Systems Analysis Division, NASA Langley).

Source: http://www.aee.odu.edu/fas.php?id=3



[Stargazer2006]

Boeing's HSCT (described elsewhere as Model 1080) appears in model form in four pictures released by NASA. Description is "Boeing 1873 Reference H HSCT Force Model", whatever that means.

http://crgis.ndc.nasa.gov/historic/Test_457:_Boeing_1873_Reference_H_HSCT_Force_Model



[Stargazer2006]

NASA's wind tunnel photos aoso contain a picture of an HSCT-type project by McDonnell Douglas, described as "McDonnell Douglas M 2-4-7a OPT 5 (HSR CA-17)", for what it's worth!

http://crgis.ndc.nasa.gov/historic/Test_470:_McDonnell_Douglas_M_2-4-7a_OPT_5_%28HSR_CA-17%29



[OM]

Source: http://www.aee.odu.edu/fas.php?id=3

...And here I thought Mooney had the patents locked up on the backwards tailfin ;D ;D



[hesham]

Hi,

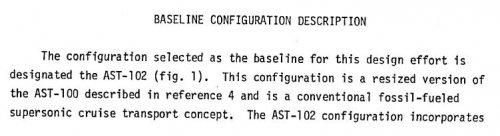

Vought AST-102 and AST-200,and some designs from 1963.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19790013875_1979013875.pdf
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19700077971_1970077971.pdf

The Vought AST-200;

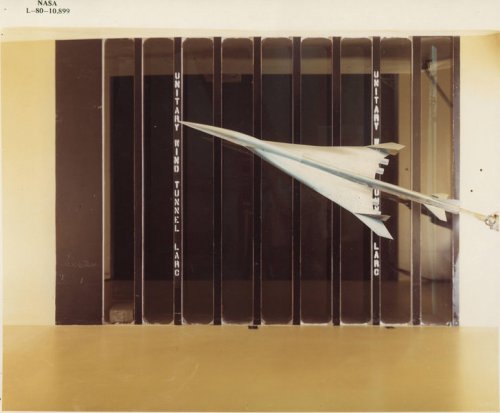

http://crgis.ndc.nasa.gov/historic/Additional_Photos_for_Unitary_and_Continuous-Flow_Hypersonic_Tunnels_4#Martin_103



[blackkite]

Oh. Vought!!



[Retrofit]

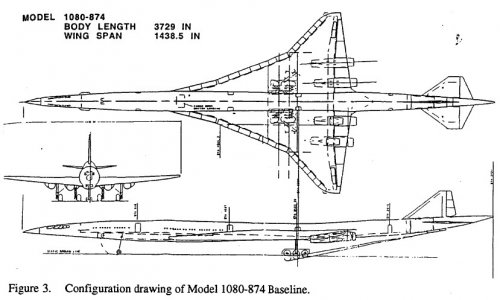

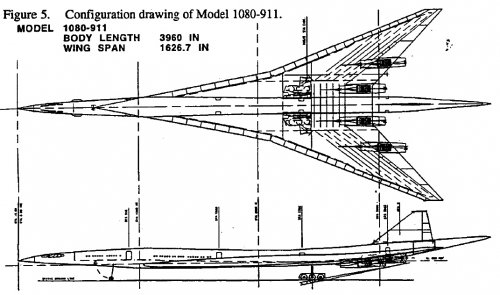

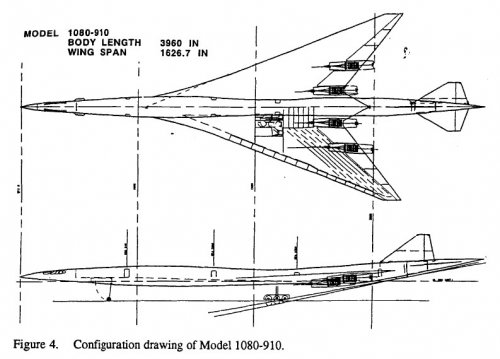

Drawings of the Boeing Models 1080-874, 1080-910 and 1080-911.

Source: http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19920076740_1992076740.pdf



[hesham]

Hi,

Vought AST-102 and AST-200,and some designs from 1963.


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19790013875_1979013875.pdf
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19700077971_1970077971.pdf

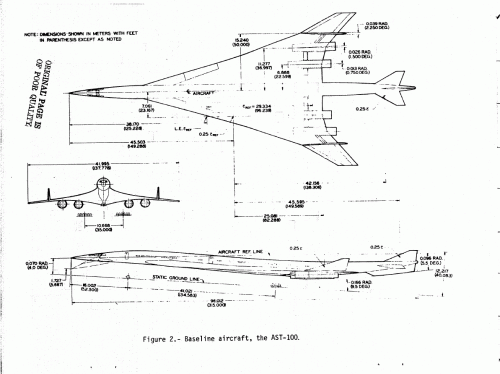

There is also from the same source;the AST-100.



[Stargazer2006]

More on the Vought AST-100 here:

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19770004088_1977004088.pdf



[ipilot]

Hello to all of you SST fans,

I recently discovered this tech review of the Boeing 2707-300. The document is ~100 pages in length, with detail that is fascinating. It appears that it originated right from Boeing. Sections include:

Intro
Summary
Pax Accommodations
Flt Deck
Structures
Systems (environ, flt controls, hyd, elect, and comm/nav)
Ops Characteristics (a/c perf)
Airport Interface
Sizing/Versatility

The level of tech detail is absolutely fantastic, with this document clearly being the most comprehensive and thorough publication that I've yet seen re. the 2707. I'm in the avaition safety business, but I've always been a huge fan/student of America's aborted SST initiative. Enjoy...

http://www.emotionreports.com/downloads/pdfs/boeing.pdf

Ipilot
NC



[Antonio]

Enjoy...

Many thanks!



[Triton]

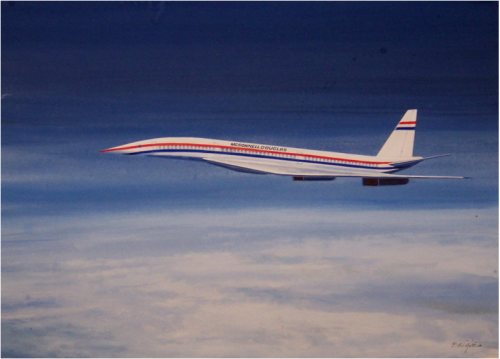

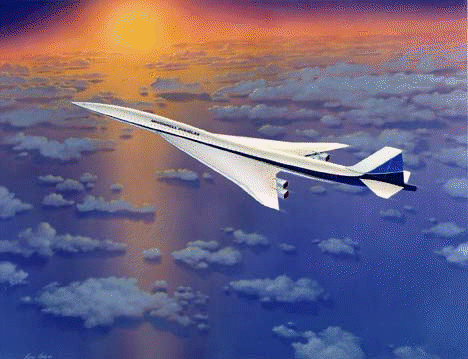

Artist's impression of McDonnell Douglas High Speed Civil Transport (HSCT) concept.

Source:
https://mdao.grc.nasa.gov/concentration/about.html



[Mark Nankivil]

Greetings All -

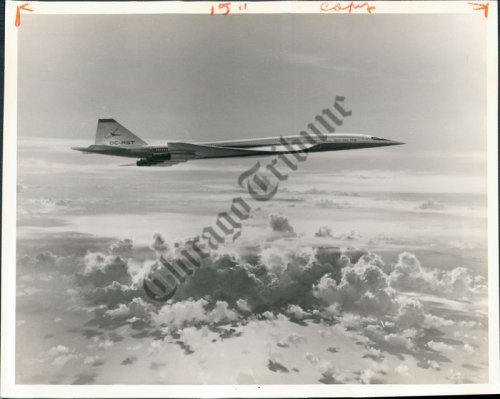

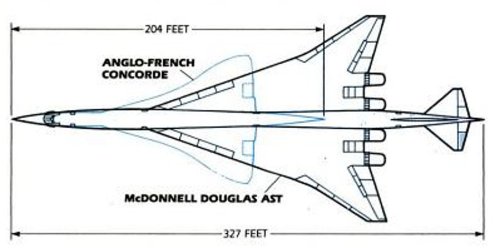

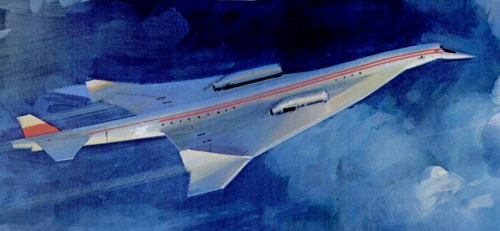

Interesting and so far reasonably priced:

http://www.ebay.com/itm/CT-PHOTO-afg-067-McDonnell-Douglas-Corp-AST-/250998545379?pt=Art_Photo_Images&hash=item3a70addbe3

Enjoy the Day! Mark



[hesham]

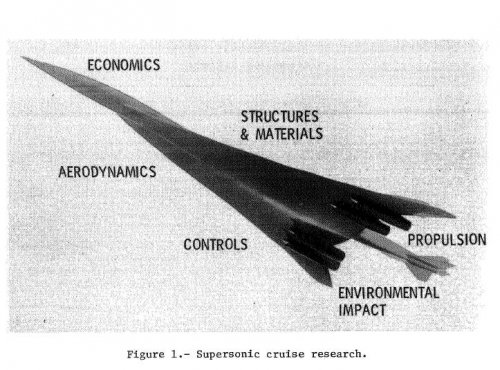

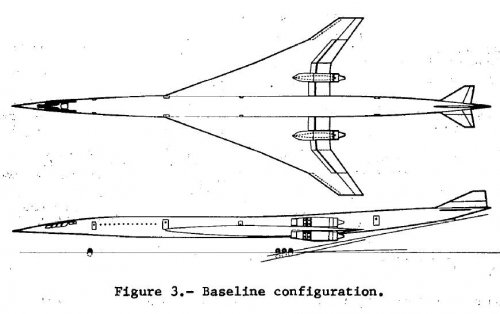

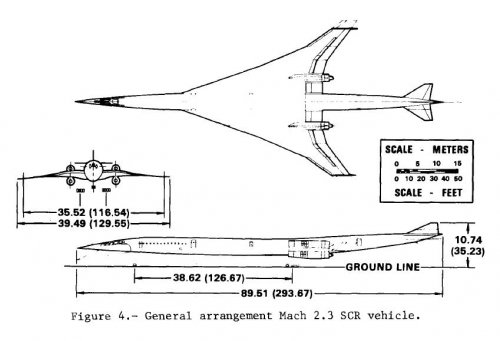

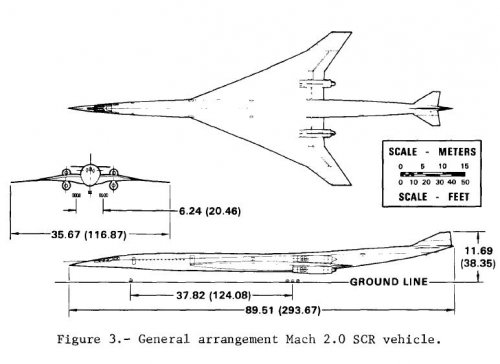

Here is the Lockheed SCR Mach 2.0 and Mach 2.3;


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810009458_1981009458.pdf



[hesham]

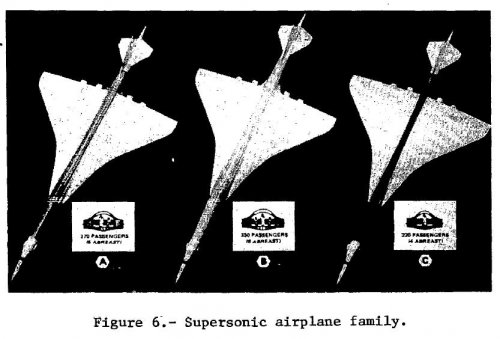

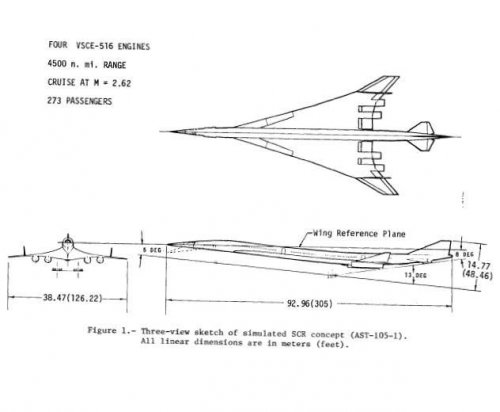

Also Vought AST-105;


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810009458_1981009458.pdf



[hesham]

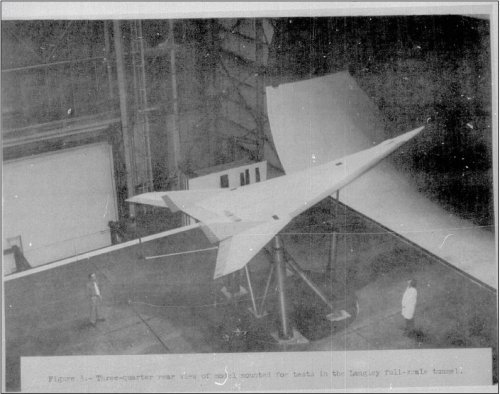

Who can ID this Blended-Arrow Advanced Supersonic Transport Model ?;

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19760015099_1976015099.pdf



[hesham]

Here is the Lockheed SCR Mach 2.0 and Mach 2.3;


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810009458_1981009458.pdf

Again Lockheed SCR SST in the picture "one",and the picture "two" has
a Boeing Concepts;


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810009482_1981009482.pdf



[hesham]

Hi,

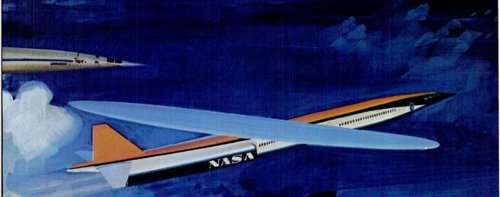

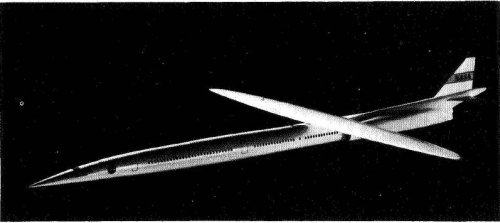

the Boeing Oblique-wing SST.

http://books.google.com.eg/books?id=psqW_3WpLaMC&pg=PA66&dq=slew-wing+aircraft&hl=ar&ei=ek8vTM3PCIi6jAe9zYyXBg&sa=X&oi=book_result&ct=result&resnum=3&ved=0CC8Q6AEwAg#v=onepage&q=slew-wing%20aircraft&f=true

http://books.google.com.eg/books?id=HgEAAAAAMBAJ&pg=PA96&dq=richard+vogt+aircraft&hl=ar&ei=kU4vTKHQK5GUjAezzJDDBQ&sa=X&oi=book_result&ct=result&resnum=1&ved=0CCUQ6AEwAA#v=onepage&q=richard%20vogt%20aircraft&f=true

Also from NASA report;


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19760012018_1976012018.pdf



[fightingirish]

Hi folks,
I'm quite busy the last weeks and unfortunately less time to post here. :-[
Here a video about a Flying-Wing SST lecture by Robert Thomas (R.T). Jones in the year 1986.
I hope this is the right topic.
http://www.youtube.com/watch?v=Vxgg0BXMoqU

This 1986 lecture features by Robert Thomas (R.T). Jones as part of the distinguished lecture series on the foundations of aerospace research development. R.T., inventor of the swept-back wing, basic to all of today's high-speed aircraft, died in August 1999 at the age of 89.


An internationally-acclaimed expert in many fields of science and technology whose research was essential to the development of supersonic flight, Jones is perhaps best known as the inventor of the oblique wing design. This radical design concept pivoted an entire straight wing attached to the fuselage, forming a scissor-like appearance as flight speed increased.


Jones began his research career in 1934 when he joined NASA's predecessor agency, the National Advisory Committee for Aeronautics, at its Langley Memorial Aeronautical Laboratory, now called the NASA Langley Research Center in Hampton, VA.


This recording is from a vhs tape and the quality has deteriorated, but the lecture is well-worth watching.


More on the history and research at NASA Langley Research Center is available at http://crgis.ndc.nasa.gov/historic/larc.


NASA Langley Film #6357

http://www.youtube.com/watch?v=Vxgg0BXMoqU



[blackkite]

Hi!
http://www.benfarahmand.com/2010/12/commercial-supersonic-transport-sst.html#!/2010/12/commercial-supersonic-transport-sst.html



[blackkite]

Hi!

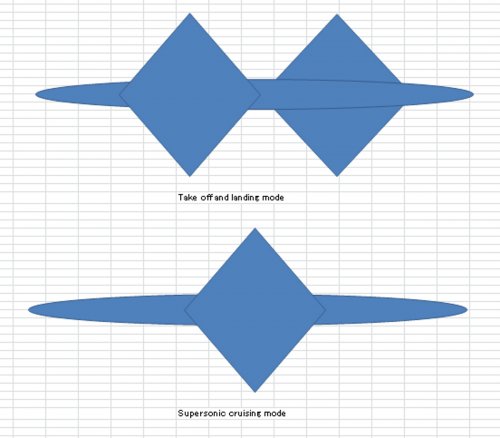

My one idea(only shows plan view) for variable geometry supersonic biplane shape to avoid choke. Of course verious wing plan shapes are possible.
For inherent directional stability, sweep back wing(perhaps there is a wing strength problem in sweep back wing) or delta wing will be better.
Engines are located upper the wing, lower the wing or fuselage.
Of course you can add normal shape or biplane shape tail stabilizers, mechanism for variable wing angle of attack and wing high lifting device if necessary.
Required wing slide length may be more small.
Air center does not move radically when changing wing shape. Perhaps wing area increase in low speed shape.
There are some options, for example,
1.One wing slide.
2.Both wing slide.
3.Change one or both wing angle of attack.

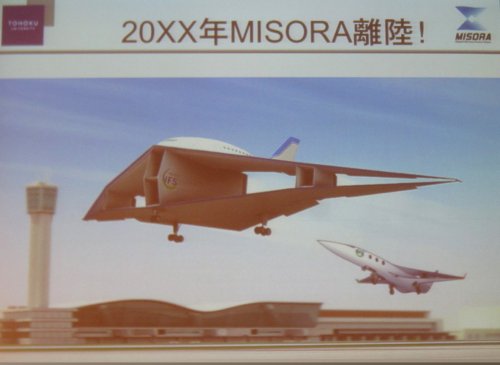

Perhaps fuselage size must be minimized same as MISORA to reduce size originated sonic boom and drag.

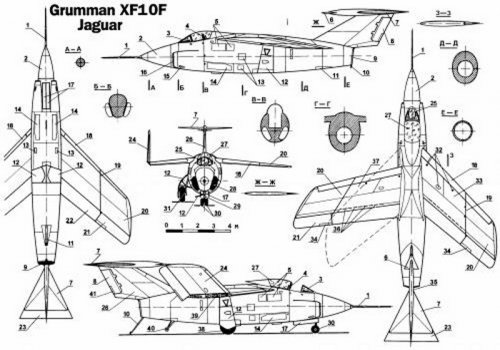

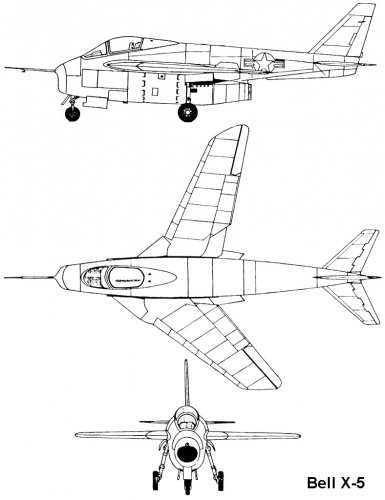

Grumman XF10F Jaguar and Bell X-5 had a slide wing.



[Mark Nankivil]

Good Day!

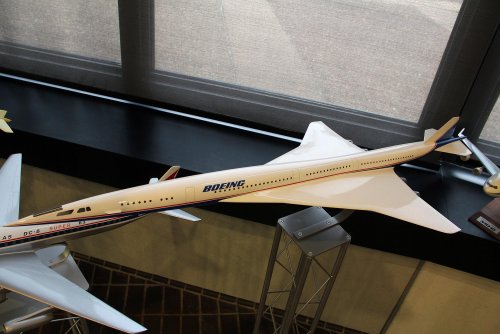

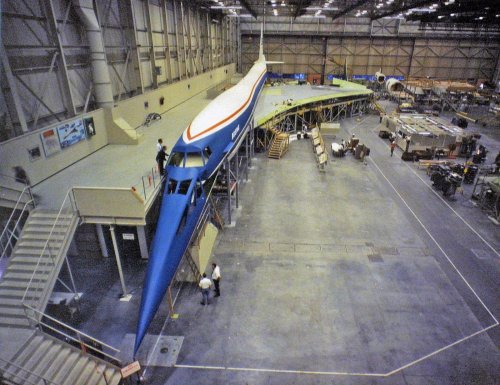

There is now a model of the Boeing 1080-874 on display in the Boeing Prologue Room in St. Louis.

Enjoy the Day! Mark



[Grey Havoc]

http://www.dtic.mil/dtic/tr/fulltext/u2/a000014.pdf



[hesham]

And the Lockheed SST, page 98;


http://books.google.com.eg/books?id=duMDAAAAMBAJ&pg=PA4&dq=popular+mechanics+1985&hl=en&sa=X&ei=4L4BVNapD6Po7Aa8g4DQAg&ved=0CCwQ6AEwBA#v=onepage&q=popular%20mechanics%201985&f=false



[blackkite]

Wow thanks great hesham san!



[hesham]

Thank you my dear Blackkite,


and here is a clearer pictures to Boeing and Lockheed SSBJ and SST aircraft Models,


http://books.google.com.eg/books?id=NQEAAAAAMBAJ&pg=PA129&dq=popular+science+blended+wing&hl=en&sa=X&ei=p6oFVPi5OumQ0AXWxICAAg&ved=0CCEQ6AEwAjgK#v=onepage&q=popular%20science%20blended%20wing&f=false



[Sundog]

...and here is a clearer pictures to Boeing and Lockheed SSBJ and SST aircraft Models,

The first pic is actually a Boeing supercruise demonstrator.



[hesham]

That's right my dear Sundog,


but in this topic called it SSBJ.



[hesham]

Hi,

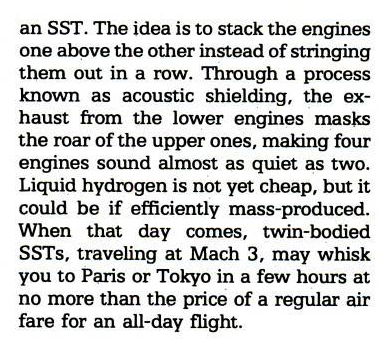

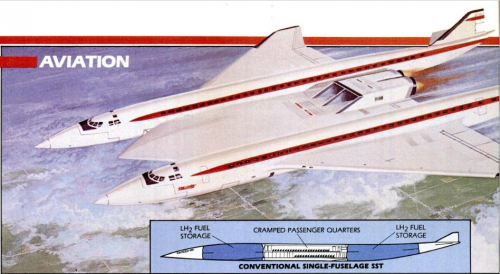

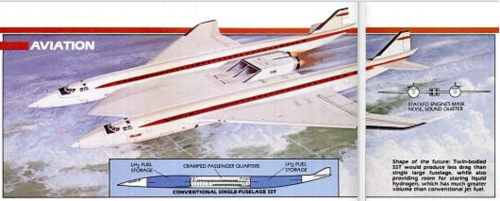

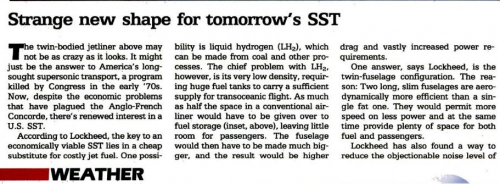

here is a Lockheed twin-fuselage double-deck SST aircraft,also can use liquid hydrogen
as a fuel,page 168;


http://books.google.com.eg/books?id=FuMDAAAAMBAJ&printsec=frontcover&dq=popular+mechanics+1984&hl=en&sa=X&ei=6HALVJyECo3vauH4gugJ&ved=0CD4Q6AEwCQ#v=onepage&q=popular%20mechanics%201984&f=false



[hesham]

Hi,

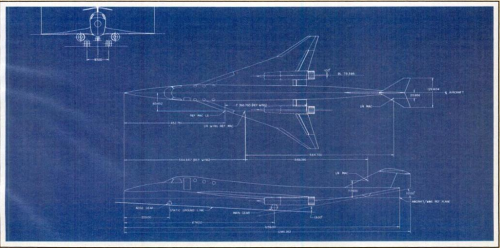

here is a blueprint drawing to NASA/Langley SSBJ aircraft project,page 353;


http://books.google.com.eg/books?id=SOUUuRXEFmoC&printsec=frontcover&dq=flying+magazine+1977&hl=en&sa=X&ei=euEOVIqcKMjmyQPp94CgDw&ved=0CBwQ6AEwAA#v=onepage&q=flying%20magazine%201977&f=false



[fightingirish]

Boeing and McDonnell Douglas High Speed Civil Transport (HSCT) concepts.
More at this link:
http://www.boeingimages.com/C.aspx?VP3=SearchResult&VBID=2JRSN2PXVZ8O&SMLS=1&RW=1920&RH=950



[hesham]

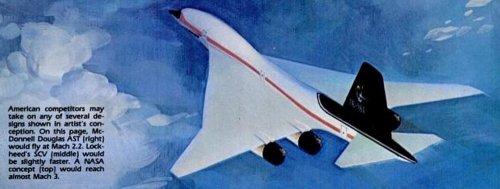

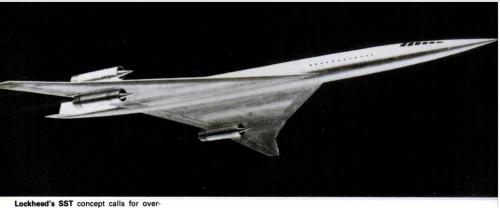

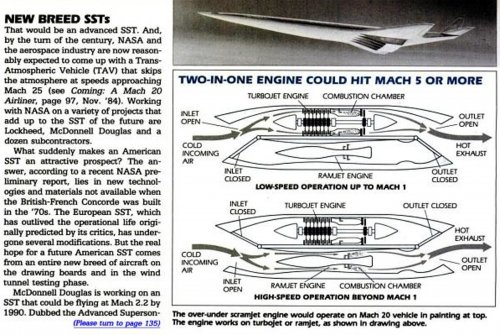

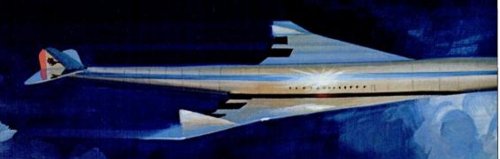

And the Lockheed SST, page 98;


http://books.google.com.eg/books?id=duMDAAAAMBAJ&pg=PA4&dq=popular+mechanics+1985&hl=en&sa=X&ei=4L4BVNapD6Po7Aa8g4DQAg&ved=0CCwQ6AEwBA#v=onepage&q=popular%20mechanics%201985&f=false

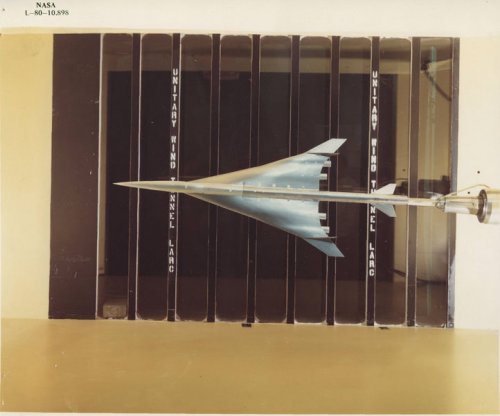

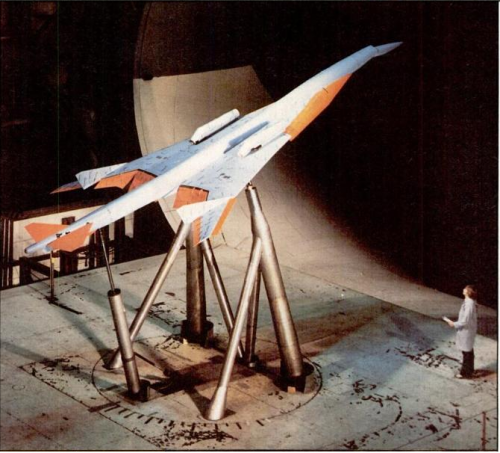

In NASA wind tunnel Model;


http://books.google.com.eg/books?id=eeMDAAAAMBAJ&pg=PA69&dq=LOCKHEED+STERNWHEEL&hl=en&sa=X&ei=SJcmVMmoHYHtO7zHgcAL&ved=0CBoQ6AEwAA#v=onepage&q=LOCKHEED%20STERNWHEEL&f=false



[Triton]

More goodness from Boeing Images:

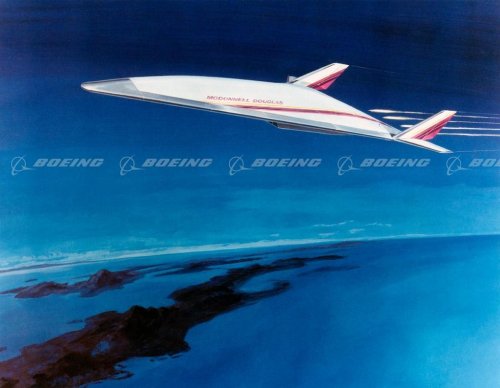

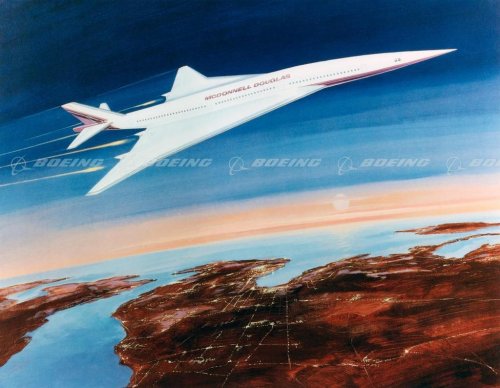

In the mid 1990s, McDonnell Douglas studied the feasibility of the High Speed Civil Transport (HSCT) in conjunction with NASA. The proposed aircraft would cruise at mach 2.4, enabling it to deliver 300 passengers from Los Angeles to Tokyo in about five hours.

Source:
http://www.boeingimages.com/archive/McDonnell-Douglas-HSCT-Mock-5-Concept-in-Flight-2F3XC5HBX0M.html



[hesham]

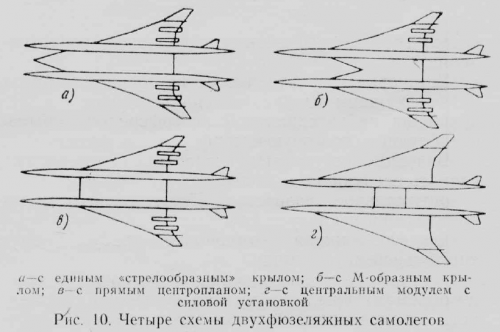

From the Russian file 1/1984,


here is a group of twin fuselage SST aircraft drawings.



[hesham]

Hi,

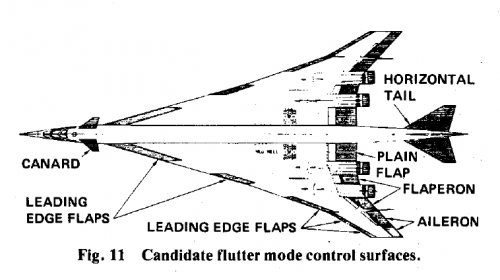

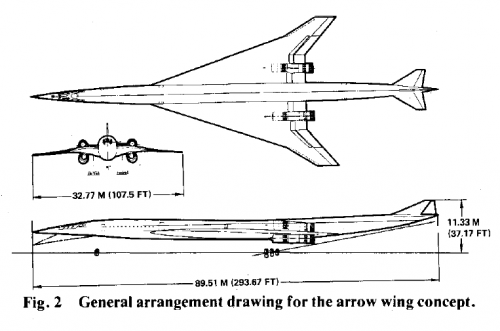

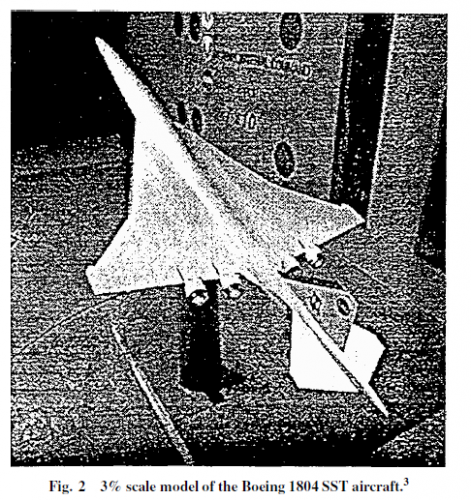

here is a Boeing Model-1804 (as I understand) SST aircraft project;


http://arc.aiaa.org/doi/abs/10.2514/2.2522?journalCode=ja



[hesham]

Hi,


my dear Blackkite displayed this drawing before,but here it's in more clearer view,
it was Lockheed Hydrogen-fueled SST double-deck aircraft of 1975.


http://arc.aiaa.org/doi/abs/10.2514/3.59794



[blackkite]

Thanks my dear hesham! We are hoping hydrogen fuel world.
But how to get hydoren economically is still big problem.



[sferrin]

Hydrogen is, effectively, a very inconvenient battery. I would be surprised (and disappointed) if we ever saw hydrogen powered road vehicles in numbers.



[hesham]

Hi,

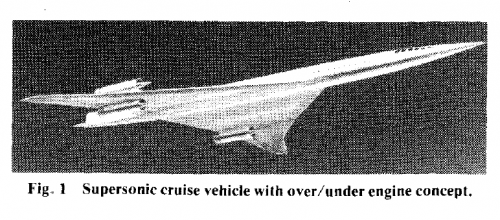

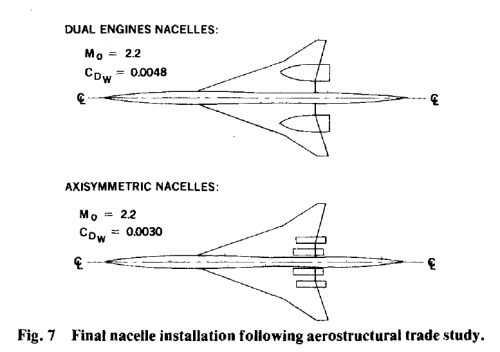

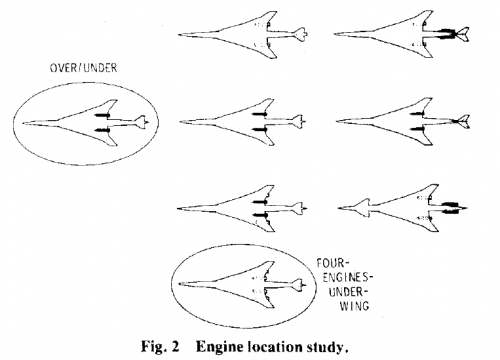

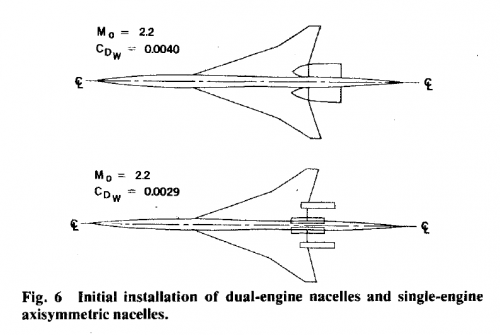

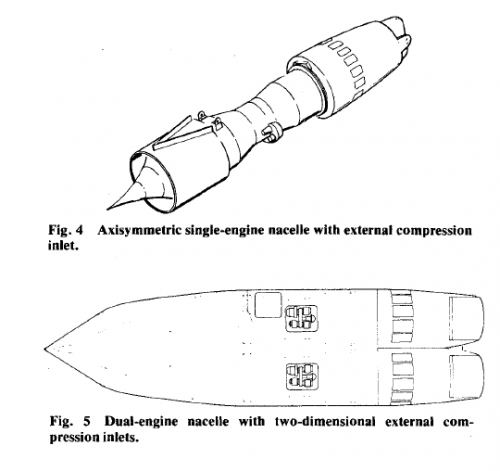

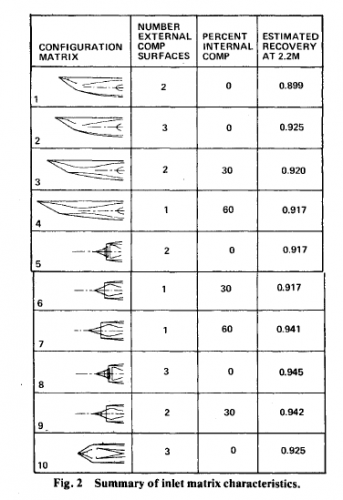

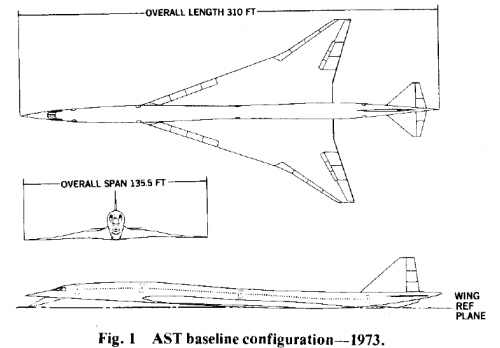

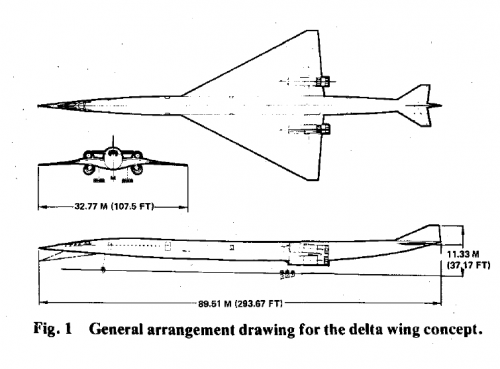

here is the Lockheed SST of 1980,and the studying for engine locations.


http://arc.aiaa.org/doi/abs/10.2514/3.57950
