US Navy OS-117 Outline Specification (S-2 Tracker rivals)

devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
I know following projects:

Grumman G-89--------XS2F-1
Vought V-368---------XS2U-1
Lockheed TDN L-192-6
Curtiss-Wright Model ?

And that can tell about other competitors?


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,012
Reaction score
481
Do not forget the Douglas Model 603 and 604.

It was to have had a AN/APS-20 radar in a large ventral radome.
Two 20mm cannons in the nose, and sonoboys and offensive weapons in a forward fuselage bay and externally beaneath the wings.

It was to have been powered by two 1,525 hp Wright R-1820 radial engines.
Span of 15.24 m (50ft) and length of 12.37 m (40ft 7in)

Thats all I have on the Douglas submission sorry

Does anyone have any pictures, drawing and specifications for the Vought V-368---------XS2U-1 ?

I have never heard of the Lockheed TDN L-192-6
Any more info/pics etc on the L-192-6 also?

Regards
Pioneer


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
119
Website
theavgeeks.com

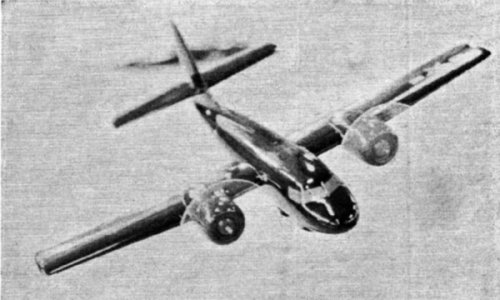

*Image from Rene Francillon's book McDonnell Douglas Aircraft since 1920: Volume I


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Hi Pioneer.

Many thanks for the information.

Come in http: // www.aerofiles.com/_vot.html and there there is a picture of mockup XS2U-1.

More any have no information about XS2U-1.

And the information about L--192-6 will be in two days.


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Hi Sentinel Chicken.

Many thanks for image.

If is in book McDonnell Douglas Aircraft since 1920: Volume I the information (figures, 3-view drawings and specifications) about Douglas Model D-? (competitor XF3H-1), Model D-? (competitor YF-102 and XF-103) if it is possible show us.


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5

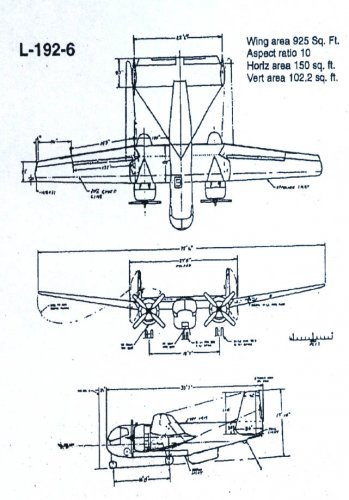

Lockheed Model L-192-6:

gross take of weight(GTOW):------21800 lb.
maximum speed:------------------------247 knots.
patrol cruise speed:--------------------139 knots.
stall speed:--------------------------------67.5 knots.
minimum endurance:-------------------6.75 hours.
takeoff distance:------------------------300 feet.


Attachments

  • L-192-6.jpg
    97.7 KB · Views: 1,961

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,556
Reaction score
363
Wow!!!

Many thanks for that drawing, Devi :D

What would have been the USN designation for this aircraft it would have been the winer design?....Lockheed SO-1?

Cheers

Antonio


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Hi pometablava.

Possibly SO-1(then would be SV-1).


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,012
Reaction score
481
Great work Sentinel & Devi finding the 3-view drawing of the Douglas & Lockheed submissions

Know we are getting places with this forum

Thanks
Pioneer


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178

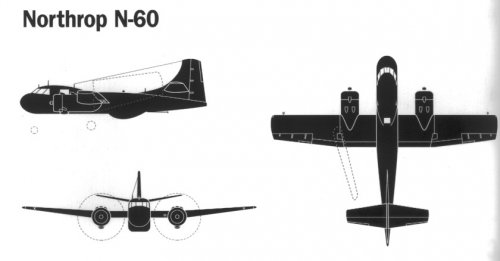

Ok, comopared to the Devis's and Sentinel's submission this is way easy.. Anyway, this is the Northorp N-60, Northor submission to the comopetion to substitute Grumman Af-2S/-2W Guardian, later originating S2F Tracke. Data: lenght 18.59 m; span 14.66 m; height 5,13 m; wing surface 44,43 sqm.

By the way, to the Tracker competion took part 18 companies with 24 different desings... this is gonna be a loooooooooooooooog topic :D

r
Uh, source: Docavia's Northrop, what else?


Attachments

  • Northrop_N-60.jpg
    29.6 KB · Views: 1,706

devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Hi Skybolt.

Name those eighteen firms with the projects if you can.


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Hi skybolt.

If you can, please show us Northrop Model N-31, N-53, N-65, N-94,N-103 and N-132.
( as Northrop Model N-60 )


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
Eh, eh, N-31 and N-31a were all-wing bomber studies (1948). I'll post but in a new topic, not here (too off-topic). N-53 an interceptor (another topic...). N-65 was another interceptor, but I don't have images. N-94 a Navy fighter (it was tendered for the substituion onf the Cutlass, any idea which competition was?) N-103 another interceptor, don't have anything (I suspect was related to Scorpion). N-132, a strategic fighter (looks like a competitor to the Voodoo). No images. Anyway, in the next few days I'll start topics to cover the images that I have (they all come from Docavia Northrop, by the way...why not buy it ;) ?)

And:
Thanks Devi,

What is your source ?

I suspect AAHS Journal 1999, this smells Bill Slayton a mile away...


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Hi Skybolt.

Yes, the brother:

AAHS Journal,1999, Vol.44, Winter(N.4),p.288-297, The Lockheed that never were(part.IV)

I shall wait with the great pleasure on account Northrop.....


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
The project of firm Martin: Model M-255.

Source of Lockheed TDN Model L-192-6: AAHS Journal,2000, Vol.45, Spring ( N.1 ),
p.53-63, The Lockheed that never were ( pt.V )
L-192-6----page.54-55

I wish to know, when have begun competition.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
I wish to know, when have begun competition.
This is easy, Devi:
Navy issued an Invitation to Bid (which is a type of document more generic than an RFP) on January 20th 1950. The contents were: a carrier based airplane with the capability to find, track and destroy a sumbarine without assistance from other aircrafts or from ships; the plane had to be suitable for use from the CVE-105 escort carriers (which was the more stringent specification of all).
Bids came in on April 27th 1950 (fairly fast) and comprised 24 proposals from 14 companies.
The short list eneded up with Douglas (Models D-603 AND D-604), Vought Model 368 (XS2U-1) and Grumman.
As of now we know/have:
Douglas
Martin
Lockeed
Vought
Northrop
Grumman

Anyone for the other 8 (eight!) companies? Convair? Bell? Ryan? McDonnel? Boeing? North American? Fairchild? Curtiss (still in business in 1950?)?


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Many thanks Skybolt.

and what source?

100 % I know, that firm Curtiss-Wright too participated.

Curtiss-Wright Model CW-4? or C-? or P-?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
Surce is Grumman Aircraft - Naval Institute/Grumman, in the Tracker chapter. If you have the collection of AAHS Journal, there was an article in 1997 or 1998 on the end of the Aircraft Division of Curtiss and the rejected bid (mainly on the XP-87, by I think other info)


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Hi Skybolt.

you, look....It is written about Curtiss-Wright

http://www.history.navy.mil/nan/backissues/1950s/1950/aug50.pdf

page:12 (pdf page:14)---"Grumman Wins Competition"


thewanderingmind

Werfless
Joined
Aug 2, 2006
Messages
25
Reaction score
2
Thanks, Devi! Aside from the stuff on Curtiss-Wright, I was fascinated by the article on the Skyraider with the internal spin-stabilized rocket launcher! As an old Spad-lover with many hours in the right seat as an observer/photographer, this was a total surprise! :eek: Really appreciate your sharing this PDF with us!


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
Devi, doesn't open anymore... NSA at work ??? :eek:


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,010
Reaction score
5,691
Republic NP-52, from Aviation Week 5th December 1958, via Tony Buttler.

Must be a competitor to Type Spec 146, which led to the Lockheed P-3 Orion; 4 manufacturers responded altogether.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,423
Reaction score
269
Opened fine for me today. That spin-stabilized rocket launcher sure sounds interesting. I thik carrying standarad fin-stabilized rockets makes more sense, though. The launcher sure sounded like a "big brother" to the old Gyrojet pistol.

It was interesting to see that Curtiss was the runner-up to teh S2F. I wonder if that could've kept them in business despite their other ineptness.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,012
Reaction score
481
Do you have any pics or drawing and specifications for this NP-52 design?

Regards
Pioneer


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,010
Reaction score
5,691
Pic only, which I accidentally forgot to attach :)


Attachments

  • NP-52.jpg
    64.3 KB · Views: 1,136

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,012
Reaction score
481
Hay Overscan

Is it just me or does the NP-52 look a little on the small side to be in the race or capability of the Lockheed P-3 Orion, let alone the P-2 Neptune it was to replace - in terms of its size, range capability?

It looks more to me as if it was in the race with the USN's requirement for a carrier-based ASW aircraft, as won by the Grumman S-2 Tracker?

What do you think?

Regards
Pioneer


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,010
Reaction score
5,691
Hmmm- Tracker is too early. Model is from 1958; Tracker prototype flew in 1952 already.


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Hi Skybolt

You have told, that 14 firms participated in competition.
What source?

And in the book (Grumman Aircraft Since 1929) 18 firms are told.


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Hi Sentinel Chicken

Here the resulted drawing, What from them, Douglas D-603 or D-604?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
The two differed by the radar arrangement, AFAIK. There is a picture in Putnam's McDonnel Douglas aircraft vol. 1 of a certain configuration, but not mentioning if it's 603 or 604... :(


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
Sure! ;D
Alain Pelletier "Les Avions et Engins Northop. Des origines à nos jours", Minidocavia n.21 Editions Larivière 2006, ISBN 2-84890-078-4, 24.00 € in Italy
A much recommended book, by the way.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
Sometime they (the topics..) come back..

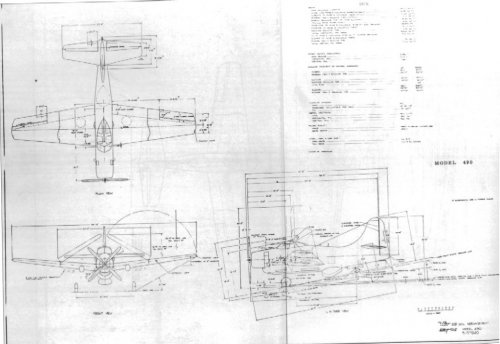

Boeing Model 490. Same wing and impennage of XF8B, 4-person crew, R-2800. From new and beautiful (and pricey...) "Boeing XF8B Last of the Line" by Jared A. Zichek, Schiffer.


Attachments

  • Boeing Model 490.jpg
    Boeing Model 490.jpg
    129.9 KB · Views: 1,521

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
19
Thanks for the tip on the book as well as the drawing. I just ordered the book. The XF8B is one of my favs. Since the USAAF tested it as well, any thoughts of what its designation would have been had it entered USAAF/USAF service? Fighter? Attack? I think P-73 or 74, which were unused, or maybe one of the desigantions assigned to an unbuilt design. For attack, maybe in the A-40-something range.

Skybolt said:
Sometime they (the topics..) come back..

Boeing Model 490. Same wing and impennage of XF8B, 4-person crew, R-2800. From new and beautiful (and pricey...) "Boeing XF8B Last of the Line" by Jared A. Zichek, Schiffer.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,001
Reaction score
5,295
Hi frank,

but the P-73 was actaully allocated to Hughes D-2.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
Looked: no P-XX number assigned to the XF8B. Actually, the test didn't go well, at least for the role the AAF was interested in: long range, high altitude escort fighter. I suppose the competitor was the Twin Mustang.


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
16
Skybolt, on the drawing it is not visible specifications. If it is possible, these data show precisely.
