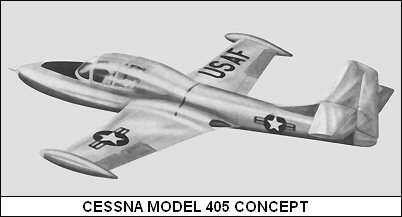

Cessna 405

Description: Four seat light transport similiar in appearance/concept to the Morane Saulnier MS 760. Large clamshelll canopy over the two by two seating in the nose section.


Attachments

  • avtweet_5.jpg
    15.4 KB · Views: 956

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
57
Website
theavgeeks.com


Cessna 407

Description: Four place civilian light jet derived from the Cessna 405 design. Some references seem to interchange the 405 and 407 designations. More information on the Cessna 407 here: http://www.machdiamonds.com/cessna407.html


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
57
Website
theavgeeks.com
Cessna Tandem Navy Trainer (TNT)

Description: Designed to meet the TNT requirement for the US Navy (for which eventually the North American T-2 Buckeye got selected), Cessna proposed a tandem two seat variant based on the T-37.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,344
Reaction score
116
Sentinel Chicken said:


Cessna 407

Description: Four place civilian light jet derived from the Cessna 405 design. Some references seem to interchange the 405 and 407 designations. More information on the Cessna 407 here: http://www.machdiamonds.com/cessna407.html

And the six-seat derivative, the Model 407A.


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
57
Website
theavgeeks.com

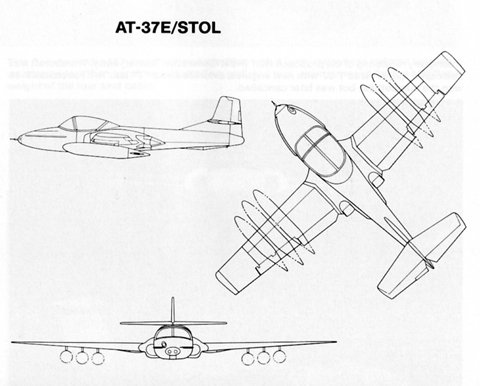

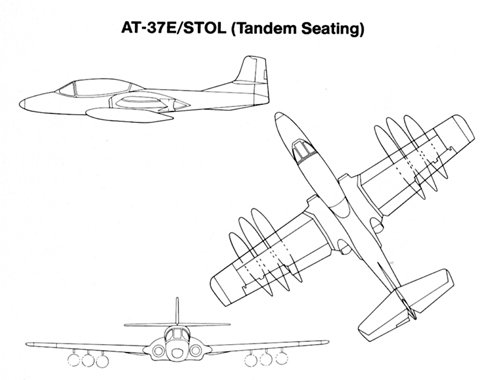

Cessna AT-37E/STOL and other strike variants

Description: Based upon the TNT variant of the T-37, Cessna proposed several different models as enhanced strike variants. One version incorporated wingtip lift pods. The AT-37E/STOL incorporated the tandem cockpit, larger engines, bigger flaps, and thrust reversers. The A-37D design was even more strike optimized with a single seat cockpit based on the TNT design, more powerful engines, and a centerline gun pod similar to what the RAF Hawks used.


Attachments

  • avtweet_6.png
    2.8 KB · Views: 756

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,454
Reaction score
185
A-37/T-37 Dragonfly in Action
Aircraft Number 114
Squadron/Signal Publications
By Terry Love

Page 45 to 49: Proposed T-37/A-37 Variants

Cessna 405. 4 seater liaison jet

Cessna 407. Setember 1959. 6 seater liaison jet (The USAF selected the NA T-39 instead)

Tandem Navy Trainer (The NA Buckeye won the contract)

T-tail T-37 derivative to Next Generation Trainer (The T-46 won the contract)

VTOL trainer based on TNT fuselage (USN and USAF versions)

AT-37E/STOL strike/recon using the TNT fuselage

AT-37E/STOL strike/recon using the T-37 fuselage

Naval Instructional Trainer derivative from A-37

A-37D single seater based on TNT fuselage

T-37 USAF Thunderbird

AX (experience with A-37 was included but final design has nothing in common)

T-48 ( a replacement to T-37 after the T-46 cancellation) was a T-37B updated

Regards,
Antonio


JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
75

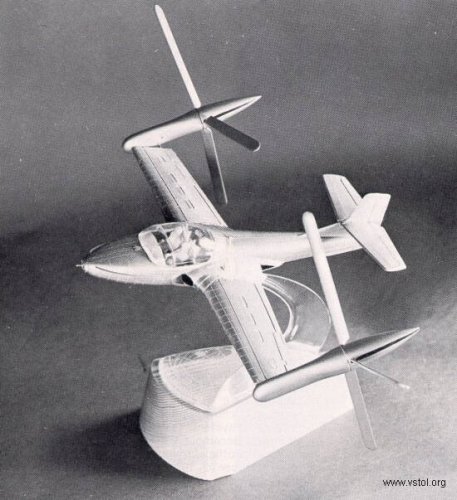

Tilt-rotor conversion


Attachments

  • US- Bell T-37 tilt-rotor-fighter.jpg
    US- Bell T-37 tilt-rotor-fighter.jpg
    61.9 KB · Views: 814

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,454
Reaction score
185

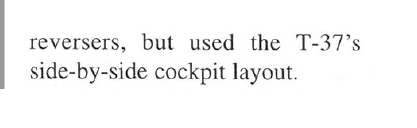

"AT-37E. Modifications to the TNT included: higher thrust engines, wing tip extensions, increased chord flaps and larger thrust reversers"

No description about type engine on Squadron/Signal


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,454
Reaction score
185
JAZZ,

this variant is awesome!, why the pic is identified as Bell?. It was a Bell-Cessna project?
Can you add more info?

Thanks,

Antonio


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,454
Reaction score
185

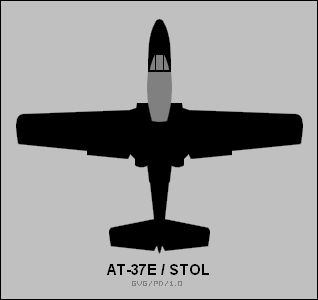

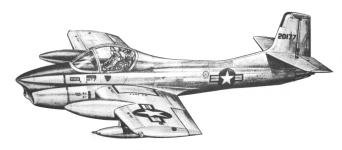

AT-37E pics


Attachments

  • AT-37E.jpg
    120 KB · Views: 375
  • AT-37E Tandem.jpg
    AT-37E Tandem.jpg
    90.3 KB · Views: 437

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
75
Pometabla

Some of my collection of photos are poorly referenced, and I know little of this project, other than Bell was behind the conversion.

Photo does have a web site - bottom right hand corner - www.VSTOL.org which is I suggest you google as a start.

cheers JAZZ


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

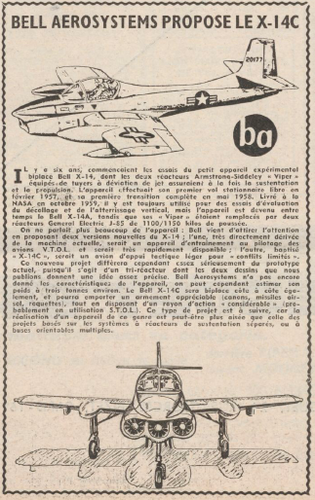

Bell apparently fancied the Cessna T-37 as a basis for their projected VTOL projects... as evidenced in the unbuilt X-14C...


Attachments

  • v1n3ad13.jpg
    7.4 KB · Views: 219
  • x-14c_art.jpg
    248.1 KB · Views: 248

Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,881
Reaction score
1,172
I've found some more info on the T-48.
It was to be a T-37B with structural strengthening, new tail, pressurised cockpit and to be powered with two 1,330lb Garrett F109-GA-100 turbofans. It was shelved in favour of the T-37 SLEP with new canopy, tailplane skins, dorsal fin mounts and new front wing spar carry-through structure and upgraded spars.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
Hey nice find with that artist work of the Bell X-14C load-out weapons option Stéphane

Very interesting and adds to the perspective of the artist impression you also posted!!

Regards
Pioneer


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
161

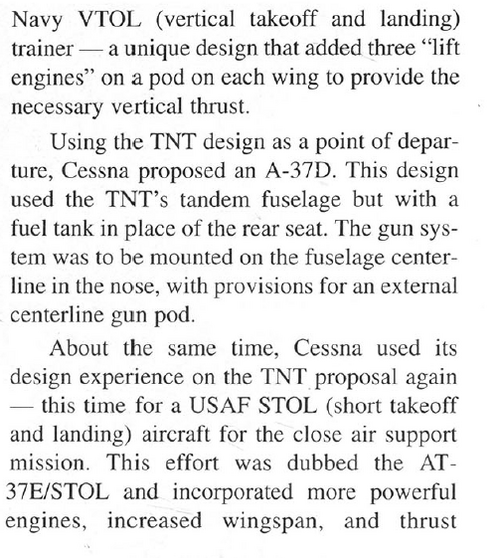

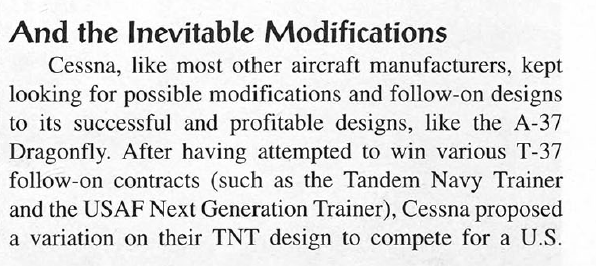

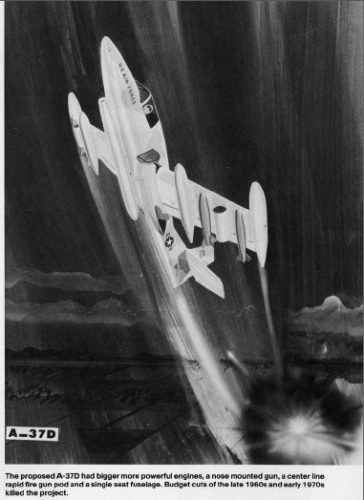

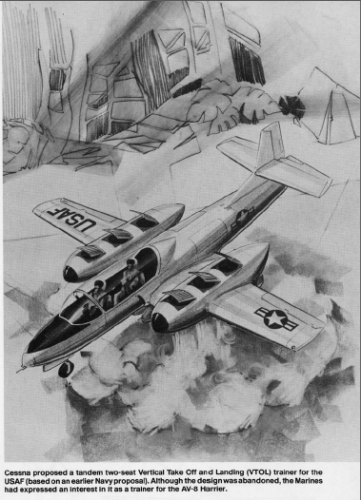

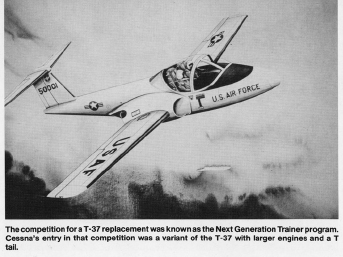

A few more pictures from squadron/signal publications Aircraft Number 114 “A-37/T-37 Dragonfly in action” by Terry Love. Certainly not ALL the pictures of T-37 spin offs in this great little monogram.


Attachments

  • A-37D.png
    176.3 KB · Views: 803
  • cessnaVTOL.png
    199.8 KB · Views: 807
  • cessnaNGT.png
    81.3 KB · Views: 875

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202

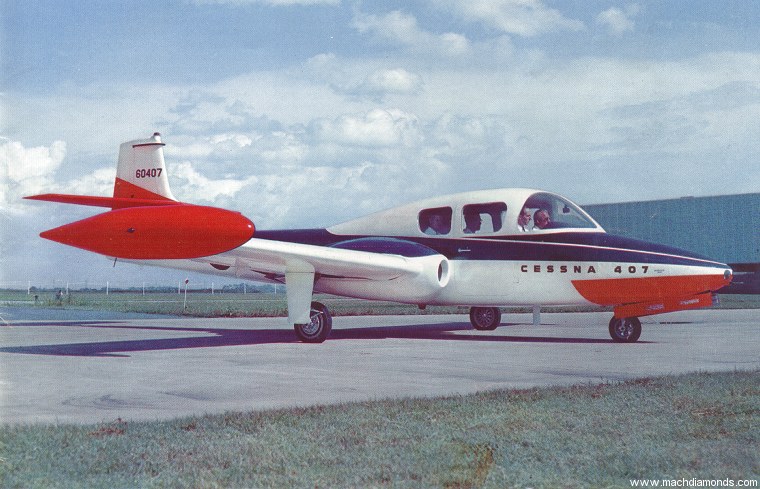

Dear Boys and Girls, here is an article in French about the Cessna 407 light executive/liaison jet "project" and its mock-up......

The article comes from the 10th October 1959 issue of Les Ailes......

Terry (Caravellarella)


Nico

ACCESS: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
24
Hy all,
I found in a box three pics (unfortunately without any date or note written on the back) that I vaguely remember as depicting some Cessna projects dating back to around 1970.

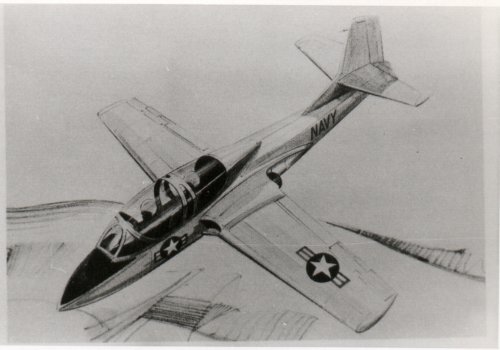

One is surely a Cessna Model 318/T-37 modified from side by side to tandem seating to answer a Navy requirement (perhaps a contender of the Beech T-34C Turbo-Mentor? The timeframe could be the same...).

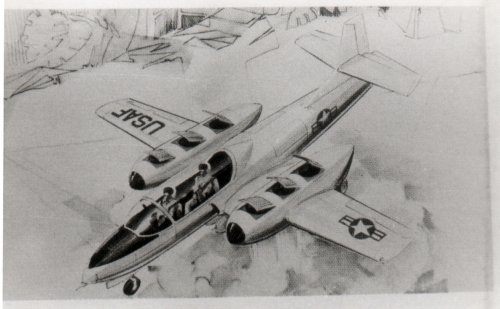

The second, and weirdest of all, is a V/STOL derivative of the previous airframe, but with USAF markings: perhaps Cessna was answering a requirement for a V/STOL trainer?

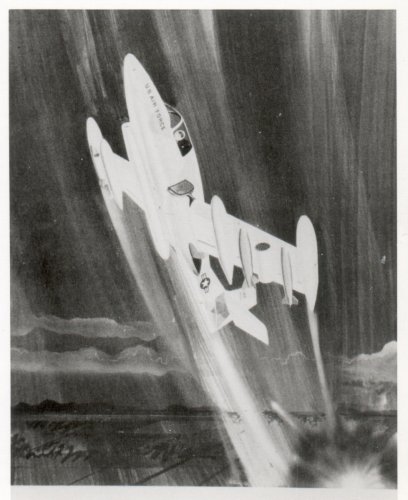

The last is a light attack aircraft on the same line of the AT-37D/A-37B Dragonfly but with some redesign, an underfuselage gunpod (perhaps for a 20-mm M61 Vulcan) and more robust warload: could it be a proposal for some iteration of the AX contest?
Nico


Attachments

  • T-37 derivative_1.jpg
    T-37 derivative_1.jpg
    310 KB · Views: 831
  • T-37 derivative_2.jpg
    T-37 derivative_2.jpg
    330.3 KB · Views: 345
  • T-37:A-37 derivative_1.jpg
    T-37:A-37 derivative_1.jpg
    339.9 KB · Views: 314

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
614
Reaction score
65

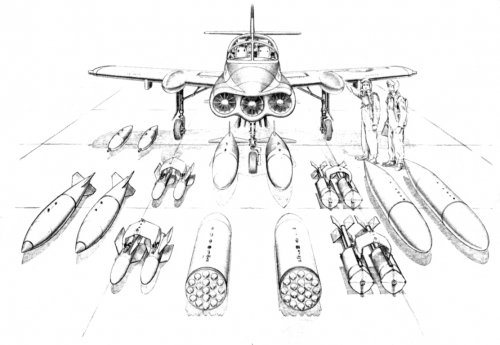

I have the cutaway drawing this project in free interpretaton...! for interesting


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,670
Reaction score
3,463

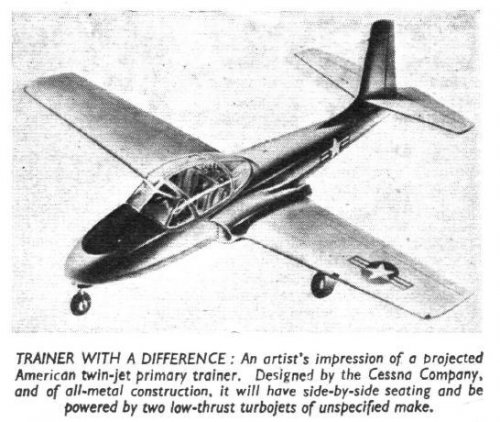

From Ailes 19/11/1962.


Attachments

  • 1.png
    310.9 KB · Views: 77
