Hi,

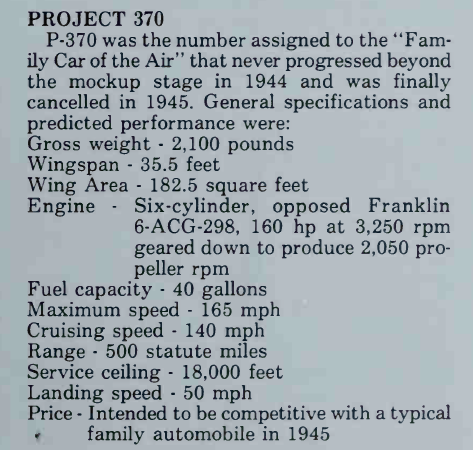

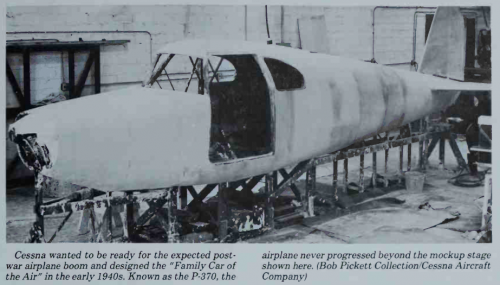

here is the Cessna early projects,the Project 370 was a Family-Car or light transport

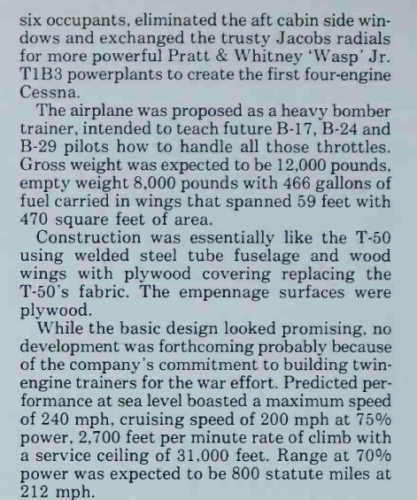

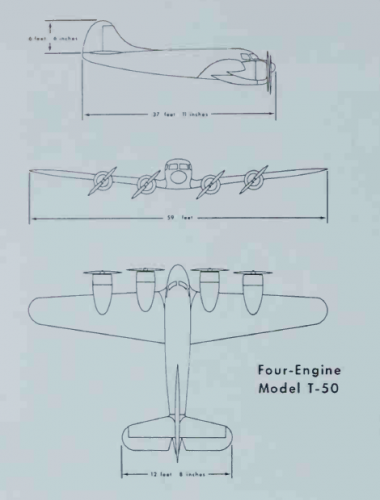

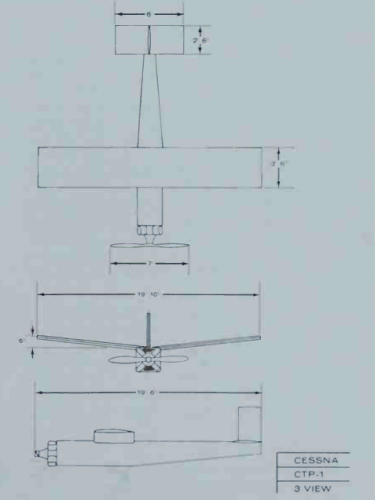

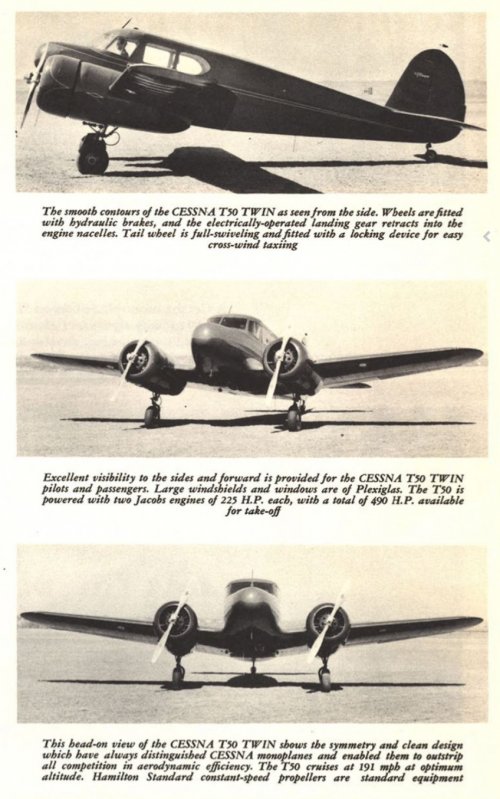

aircraft,Model CTP-1 was a pilotless torpedo plane,Four-Engined T-50 was low-wing

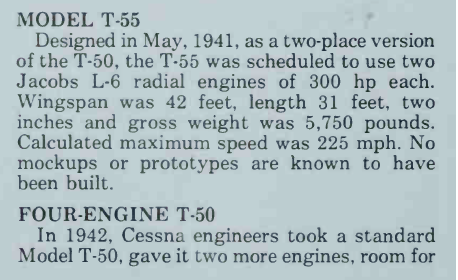

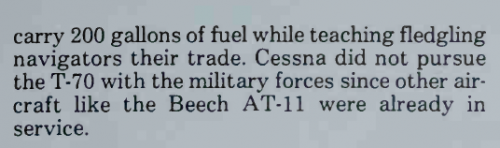

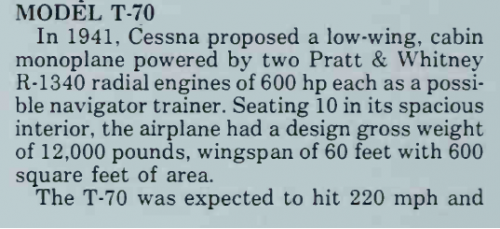

four engined light transport aircraft,T-55 was two place version of T-50 and T-70 was
two seat navigator trainer low-wing cabin monoplane.


Cessna A Master's Expression


Attachments

  • P-370.png
    461.7 KB · Views: 187
  • T-50  II.png
    T-50 II.png
    240.3 KB · Views: 33
  • T-55 & T-50.png
    T-55 & T-50.png
    95.4 KB · Views: 53
  • T-50.png
    65.7 KB · Views: 63
  • CTP-1   II.png
    CTP-1 II.png
    188.7 KB · Views: 159
  • CTP-1   I.png
    CTP-1 I.png
    299.6 KB · Views: 167
  • CTP-1.png
    59.2 KB · Views: 172
  • 370.png
    139.2 KB · Views: 168

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
And;


Attachments

  • T-70.png
    94.6 KB · Views: 23
  • T-70  II.png
    T-70 II.png
    48.6 KB · Views: 27

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,892
Reaction score
1,567
Fascinating stuff Hesham! I wonder if the two-seat T-55 was meant as a competitor to the Curtiss-Wright CW-25/AT-9?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
Apophenia said:
Fascinating stuff Hesham! I wonder if the two-seat T-55 was meant as a competitor to the Curtiss-Wright CW-25/AT-9?


Thank you my dear Apophenia,


and about competing Curtiss-Wright CW-25/AT-9,may be that's right.
