Unbuilt F-89s

Dronte

Argentinean ugly bird
Joined
Feb 19, 2006
Messages
96
Reaction score
30
Of the diverse not built variants of the F-89 Scorpion I have been able to get only the images here shown. It is supposed that existed proposals with swept or delta wing configurations but I have never seen the drawings of the same ones.
Can somebody make some contribution in this respect?


Attachments

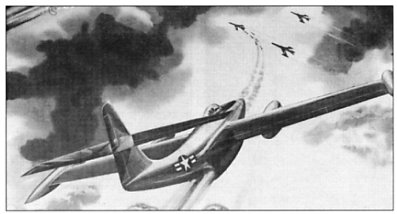

  • f89e.jpg
    20.1 KB · Views: 930

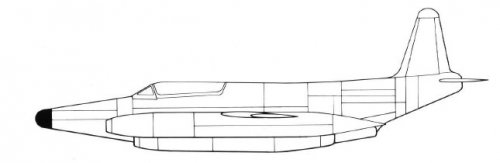

  • F-89F profile.jpg
    F-89F profile.jpg
    12.5 KB · Views: 787

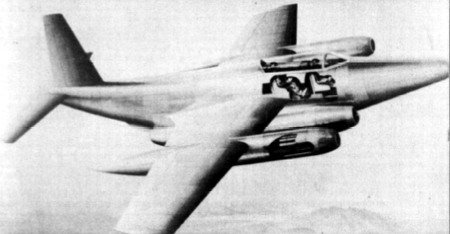

  • f89f.jpg
    26.6 KB · Views: 834

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,586
Reaction score
423
Hi Dronte,

I have the following references:

Northrop submited a design based in the F-89 to Strategic Fighter GOR 101 WS105A which was won by McDonnell Douglas Model 36W (USAF designation F101 Voodoo)
Source:
X-Fighters. Steve Pace Motorbooks


Begining in 1953, Northrop studied a series of fighters to meet the Long Range Interceptor-X RFP. The very first design were the Delta Scorpion concept. Later it evolved into the N-126.
From the sources I have read, Strategic Fighter could have been similar to Delta Scorpion study. (But this is only my personal supposition)
Source:
Playing the proposal game by Joe Mizrahi and collaboration from Ira Chart. Airpower magazine May 1991
Valkyrie. Jenkins & Landis. Speciality Press.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,432
Reaction score
287
And Northrop was in the Cal Tech wind tunnel when they got the news they'd been downselected in the semi-final LRI-X competition, leaving only Lockheed and NAA. I worked with a gent at Northrop who'd been on that team as a young engineer. He finally retired in the early 90s after 45+ years with Northrop.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,586
Reaction score
423
From Wings of Fame Volume 6 F-89 Variant Briefing.

"Swept Wing F-89" (Never given designation by Northrop or the USAF)
While the F-89B was taking shape, Northrop explored a 35º swept wing alternative which was also slightly smaller and lighter but was never purchased.
The selected engine was the Allison 450E-1 producing 44,48 kN thurst or 66,73 kN with afterburner. Spected max speed was 731 mph (1176 km/h) at sea level and 661 mph (1063) km/h at 65000 feet (19800 m)


F-89E (re-Issued designation) Interim Escort Fighter
Engine: GE J47-GE-21 with afterburner
Wider span wing with thinner airfoil and tapered leading and trailing edges
Single seater
Mid-span rocket pods (also for main landing gear)
Options for the nose (10 0,50 machine guns or 6 20 mm cannons or 6 MX-904 rockets
Never progresed beyond the design study stage


Attachments

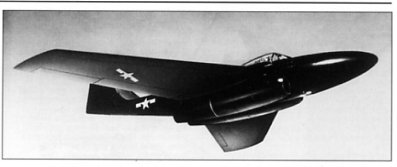

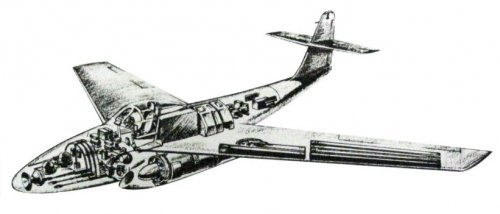

  • F89 Swept wing.jpg
    F89 Swept wing.jpg
    35.6 KB · Views: 845

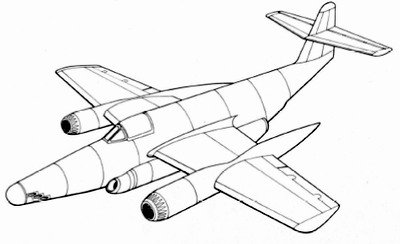

  • F-89E Interim Escort Fighter.jpg
    F-89E Interim Escort Fighter.jpg
    48.5 KB · Views: 843

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763

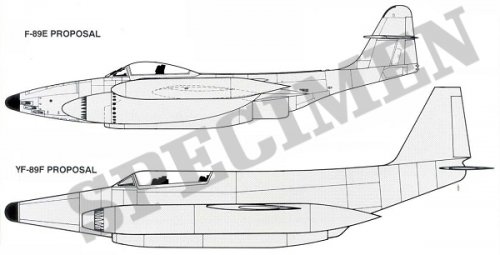

The proposed F-89E and YF-89F.

Please note that the squared fin of the F-89F is quite different from the rounded version as it is drawn in the other side view seen further above.


Attachments

  • F-89E and YF-89F proposals (small).jpg
    F-89E and YF-89F proposals (small).jpg
    80.8 KB · Views: 199

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763
Both tails configurations illustrated, the small rounded one being the final one...


Attachments

  • F-89F.jpg
    295.5 KB · Views: 246

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,164
Reaction score
99

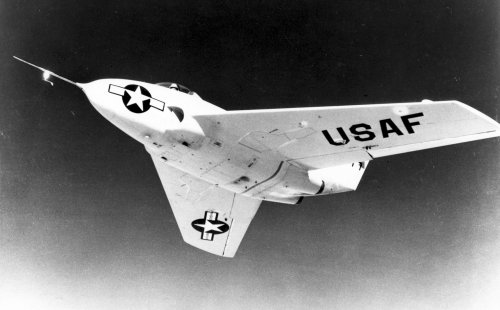

The swept-wing F-89 gives off that X-4 feeling.


Attachments

  • Northrop_X-4_060912-F-1234S-005.jpg
    225.4 KB · Views: 90

RyanC

Crazy Researcher
Top Contributor
Senior Member
Joined
Dec 19, 2006
Messages
879
Reaction score
211
Website
www.alternatewars.com

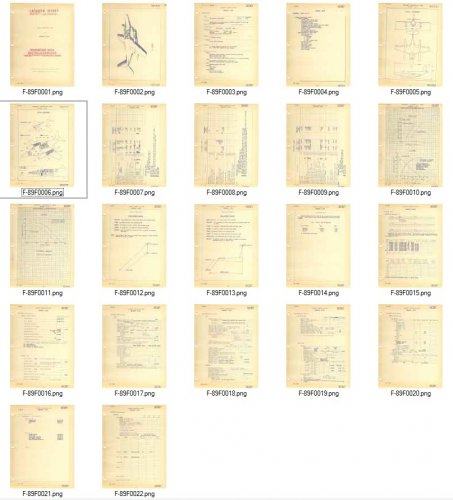

I've got SACs for:

F-89F Scorpion CS - 24 March 1952
F-89F Scorpion SAC - 24 March 1952

Advanced F-89 CS - 3 December 1951
Advanced F-89 Scorpion SAC - 3 December 1951

At the usual site. They might refer to your unbuilt F-89s.

Link to usual Site


shockonlip

ACCESS: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
12
The most spectacular Northrop delta, in my opinion, was the N-144. Pometablava
gave you a good heads up on some data above.

If you want to get an idea of wat we're talking about, go to Scott's
site: http://images.google.com/imgres?imgurl=http://www.up-ship.com/drawndoc/adwg31ani.gif&imgrefurl=http://www.up-ship.com/drawndoc/drawndocair.htm&usg=__gwOLX6HaekDiPp20glZvFixIF7c=&h=639&w=900&sz=147&hl=en&start=1&um=1&tbnid=edse_zR2k3rBKM:&tbnh=104&tbnw=146&prev=/images%3Fq%3DNorthrop%2BN-144%26hl%3Den%26sa%3DN%26um%3D1

and search on that page for: "Northrop N-144 drawings".

Click it, and it will give you a nice idea of what we're talking about.

I have purchased this particular blueprint from Scott, and you can even read
the pilots driver's license! OK - just kidding on that, but you can blow up the
image and easily read all the fine print that you will see on the picture I described
above, and see a lot of detail.

The mags and books Pometablava mentioned above have images of the models.

I can just see myself sitting in the cockpit of this thing ang looking out
and back at those gorgeous wings and inlets! WOW! I wanna start the
engines and go fly!

Larry


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763
Yeah, I've got that Airpower issue with the Northrop N-126 and N-144 proposals and it's a great mag!


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
58

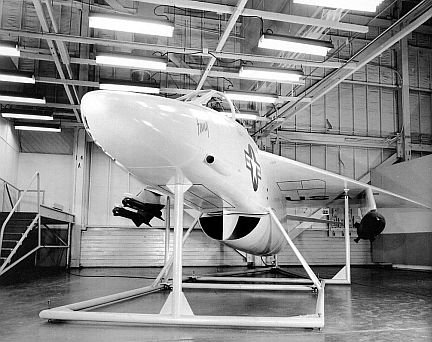

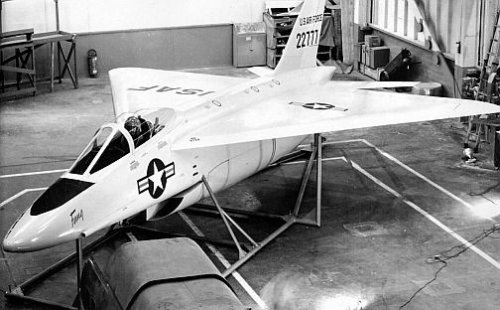

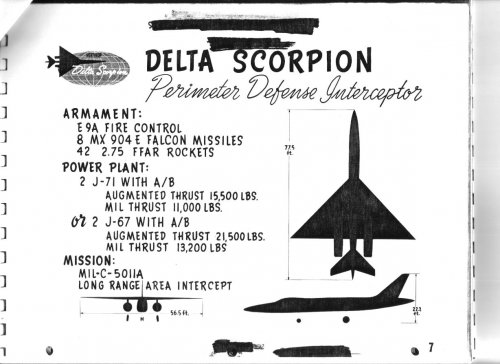

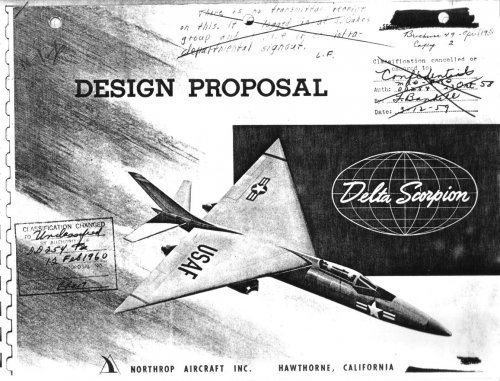

Then came Fang...


Attachments

  • fang2-2.jpg
    39.7 KB · Views: 181
  • fang1-2.jpg
    41.8 KB · Views: 167

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,688
Reaction score
780
Nice Scott - a N-102 Fang on Steroids...

Enjoy the Day! Mark


CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
5
pometablava said:
From Wings of Fame Volume 6 F-89 Variant Briefing.

"Swept Wing F-89" (Never given designation by Northrop or the USAF)
While the F-89B was taking shape, Northrop explored a 35º swept wing alternative which was also slightly smaller and lighter but was never purchased.
The selected engine was the Allison 450E-1 producing 44,48 kN thurst or 66,73 kN with afterburner. Spected max speed was 731 mph (1176 km/h) at sea level and 661 mph (1063) km/h at 65000 feet (19800 m)

Based on the description, it sounds like the Allison 450E-1 is another name for the J71.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,042
Reaction score
534
Hey Orionblamblam - a little of topic, but have you ran a 'Delta Scorpion' post ?

Regards
Pioneer


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763

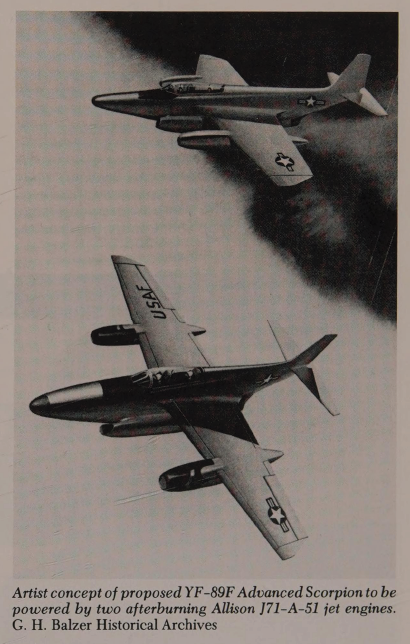

An old illustration of the F-89F proposal:


Attachments

  • F-89F illustration.jpg
    F-89F illustration.jpg
    128.5 KB · Views: 716

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,688
Reaction score
780

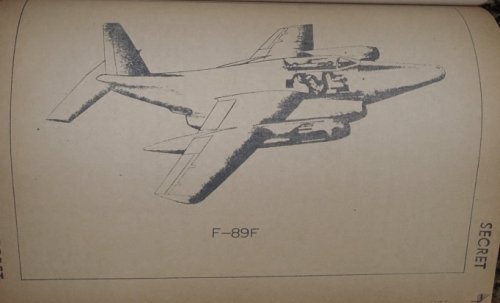

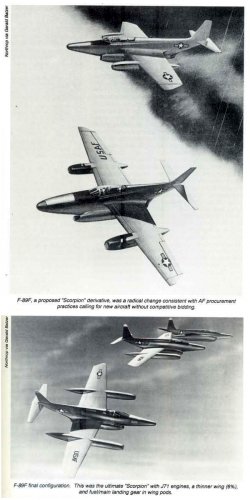

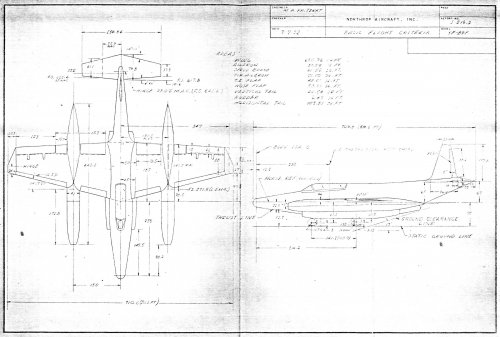

Greetings All -

A few items from the Gerald Balzer collection...

Enjoy the Day! Mark


Attachments

  • zF-89F Scorpion  2V.jpg
    zF-89F Scorpion 2V.jpg
    136.8 KB · Views: 534
  • zYF-89F 2V Jul-7-52.jpg
    zYF-89F 2V Jul-7-52.jpg
    416.6 KB · Views: 550

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,205
Reaction score
126

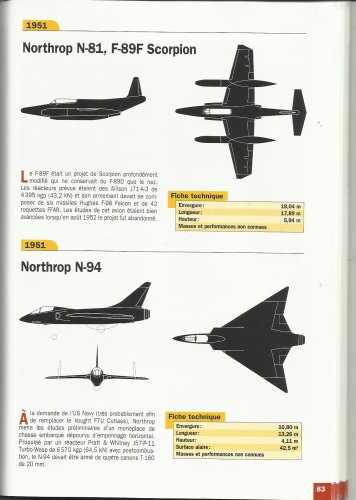

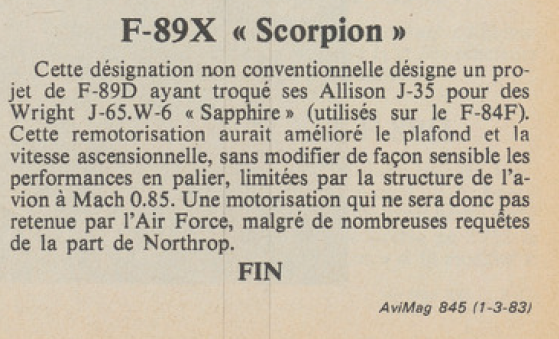

from the "minidocavia"


Attachments

  • test.jpg
    231.3 KB · Views: 533
