Two unclear Boeing designs

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,764
Reaction score
805
Hi,

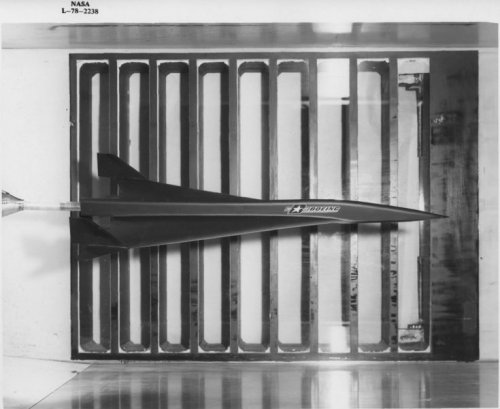

here is two unclear Boeing designs,one for Boeing as SST
aircraft of 1966,but they wright on it SA-983,and was
that mean Model-983 ?,and the second is a Boeing-recca-
strike of 1978,and I know Boeing had the same design as
Pre-ATF fighter not strike.

http://crgis.ndc.nasa.gov/historic/Additional_Photos_for_Unitary_and_Continuous-Flow_Hypersonic_Tunnels_4


Attachments

Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,593
Reaction score
25
starviking said:
2 resembles a Mach-5 aircraft that featured in Bill Gunston's Warplanes of the Future, if I recall correctly.

Flateric's first image in this post seems to be the same aircraft.

http://www.secretprojects.co.uk/forum/index.php/topic,398.msg2552.html#msg2552
The aircraft you're referencing in the link was not a Mach 5 aircraft, it was a supercruise demonstrator aircraft in the Mach 2 to 3 regime. I remember seeing the Boeing blue prints for it back in college when we were working on designs for the HSCT.


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,363
Reaction score
36
#2 resembles Boeing 1979 high speed heavy interceptor, 45 000 kg class posted here:

http://www.secretprojects.co.uk/forum/index.php/topic,398.0.html

Please look at reply#4 from flateric


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,593
Reaction score
25
pometablava said:
#2 resembles Boeing 1979 high speed heavy interceptor, 45 000 kg class posted here:

http://www.secretprojects.co.uk/forum/index.php/topic,398.0.html

Please look at reply#4 from flateric
I did and it's the design I'm talking about. It isn't a Mach 5 vehicle.


starviking

CLEARANCE: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
946
Reaction score
14
Sundog said:
starviking said:
2 resembles a Mach-5 aircraft that featured in Bill Gunston's Warplanes of the Future, if I recall correctly.

Flateric's first image in this post seems to be the same aircraft.

http://www.secretprojects.co.uk/forum/index.php/topic,398.msg2552.html#msg2552
The aircraft you're referencing in the link was not a Mach 5 aircraft, it was a supercruise demonstrator aircraft in the Mach 2 to 3 regime. I remember seeing the Boeing blue prints for it back in college when we were working on designs for the HSCT.
I'm working from memory on the "Mach 5" regime, so it's liable to error. Does anyone have a copy of "Warplanes of the Future" handy to reference to see what Bill Gunston thought it was?


hark40

CLEARANCE: Restricted
Joined
Aug 7, 2010
Messages
22
Reaction score
0
starviking said:
Sundog said:
starviking said:
2 resembles a Mach-5 aircraft that featured in Bill Gunston's Warplanes of the Future, if I recall correctly.

Flateric's first image in this post seems to be the same aircraft.

http://www.secretprojects.co.uk/forum/index.php/topic,398.msg2552.html#msg2552
The aircraft you're referencing in the link was not a Mach 5 aircraft, it was a supercruise demonstrator aircraft in the Mach 2 to 3 regime. I remember seeing the Boeing blue prints for it back in college when we were working on designs for the HSCT.
I'm working from memory on the "Mach 5" regime, so it's liable to error. Does anyone have a copy of "Warplanes of the Future" handy to reference to see what Bill Gunston thought it was?
According to the picture caption (pg92), it was one of many Boeing ATF designs, specifically a "supercruise" warplane for sustained cruising and manoeuvring at Mach numbers well into the supersonic region. Shielded inlets to the engine pods which had unvectored nozzles. There was also a long internal weapon bay in the blended fuselage.

The image in the book is that of the first image in Flateric's post, but only shows the lower of the two aircraft in that image.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
187
dunno where 'Mach 5' appeared from, I'll check my Gunston's copy in the evening
while a/c on artist's impresion is surely mid-wing, WT model is low-wing vehicle
but, otherwise, aerodynamic planform of both are very close


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,764
Reaction score
805
Hi,

I think it was 5 Mach fighter.


Attachments

fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,122
Reaction score
97
Negative, it is just a supercruise aircraft concept.
For me, Mach 5 and beyond is hypersonic.

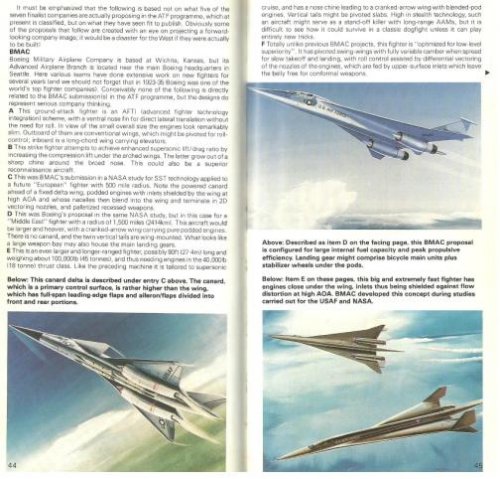

Picture caption:
Below: This was a Boeing Military Airplane Co [BMAC] came up with after USAF studies for a supercruise (supersonic cruise) fighter. It was planned with stealth in mind, but its IR signature and noise would be very obtrusive.
Source: Bill Gunston - Stealth Warplanes - Issue 1988 - page 37

Orionblamblam said:
flateric said:
Boeing 1979 high speed heavy interceptor, 45 000 kg class, and this-design-based SSBJ patent images
Since it has come up again, that's a Model 606. Probably a Model 733-606-12. Model 733 was a general holding-pen of a designation for Boeing SST designs, and there was a series of Model 733-606-XYZ designs (also at least one 733-602) that were not SSTs, but demonstrators, bombers and interceptors based on SST work. I don't really have much on them, though.


starviking

CLEARANCE: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
946
Reaction score
14
hesham said:
Hi,

I think it was 5 Mach fighter.
I can't get that from the page you posted - just supersonic cruise, I guess I must me thinking of a different aircraft - I have vague memories of a very large Lockheed design with large variable ramps in the book too. I did misremember the initial title of the book book though - I have 'Future Fighters' - the small digest sized hardback.


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,593
Reaction score
25
As I stated in my original post, we had the blue prints in college with the performance specs; it was not a Mach 5 aircraft. I wouldn't treat Gunston's work as a reliable resource, although I've enjoyed many of his books.


starviking

CLEARANCE: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
946
Reaction score
14
Sundog said:
As I stated in my original post, we had the blue prints in college with the performance specs; it was not a Mach 5 aircraft. I wouldn't treat Gunston's work as a reliable resource, although I've enjoyed many of his books.
Apologies, I didn't read your post clearly - my attention span has been degraded by 'todderitis'. To be honest though, Bill's book might not have made the Mach 5 claim, though the black colour scheme of the plane would certainly suggest speed to the Blackbird generation - which might be what happened to me ;)


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
440
Reaction score
141

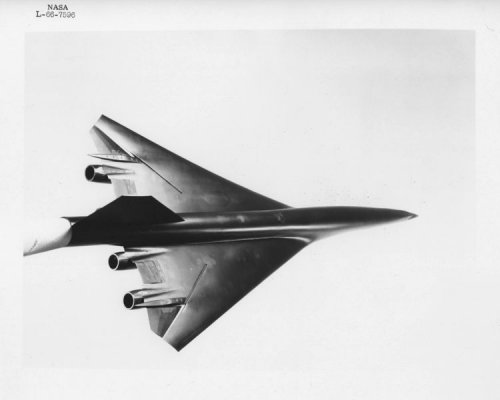

The airplane in the first image is the Boeing 2707-100/200, given that the engines are mounted underneath the tailplane. More images of the wind tunnel of the VG Boeing 2707 are available at this link:
